ECOPOD-NX Advanced Wastewater Treatment Unit

ECOPOD-NX Advanced Wastewater Treatment Units are an innovative approach to onsite wastewater disposal where nitrogen reduction is required. The ECOPOD-NX technology has been tested under NSF/ANSI 40 and 245 with an average nitrogen reduction of greater than 80% exceeding Class 1 requirements with an average effluent quality of 7 mg/L BOD5 and 7 mg/L TSS.

Product Specifications

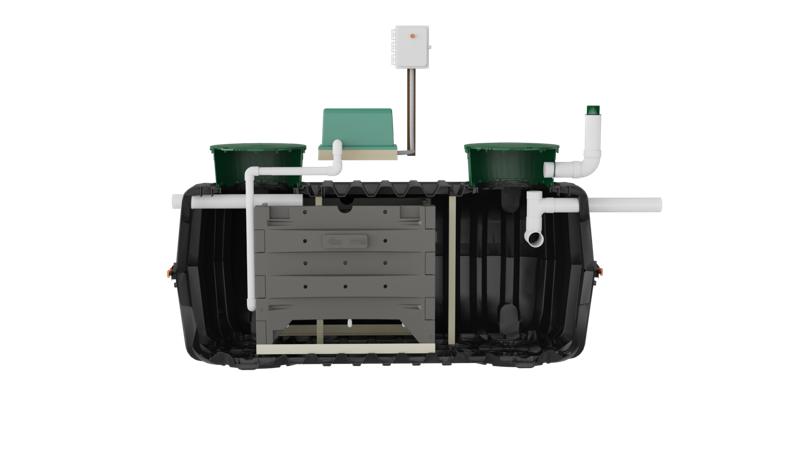

ECOPOD-N - CM-1060

ECOPOD-NX Advanced Wastewater Treatment Unit

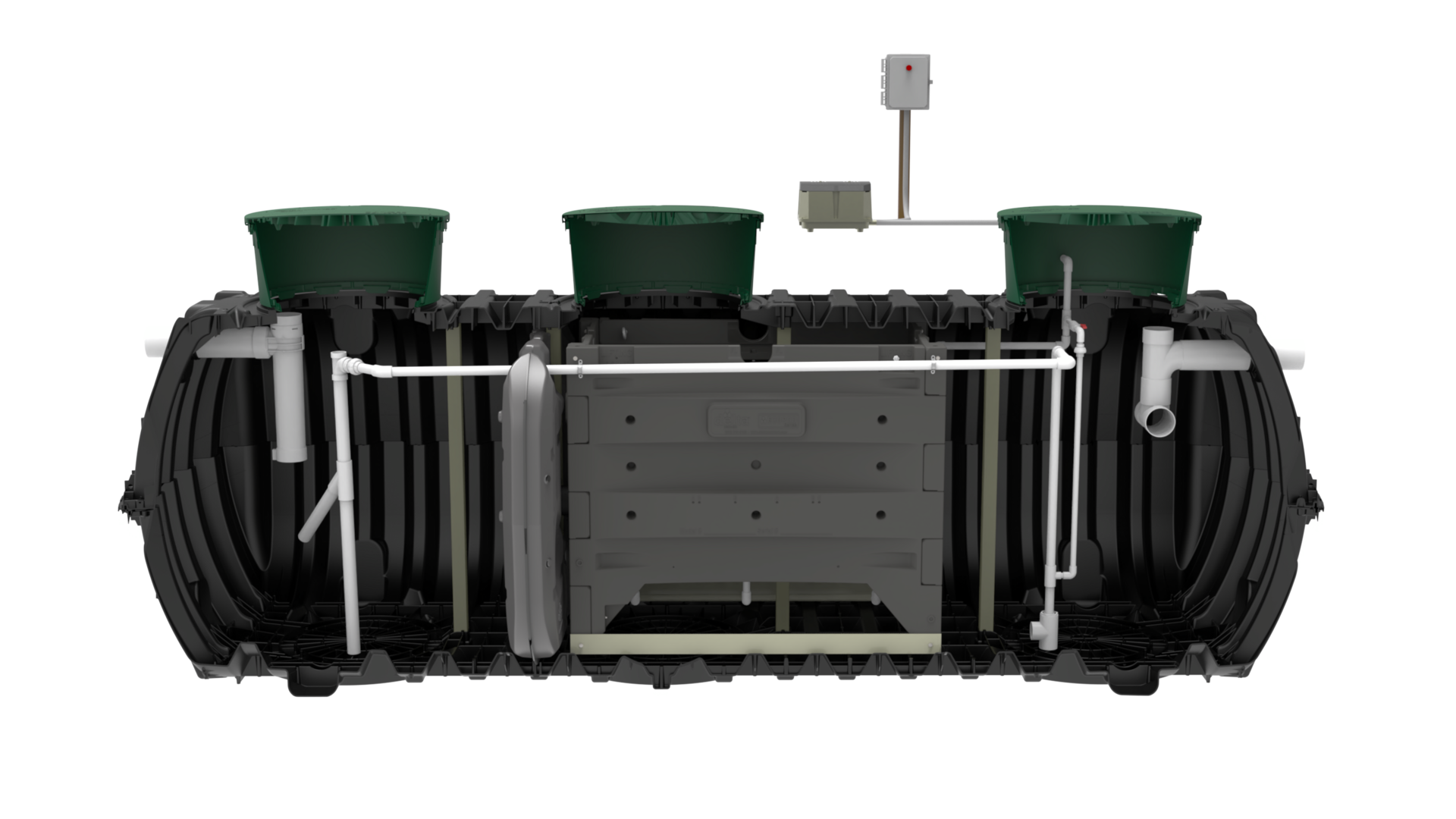

Model E50-NX 1530 1 tank configuration
Model E50-NX 1060 2 tank configuration
Model E60-NX 1060 2 tank configuration

Benefits:

  • The moving bed bio-reactor process provides inherent scouring of the disc media to prevent fouling within the reactor box, making it easy to maintain.
  • Recirculation of wastewater back to the anoxic pretreatment chamber allows for the conversion of nitrates into inert nitrogen gas, supporting high total nitrogen treatment performance.
  • The ECOPOD-NX is a high-performing advanced treatment unit available in durable Infiltrator Tanks.
  • Industry-proven solution with both NSF/ANSI 40 and NSF/ANSI 245 certifications.
  • Use of Infiltrator tanks as the treatment vessel ensures installations can withstand the rigors of a typical onsite installation environment.
  • Designed specifically to minimize sludge production for lower long-term maintenance.
  • Low life cycle costs resulting from efficient design with minimal maintenance requirements.
  • Patented non-clogging air delivery system.
  • Support through a dedicated team of engineers who act like an extension of your own team.

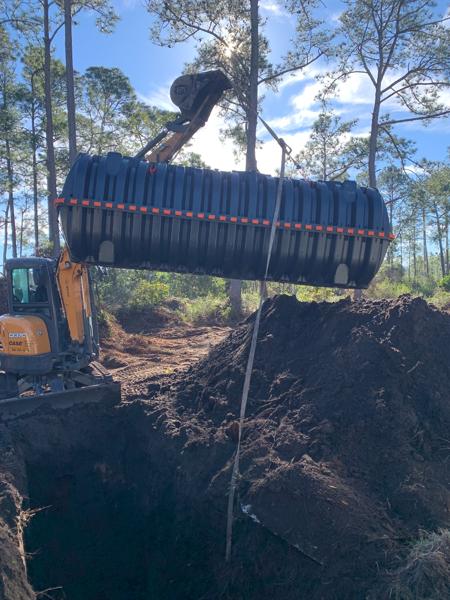

ECOPOD-NX - IM-1530 Installation

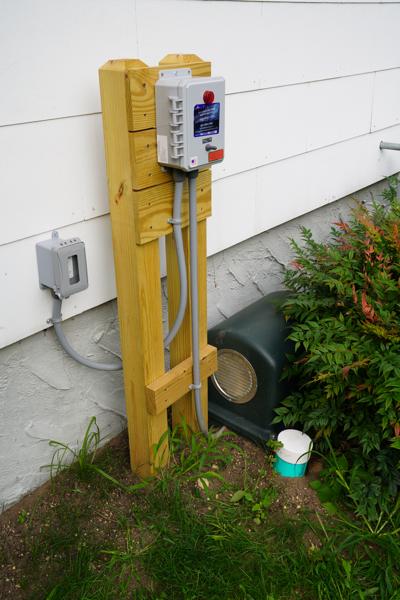

ECOPOD-NX Control Panel Aerator Venting
ECOPOD-NX - IM-1530 Installation
ECOPOD-NX Control Panel Aerator Venting
