Aquaworx Intelligent Pump Control Panel

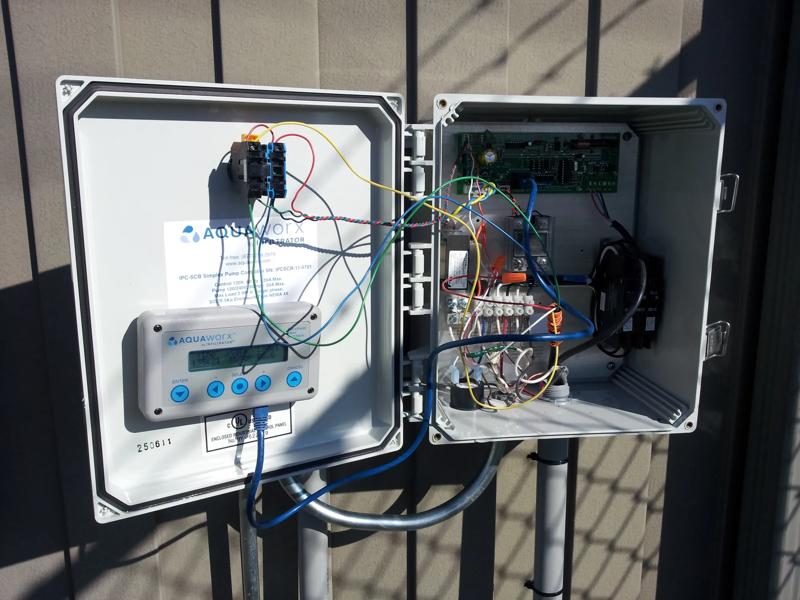

The Aquaworx Intelligent Pump Control Panel provides an innovative approach to pump control. Designed specifically for the onsite industry, the IPC Panel leverages simple pressure transducer technology for the enhancement of pump system performance and ease of installation. Relying on an embedded microprocessor in the pump controller and a floatless pressure transducer in the pump chamber, the IPC Panel monitors liquid levels, controls pumping time intervals, and logs events in real-time.
Benefits:
- NEMA 4X enclosure
- Manual / Off / Auto Operation
- Audible alarm with push to silence
- Floatless pressure transducer in the pump chamber
- Programmable on and off timer
- Programmable start, stop and alarm level
- Date / time stamped event log
- Simplified wiring for easy installation

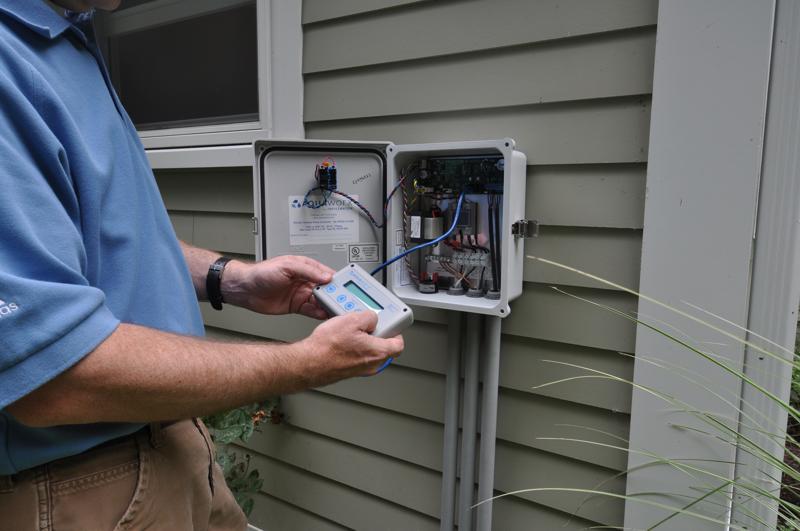

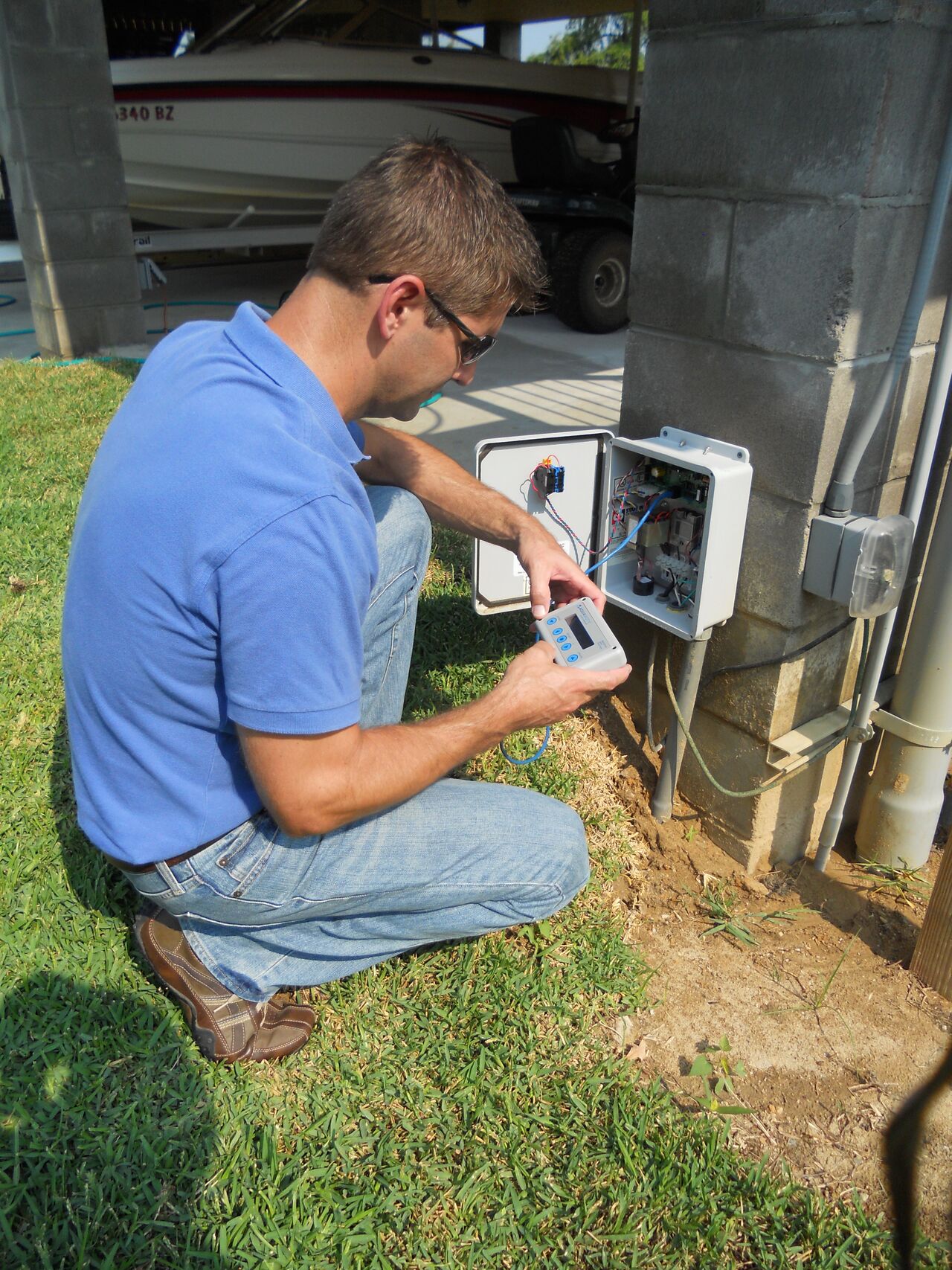

- Unique user interface with Mountable and Removable Controller (MARC) or the Aquaworx Tapper
- Data logging provides easy access to historical data
- Accurate timing eliminates need for stopwatch
- Liquid level displayed for draw-downs means no tape measure required
- Veto level override function allows different timing at different loads
Product Videos
Compatible Products
Four Troubleshooting Tips for the Aquaworx Control Panel: The Intelligent Pump Control
Visual Inspection of the Panel Components, the type of battery, AAA battery may be corroded. Other components damaged, can affect level sensor, a type of sensor. A new circuit board may be necessary for the long term. Varistor protects against high voltages and panel components, acting as a short circuit (create blackened area if damaged). High Alarm, a solid red light and audible alarm mean it is in a high alarm status. Any issues can increase flow to the tank. Checking the Pump and Solid State Relays, pump can be manually operated using the MARC controller or Tapper handheld controllers. Can be manually run without controller. Level Sensor Issues, with three flashes and a series of beeps. If battery is good, check to see for other issues. Sensor wire cannot be spliced to add length, so purchase one with sufficient length. Sensors are sold in various lengths and are cost effective.
