Arc 24 Chamber
The Arc 24 septic leaching chamber is a sturdy, lightweight plastic unit that combines maximized infiltrative surface area and storage capacity with an improved structural design to handle most any conventional leachfield system challenge without sacrificing performance.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Arc 24 Chamber
| Size |
22"W x 63"L x 12"H (559 mm x 1600 mm x 305 mm) |
|---|---|
| Effective Length | 60" (1524 mm) |
| Weight | 13 lbs |
| Total Bottom Area | 7.96 sq ft |
| Storage Capacity | 37.5 gal (5.02 cu ft) |
Benefits:
- Injection-molded from polyolefin for lightweight and sturdy design

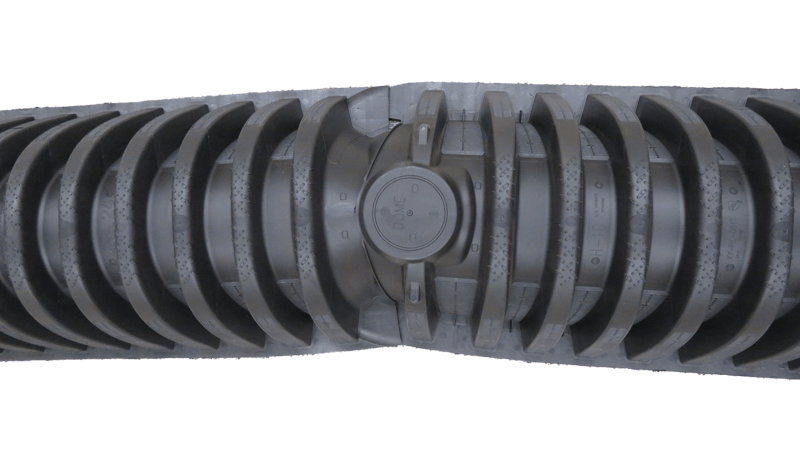

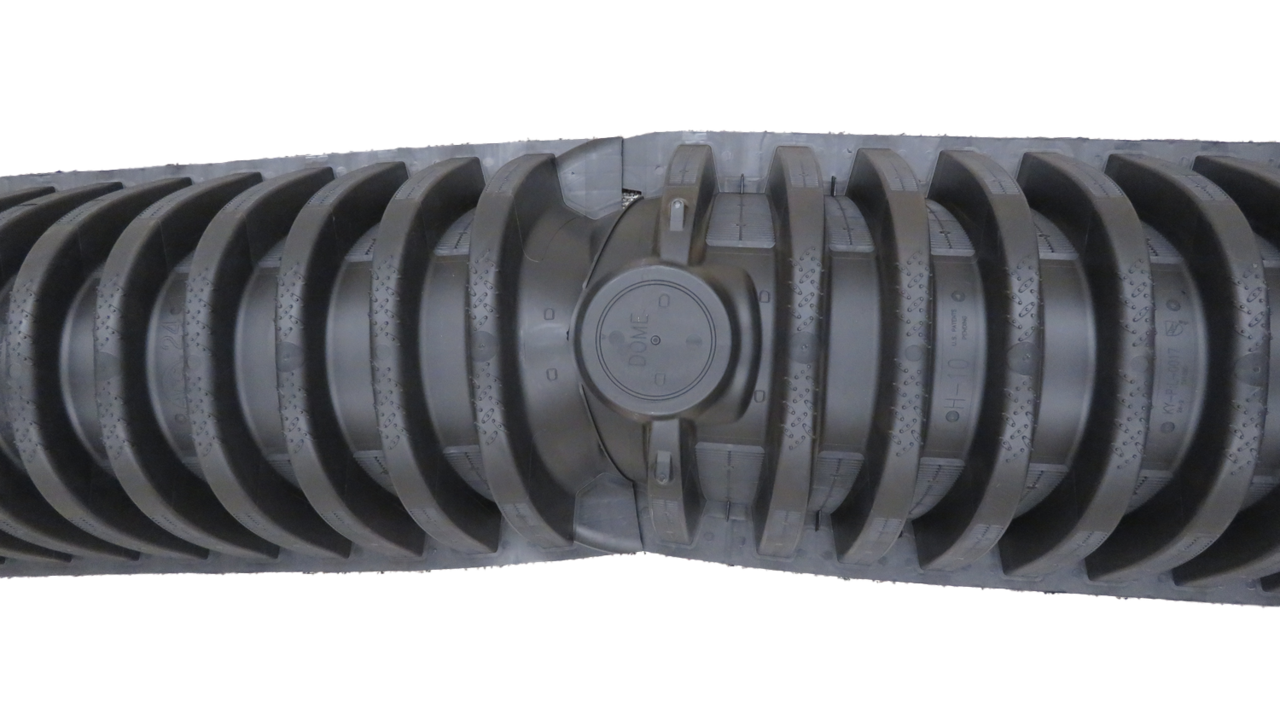

- 20° integral articulating joint is ideal for either straight or contoured septic leachfield applications
- Designed to accommodate both gravity-fed and pressure-dosed systems

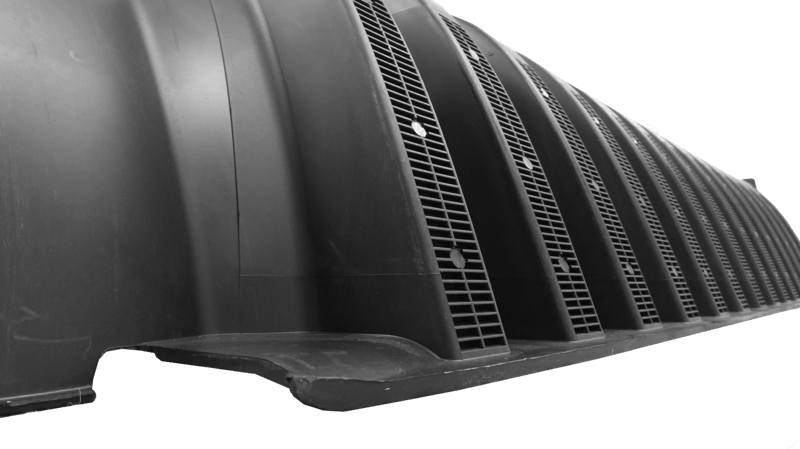

- Corrugated chamber design provides increased load bearing capability in the trench

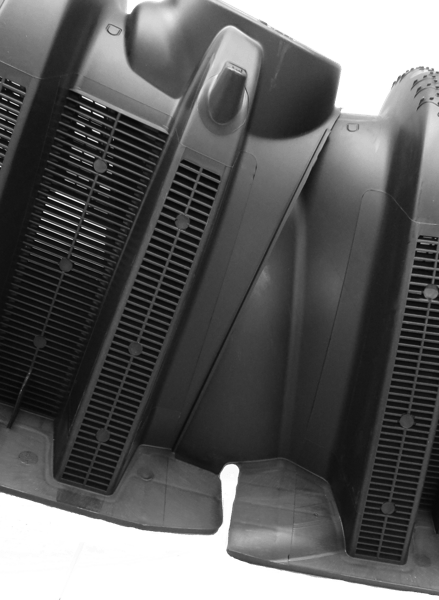

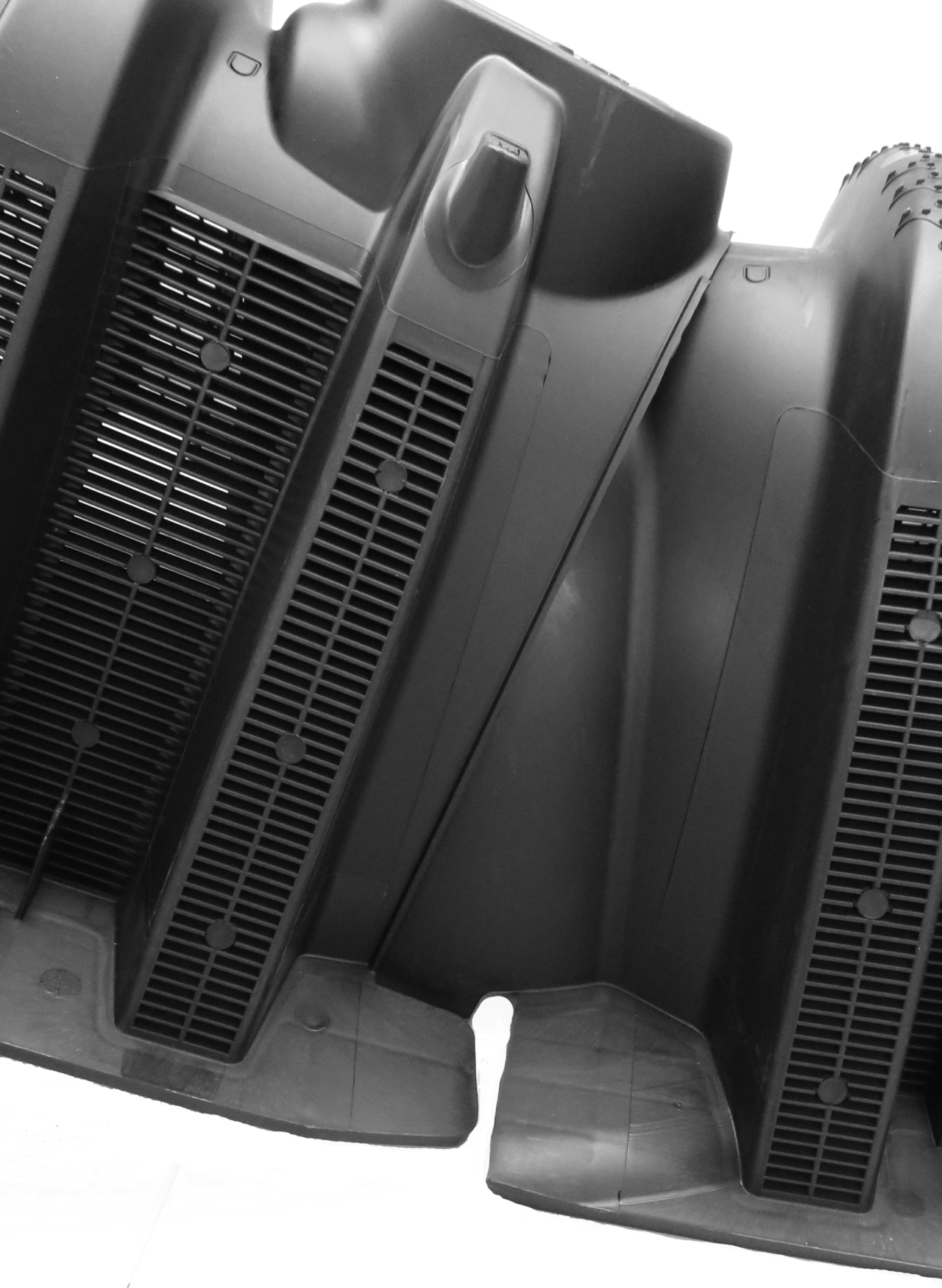

- “Lock and Drop” joint provides a more positive connection during installation and backfill

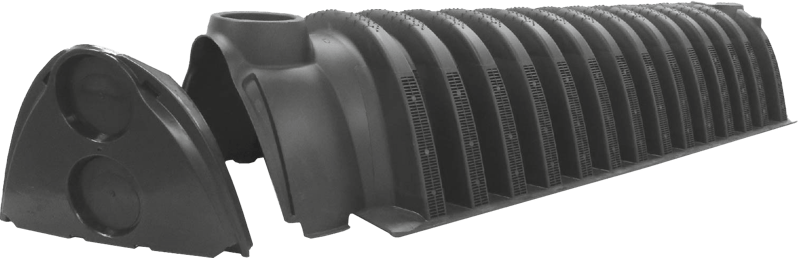

- Universal inlet/outlet endcap
- Inspection vent ports on every unit with easy-to-remove knockouts for maximum job site flexibility
- Convenient five-foot lengths are easy to handle
- Quickly installed by one person into two-foot wide trench or bed applications
- Increased plumbing option with Side Port Coupler component which snaps in place to allow side entry at any joint throughout trench line
- Diamond plate texture increases slip resistance and enhances ease of installation
