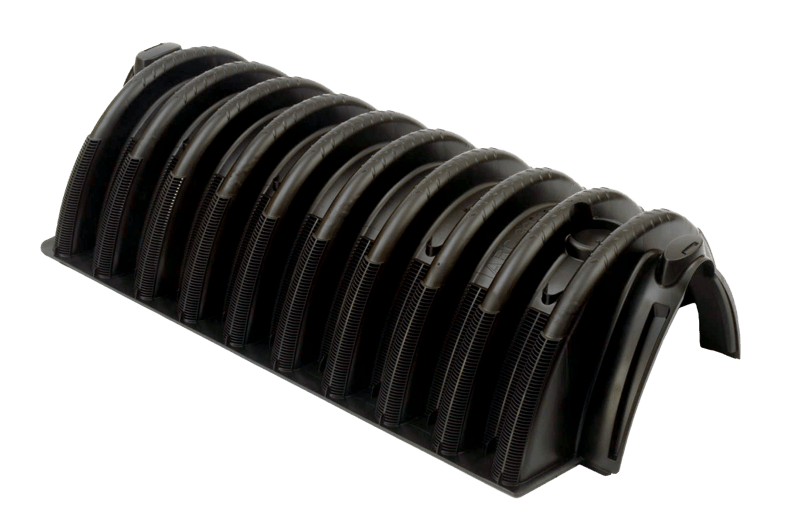

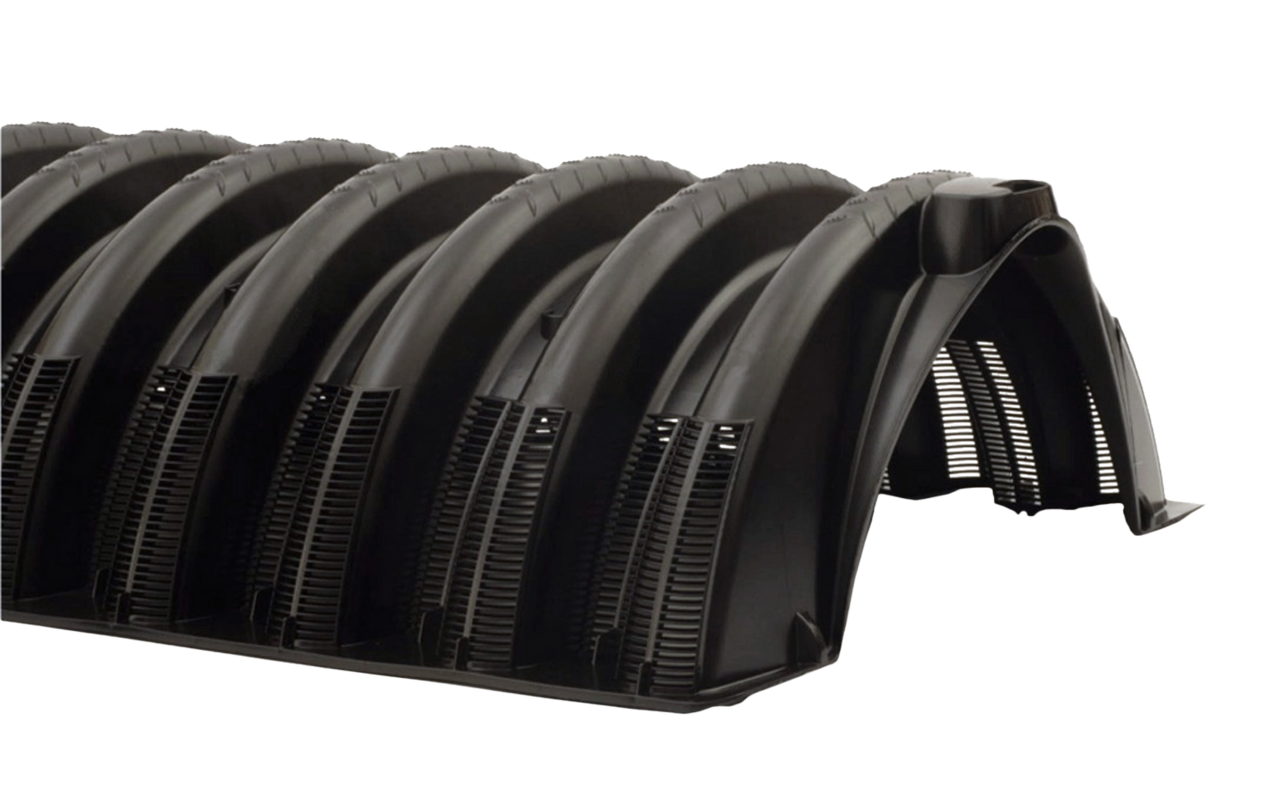

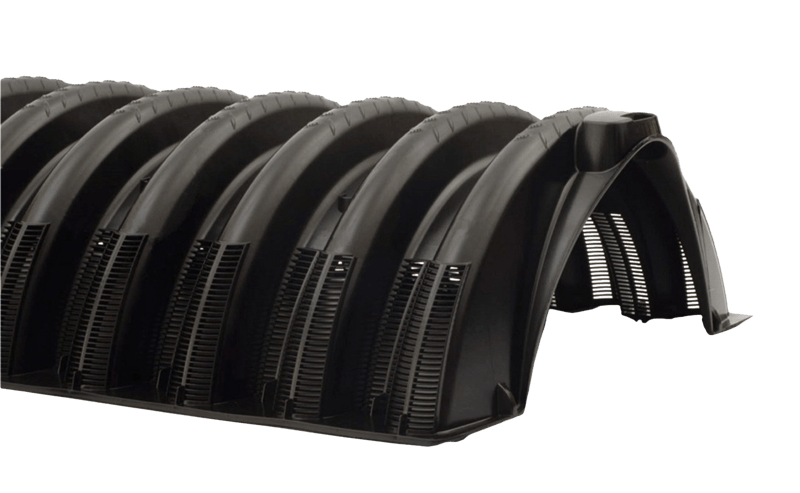

Arc 36 High Capacity Chamber
The Arc 36 High Capacity (HC) septic chamber is a sturdy, lightweight plastic unit that combines maximized infiltrative surface area and storage capacity with an improved structural design to handle most any conventional leachfield system challenge without sacrificing performance.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Arc 36 High Capacity Chamber
| Size |
34"W x 63"L x 13"H (864 mm x 1600 mm x 330 mm) |
|---|---|
| Storage Capacity | 43 gal (163 L) |
| Weight | 17 lbs |
| Total Bottom Area | 12.27 sq ft |
| Effective Length | 60" (1524 mm) |
Benefits:
- Injection-molded from polyolefin for lightweight and sturdy design

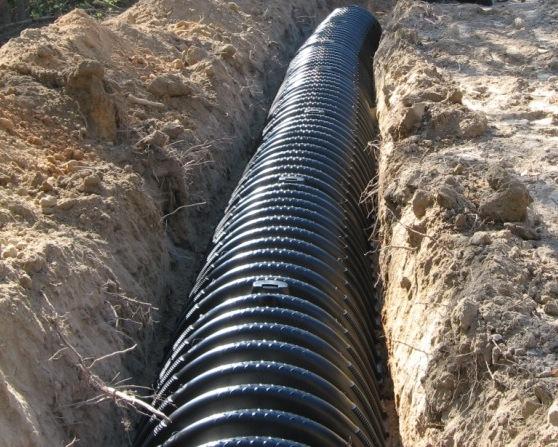

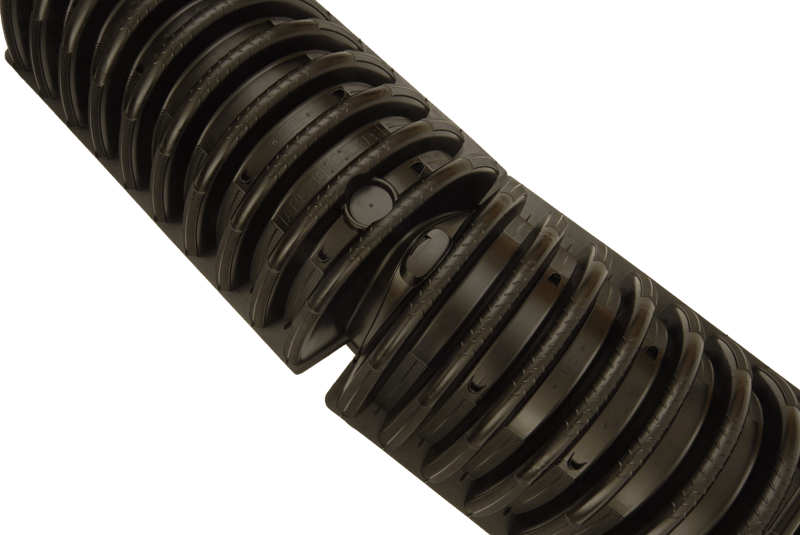

- 20° integral articulating joint is ideal for either straight or contoured septic leachfield applications
- Designed to accommodate both gravity-fed and pressure-dosed systems
- Corrugated chamber design eliminates flat surfaces and provides increased load bearing capability in the trench

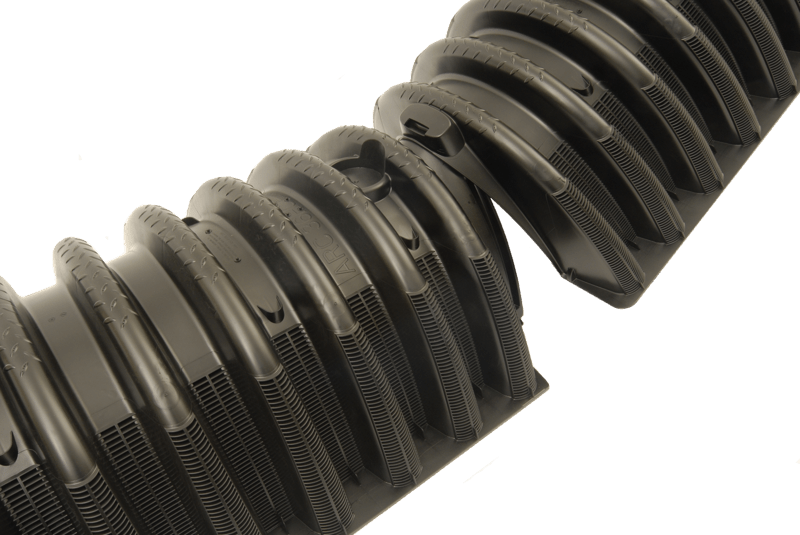

- “Lock and Drop” joint provides a more positive connection during installation and backfill

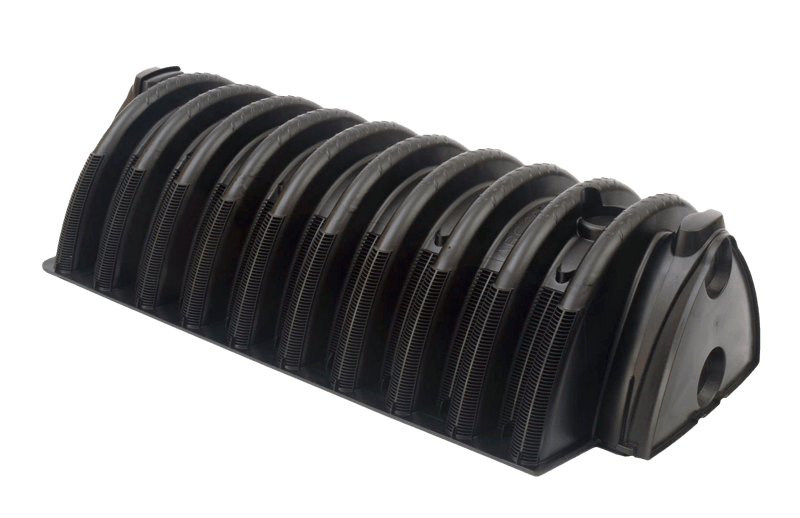

- Universal inlet/outlet endcap
- Inspection vent ports on every unit with easy-to-remove knockouts for maximum job site flexibility
- Convenient five-foot lengths are easy to handle

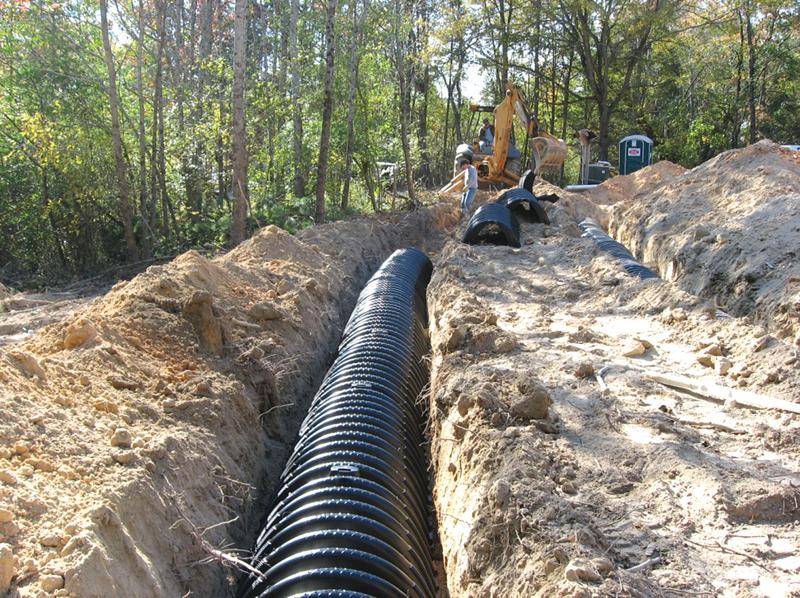

- Quickly installed by one person into three-foot wide trench or bed applications
- Increased plumbing option with Side Port Coupler component which snaps in place to allow side entry at any joint throughout trench line
- Diamond plate texture increases slip resistance and enhances ease of installation
