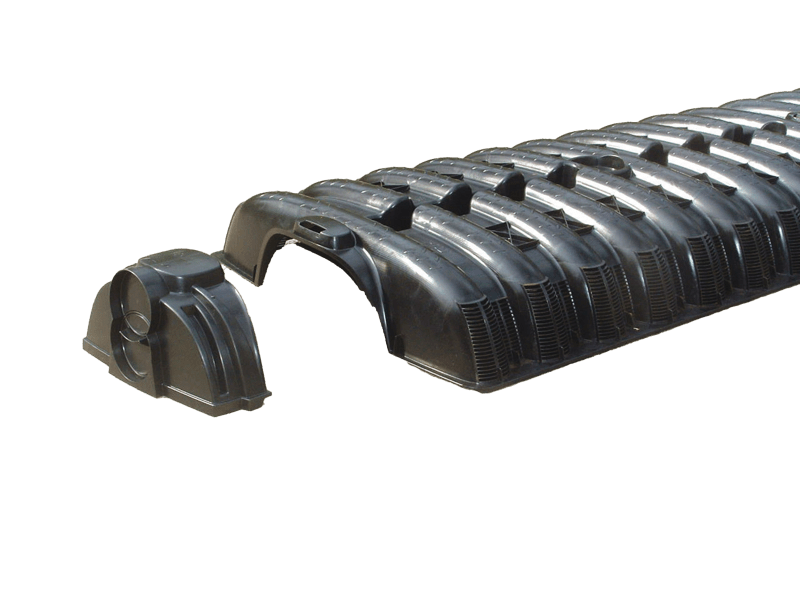

Arc™ 36 Low Profile Chamber
The Arc 36 Low Profile (LP) septic leaching chamber is a sturdy, lightweight plastic unit that combines maximized infiltrative surface area and storage capacity with an improved structural design to accommodate most conventional leachfield system challenges without sacrificing performance.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Arc 36 Low Profile Chamber
| Size |
34"W x 63"L x 8"H (864 mm x 1600 mm x 200 mm) |
|---|---|
| Effective Length | 60" (1524 mm) |
| Weight | 14 lbs |
| Total Bottom Area | 2.83 sq ft |
| Capacity | 43.7 gal (5.84 cu ft) |
Benefits:
- Injection-molded from polyolefin for lightweight and sturdy design
- 20° integral articulating joint is ideal for either straight or contoured septic leachfield applications
- Designed to accommodate both gravity-fed and pressure-dosed systems
- “Lock and Drop” joint provides a more positive connection during installation and backfill

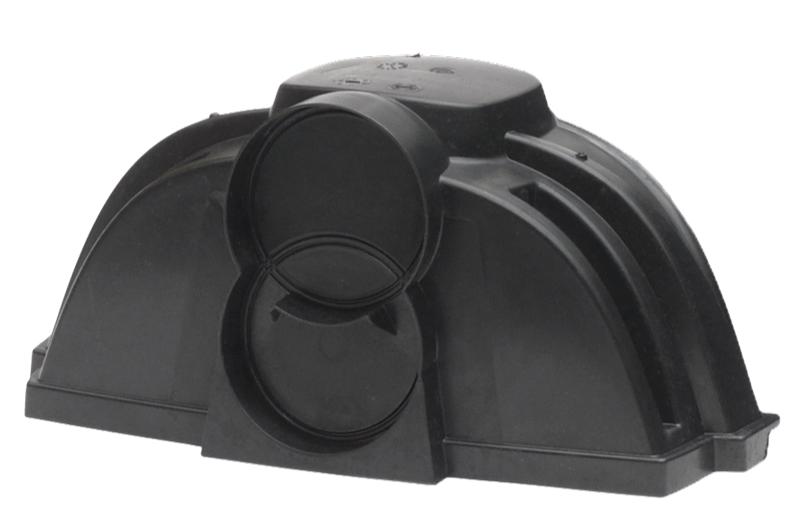

- Universal inlet/outlet endcap
- Inspection / vent ports on every unit with easy-to-remove knockouts for maximum job site flexibility
- Convenient five-foot lengths are easy to handle
- Quickly installed by one person into three-foot wide trench or bed applications
- Diamond plate texture increases slip resistance and enhances ease of installation
