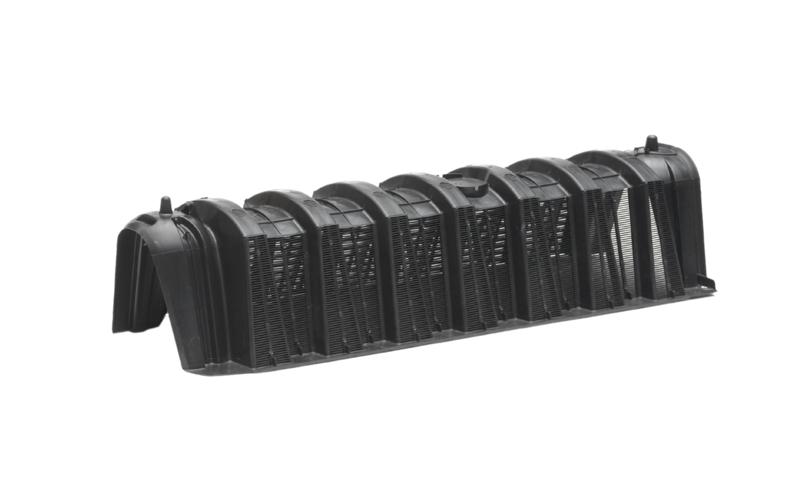

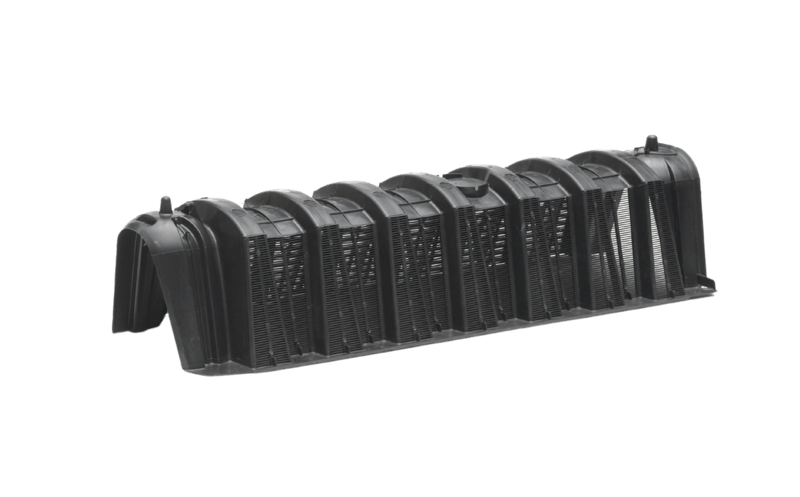

Quick4® Equalizer 24 Chamber

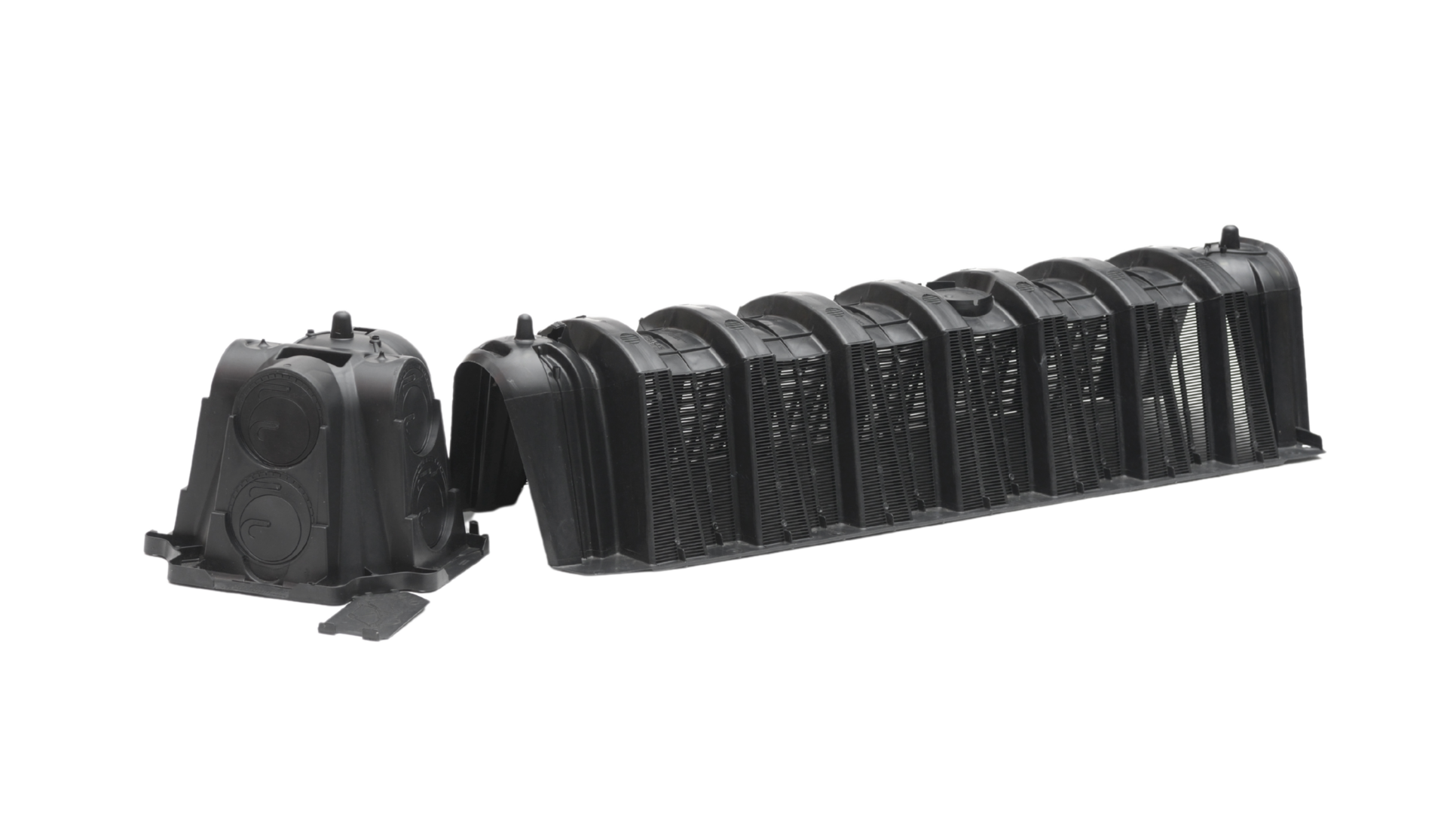

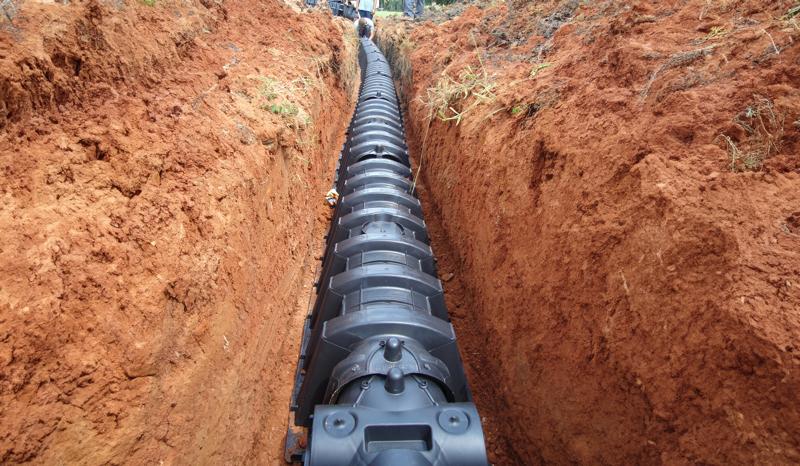

The Quick4 Equalizer 24 Chamber fits in a 18" wide trench and is ideal for curved or straight systems. It features the patent-pending Contour Swivel Connection™ which permits turns up to 15°, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber’s 4' length provides optimal installation flexibility.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Specifications
| Size |
16"W x 53"L x 11"H (406 mm x 1346 mm x 279 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 9.10" (231 mm) |
| Storage Capacity | 21 gal (79 L) |
| Invert Height | 6" (152 mm) |
Benefits:
- Advanced contouring connections swivel up to 15°, right or left
- Reinforced ribs provide increased structural capability and durability
- Compact nesting provides more trench length in an equivalent stack height
- Latching mechanism allows for quick installation
- Four-foot chambers are easy to handle and install
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
- Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
