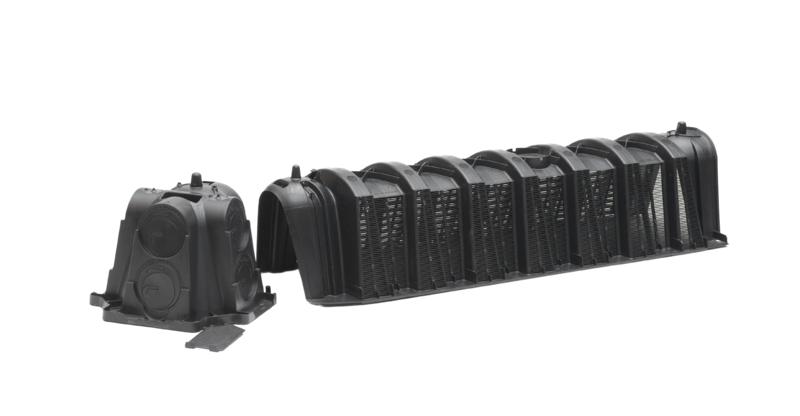

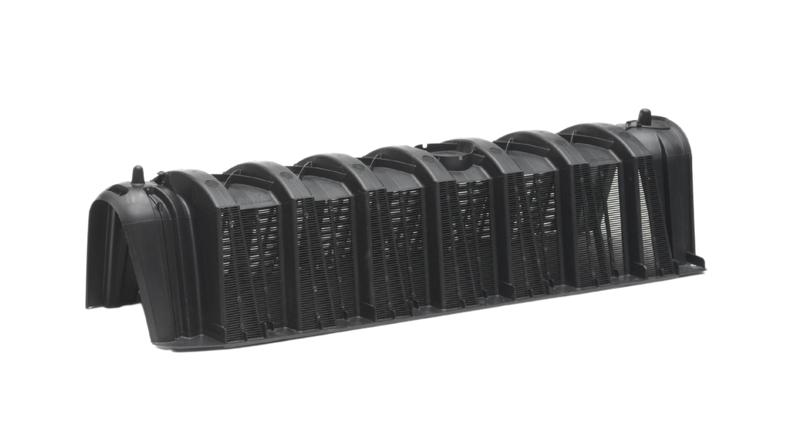

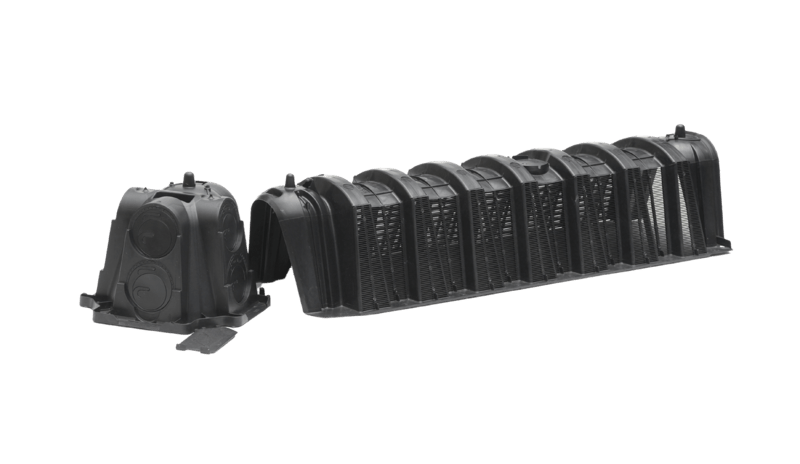

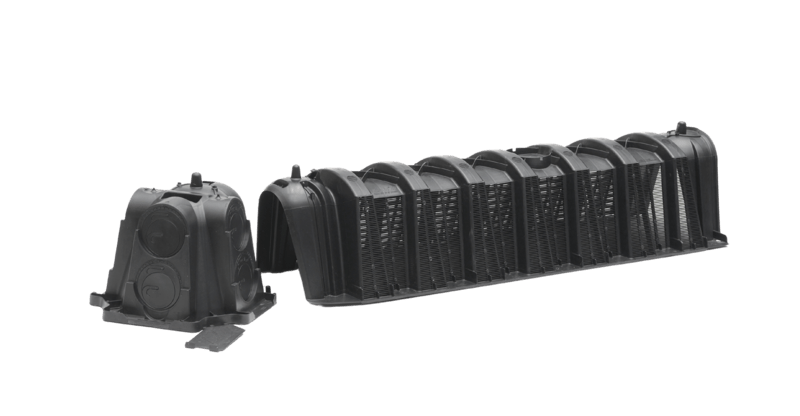

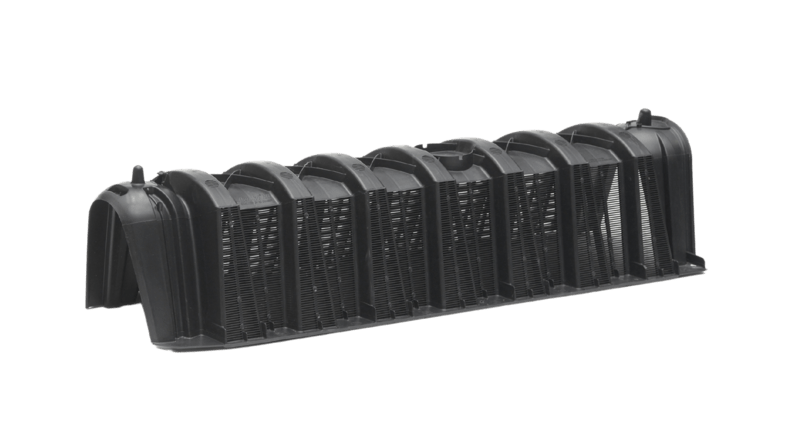

Quick4® Equalizer 24 Heavy Duty Chamber
The Quick4 Equalizer 24 HD Chamber was designed to provide exceptional strength when used in heavy duty trench or bed applications. The chamber’s enhanced features, which include an increased wall thickness, structural x-ribs and reinforced connection joints, make it one of the strongest Quick4 chambers available today. The Quick4 Equalizer 24 HD Chamber’s Contour Swivel Connection permits 15° turns, left or right.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Specifications
| Size |
16"W x 53"L x 11"H (406 mm x 1346 mm x 279 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Storage Capacity | 21 gal (79 L) |
| Invert Height | 6" (152 mm) |
Benefits:
- Chamber is 28% thicker, making it significantly stronger than the original Quick4 Equalizer 24
- Continuous structural x-ribs on the chamber dome and underside corrugations provide extra support
- Additional material used at the inlet and outlet ends of chamber reinforce connection joints
- Thicker bottom corners of the chamber add greater stability
- Reinforced inspection port provides a stronger connection to the pipe
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
