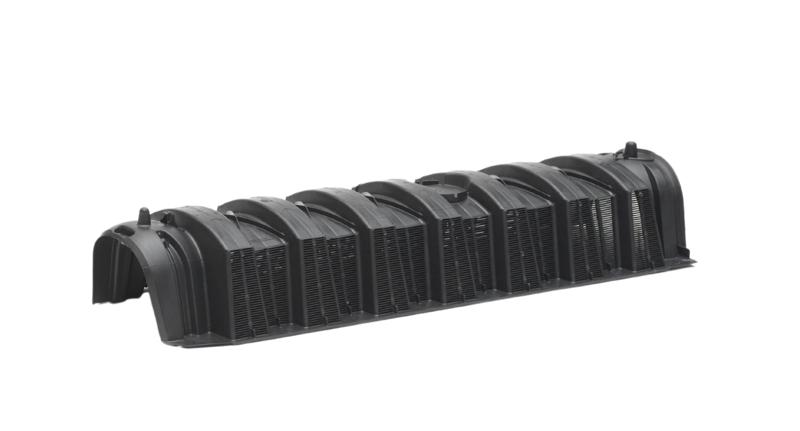

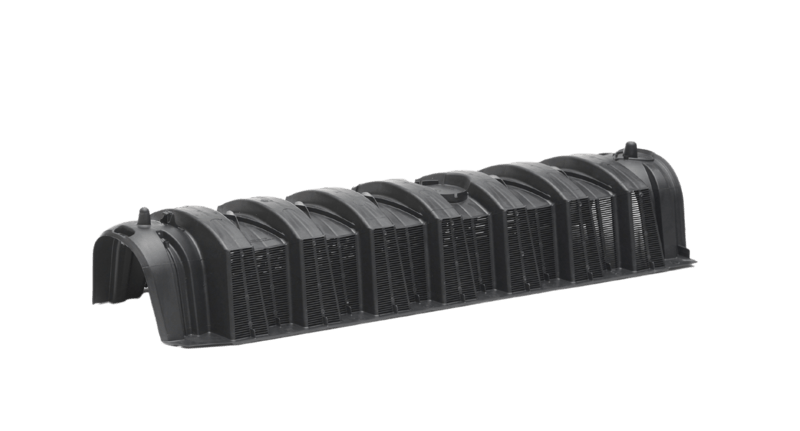

Specifications
| Size |
16"W x 53"L x 8"H (406 mm x 1346 mm x 203 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 6" (153 mm) |
| Storage Capacity | 17 gal (64 L) |
| Invert Height | 2" (51 mm) |
Benefits:

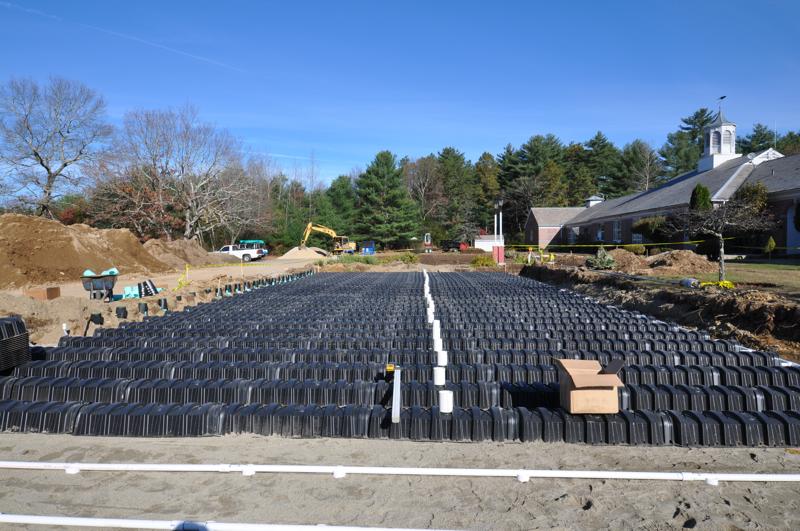

- 8" chamber height allows shallow installations with 4" of cover
- Advanced contouring connections swivel up to 15°l, right or left
- Reinforced ribs provide increased structural capability and durability
- Compact nesting provides more trench length in an equivalent stack height
- Four-foot chambers are easy to handle and install
- Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
