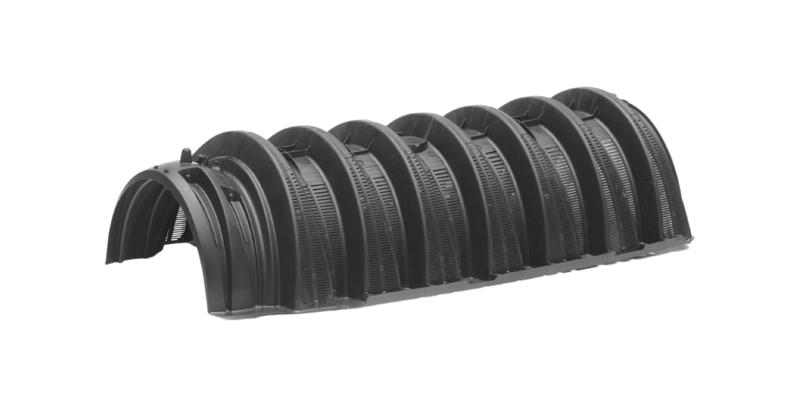

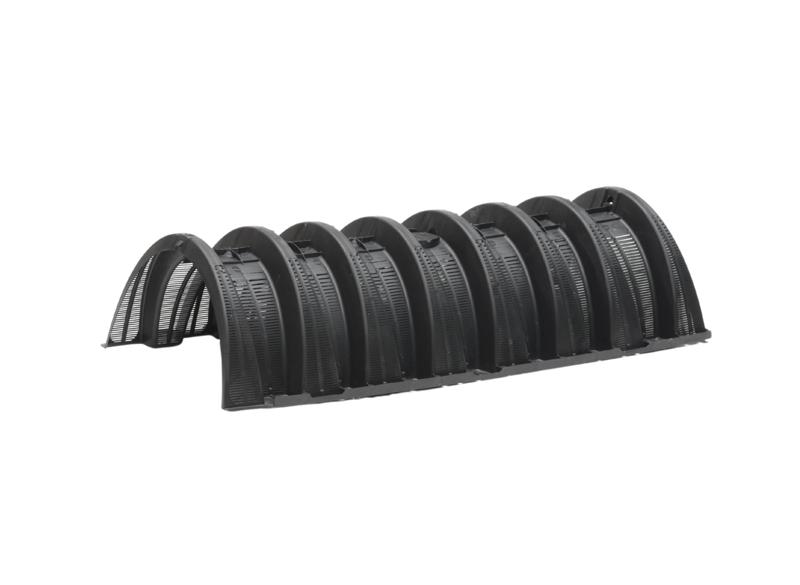

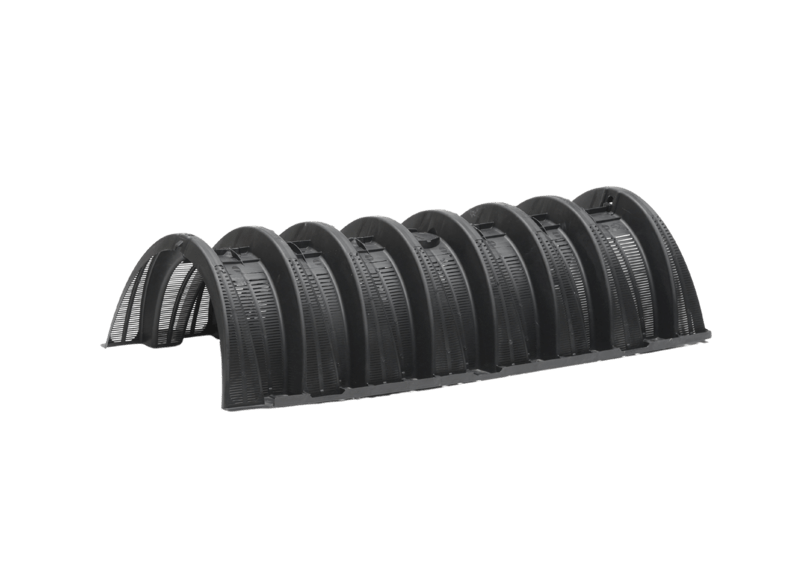

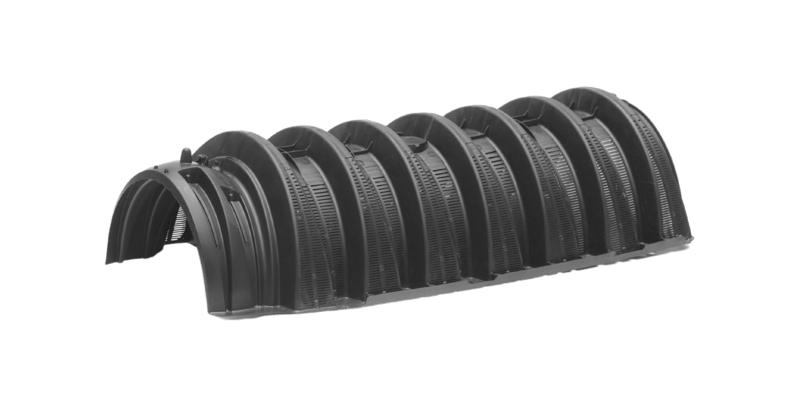

Quick4® Equalizer 36 Chamber

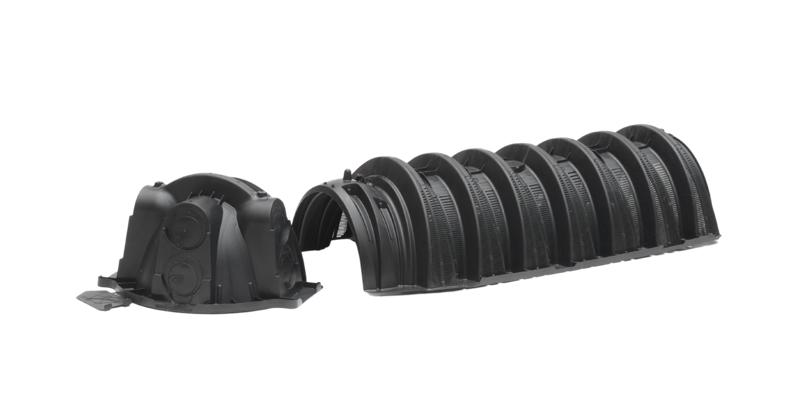

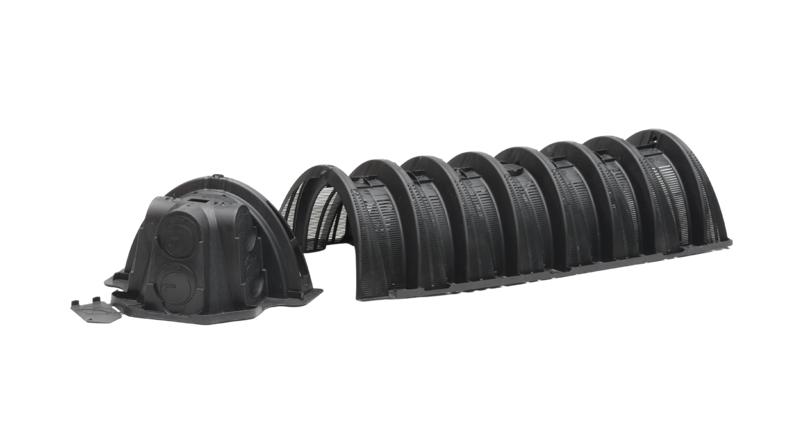

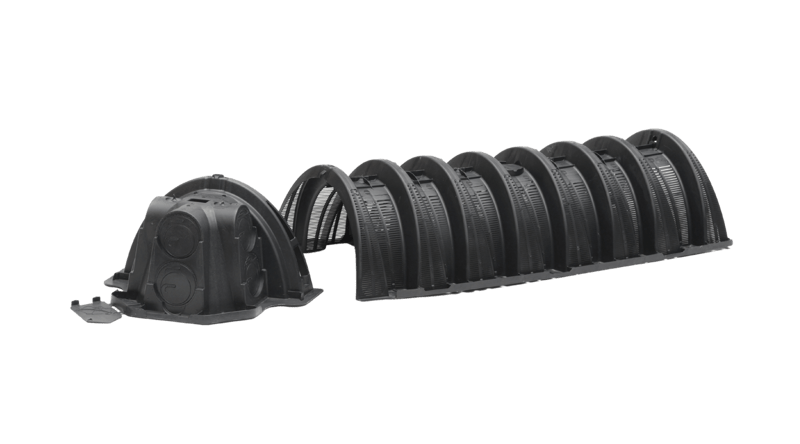

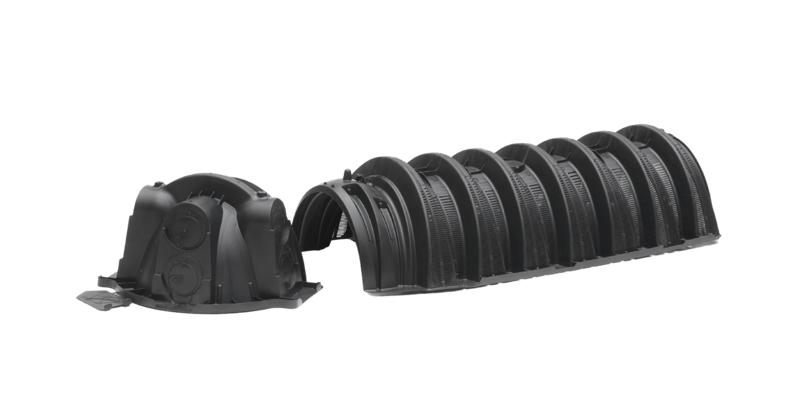

The Quick4 Equalizer 36 Chamber fits in a 24" wide trench and is ideal for curved or straight systems. It features the patent-pending Contour Swivel Connection™ which permits turns up to 10°, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber’s 4' length provides optimal installation flexibility.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Specifications
| Size |
22"W x 53"L x 12"H (559 mm x 1346 mm x 305 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 10" (254 mm) |
| Storage Capacity | 32 gal (121 L) |
| Invert Height | 6" (152 mm) |
Benefits:
- Advanced contouring connections swivel up to 10°, right or left

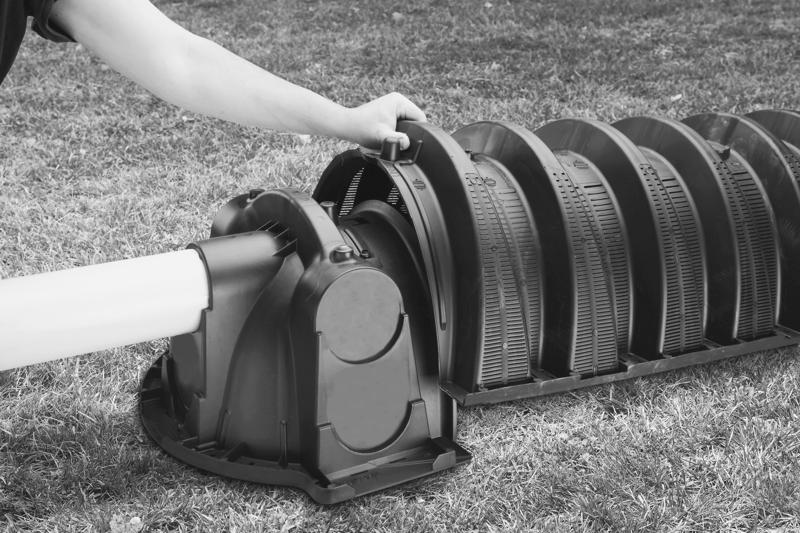

- Latching mechanism allows for quick installation
- Compact nesting provides more trench length in an equivalent stack height
- Four-foot chamber lengths are easy to handle and install
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
- Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
