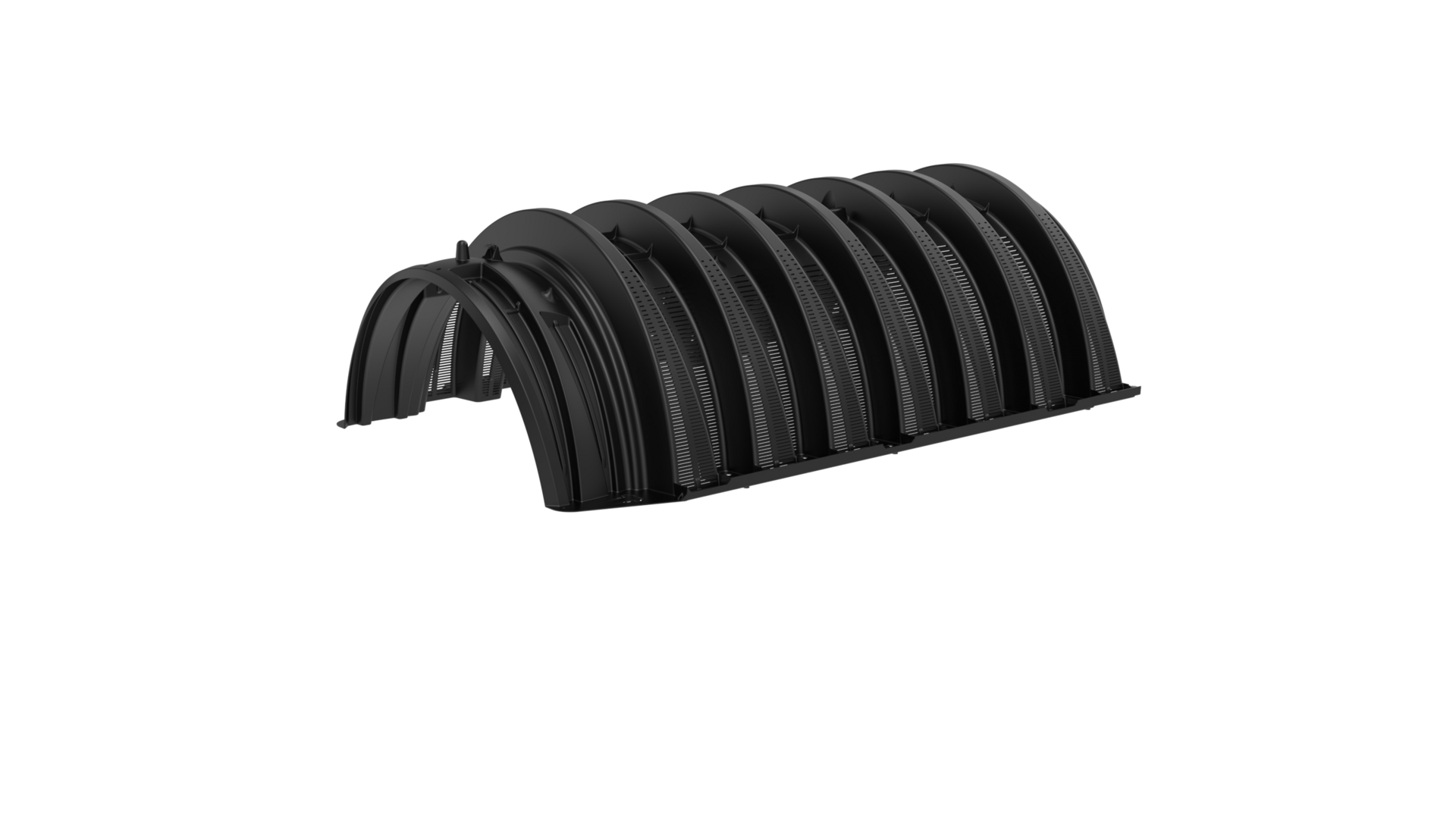

Quick4® High Capacity Chamber

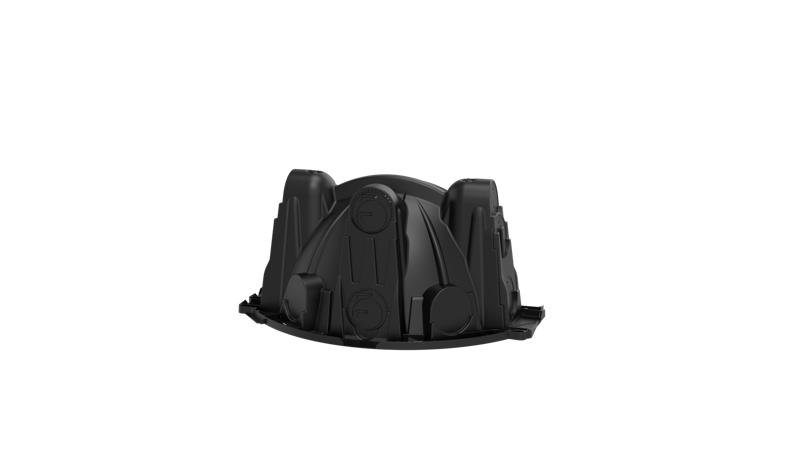

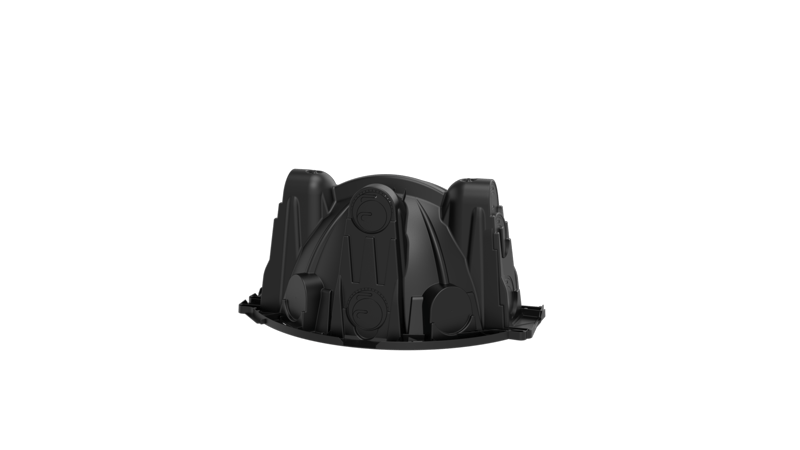

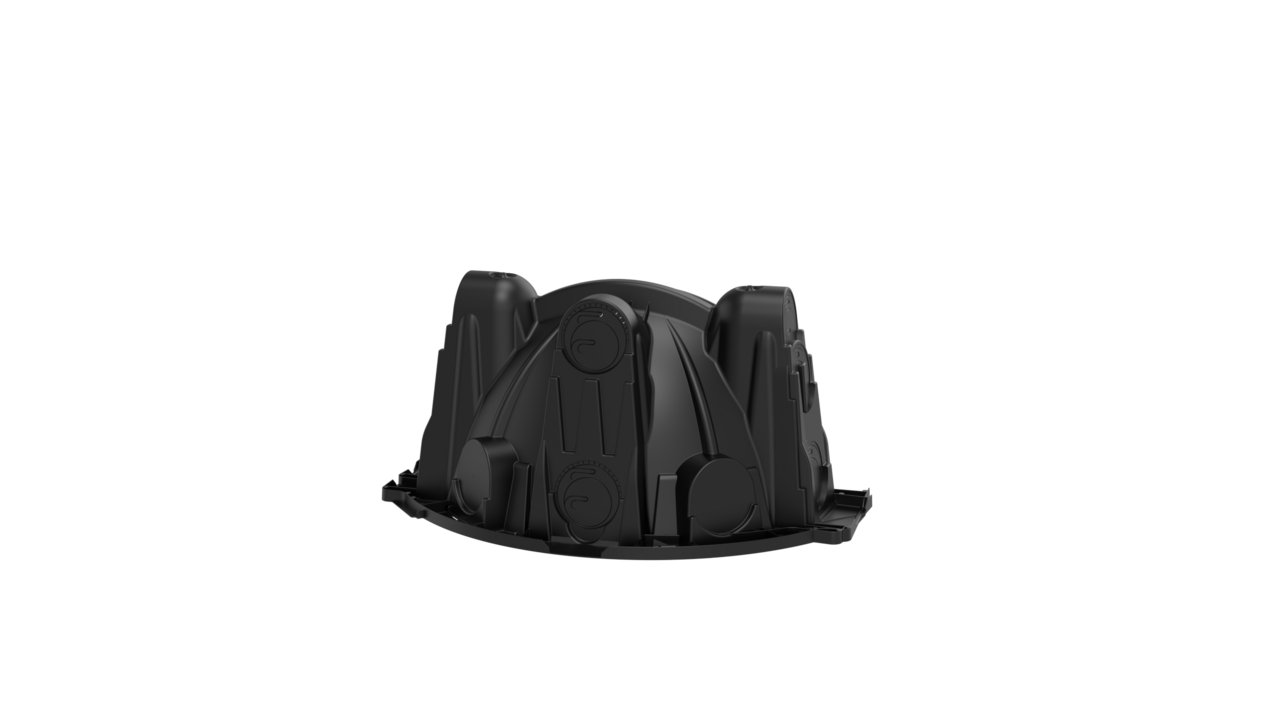

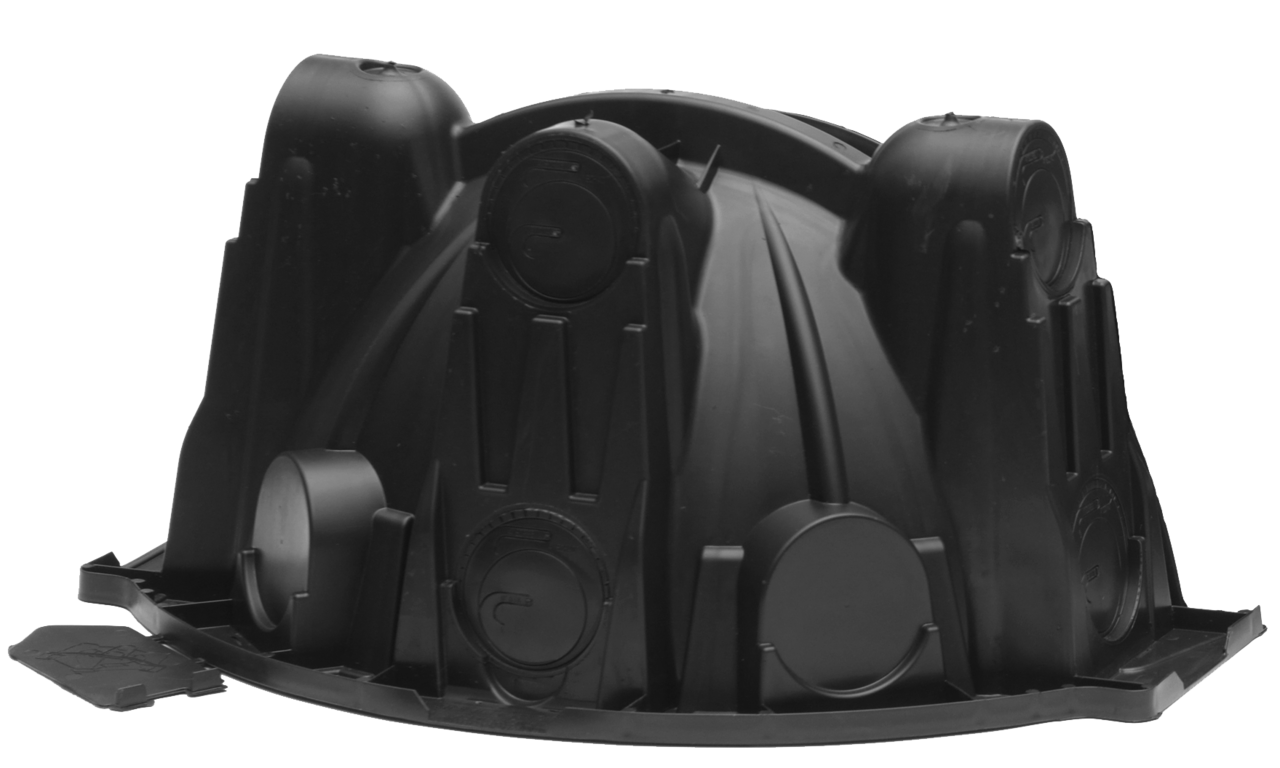

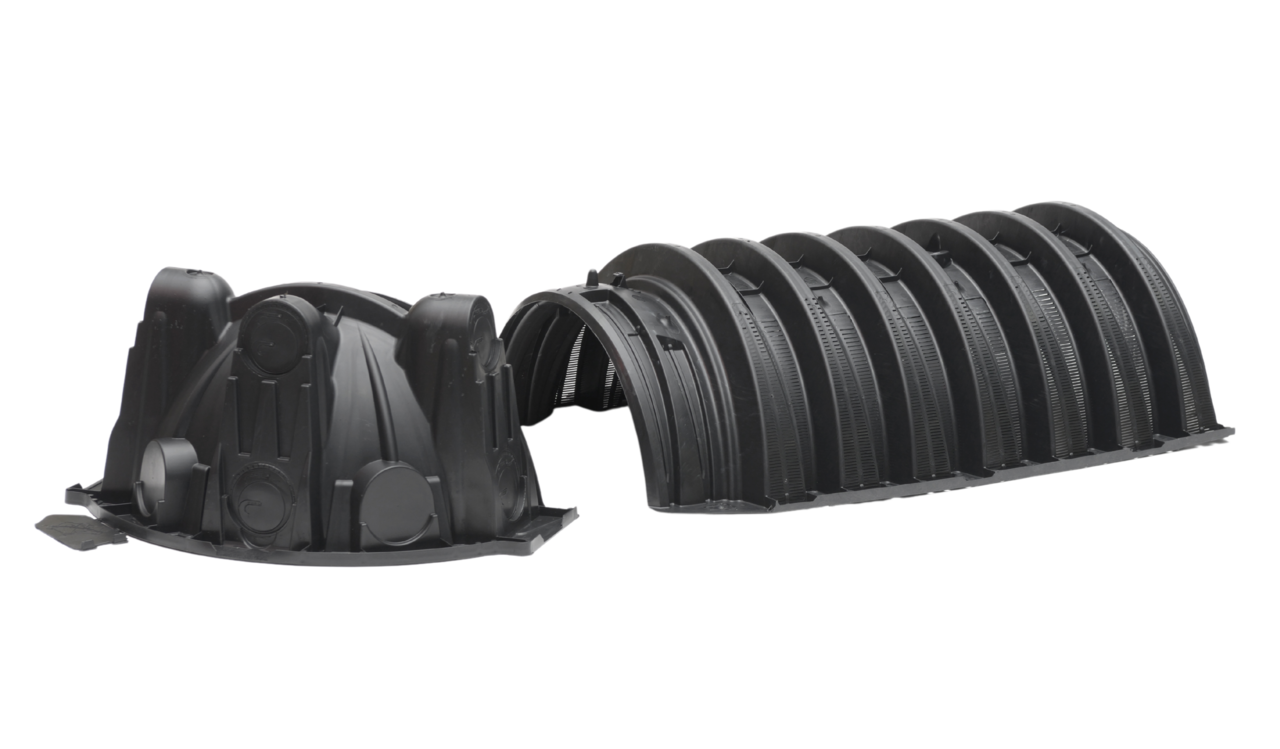

The Quick4 High Capacity Chamber fits in a 36" wide trench and is ideal for curved or straight systems. It features the patent-pending Contour Swivel Connection™ which permits turns up to 10°, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber’s four-foot length provides optimal installation flexibility.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Quick4 High Capacity Chamber
| Size |
34"W x 53"L x 16"H (864 mm x 1346 mm x 406 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 62 gal (235 L) |
| Invert Height | 11.5" (292 mm) |
Benefits:
- Advanced contouring connections swivel up to 10°, right or left
- Latching mechanism allows for quick installation
- Compact nesting provides more trench length in an equivalent stack height
- Four-foot chamber lengths are easy to handle and install
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
- Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
