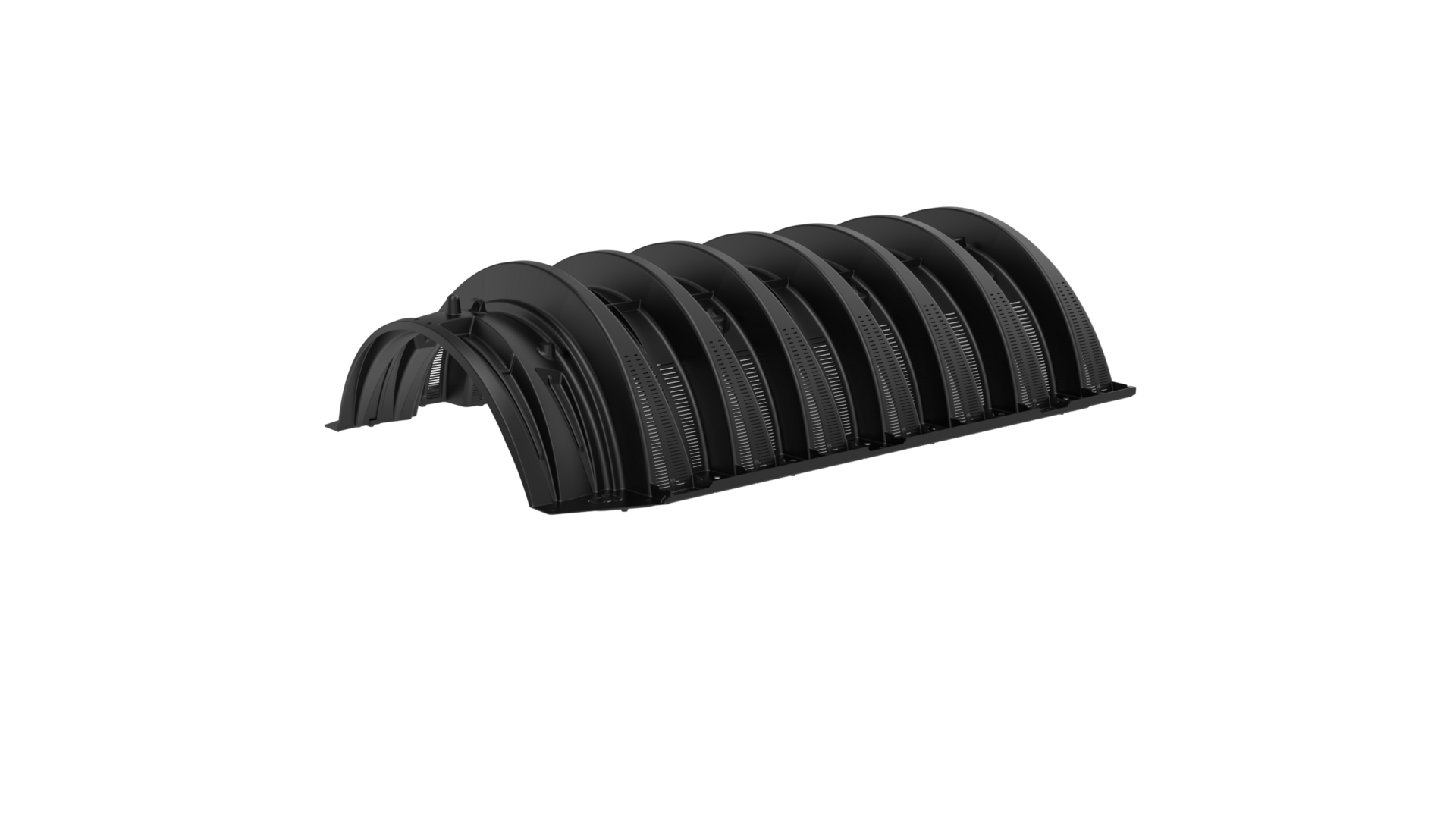

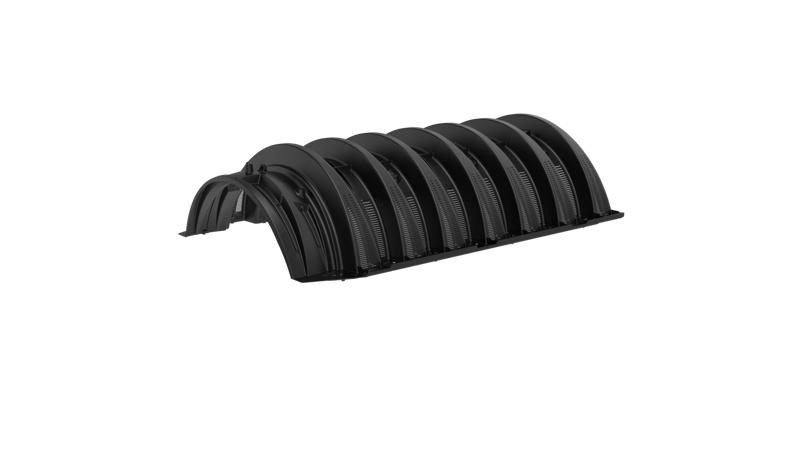

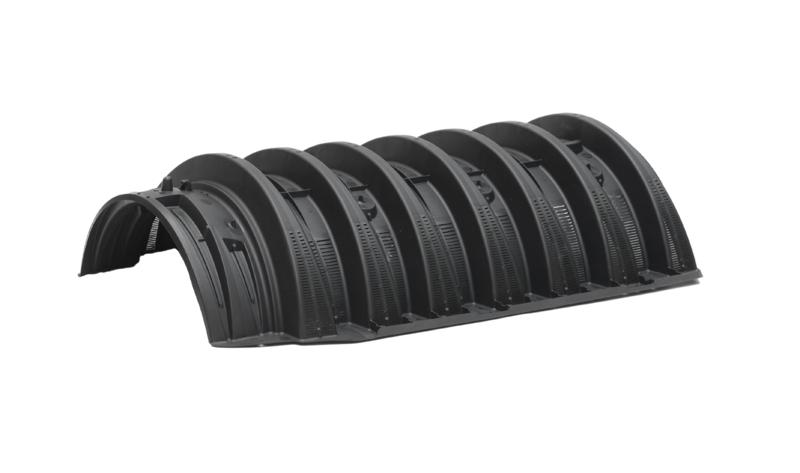

Quick4® Standard Chamber
The Quick4 Standard Chamber fits in a 36" wide trench and is ideal for curved or straight systems. It features the patent-pending Contour Swivel Connection™ which permits turns up to 15°, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber’s 4' length provides optimal installation flexibility.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Quick4 Standard Chamber
| Size |
34"W x 53"L x 12"H (864 mm x 1346 mm x 305 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 8" (203 mm) |
| Storage Capacity | 43 gal (163 L) |
| Invert Height | 8" (203 mm) |
Benefits:
- Advanced contouring connections swivel up to 10°, right or left
- Latching mechanism allows for quick installation
- Four-foot chamber lengths are easy to handle and install
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
- Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
Documentation
Quick4 Standard Mound - Drawing
Quick4 Standard Product Spec Sheet
Quick4 Standard Serial Distribution - Drawing
Quick4 Standard Serial Distribution Detail
Quick4 Standard Standard Detail
Quick4 Standard Trench - Drawing
Quick4 STD Bed Standard Detail
Quick4 STD Mound Standard Detail
