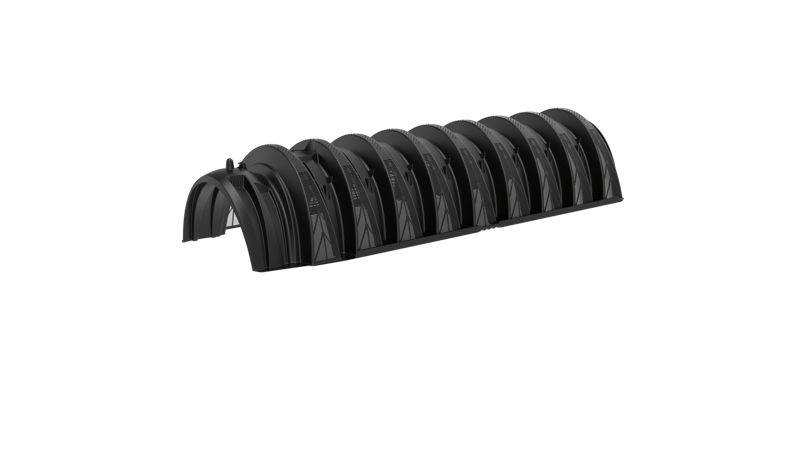

Quick5® Equalizer 36 Chamber

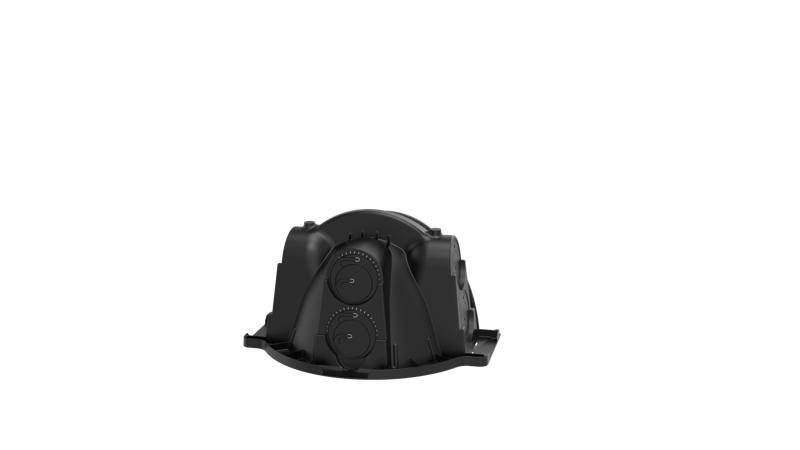

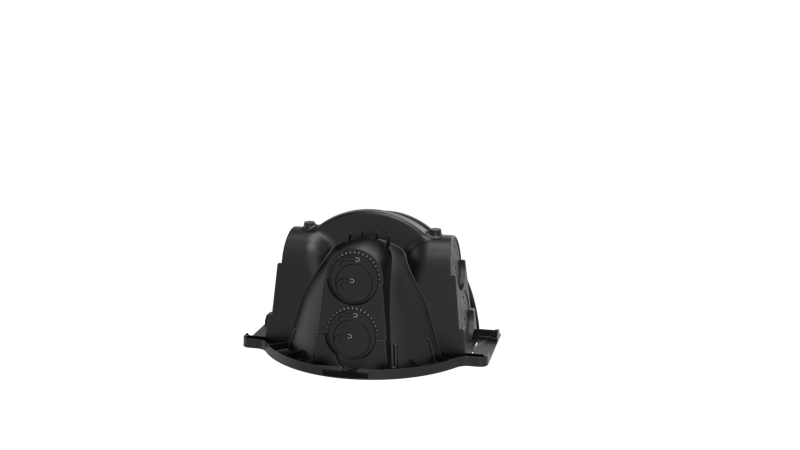

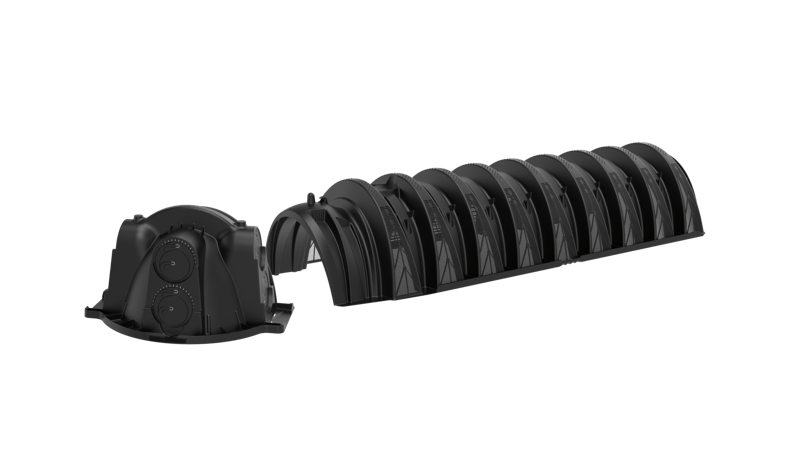

The Quick5 Equalizer 36 Chamber fits in a 24” wide trench and is ideal for curved or straight systems. It features the patent-pending Contour Swivel Connection™ which permits turns up to 15°, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber’s five-foot length provides optimal installation flexibility.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Specifications
| Size |
22"W x 65"L x 12"H (559 mm x 1651 mm x 305 mm) |
|---|---|
| Effective Length | 60" (1524 mm) |
| Louver Height | 10" (2543 mm) |
| Storage Capacity | 42 gal (215 L) |
| Invert Height | 6" (152 mm) |
Benefits:
- Advanced contouring connections swivel up to 10°, right or left
- Latching mechanism allows for quick installation
- Compact nesting provides more trench length in an equivalent stack height
- Less chambers needed for faster installation
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
- Certified by the International Association
of Plumbing and Mechanical Officials (IAPMO)
Documentation
Quick5 Standard Bed Gravity - Drawing
Quick5 Standard Bed Pressurized - Drawing
Quick5 Standard Chamber Pressurized Trench - Drawing
Quick5 Standard Chamber Trench - Drawing
Quick5 Standard Mound Gravity - Drawing
Quick5 Standard Mound Pressurized - Drawing
Quick5 Standard Product Spec Sheet
Quick5 Standard Serial Distribution - Detail
Quick5 STD Bed Gravity Standard Detail
Quick5 STD Bed Pressurized Standard Detail
Quick5 STD Chamber Pressurized Trench Standard Detail
Quick5 STD Chamber Trench Standard Detail
Quick5 STD Mound Gravity Standard Detail
Quick5 STD Pressurized Trench Standard Detail
