H-20 Chamber

The High Capacity Infiltrator Chamber H-20 offers maximum internal volume per linear foot for extra temporary storage capacity. The 10” louvered sidewalls facilitate infiltration and evapotranspiration, while reducing fines in the system. The High Capacity H-20 chamber gets an H-20 load rating with 18” of compacted cover when installed per installation requirements.

Contact an Expert
High Capacity H-20
Contact an Expert
Product Variations & Specifications Product Specs Product Benefits Product Benefits Documentation Documentation

Product Specifications

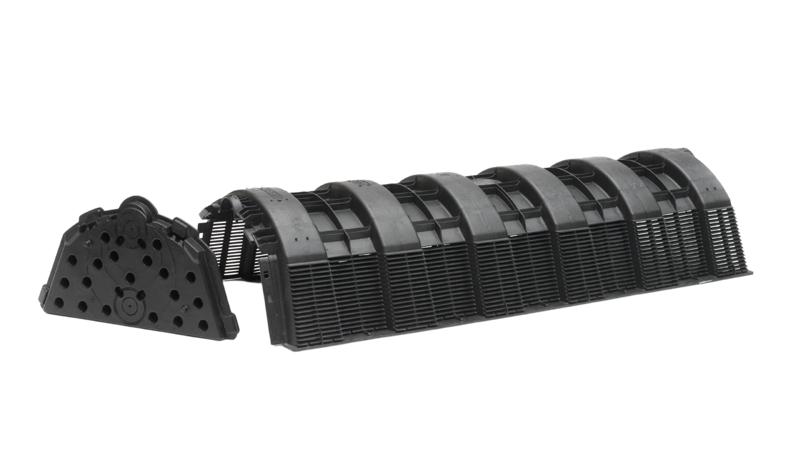

High Capacity H-20 - Endcap
High Capacity H-20

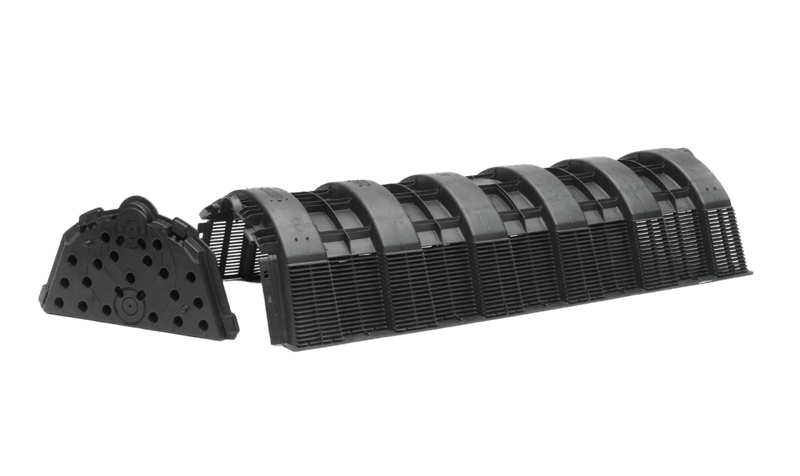

High Capacity H-20 - Endcap

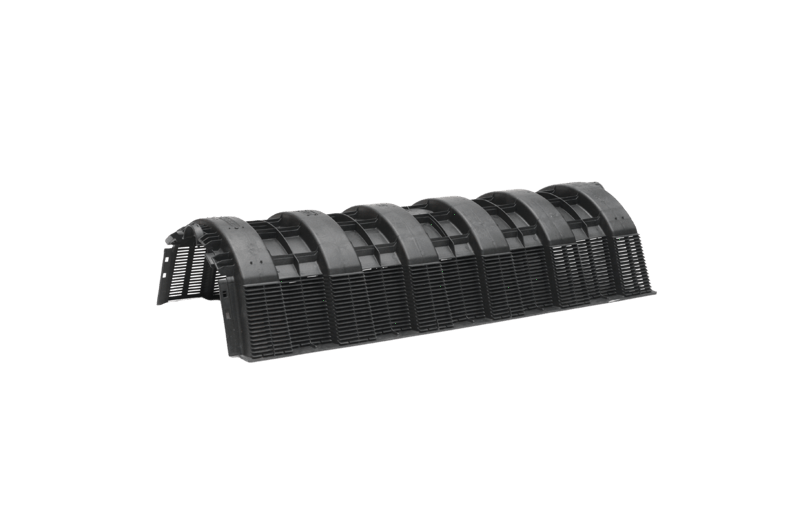

High Capacity H-20

H-20 Chamber

Size 34"W x 75"L x 16"H
(864 mm x 1905 mm x 406 mm)
Weight 38 lbs
Storage Capacity 110 gal (14.3 cu ft)
Louvered Sidewall Height 10" (254 mm)

Benefits:

  • More temporary storage capacity
  • Maximum internal volume per linear foot
  • Easy assembly and installation with as few as two people, a backhoe and a pickup truck
  • Inspection port option for easy access to leachfield with no site disruption
  • Overall reduced cost

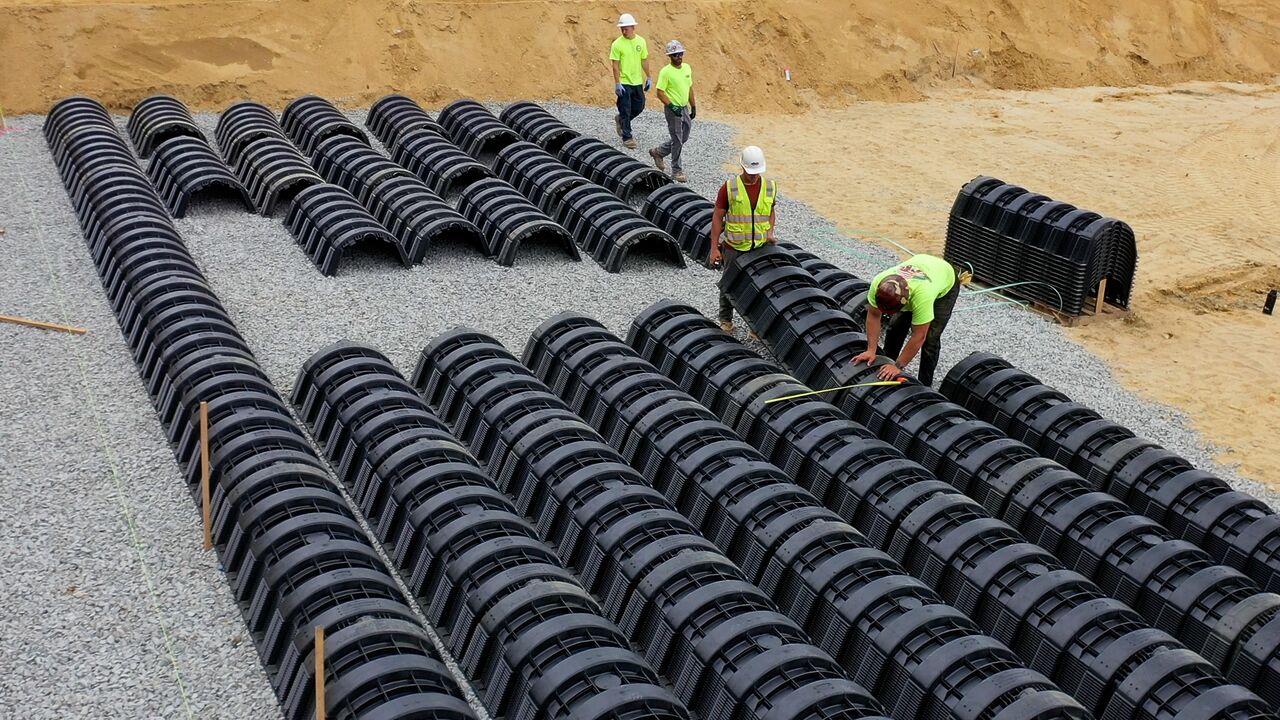

High Capacity H-20 Chamber - Commercial Install_12

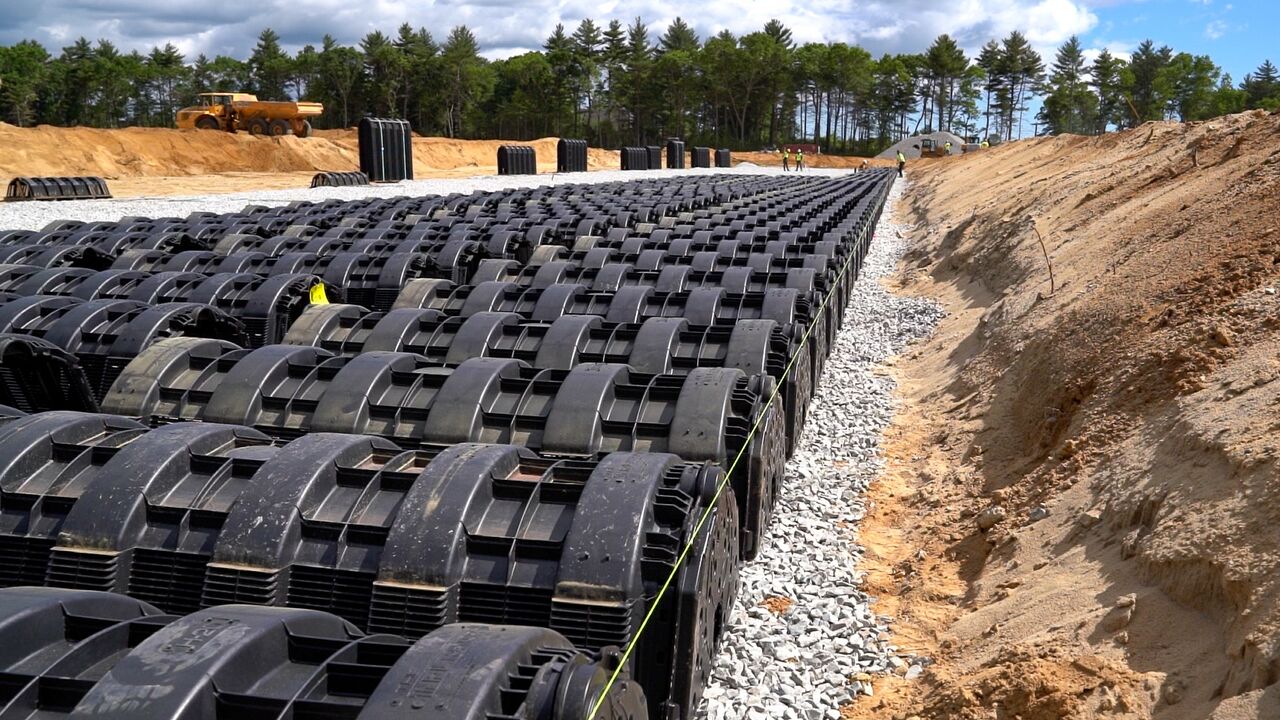

High Capacity H-20 Chamber - Commercial Install_02

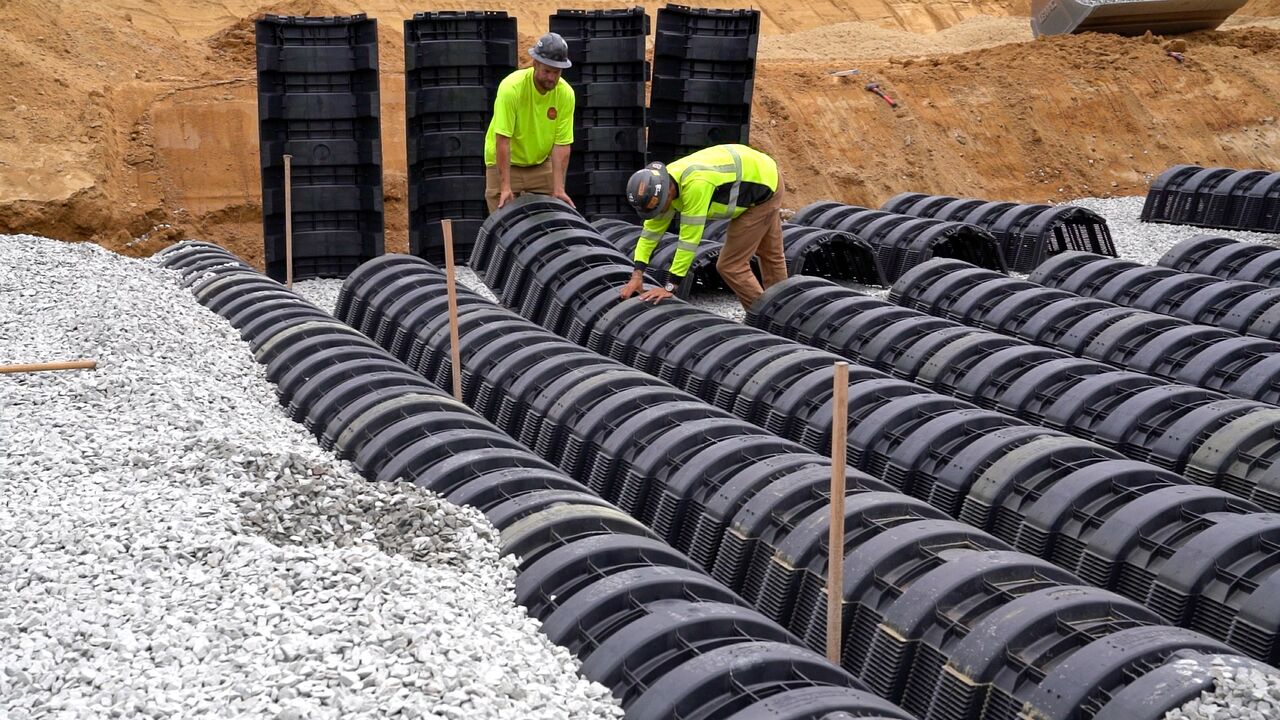

High Capacity H-20 Chamber - Commercial Install_06

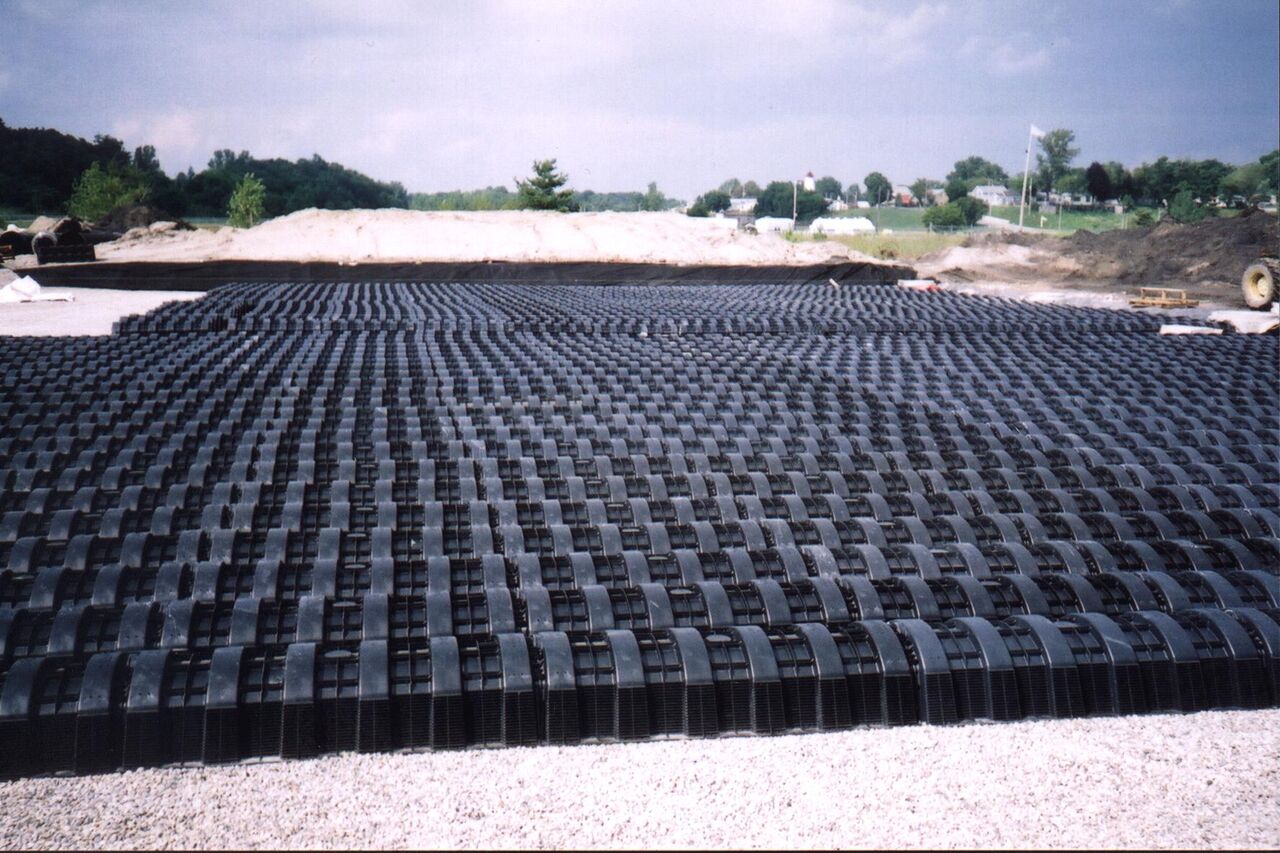

High Capacity H-20 Chamber Installation - Port Burwell 2
High Capacity H-20 Chamber - Commercial Install_12
High Capacity H-20 Chamber - Commercial Install_02
High Capacity H-20 Chamber - Commercial Install_06
High Capacity H-20 Chamber Installation - Port Burwell 2

Documentation

H-20 High Capacity Bed Detail

H-20 High Capacity Chamber Product Spec

High Capacity H-20 Cutsheet
