Grease Interceptor GIT-1060

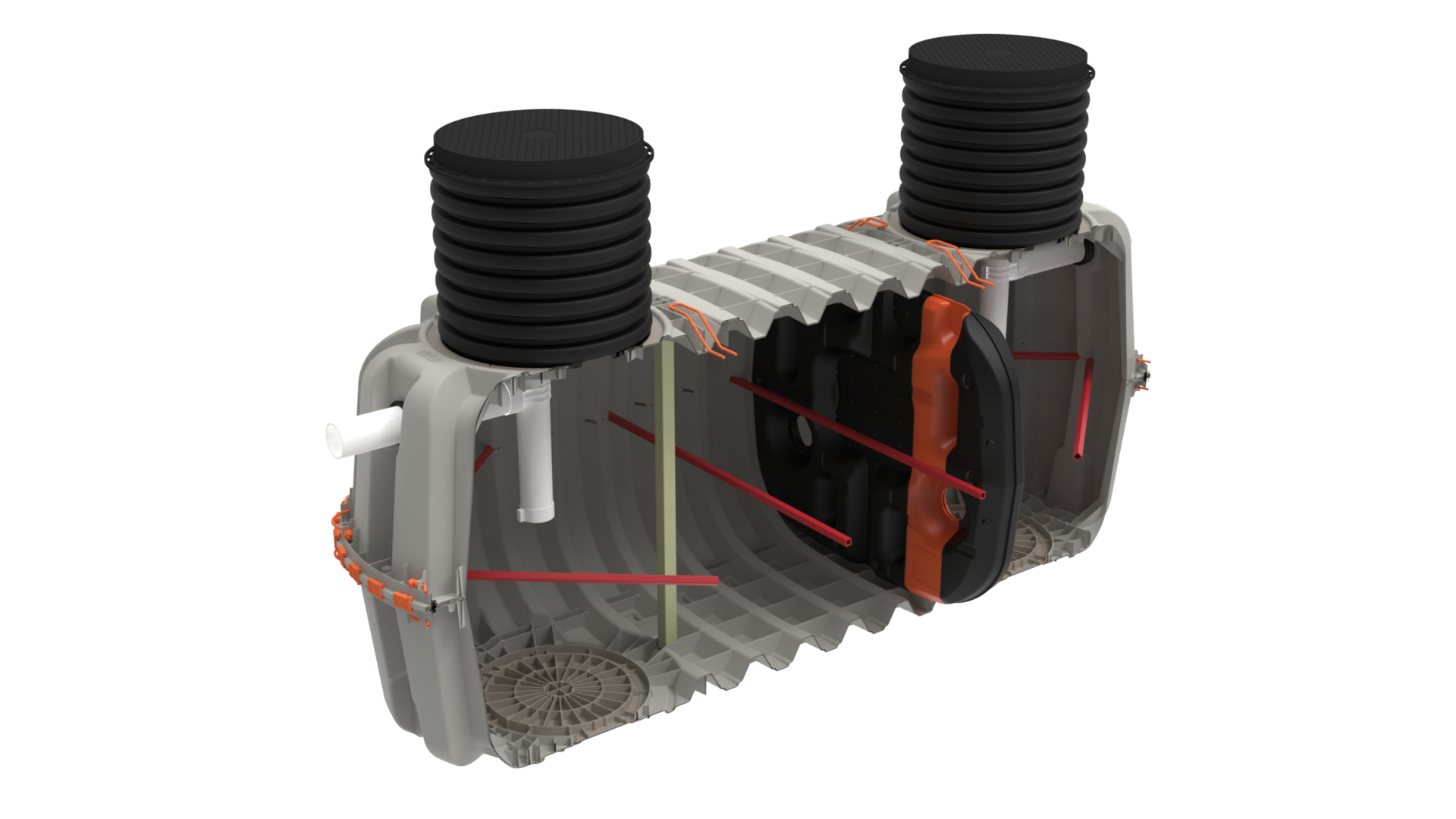

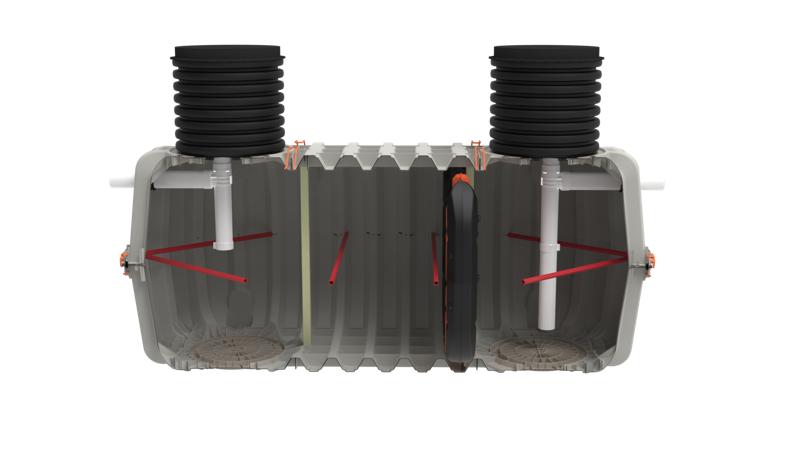

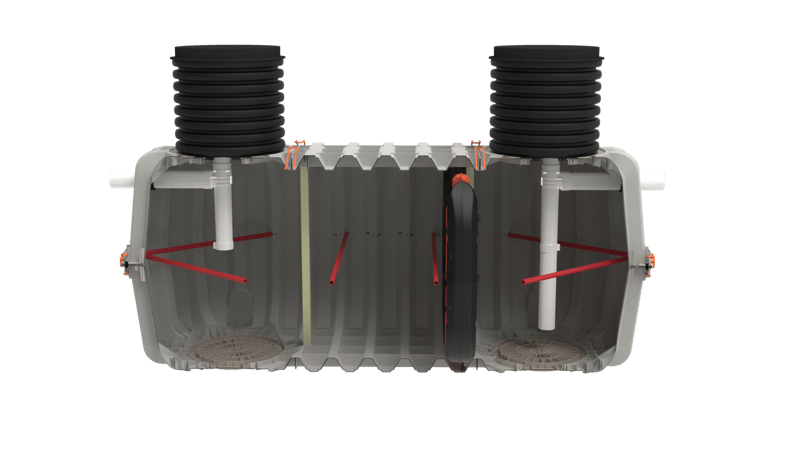

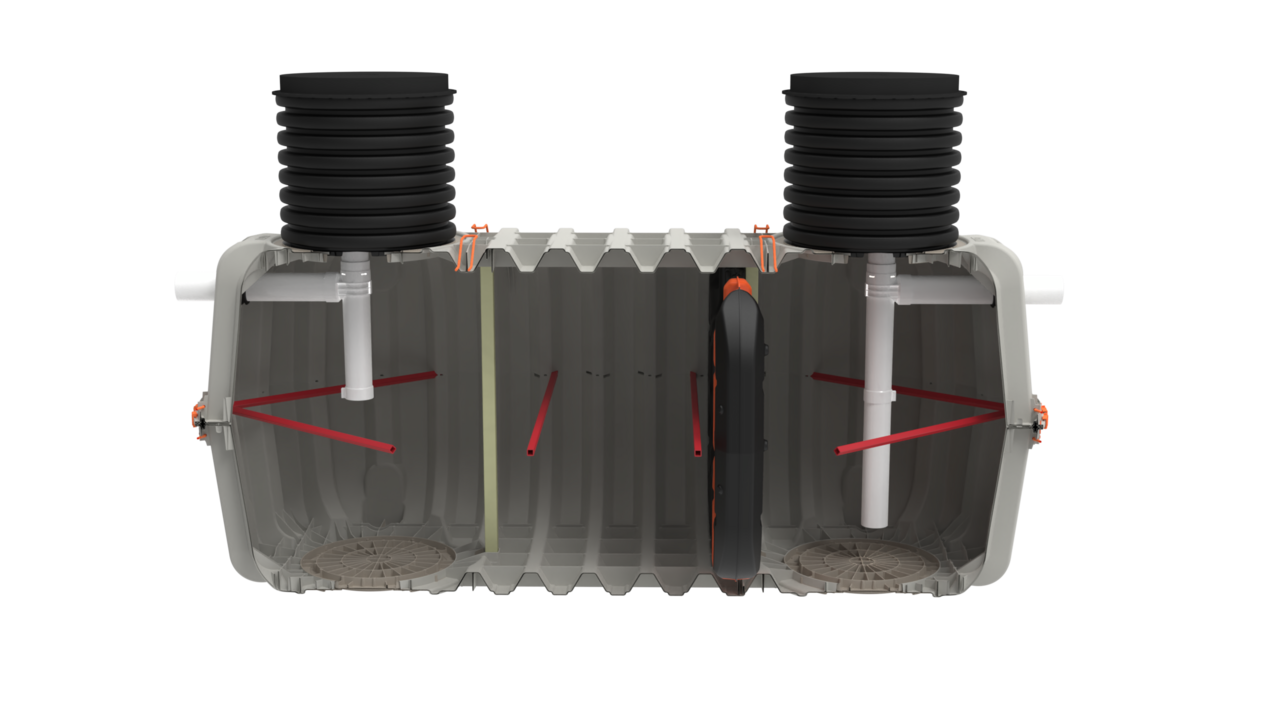

Infiltrator’s GIT-1060 is the industry’s first compression molded gravity grease interceptor. This design produces an easily installed and highly durable, below-grade interceptor solution. Non-corrosive polypropylene filled with fiberglass improves its durability beyond Infiltrator’s standard septic tank product line. A dual-wall solid-tight baffle creates a two-compartment solution that prevents fats, oils and grease (FOG) from short-circuiting across the interceptor. Traffic installations (AASHTO H20 rated) achievable with the use of a steel reinforced concrete slab, Infiltrator's Pipe Adaptor Ring, dual wall corrugated pipe (by other), and Infiltrator's cast iron lid.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Grease Interceptor GIT-1060
| Size |
61.7”W x 134.2"L x 54.5"H (1567 mm x 3409 mm x 1384 mm) |
|---|---|
| Weight | 410 lbs (215 kg) |
| Total Capacity | 1309 gal (4956 L) |
| Working Capacity | 1111 gal (4207 L) |
| Burial Depth |
Minimum 18" (457 mm) Maximum 48" (1219 mm) |
Benefits:
- Low profile tank design using structural corrugations and fiberglass support posts achieve optimal below-grade installation
- Molded using a non-corrosive, fiberglass-filled polypropylene offers greater durability
- Delivery and handling made quick and easy with the lightweight thermoplastic design
- A continuous gasketed mid-seam connection is secured by 64 permanent seam clips that produces a watertight bond between interceptor halves
- Maximum 48” burial depth with 24” access manholes available
- Dual-wall solid-tight baffle prevents solids and grease from short-circuiting across the interceptor
- Traffic installation acheivable with Infiltrator's traffic-rated riser assembly and a reinforced concrete slab
