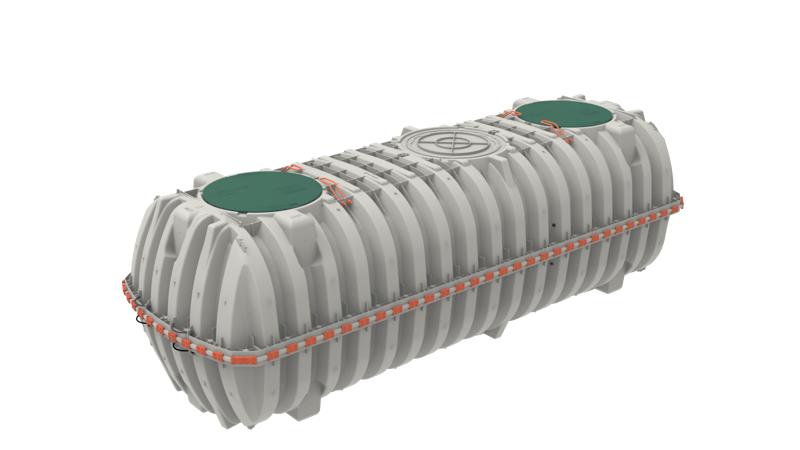

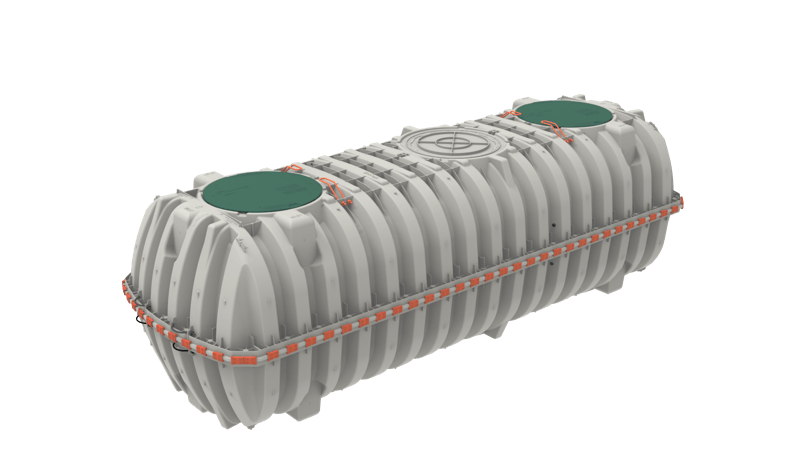

Grease Interceptor GIT-1530
Infiltrator’s GIT-1530 is the industry’s first injection molded gravity grease interceptor. This design produces an easily installed and highly durable, below-grade interceptor solution. Non-corrosive polypropylene filled with fiberglass improves its durability beyond Infiltrator’s standard septic tank product line. A dual-wall solid-tight baffle creates a two-compartment solution that prevents fats, oils and grease (FOG) from short-circuiting across the interceptor. Traffic installations (AASHTO H20 rated) achievable with the use of a steel reinforced concrete slab, Infiltrator's Pipe Adaptor Ring, dual wall corrugated pipe (by other), and Infiltrator's cast iron lid.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Grease Interceptor GIT-1530
| Size |
62”W x 176"L x 55"H (1567 mm x 4460 mm x 1384 mm) |
|---|---|
| Weight | 570 lbs (259 kg) |
| Total Capacity | 1787 gal (6765 L) |
| Working Capacity | 1537 gal (5718 L) |
| Burial Depth |
Minimum 18" (457 mm) Maximum 48" (1219 mm) |
Benefits:

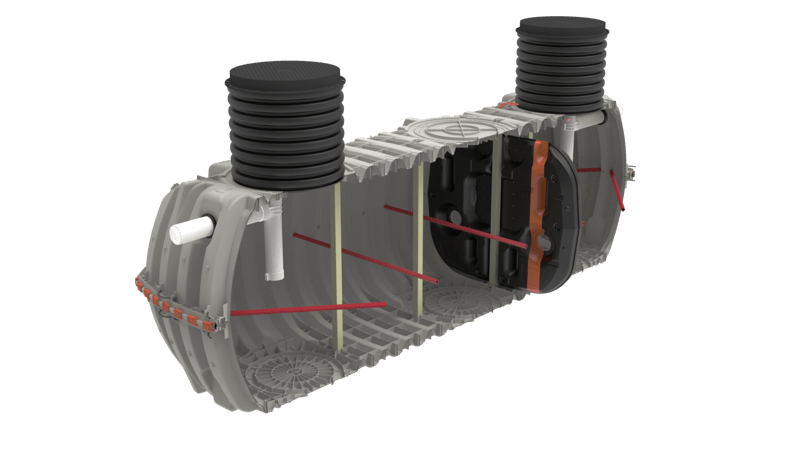

- Low profile tank design using structural corrugations and fiberglass support posts achieve optimal below-grade installation
- Molded using a non-corrosive, fiberglass-filled polypropylene offers greater durability
- Delivery and handling made quick and easy with the lightweight thermoplastic design
- A continuous gasketed mid-seam connection is secured by 64 permanent seam clips that produces a watertight bond between interceptor halves

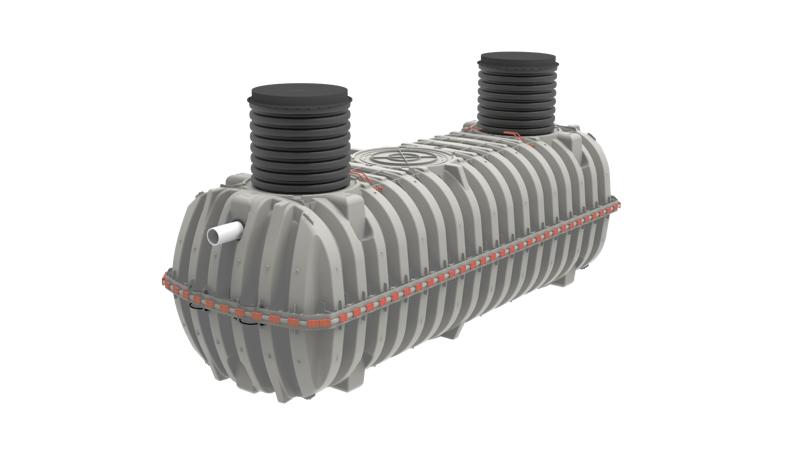

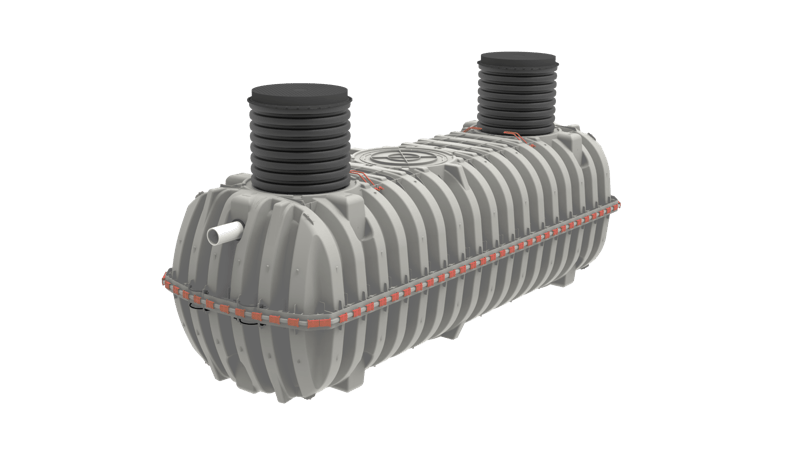

- Maximum 48” burial depth with 24” access manholes available

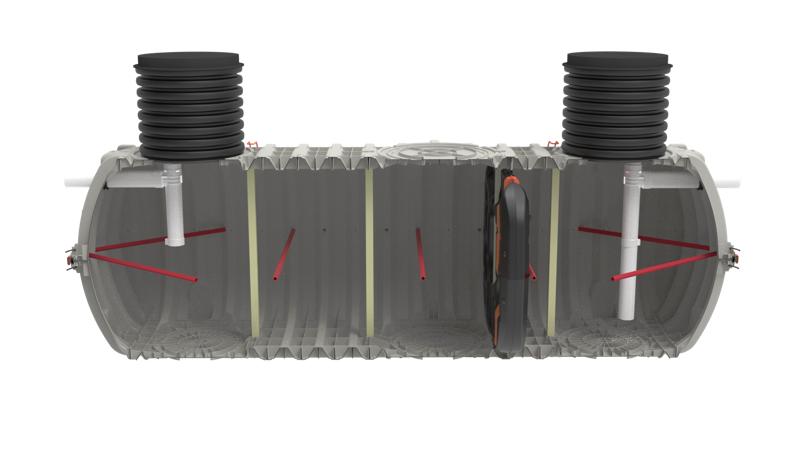

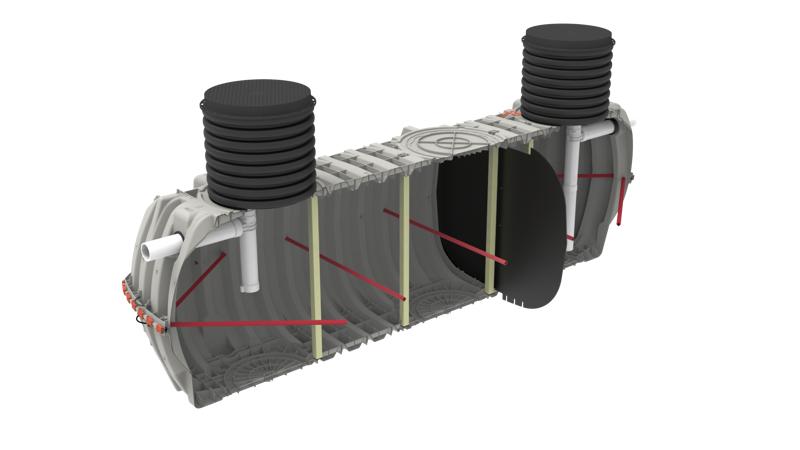

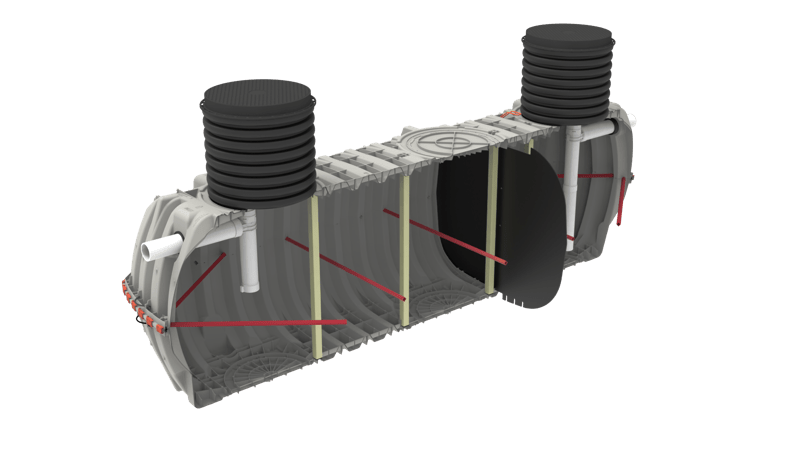

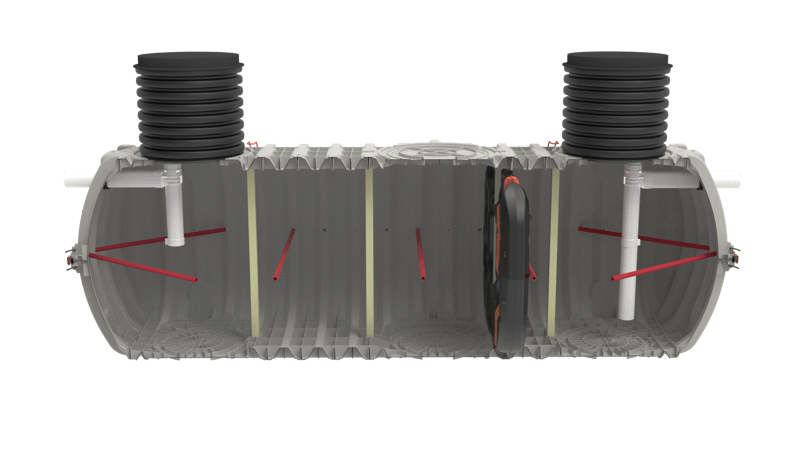

- Dual-wall solid-tight baffle prevents solids and grease from short-circuiting across the interceptor

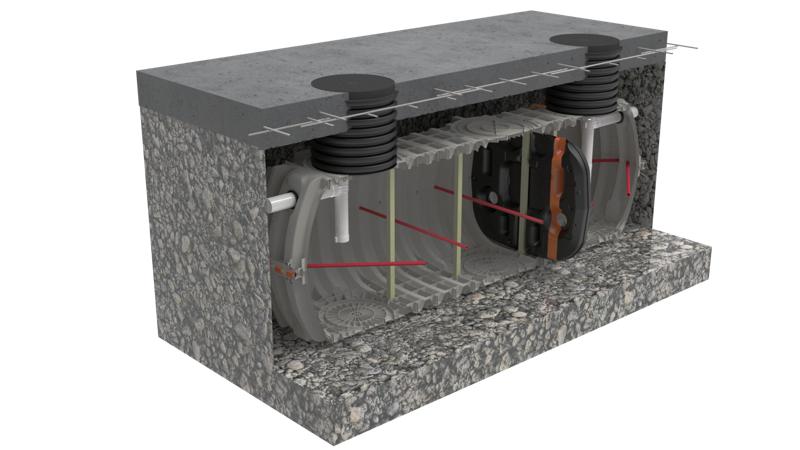

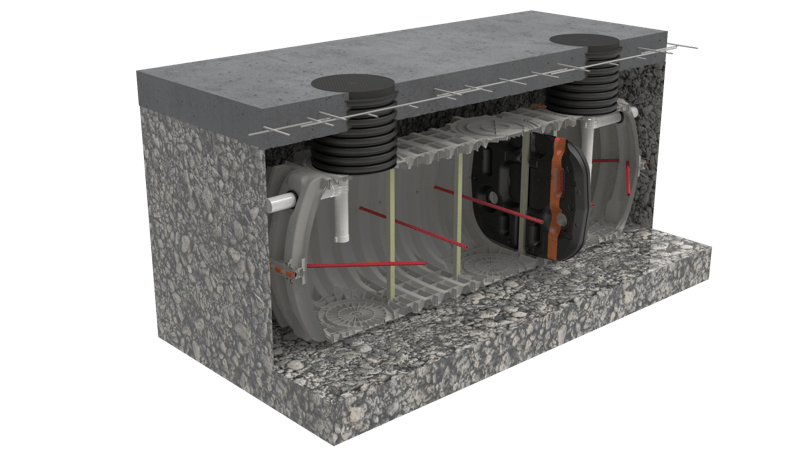

- Traffic installation acheivable with Infiltrator's traffic-rated riser assembly and a reinforced concrete slab
