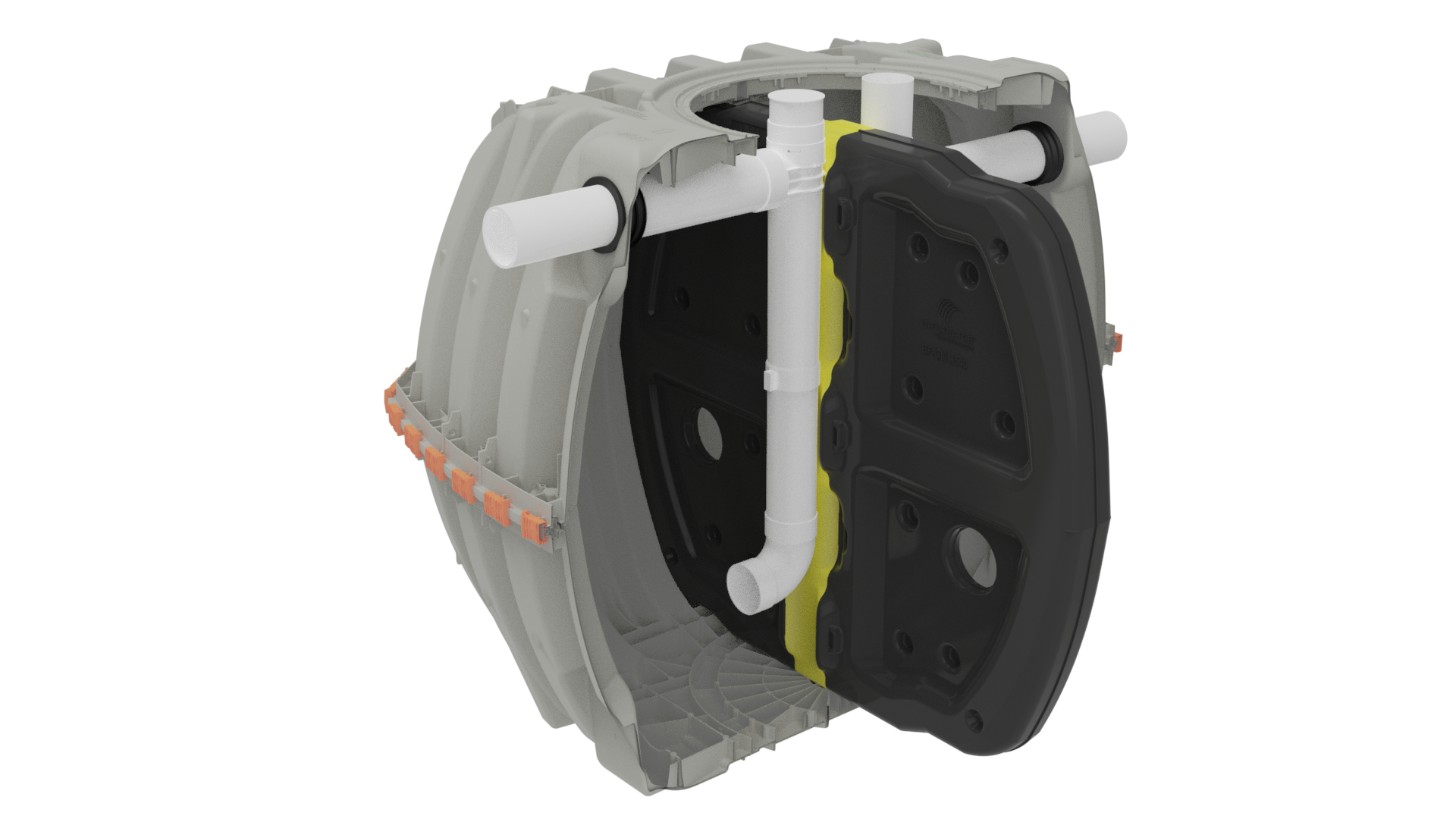

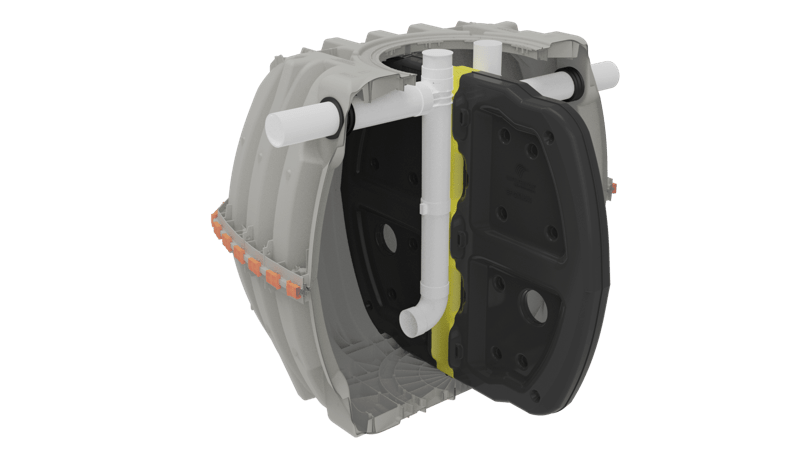

Grease Interceptor GIT-540
Infiltrator’s GIT-540 is the industry’s first injection molded hydromechanical grease interceptor.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Specifications
| Size |
50.9”W x 50.9"L x 50.5"H (1293 mm x 1293 mm x 1283 mm) |
|---|---|
| Weight | 246 lbs (112 kg) |
| Total Capacity | 552 gal (2,089 L) |
| Working Capacity | 475 gal (1,799 L) |
| Burial Depth |
Minimum 18" (457 mm) Maximum 48" (1219 mm) |
Benefits:
- Certified as a hydromechanical grease interceptor under ASME A112.14.3.
- Efficiency At Rated Capacity: 97.9%, with a maximum grease capacity of 3,011 pounds (94.7% Overall Efficiency)
- Molded with fiberglass-filled polypropylene that increases durability while maintaining ideal corrosion resistance
- Lightweight thermoplastic design allows for quick and easy job site delivery and installation
- A continuous-loop gasketed mid-seam connection is secured by permanent clips producing a watertight seal between interceptor halves
- Burial depths can range between 6-inches and 48-inches depending on the installation type
- A solid-tight baffle creates a two-compartment interceptor that prevents fats, oils, and grease (FOG) from short-circuiting across the interceptor
- Traffic-rated (ASSHTO H-20) installations require the use of a steel-reinforced concrete slab
- Traffic rated riser can be achieved with an Infiltrator cast iron lid, dual-wall corrugated pipe (by others), and Infiltrator’s pipe adapter ring. Non-traffic rated installations may use Infiltrator’s EZsnap risers
