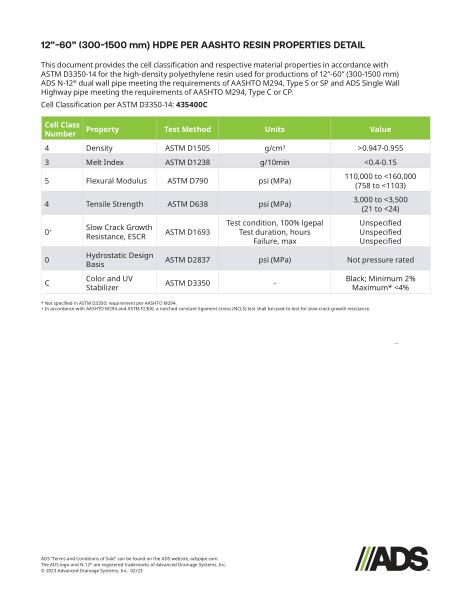

This document provides the cell classification and respective material properties in accordance with ASTM D3350‐14 for the high density polyethylene resin used for production of 12‐60” ADS N‐12® dual wall pipe meeting the requirements of AASHTO M294, Type S or SP and ADS Single Wall Highway pipe meeting the requirements of AASHTO M294, Type C or CP. Cell Classification is per ASTM D3350‐14: 435400C.

The table provided lists the cell class number, the property, the ASTM Test Method, the Unit and the value.

Properties that data is provided for include density, melt index, flexural modulus, tensile strength, slow crack growth resistance (ESCR), hydrostatic design basis, color and UV stabilizer.

Please refer to the table provided for actual figures and values.
