3" - 6" Split End Cap (HDPE Single Wall Fittings)

This document is the 3”- 6” Split End Cap (HDPE Single Wall Fittings). A detail with table provided.

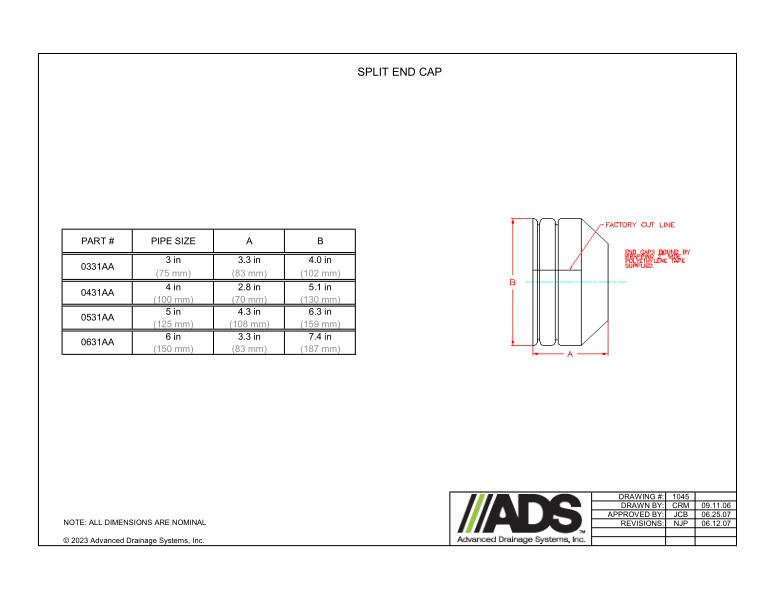

The split end cap detail shows the factory cut line, end caps bound by wrapping 2” wide polyethylene tape supplied and A/B dimensions.

A table with part number, pipe size and A/B dimensions is provided.

All dimensions are nominal.
