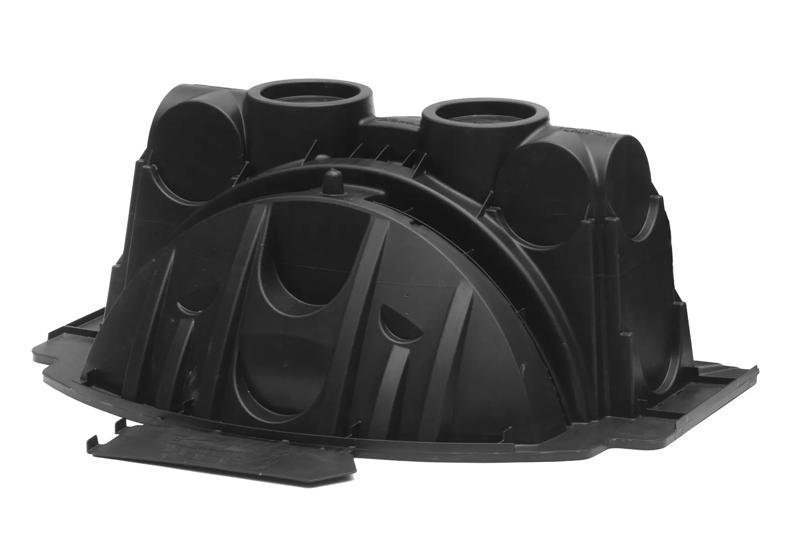

Quick4 Plus™ All-In-One 12 Endcap
The Quick4 Plus All-In-One 12 Endcap may be used at either end of the chamber row for an inlet/outlet or can be installed mid-trench. The mid-trench connection feature allows construction of chamber rows with a center-feed, as an alternative to inletting at the ends of chamber rows. Center-feed connections allow for easy installaiton of serial distribution systems. Pipe connection options include sides, ends or top.
Quick4 Plus All-In-One 12 Endcap
| Size |
33"W x 20.5"L x 13"H (838 mm x 520 mm x 330 mm) |
|---|---|
| Additional Length per Trench | 18.2" (462 mm) |
| Invert Height | 5.3" (134 mm), 8" (203 mm) |
Benefits:
- May be used at the end of chamber row for an inlet/outlet or can be installed mid-trench
- Mid-trench connection feature allows construction of chamber rows with center feed, as an alternative to inletting at the ends of chamber rows
- Center-feed connection allows for easy installation of serial distribution systems
- Pipe connection options include sides, ends or top
