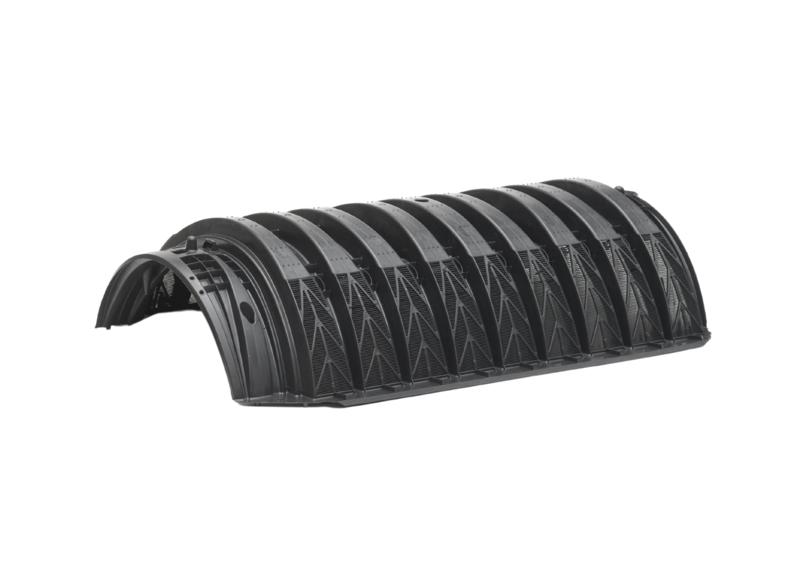

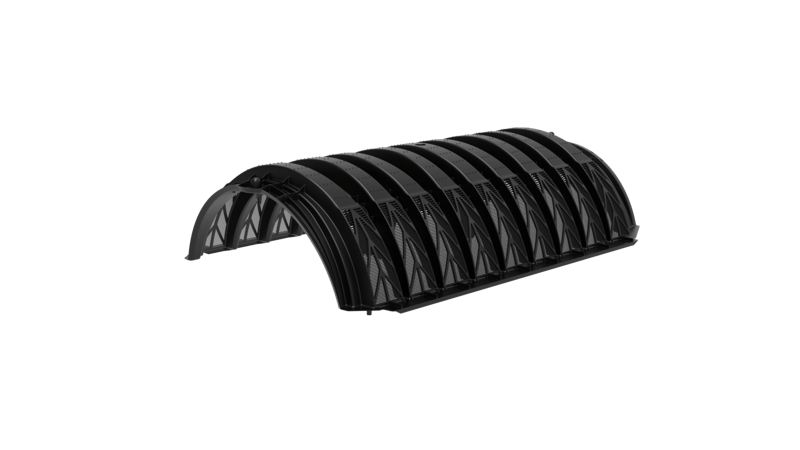

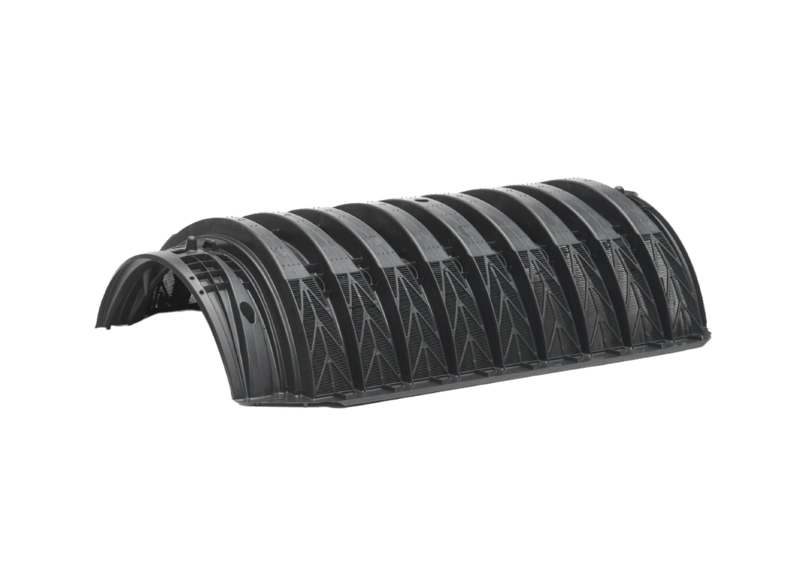

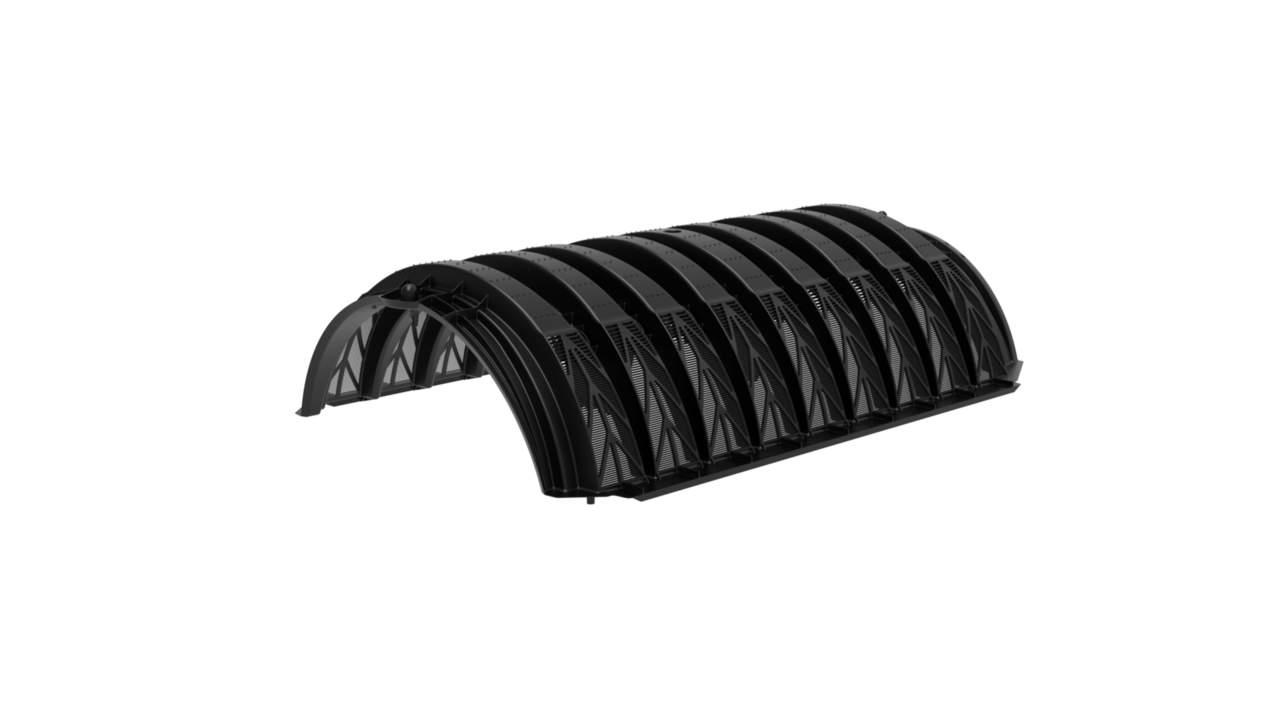

Quick4 Plus™ Standard Chamber

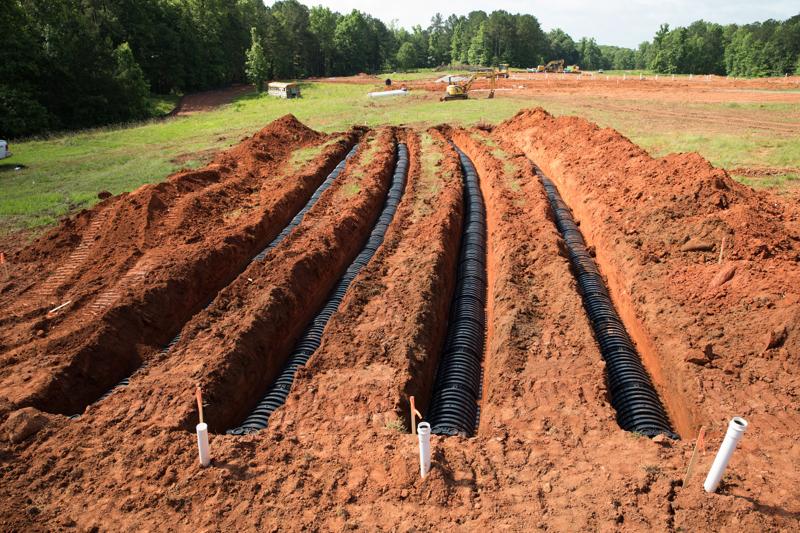

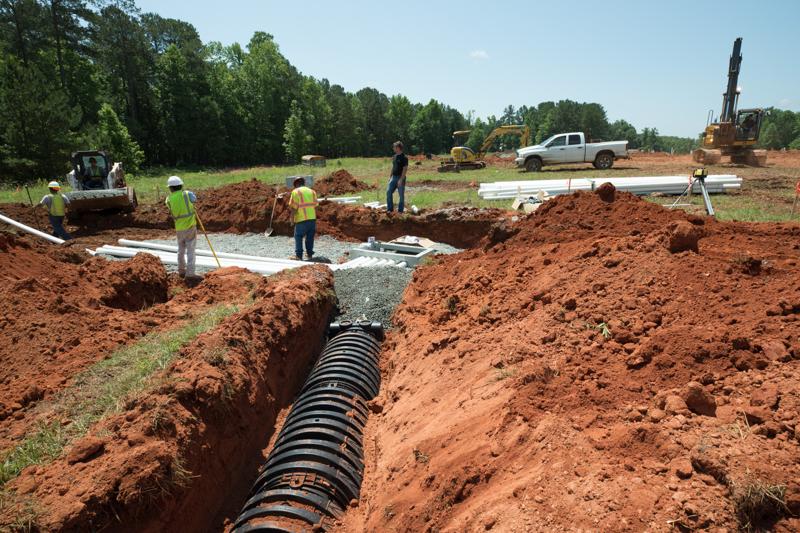

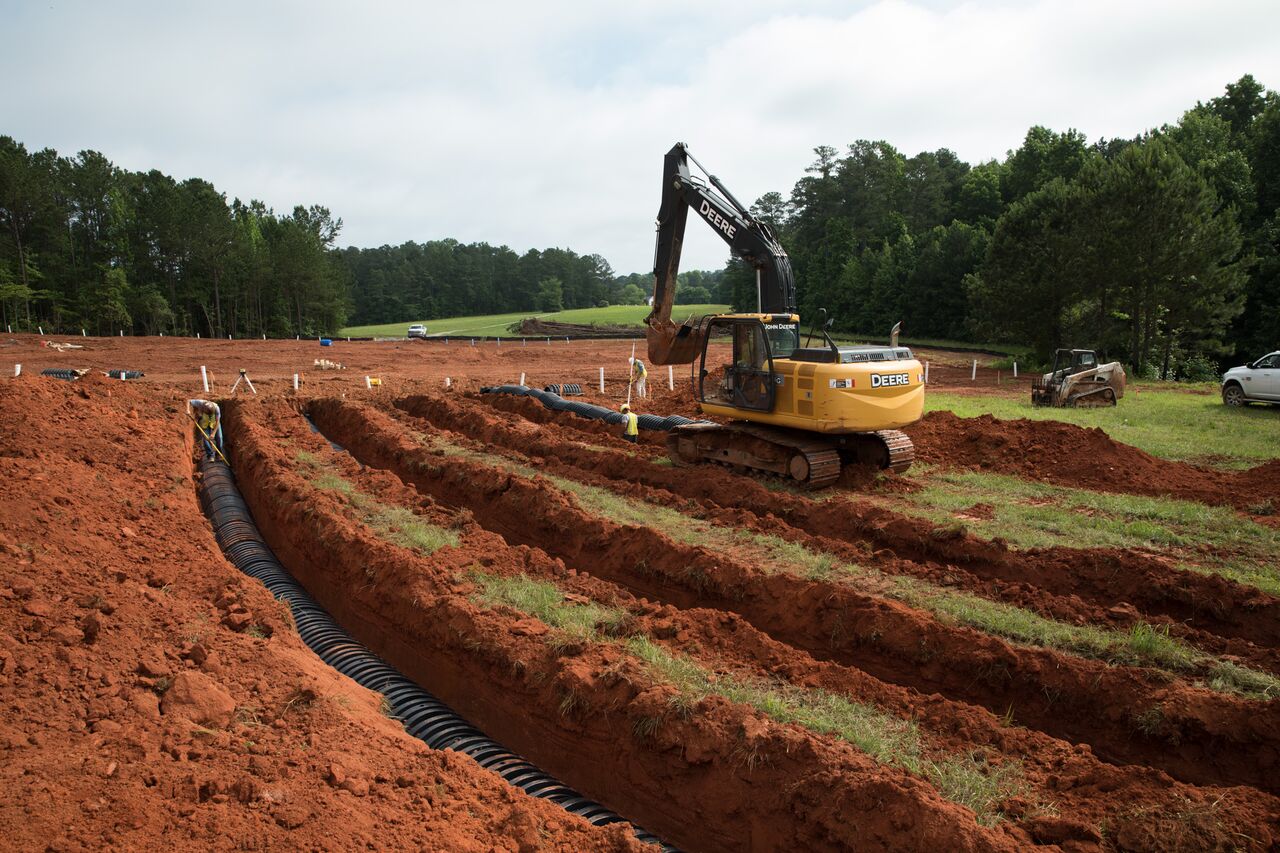

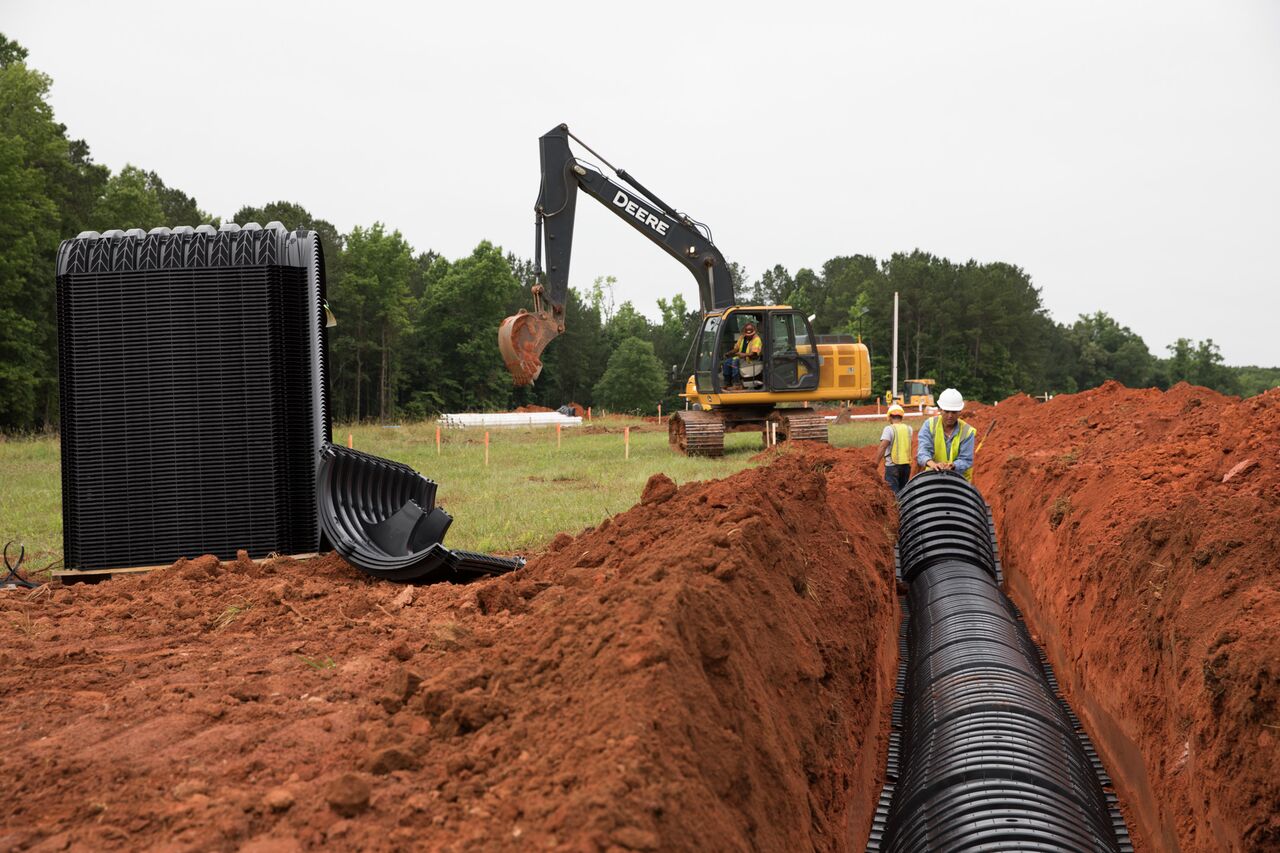

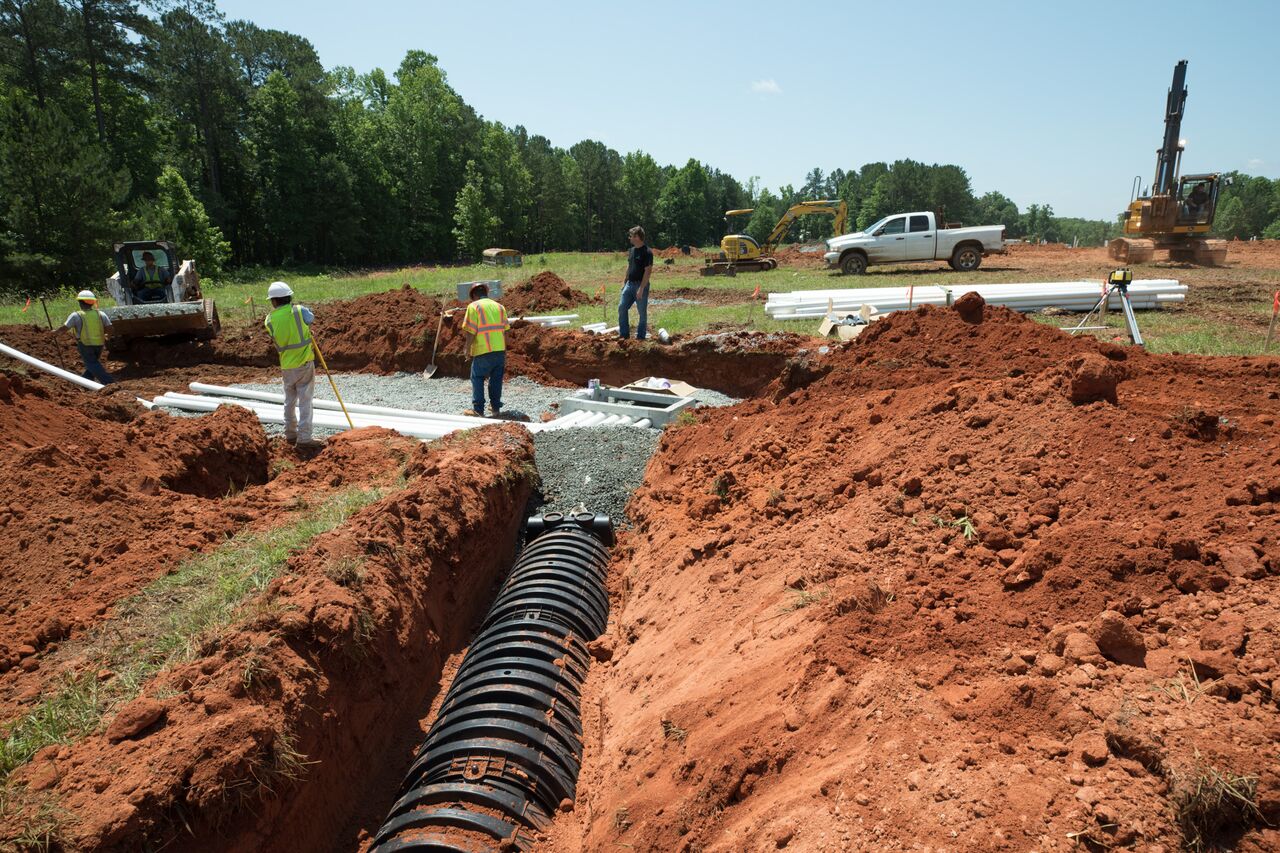

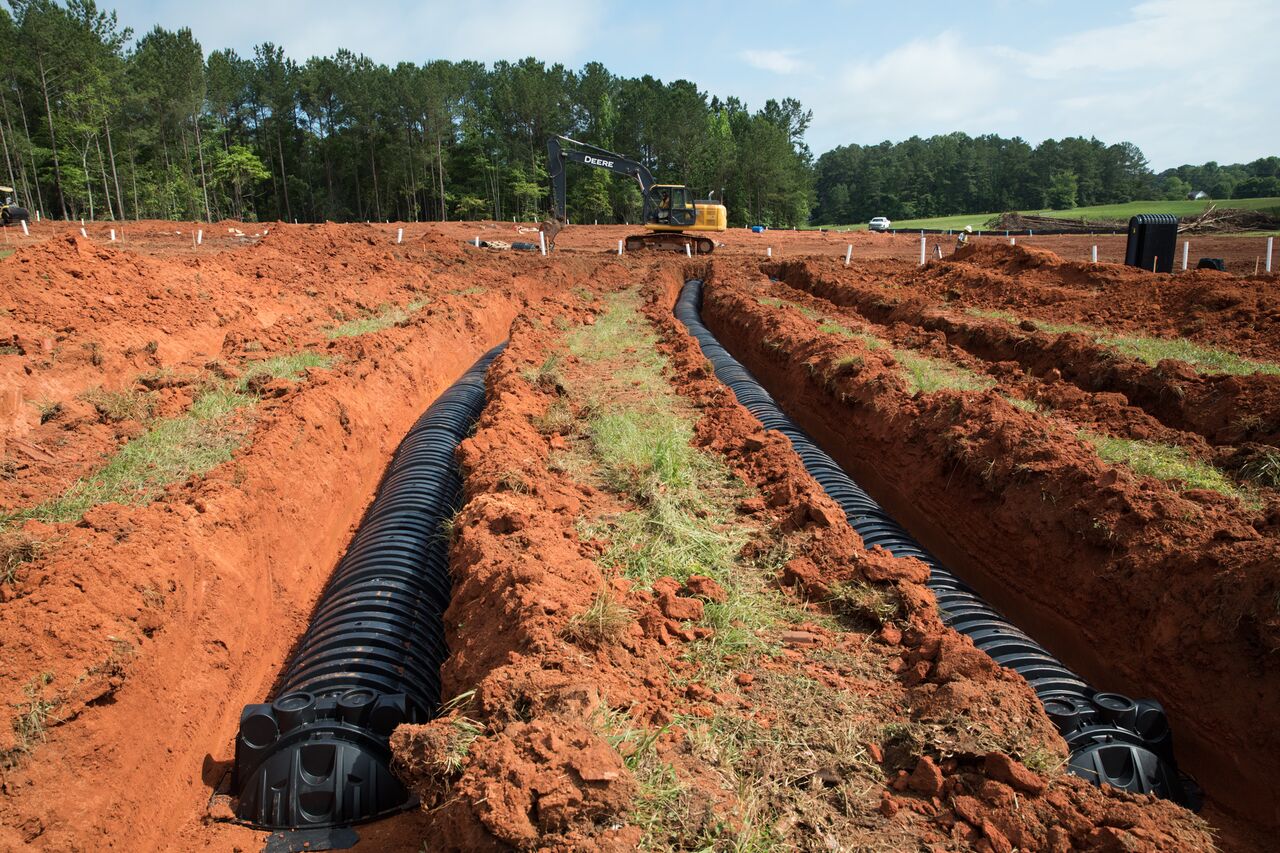

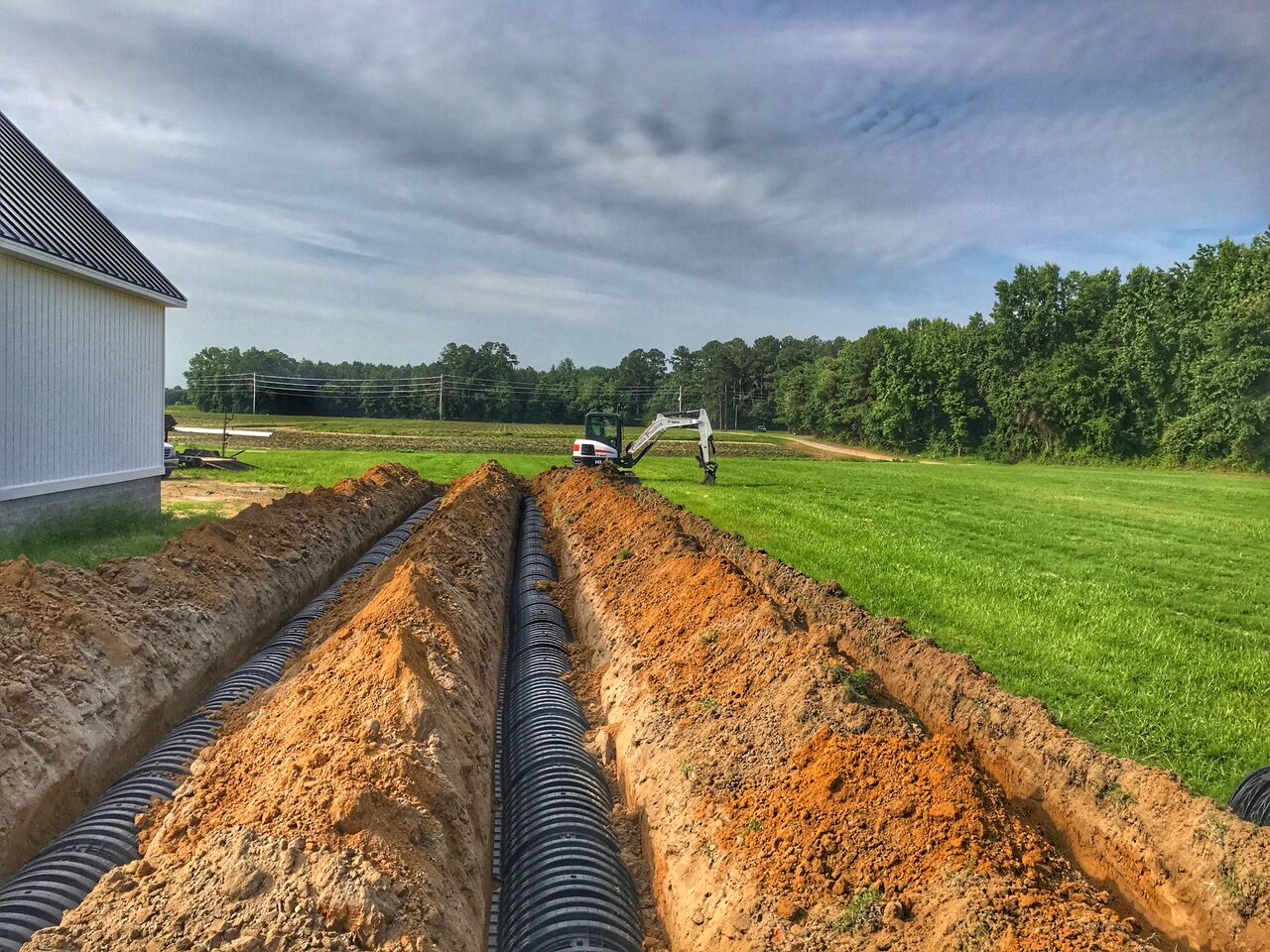

The Quick4 Plus Standard chamber offers maximum strength through its two center structural columns. This chamber can be installed in a 36" wide trench. Like the original line of Quick4® chambers, it offers advanced contouring capability with its Contour Swivel Connection™ which permits turns up to 10°, right or left. It is also available in 4' lengths to provide optimal installation flexibility.

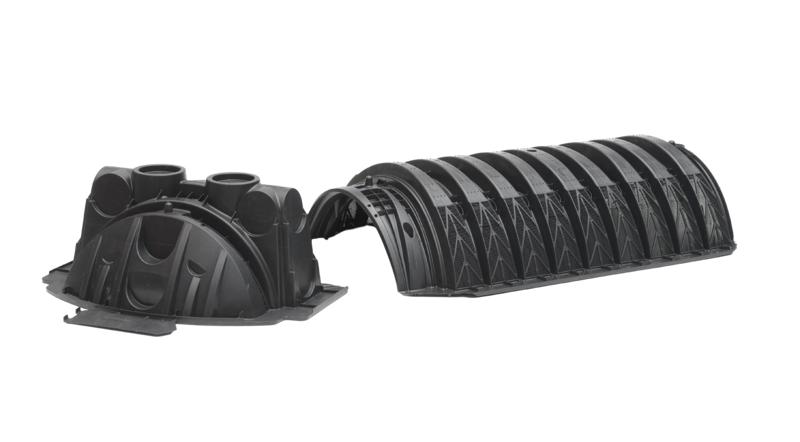

The Quick4 Plus All-in-One 12 Endcap and the Quick4 Periscope are available with this chamber, providing flexibility in system configurations.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Quick4 Plus Standard Chamber
| Size |
34"W x 53"L x 12"H (864 mm x 1346 mm x 305 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 8" (203 mm) |
| Storage Capacity | 47 gal (178 L) |
| Invert Height |
0.6" (15 mm), 5.3" (135 mm), 8.0" (203 mm), 12.7" (323 mm) |
Benefits:
- Two center structural columns offer increased stability and superior strength
- Advanced contouring connections
- Latching mechanism allows for quick installation
- Four-foot chamber lengths are easy to handle and install
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
Documentation
Quick4 Plus Standard Bed - Drawing
Quick4 Plus Standard Mound - Drawing
Quick4 Plus Standard Product Spec Sheet
Quick4 Plus Standard Serial Distribution - Drawing
Quick4 Plus Standard Trench - Drawing
Quick4 Plus STD Bed Standard Detail
Quick4 Plus STD Mound Standard Detail
