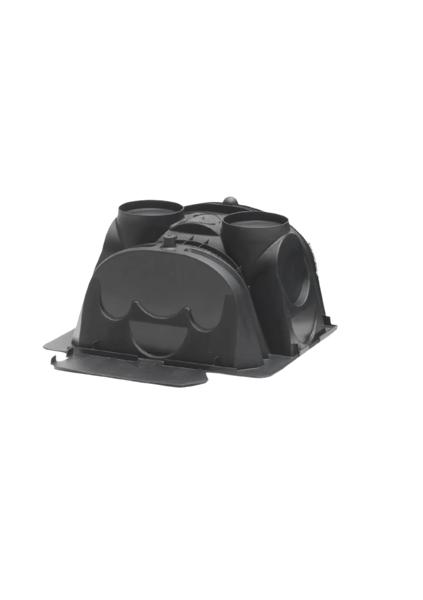

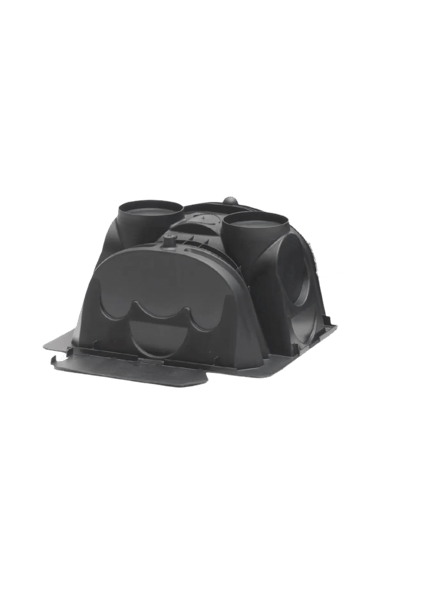

Quick4 Plus™ All-In-One 8 Endcap

This end cap features pipe cutouts on the right and left column designed to accommodate inspection ports, clean outs, or inlet pipes on either side of the end cap. These pipe locations allow easy access for maintenance and alignment when running pressure pipe through the chamber. The Quick4 Plus All-in-One 8 Endcap may be used at either end of a chamber row or can be installed mid-trench for an inspection port, cleanout or inlet/outlet pipe. The mid-trench connection feature allows construction of chamber rows with center feed inletting for easy installation of serial distribution systems. Pipe connection options allow for side, end or top inletting.

Product Specifications

Quick4 Plus Standard Low Profile All in One 8 Endcap

Quick4 Plus All-In-One 8 Endcap

Size 18"W x 15"L x 8"H
(46 cm x 38 cm x 20 cm)
Installed Length 10.4" (26 cm)
Invert Height 3.3" (8 cm), 9" (23 cm)

Benefits:

  • May be used at the end of chamber row for an inlet/outlet or can be installed mid-trench
  • Mid-trench connection feature allows center feed inletting of chamber rows
  • Center-feed connection allows for easy installation of serial distribution systems
  • Variable pipe connection options allow for side, end or top inletting
  • Piping drill points are set for gravity or pressure pipe
