Quick4 Plus™ Standard Low Profile Chamber

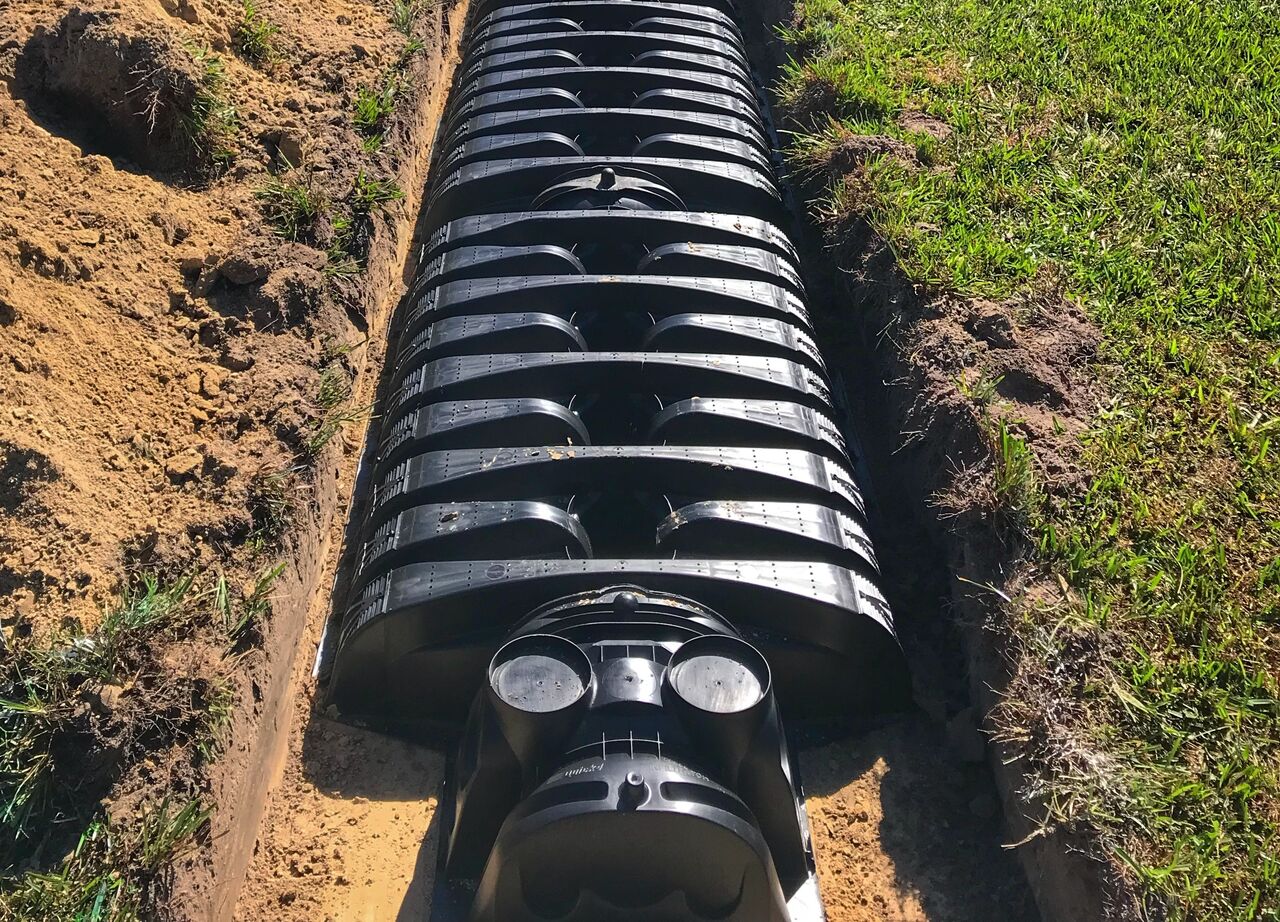

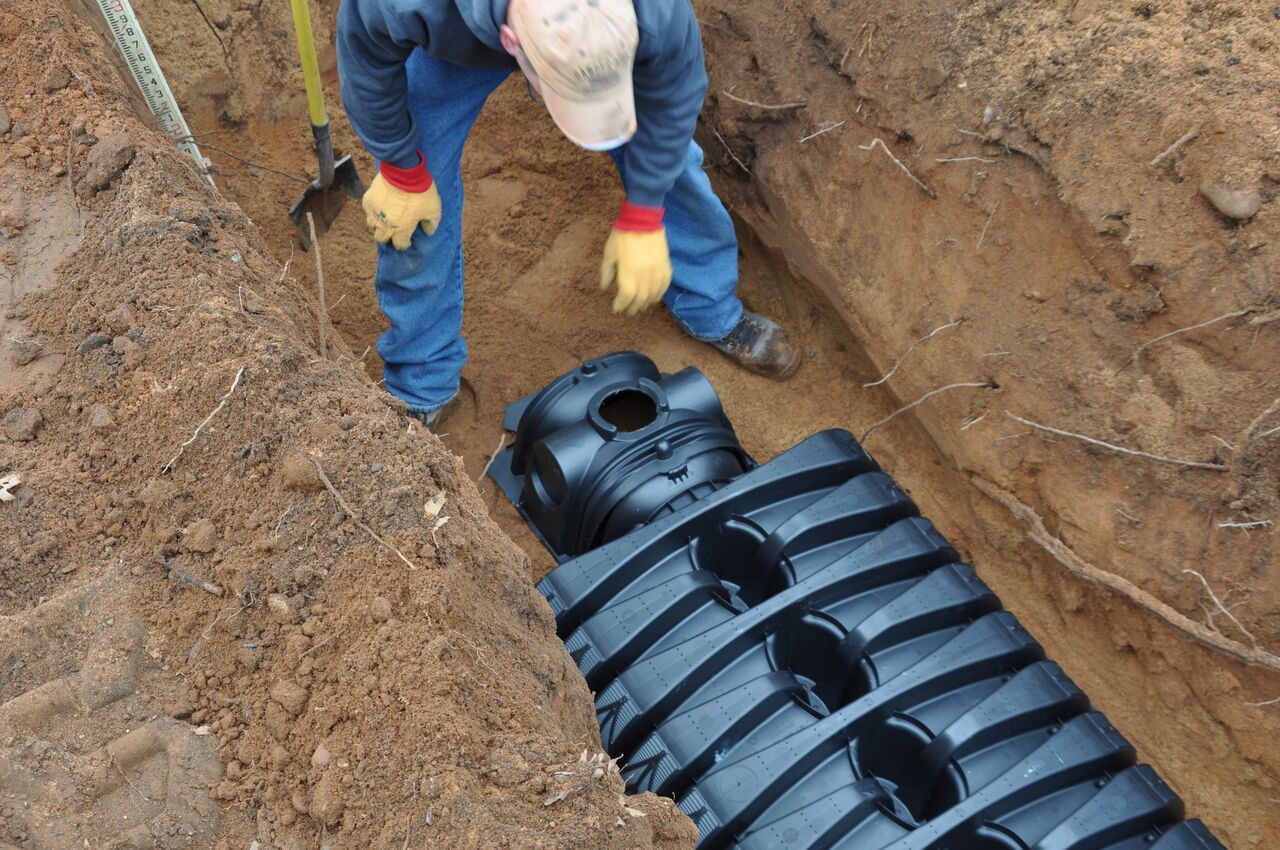

The Quick4 Plus Standard Low Profile (LP) offers maximum strength through its four center structural columns. This chamber can be installed in a 36" wide trench. It is shorter in height than Infiltrator’s other Standard model chambers, allowing for shallow installation. Like the original line of Quick4® chambers, it offers advanced contouring capability with its Contour Swivel Connection™, which permits turns up to 10°, right or left.

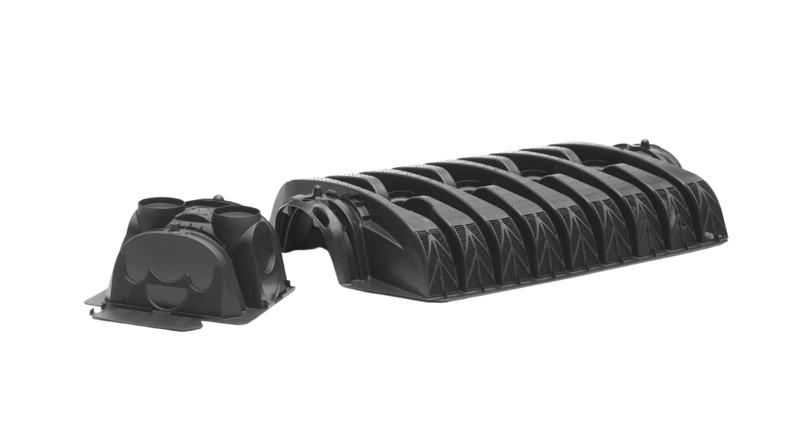

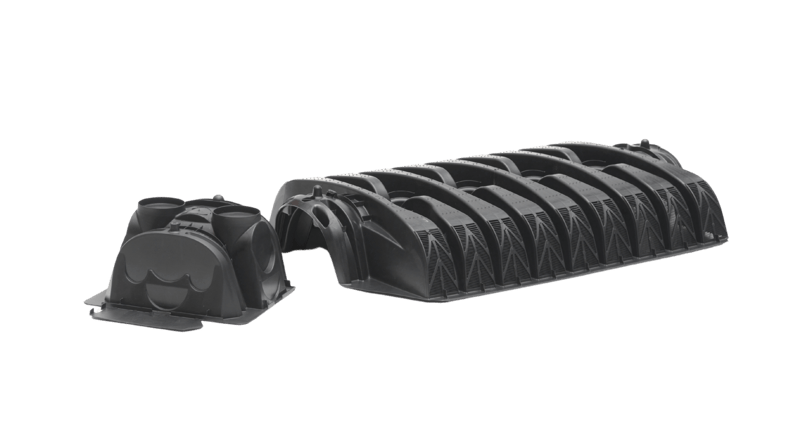

The Quick4 Plus All-in-One 8 and Quick4 Plus Endcaps provide increased flexibility in system design and configurations.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
Quick4 Plus Standard Low Profile Chamber
| Size |
34"W x 53"L x 8"H (864 mm x 1346 mm x 203 mm) |
|---|---|
| Effective Length | 48" (1219 mm) |
| Louver Height | 6.3" (160 mm) |
| Storage Capacity | 32 gal (121 L) |
| Invert Height | 3.3" (84 mm), 9.6" (244 mm) |
Benefits:
- Low profile design makes this chamber ideal for shallow applications
- Reduces imported fill needed for cap and fill systems
- Four center structural columns offer superior strength
- Advanced contouring connections
- Latching mechanism allows for quick installation
- Four-foot chamber lengths are easy to handle and install
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
Documentation
Quick4 Plus Standard Low Profile Bed - Drawing
Quick4 Plus Standard Low Profile Mound - Drawing
Quick4 Plus Standard Low Profile Product Specs
Quick4 Plus Standard Low Profile Serial Distribution
Quick4 Plus Standard Low Profile Trench - Drawing
Quick4 Plus STD LP Bed Standard Detail
Quick4 Plus STD LP Mound Standard Detail
Quick4 Plus STD LP Product Spec
