IM-Series Potable Water Tank

The Infiltrator IM-Series Potable water tanks are lightweight, strong and durable. These potable, watertight tank designs are offered with Infiltrator’s potable heavy-duty lids. Infiltrator injection-molded tanks provide a revolutionary improvement in plastic tank design, offering long-term exceptional strength and watertightness.

Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.

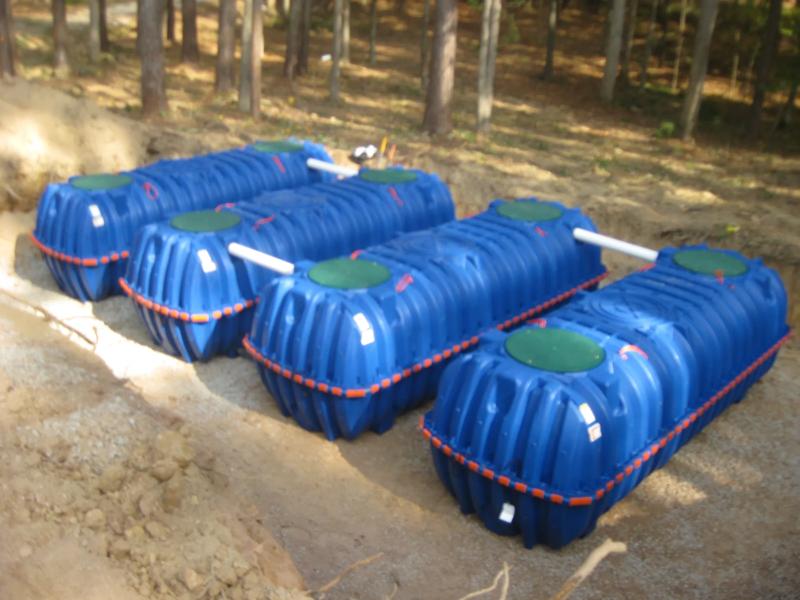

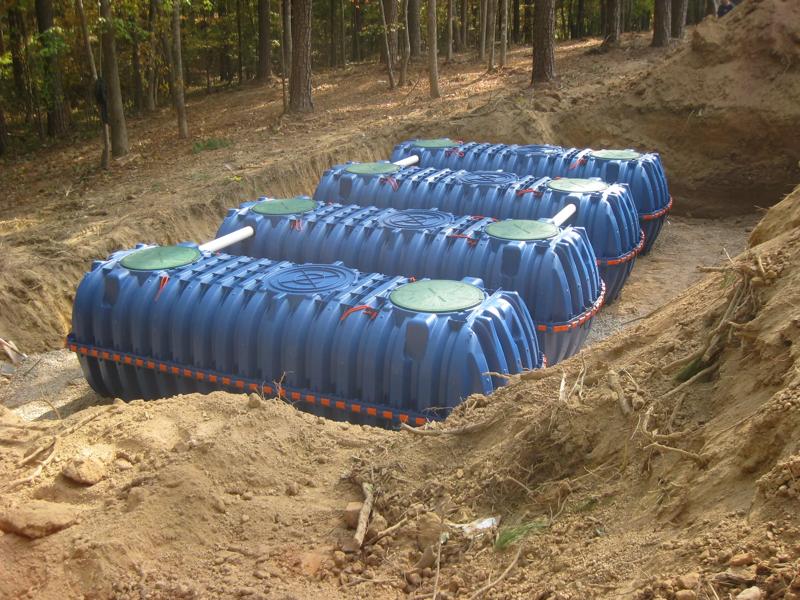

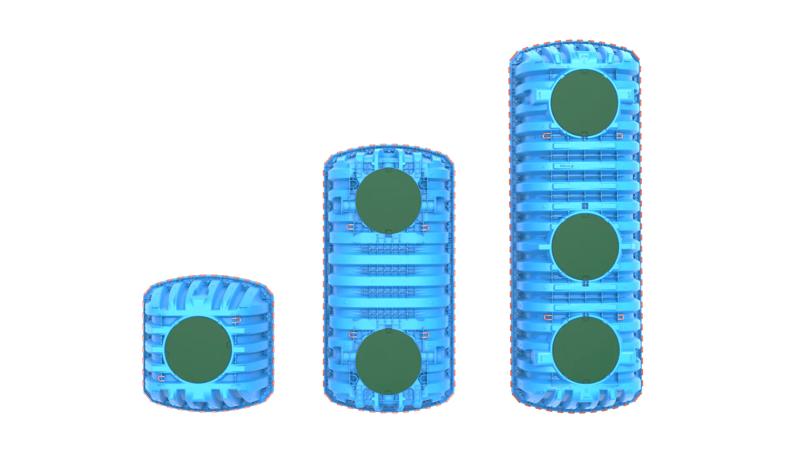

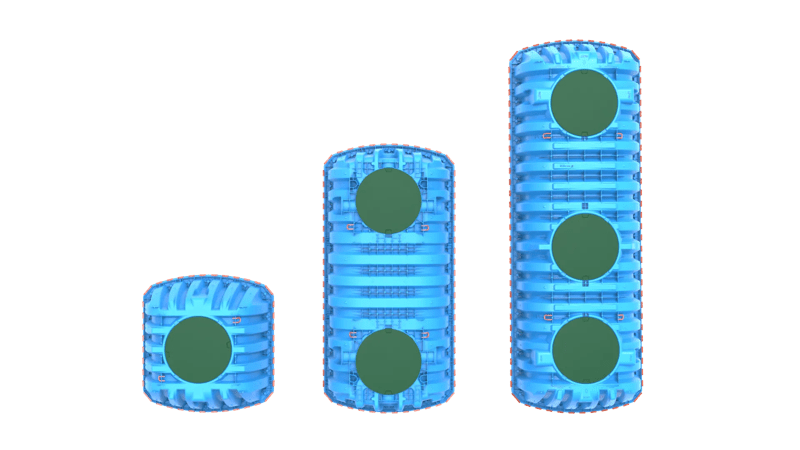

Infiltrator’s IM-Series Potable water tanks are available in 552-gallon, 1287-gallon and 1787-gallon capacities.

Contact an Expert

Contact an Expert

Product Variations & Specifications Product Specs

Product Benefits Product Benefits

Documentation Documentation

Product Specifications

Specifications

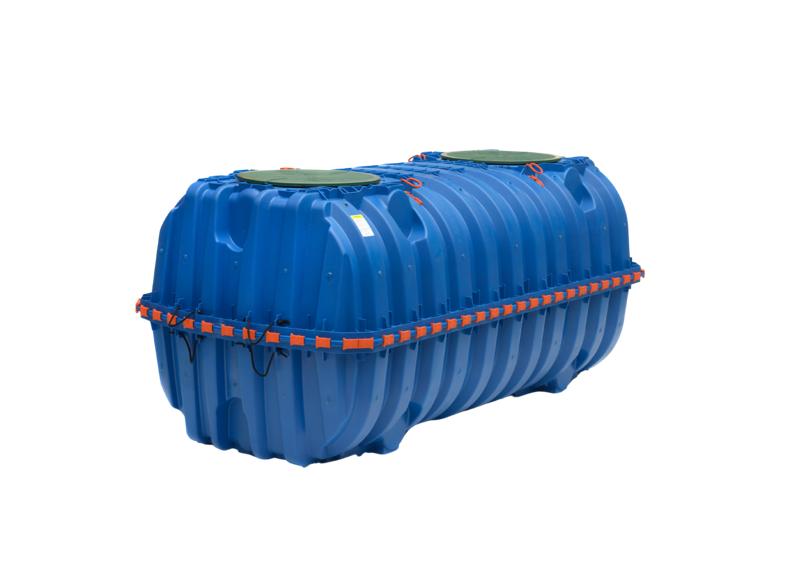

	IM-550C	IM-1280C	IM-1760C
Size	62"W x 65"L x 55"H (1575 mm x 1651 mm x 1397 mm)	62"W x 127"L x 55"H (1575 mm x 3226 mm x 1397 mm)	62"W x 176"L x 55"H (1575 mm x 4460 mm x 1397 mm)
Total Capacity	552 gal (2089 L)	1287 gal (4872 L)	1787 gal (6765 L)
Fiberglass Supports	0	2	4
Weight	191 lbs (87 kg)	346 lbs (157 kg)	501 (227 kg)

Benefits:

Strong injection molded polypropylene construction
NSF/ANSI-61-certified for potable uses

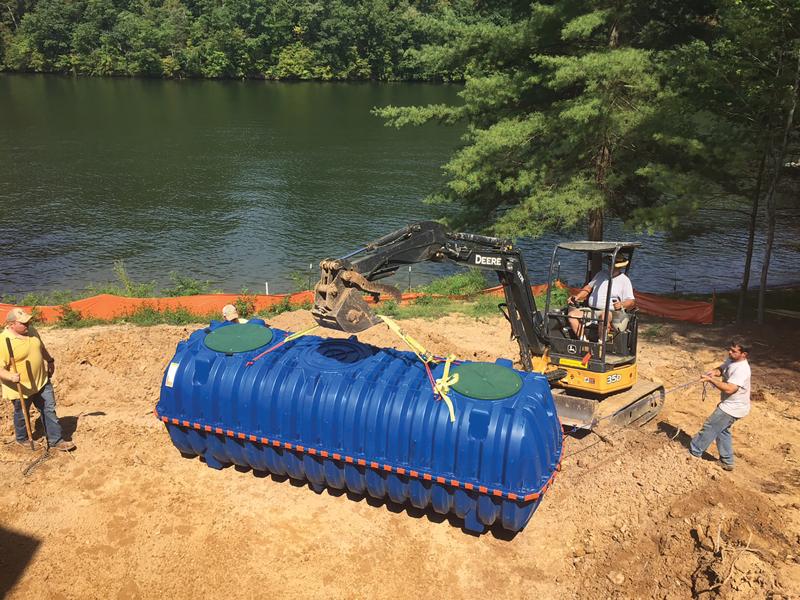

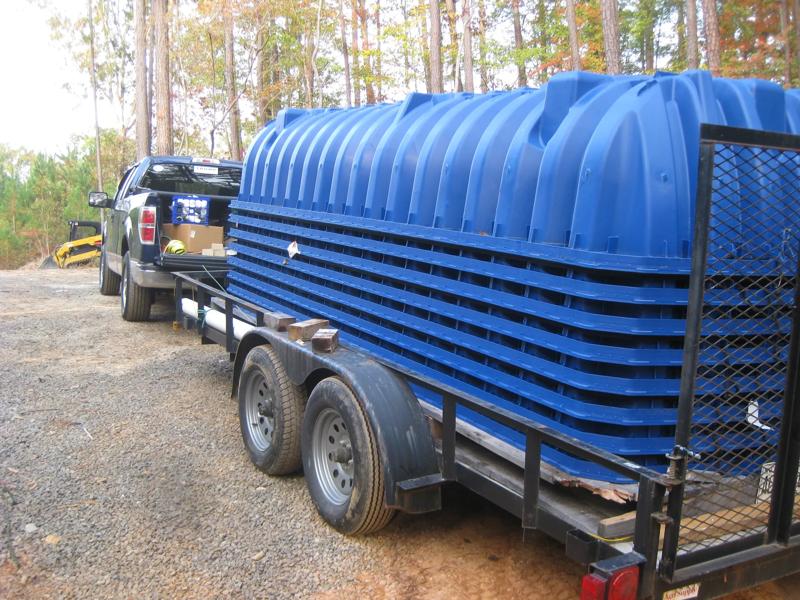

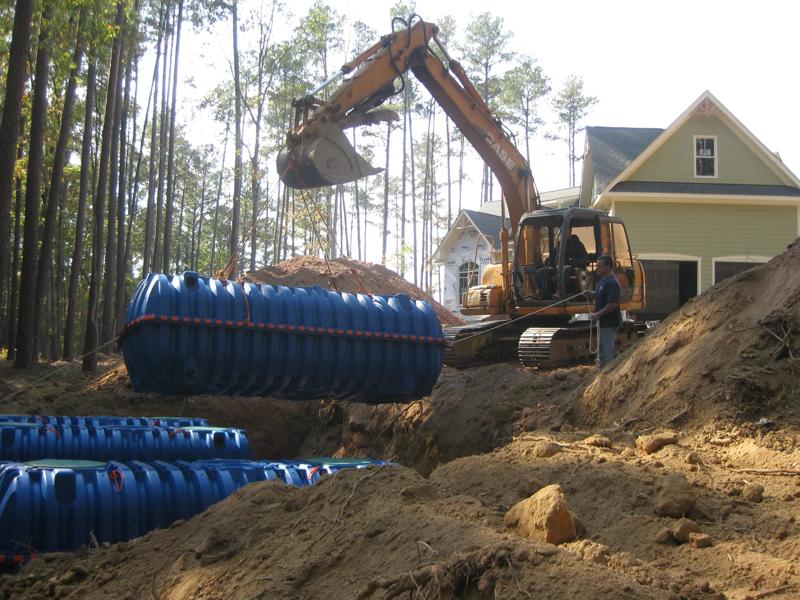

Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling

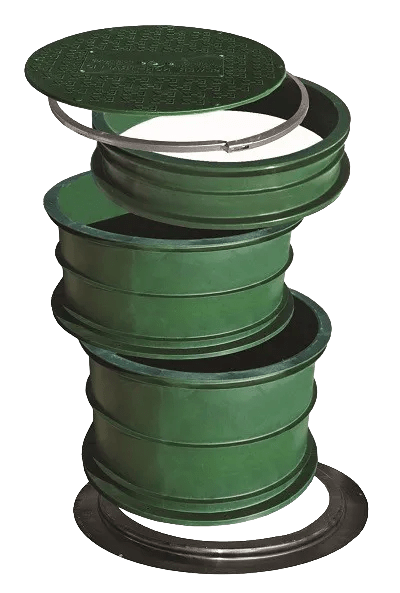

Integral heavy-duty green lids that interconnect with EZsnap risers and pipe riser solutions
Structurally reinforced access ports eliminate distortion during installation and pump-outs
Reinforced structural ribbing and fiberglass bulkheads offer additional strength
Can be installed with 6" to 48" of cover
Can be pumped dry
Suitable for use as a potable tank, rainwater harvesting tank, or water storage tank
No special water filling requirements are necessary
The tank may be backfilled with suitable native soil. See installation instructions for guidance.
