Hose Clamps

When turning the screw of this medium-duty clamp, it acts as a worm drive pulling the threads of the band and tightening it around the hose.

Where to Buy

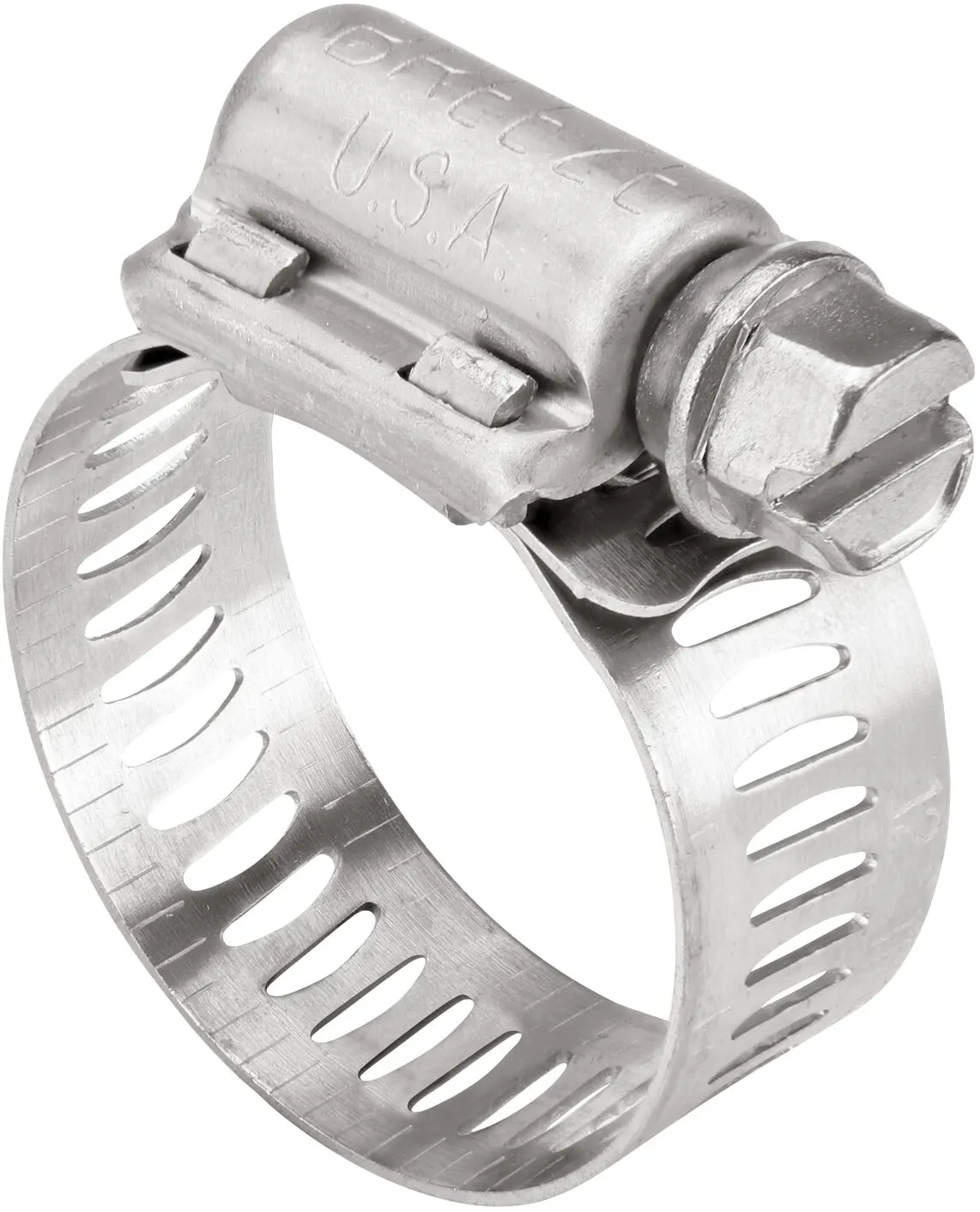

Use the NDS SAE 12 Worm Drive Hose Clamp with Aero Seal 1/2 in. band width (NDS 64012H) to form a secure connection in an industrial application between two pliable hoses or pipes
Where to Buy

Key Features

  • Hose clamp has a heavy duty 4-piece Quadra-Lock design to provide strength and stability; includes underside plate for added strength
  • Clamp has conical arched perforated slots for added strength and smoother engagement
  • Superior screw design includes buttressed threads and more threads per screw
  • Worm drive clamp exceeds all SAE requirements including Standard J1508 Type "F"
  • All clamp components are made of stainless steel

Applications

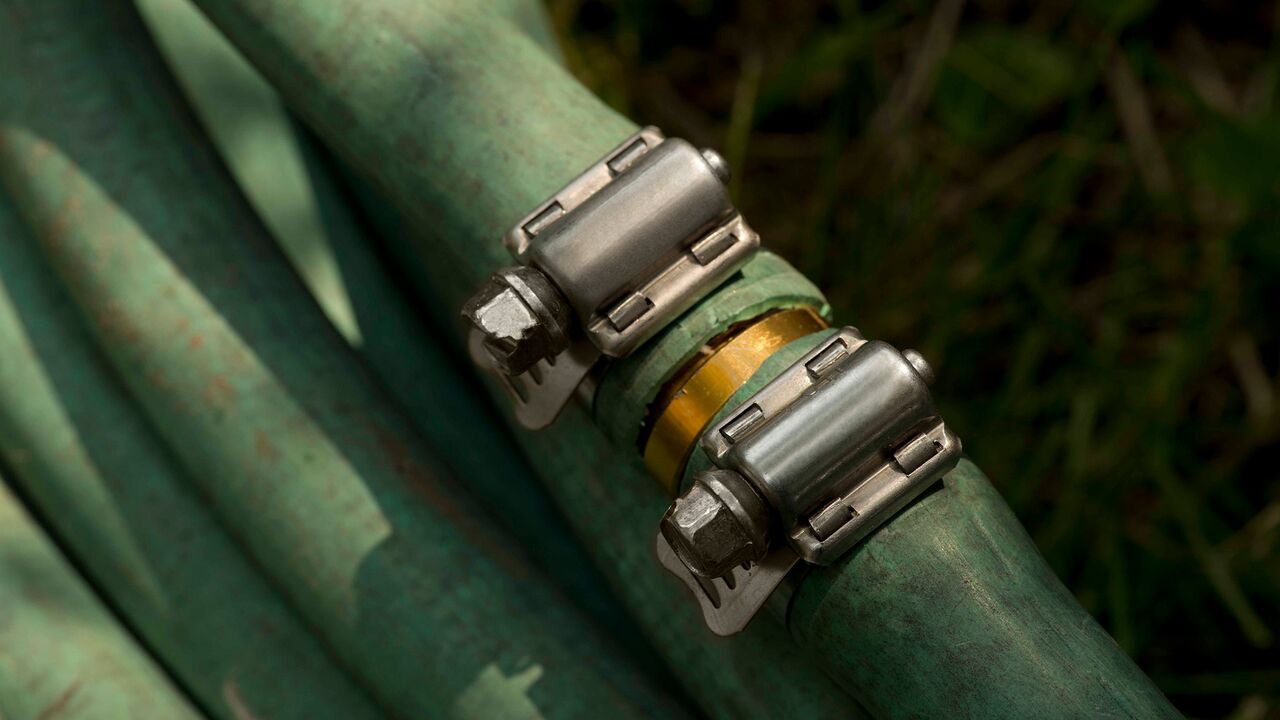

  • Ideal for plumbing, irrigation, and home project applications; works with most soft hose or tubing to transport water and prevent leaks in pressurized systems
  • As part of a complete flow management system, the hose clamp connects two 7/16 25/32 in. OD pliable hoses or tubing together to allow water to flow through while preventing leaks

Installation & Maintenance

  • Clamp slides onto connection point between two pliable hoses or tubing;
  • Tighten 410 stainless steel screw in 4-piece Quadra-Lock design to close
  • Clamp performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Worm drive hose clamp is made of 100% Series 300 Stainless Steel
  • Screw is made of 410 Stainless Steel
  • Made in USA of domestic materials
  • Onsite flow management protects pipe systems from leaks which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Filter results
Family
Color

50 products

    Part Number
    (click for more info)    		 Description
    200 10 H Worm Drive Hose Clamp, SAE 10, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 9/16 - 1-1/6 in., Pack of 10
    64010H Worm Drive Hose Clamp, SAE 10, Power Seal 1/2 in. Band Width, Effective Diameter Range: 9/16 - 1-1/6 in., Pack of 10
    200 104 H Worm Drive Hose Clamp, SAE 104, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 4-1/8 - 7 in., Pack of 10
    64104H Worm Drive Hose Clamp, SAE 104, Power Seal 1/2 in. Band Width, Effective Diameter Range: 4-1/8 - 7 in., Pack of 10
    200 12 H Worm Drive Hose Clamp, SAE 12, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 11/16 - 1-1/4 in., Pack of 10
    64012H Worm Drive Hose Clamp, SAE 12, Power Seal 1/2 in. Band Width, Effective Diameter Range: 11/16 - 1-1/4 in., Pack of 10
    62012H Worm Drive Hose Clamp, SAE 12, Power Seal 5/16 in. Band Width, Effective Diameter Range: 11/16 - 1-1/4 in., Pack of 10
    200 128 H Worm Drive Hose Clamp, SAE 128, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 5-5/8 - 8-1/2 in., Pack of 10
    200 152 H Worm Drive Hose Clamp, SAE 152, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 7-1/8 - 10 in., Pack of 10
    100 16 H Worm Drive Hose Clamp, SAE 16, Aero Seal 5/16 in. Band Width, Effective Diameter Range: 13/16 - 1-1/2 in., Pack of 10
    200 16 H Worm Drive Hose Clamp, SAE 16, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 13/16 - 1-1/2 in., Pack of 10
    64016H Worm Drive Hose Clamp, SAE 16, Power Seal 1/2 in. Band Width, Effective Diameter Range: 13/16 - 1-1/2 in., Pack of 10
    62016H Worm Drive Hose Clamp, SAE 16, Power Seal 5/16 in. Band Width, Effective Diameter Range: 13/16 - 1-1/2 in., Pack of 10
    200 188 H Worm Drive Hose Clamp, SAE 188, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 9-3/8 - 12-1/4 in., Pack of 10
    200 20 H Worm Drive Hose Clamp, SAE 20, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 13/16 - 1-3/4 in., Pack of 10
    64020H Worm Drive Hose Clamp, SAE 20, Power Seal 1/2 in. Band Width, Effective Diameter Range: 13/16 - 1-3/4 in., Pack of 10
    200 212 H Worm Drive Hose Clamp, SAE 212, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 10-7/8 - 13-3/4 in., Pack of 10
    200 24 H Worm Drive Hose Clamp, SAE 24, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 1-1/16 - 2 in., Pack of 10
    64024H Worm Drive Hose Clamp, SAE 24, Power Seal 1/2 in. Band Width, Effective Diameter Range: 1-1/16 - 2 in., Pack of 10
    200 28 H Worm Drive Hose Clamp, SAE 28, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 1-5/16 - 2-1/4 in., Pack of 10
    64028H Worm Drive Hose Clamp, SAE 28, Power Seal 1/2 in. Band Width, Effective Diameter Range: 1-5/16 - 2-1/4 in., Pack of 10
    200 32 H Worm Drive Hose Clamp, SAE 32, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 1-9/16 - 2-1/2 in., Pack of 10
    64032H Worm Drive Hose Clamp, SAE 32, Power Seal 1/2 in. Band Width, Effective Diameter Range: 1-9/16 - 2-1/2 in., Pack of 10
    200 36 H Worm Drive Hose Clamp, SAE 36, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 1-13/16 - 2-3/4 in., Pack of 10
    64036H Worm Drive Hose Clamp, SAE 36, Power Seal 1/2 in. Band Width, Effective Diameter Range: 1-13/16 - 2-3/4 in., Pack of 10
    200 40 H Worm Drive Hose Clamp, SAE 40, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 2-1/16 - 3 in., Pack of 10
    64040H Worm Drive Hose Clamp, SAE 40, Power Seal 1/2 in. Band Width, Effective Diameter Range: 2-1/16 - 3 in., Pack of 10
    200 44 H Worm Drive Hose Clamp, SAE 44, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 2-5/16 - 3-1/4 in., Pack of 10
    64044H Worm Drive Hose Clamp, SAE 44, Power Seal 1/2 in. Band Width, Effective Diameter Range: 2-5/16 - 3-1/4 in., Pack or 10
    64048H Worm Drive Hose Clamp, SAE 48, Power Seal 1/2 in. Band Width, Effective Diameter Range: 2-9/16 - 3-1/2 in., Pack of 10
    200 52 H Worm Drive Hose Clamp, SAE 52, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 2-13/16 - 3-3/4 in., Pack of 10
    64052H Worm Drive Hose Clamp, SAE 52, Power Seal 1/2 in. Band Width, Effective Diameter Range: 2-13/16 - 3-3/4 in., Pack of 10
    200 56 H Worm Drive Hose Clamp, SAE 56, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 3-1/16 - 4 in., Pack of 10
    64056H Worm Drive Hose Clamp, SAE 56, Power Seal 1/2 in. Band Width, Effective Diameter Range: 3-1/16 - 4 in., Pack of 10
    3606 Worm Drive Hose Clamp, SAE 6, 5/16 in. Band Width, Effective Diameter Range: 1/2 in. - 29/32 in., Pack of 10
    3604 Worm Drive Hose Clamp, SAE 6, 5/16 in. Band Width, Effective Diameter Range: 7/16 - 25/32 in., Pack of 10
    200 06 H Worm Drive Hose Clamp, SAE 6, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 7/16 - 25/32 in., Pack of 10
    64006H Worm Drive Hose Clamp, SAE 6, Power Seal 1/2 in. Band Width, Effective Diameter Range: 7/16 - 25/32 in., Pack of 10
    200 64 H Worm Drive Hose Clamp, SAE 64, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 3-9/16 - 4-1/2 in., Pack of 10
    64064H Worm Drive Hose Clamp, SAE 64, Power Seal 1/2 in. Band Width, Effective Diameter Range: 3-9/16 - 4-1/2 in., Pack of 10
    200 72 H Worm Drive Hose Clamp, SAE 72, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 1-7/8 - 5 in., Pack of 10
    64072H Worm Drive Hose Clamp, SAE 72, Power Seal 1/2 in. Band Width, Effective Diameter Range: 1-7/8 - 5 in., Pack of 10
    200 08 H Worm Drive Hose Clamp, SAE 8, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 1/2 - 29/32 in., Pack of 10
    64008H Worm Drive Hose Clamp, SAE 8, Power Seal 1/2 in. Band Width, Effective Diameter Range: 1/2 - 29/32 in., Pack of 10
    200 80 H Worm Drive Hose Clamp, SAE 80, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 2-1/2 - 5-1/2 in., Pack of 10
    64080H Worm Drive Hose Clamp, SAE 80, Power Seal 1/2 in. Band Width, Effective Diameter Range: 2-1/2 - 5-1/2 in., Pack of 10
    200 88 H Worm Drive Hose Clamp, SAE 88, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 3-1/8 - 6 in., Pack of 10
    64088H Worm Drive Hose Clamp, SAE 88, Power Seal 1/2 in. Band Width, Effective Diameter Range: 3-1/8 - 6 in., Pack of 10
    200 96 H Worm Drive Hose Clamp, SAE 96, Aero Seal 9/16 in. Band Width, Effective Diameter Range: 3-5/8 - 6-1/2 in., Pack of 10
    64096H Worm Drive Hose Clamp, SAE 96, Power Seal 1/2 in. Band Width, Effective Diameter Range: 3-5/8 - 6-1/2 in., Pack of 10

    Specifications & Documents
