6 in. Round Spee-D® Catch Basin Drain Kit with 1-Outlet Catch Basin & Green Plastic Round Grate

SKU: 101GRKIT

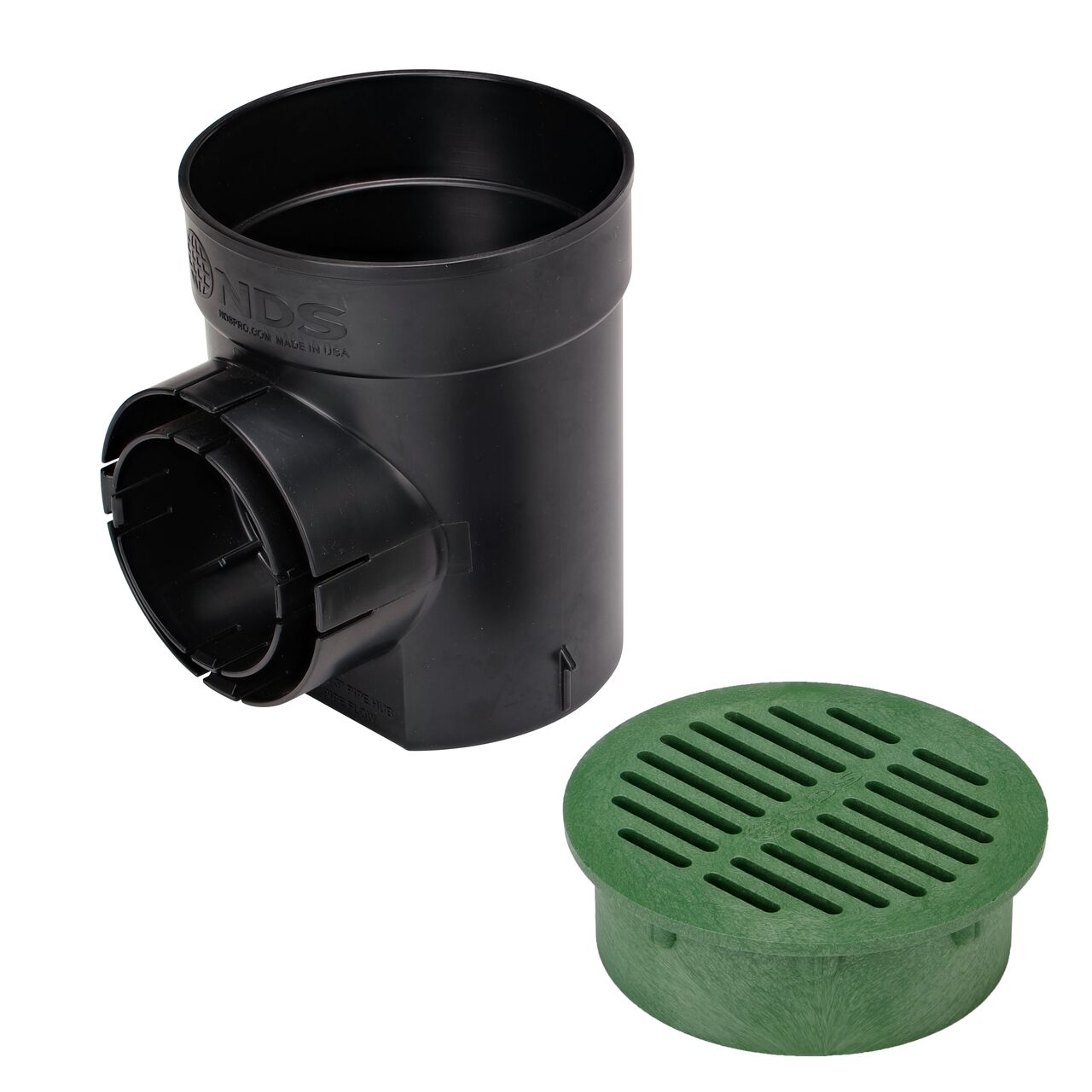

Unassembled NDS 6 in. Round Spee-D Catch Basin Drain Kit with Green Plastic Round Grate (NDS 101GRKIT)

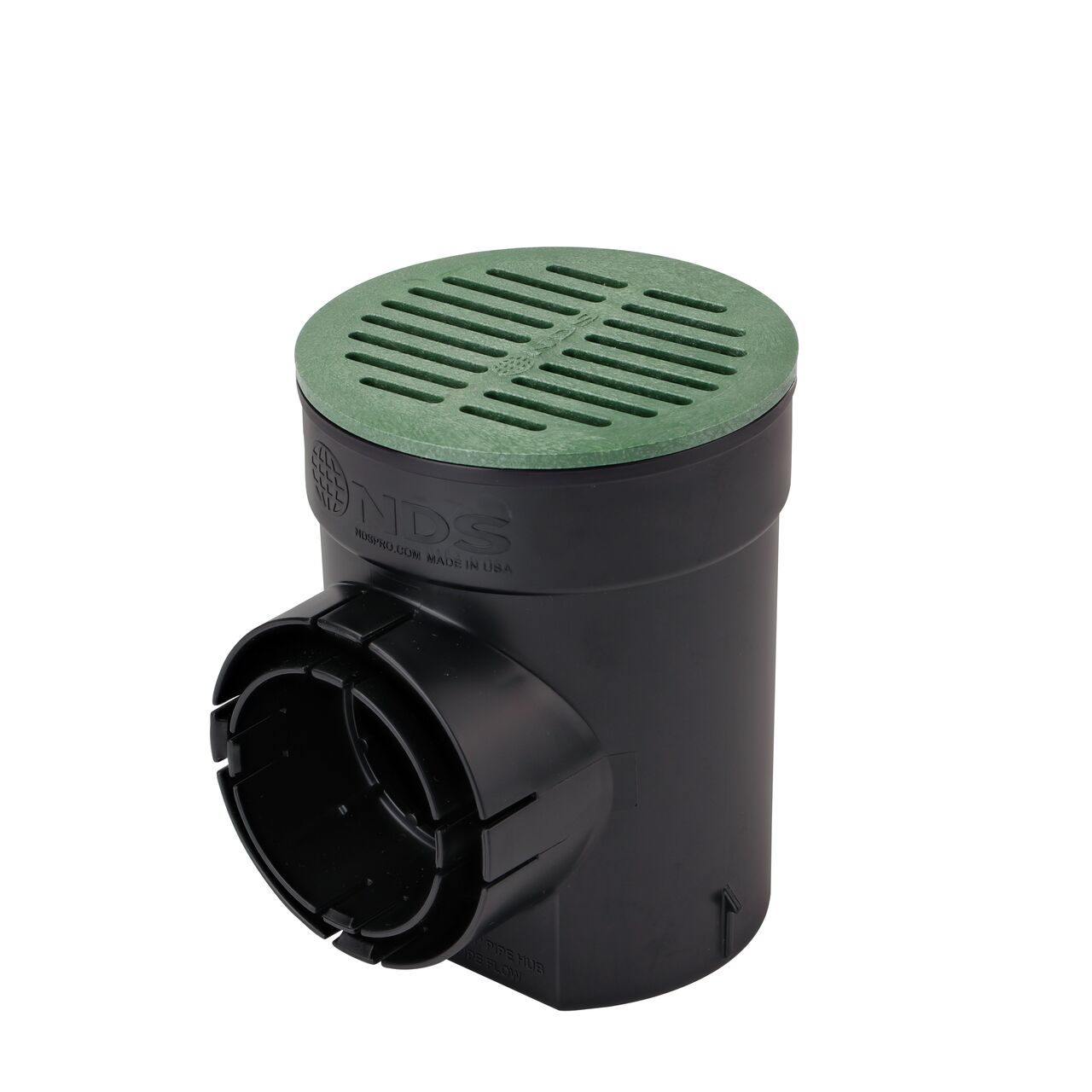

NDS 6 in. Round Spee-D Catch Basin Drain Kit assembled with Green Plastic Round Grate (NDS 101GRKIT)

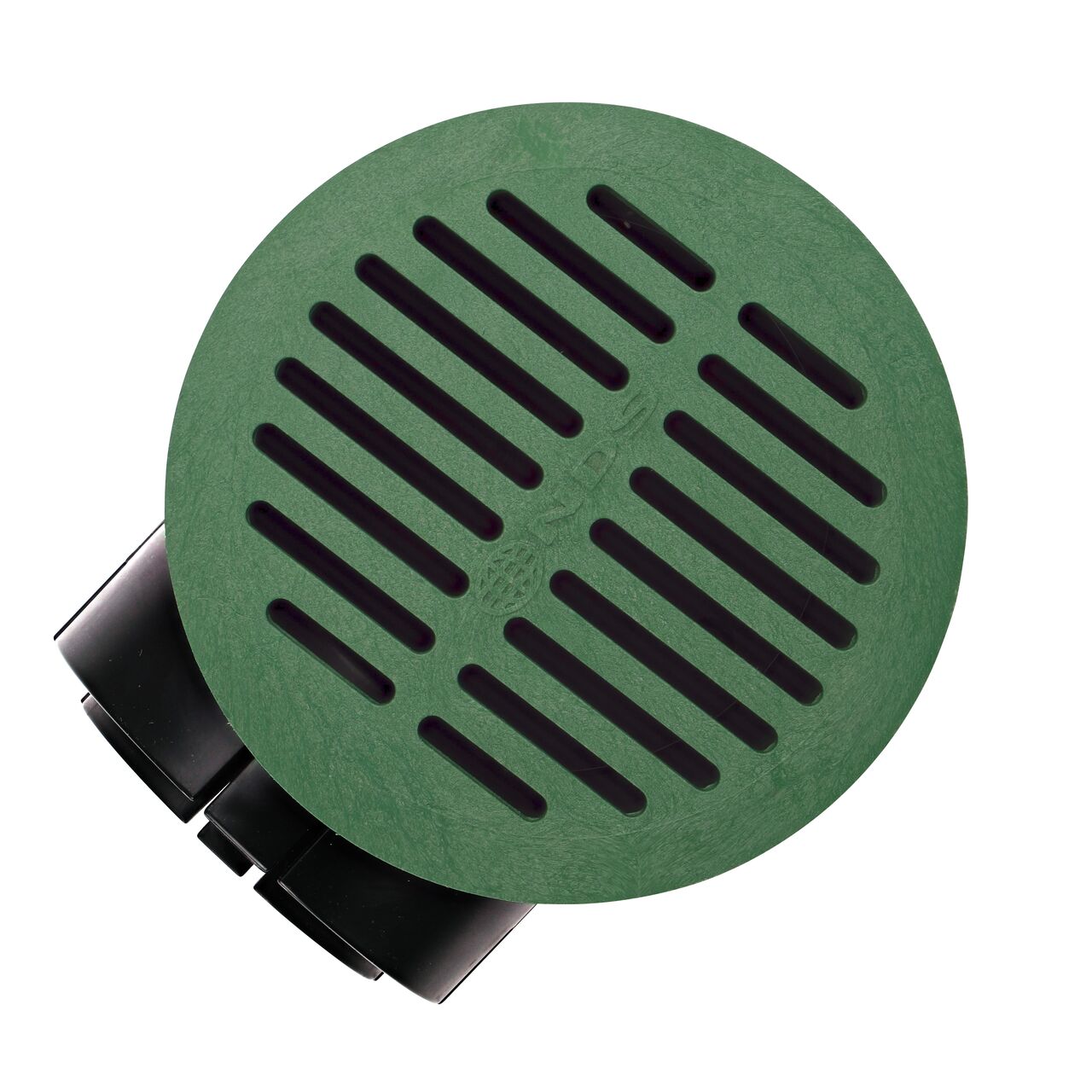

Top down view of the NDS 6 in. Round Spee-D Catch Basin Drain Kit with Green Plastic Round Grate (NDS 101GRKIT)
Unassembled NDS 6 in. Round Spee-D Catch Basin Drain Kit with Green Plastic Round Grate (NDS 101GRKIT)
NDS 6 in. Round Spee-D Catch Basin Drain Kit assembled with Green Plastic Round Grate (NDS 101GRKIT)
Top down view of the NDS 6 in. Round Spee-D Catch Basin Drain Kit with Green Plastic Round Grate (NDS 101GRKIT)

Home improvement made easy. The 6 in. Round Spee-D® Catch Basin Drain Kit is simple to install and drains light flows of excess stormwater from small lawns, landscaped areas, patios, and walkways to prevent costly water damage to your property. Kit comes with a 1-outlet Spee-D catch basin drain and 6 in. round grate treated with UV inhibitors. Catch basin outlet features locking flex tabs and connects to 3 in. & 4 in. single-wall corrugated, sewer and drain, and triple-wall pipes, and 4 in. Sch. 40 pipe. The high-impact polystyrene (HIPS) basin has easy access to sump area for cleaning. The high-density polyethylene (HDPE) drain grate, or drain cover, blocks leaves and debris from entering the pipeline and clogging your system. Use the one-outlet catch basin alone or to start a series of connected ba

Applications:

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Ideal for capturing light water flows from small lawns, landscaped areas, patios, and walkways
  • As part of a complete drainage system, the catch basin with grate captures surface water and directs it to connected drain pipes for proper release downstream

Features:

  • Use the one-outlet catch basin alone or to start a series of connected basins positioned downstream
  • Outlet features locking flex tabs for a secure connection to pipe—no tape or glue required
  • Grate is 2-3/8 in. high; top is 6-3/4 in. in diameter; grate openings are 1/4 in. wide
  • Spee-D Catch Basin Drains are available in single and multiple outlets
