PVC S&D Female Fitting Cleanout Adapter, 4 in. Spt X FPT

SKU: 413P

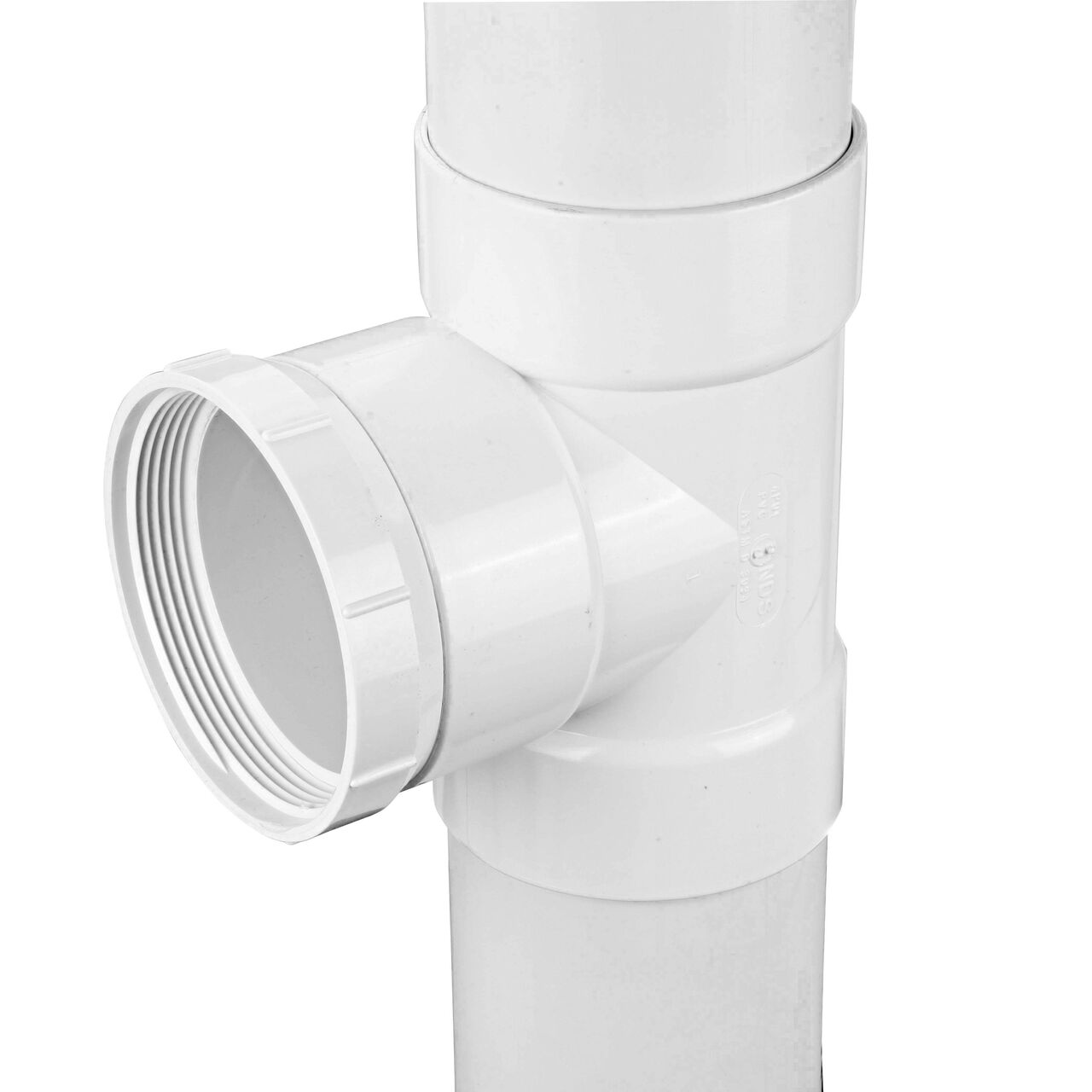

Vertical application of the NDS 4 in. PVC Sewer and Drain Tee (NDS 4P01*, NDS 4P01) with 4 in. S&D Pipe installed on top and bottom hubs and the PVC S&D Female Fitting Cleanout Adapter, 4 in. Spt X FPT (NDS 413P) in the side hub
The NDS 4 in. PVC Sewer and Drain 3-Way Sanitary Tee (NDS 4P09C*, NDS 4P09*, NDS 4P09) in vertical position with 4 in. S&D pipe attached to top and bottom connection points and a PVC S&D Female Fitting Cleanout Adapter attached to middle hub

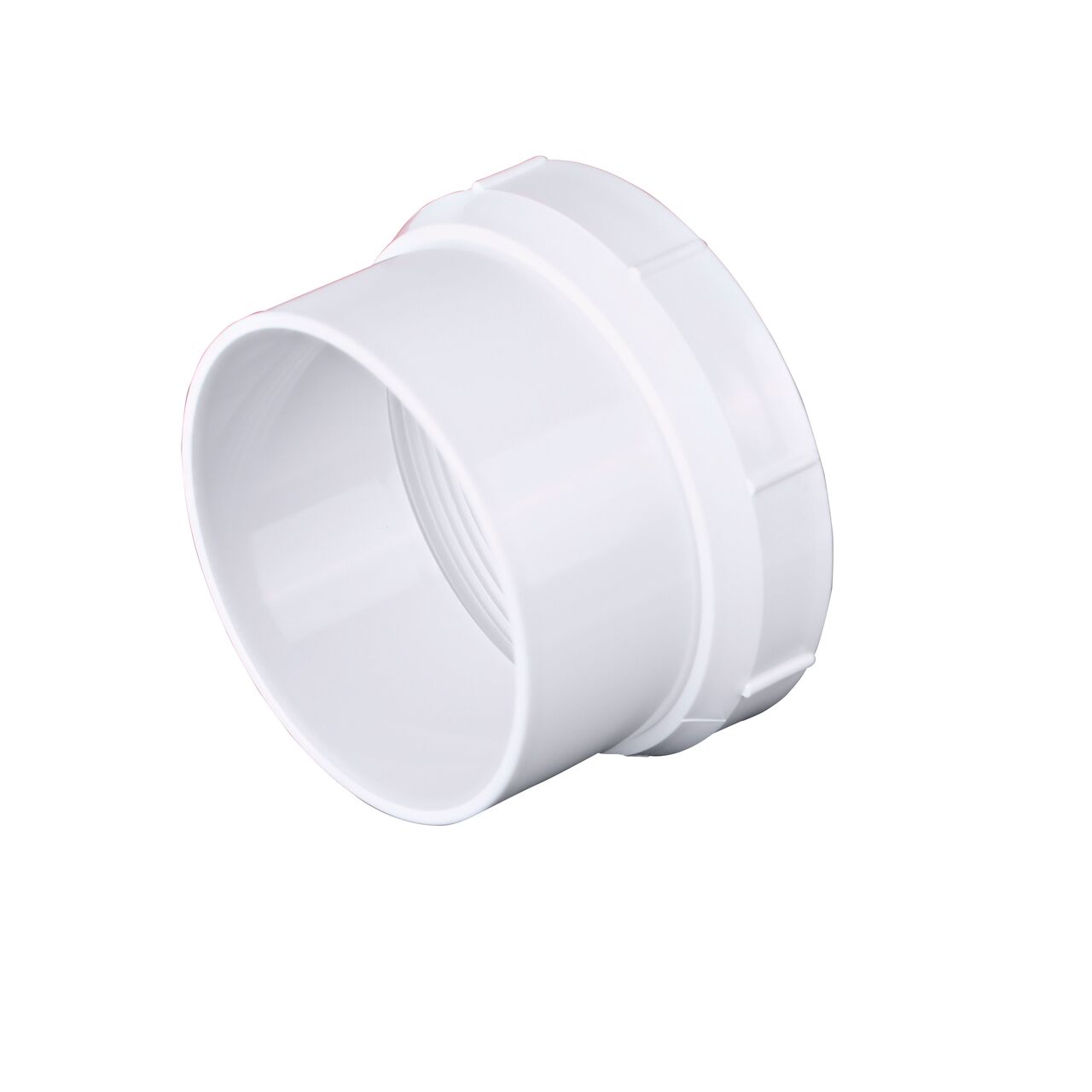

The PVC female fitting cleanout adapter, connects 4 in. Sewer and Drain pipe to 4 in. FPT; Spt X FPT connection (NDS 413P)
The NDS 4 in. PVC Sewer and Drain 45° Wye (NDS 4P08C*, NDS 4P08*, NDS 4P08) in vertical position with 4 in. S&D pipe attached to the top and bottom connection points and a PVC S&D Female Fitting Cleanout Adapter attached to middle hub
Vertical application of the NDS 4 in. PVC Sewer and Drain Tee (NDS 4P01*, NDS 4P01) with 4 in. S&D Pipe installed on top and bottom hubs and the PVC S&D Female Fitting Cleanout Adapter (NDS 413P) with the 4 in. MPT PVC S&D Cleanout Plug (NDS 41P8)
Vertical application of the NDS 4 in. PVC Sewer and Drain Tee (NDS 4P01*, NDS 4P01) with 4 in. S&D Pipe installed on top and bottom hubs and the PVC S&D Female Fitting Cleanout Adapter, 4 in. Spt X FPT (NDS 413P) in the side hub
The NDS 4 in. PVC Sewer and Drain 3-Way Sanitary Tee (NDS 4P09C*, NDS 4P09*, NDS 4P09) in vertical position with 4 in. S&D pipe attached to top and bottom connection points and a PVC S&D Female Fitting Cleanout Adapter attached to middle hub
The PVC female fitting cleanout adapter, connects 4 in. Sewer and Drain pipe to 4 in. FPT; Spt X FPT connection (NDS 413P)
The NDS 4 in. PVC Sewer and Drain 45° Wye (NDS 4P08C*, NDS 4P08*, NDS 4P08) in vertical position with 4 in. S&D pipe attached to the top and bottom connection points and a PVC S&D Female Fitting Cleanout Adapter attached to middle hub
Vertical application of the NDS 4 in. PVC Sewer and Drain Tee (NDS 4P01*, NDS 4P01) with 4 in. S&D Pipe installed on top and bottom hubs and the PVC S&D Female Fitting Cleanout Adapter (NDS 413P) with the 4 in. MPT PVC S&D Cleanout Plug (NDS 41P8)

Access the drain pipe system to clear out clogs with the PVC Female Fitting Cleanout Adapter for Sewer and Drain (S&D) pipe. Spigot connects to 4 in. Sewer and Drain (S&D) fitting hub; 4 in. Female Pipe Thread (FPT) connection fits 4 in. Male Pipe Thread (MPT) Cleanout Plug (41P8), sold separately. The Female Fitting Cleanout Adapter is made of polyvinyl chloride (PVC) and makes a Spt X FPT connection. Meets applicable ASTM standards. For use in non-pressurized underground sewer and drainage applications; maximum working pressure of 5 psi.

Where to Buy Find a Pro

Applications:

  • Connects to 4 in. Sewer and Drain (S&D) fitting hub; 4 in. Female Pipe Thread (FPT) connection fits 4 in. Male Pipe Thread (MPT) Cleanout Plug (41P8), sold separately
  • Install cleanouts along several points on the main drainage pipe run to provide multiple access points to clean pipes
  • As part of a complete drainage system, the PVC adapter has a spigot to connect to a fitting hub and FPT to connect to a threaded plug for access to the drain pipe system or threaded pipe to convey water for proper release downstream

Features:

  • Meets applicable ASTM standards
