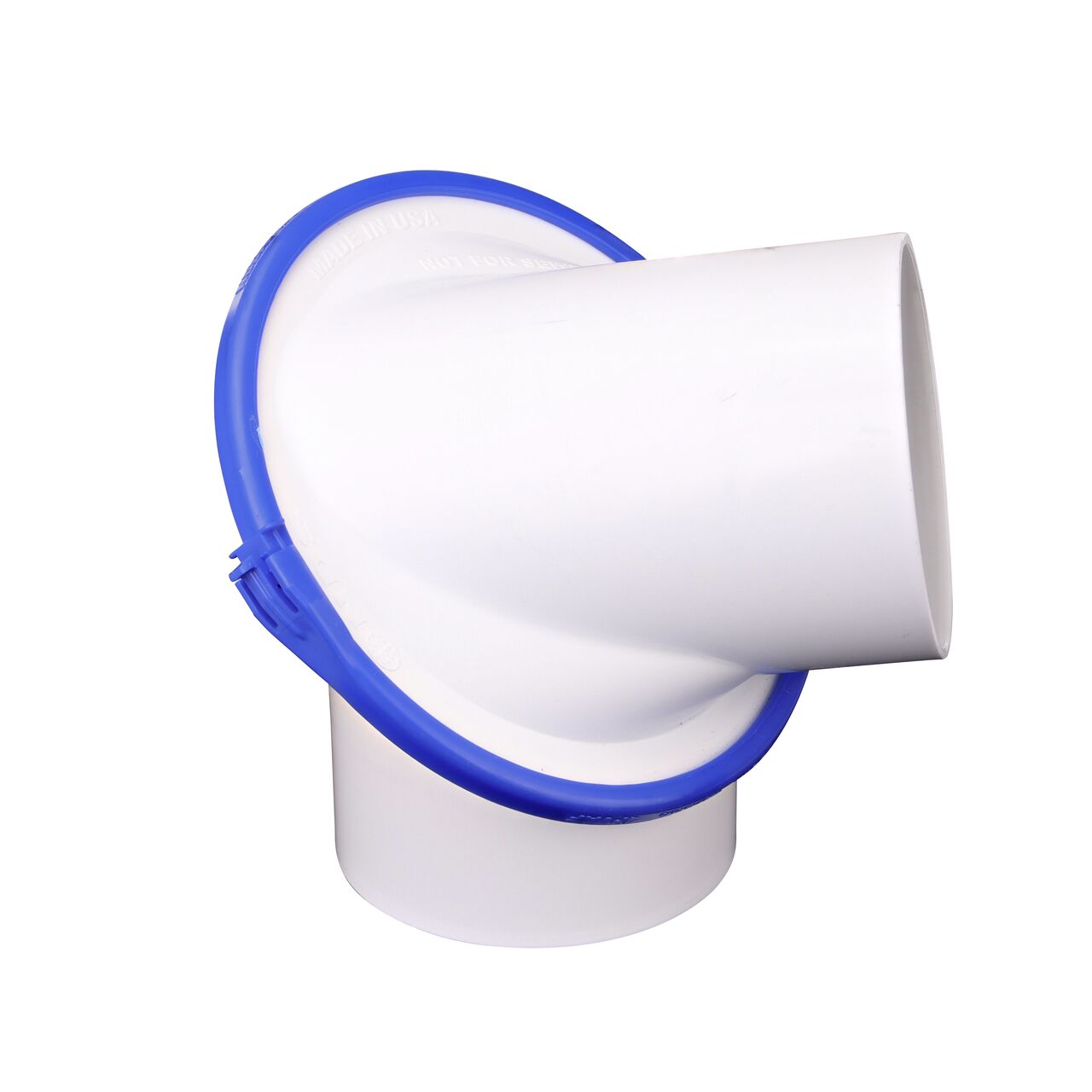

PVC S&D Swivel-Fit™ 0-90° Variable-Angle Fitting, 4 in. Hub X Hub
SKU: 4PVAF

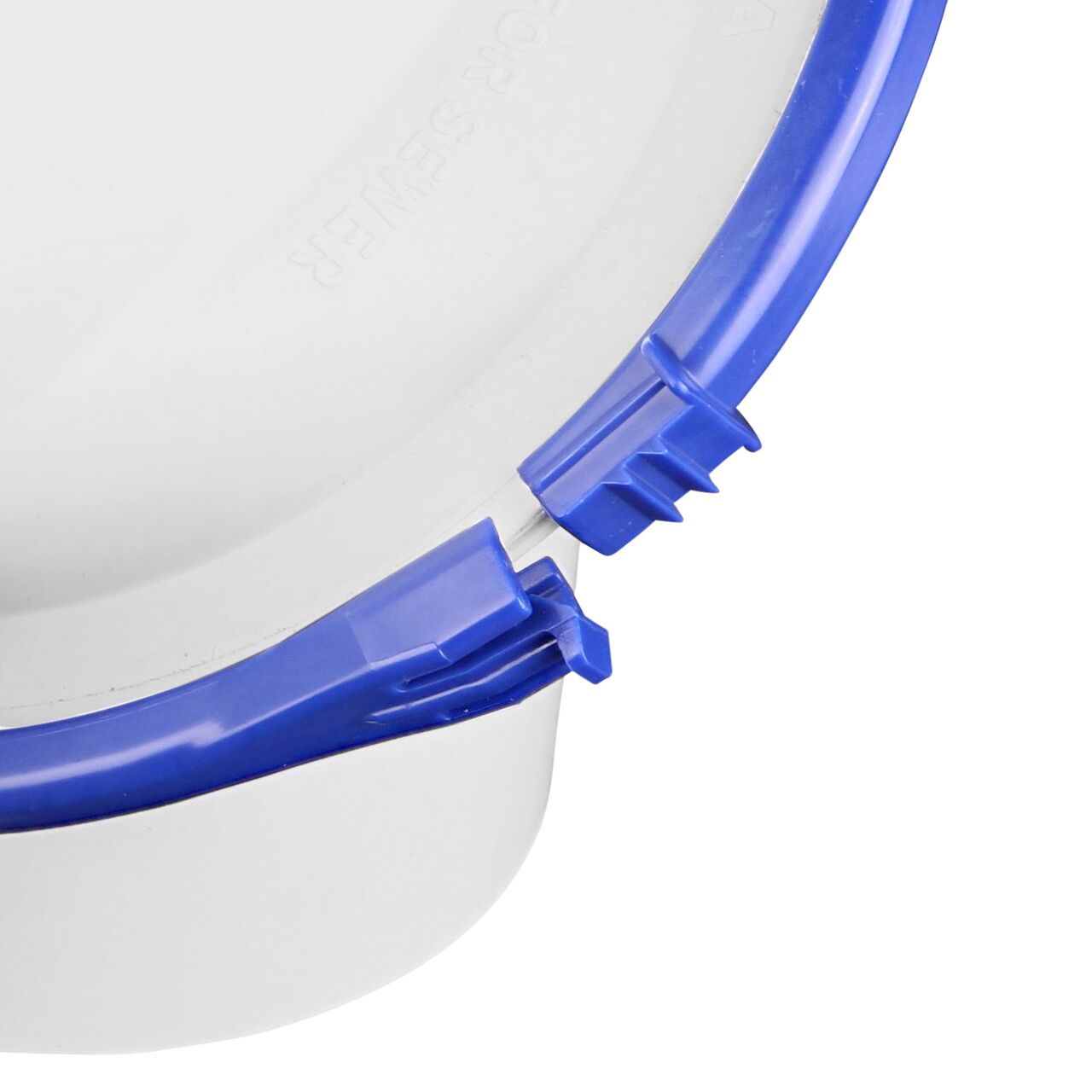

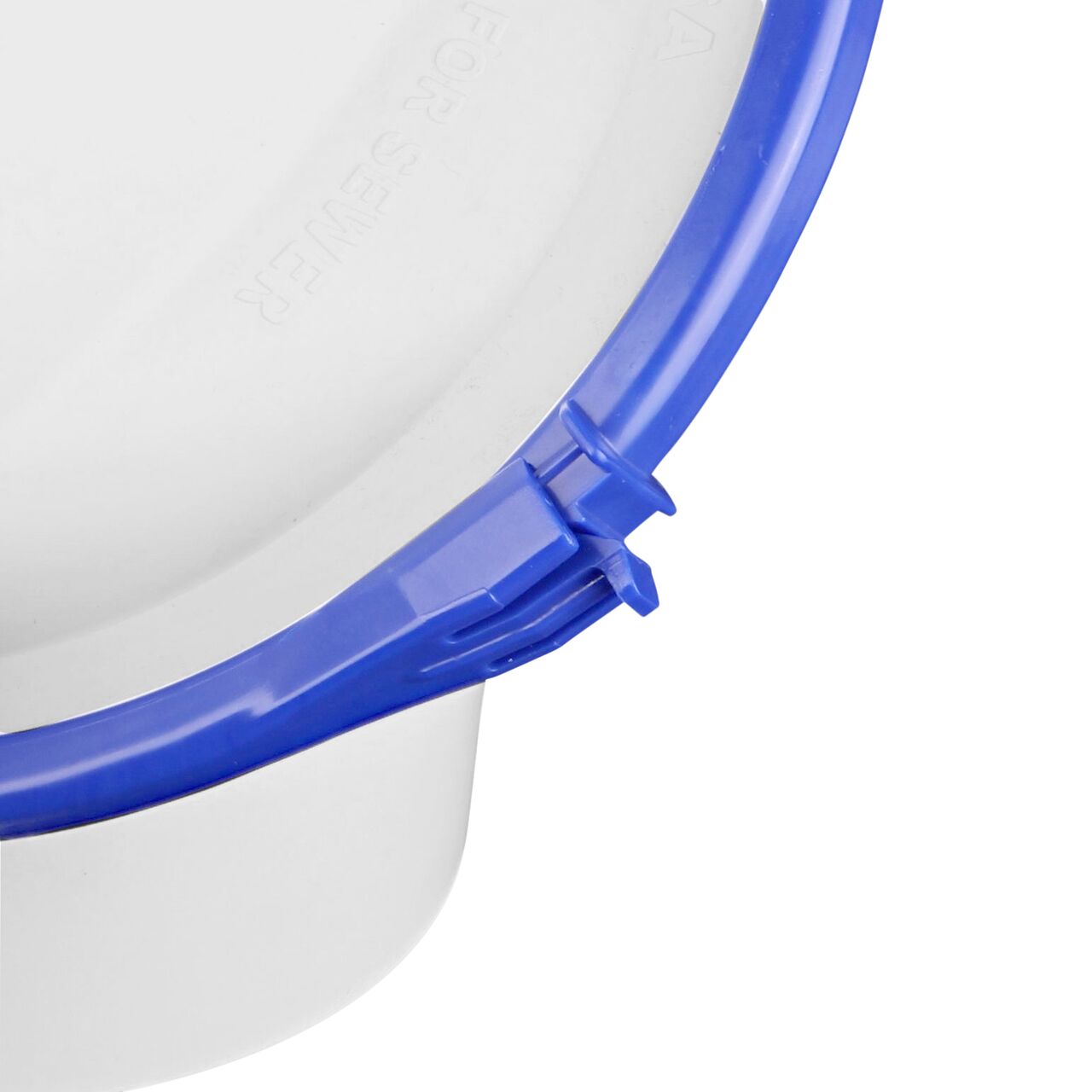

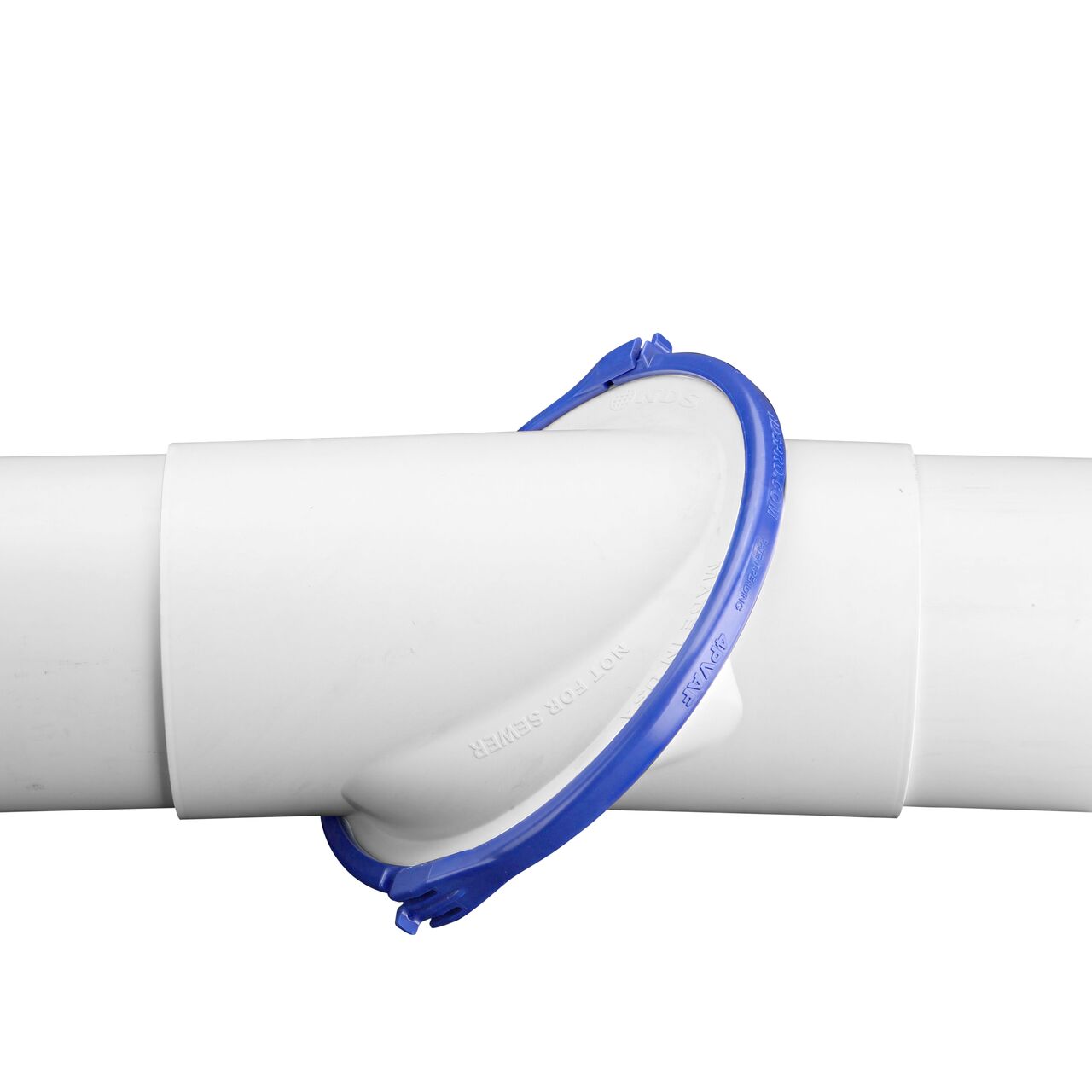

Make precise turns in 4 in. sewer and drain (S&D) or 4 in. triple-wall pipe runs with the Swivel-Fit™ Variable-Angle Fitting. The unique fitting can be set to any angle between 0° to 90° and eliminates the need for multiple fixed-angle fittings to achieve the desired turn angle. Rotate the adjustable fitting to your desired angle and lock into place. This fitting also connects to select drainage products compatible with 4 in. S&D connections such as channel drain outlets, Flo-Well® Dry Well System, drainage grates, and pop-up emitters. The Swivel-Fit™ Variable-Angle Fitting for 4 in. pipe is made of polyvinyl chloride (PVC) and makes a Hub X Hub solvent-weld connection. Meets applicable ASTM standards. For use in non-pressurized underground drainage applications, and not approved for septic systems; maximum working pressure of 5 psi.
Applications:
- Adjustable fitting works around obstacles and corners; can be set to any angle from 0° to 90° to make a precise turn from 4 in. Sewer & Drain (S&D) or triple-wall pipe to 4 in. S&D or triple-wall pipe in non-pressurized drainage and sewer piping systems
- Adds a 0° to 90° turn from select drainage products such as channel drain outlets, Flo-Well® Dry Well System, drainage grates, and pop-up emitters to 4 in. S&D pipe
- As part of a complete drainage system, the adjustable Swivel-Fit™ Variable-Angle Fitting adds a 0° to 90° turn to the pipeline as it connects two pipes of the same type and diameter size together; also adds a 0° to 90° turn from drainage product to drain pipe
Features:
- Meets applicable ASTM standards

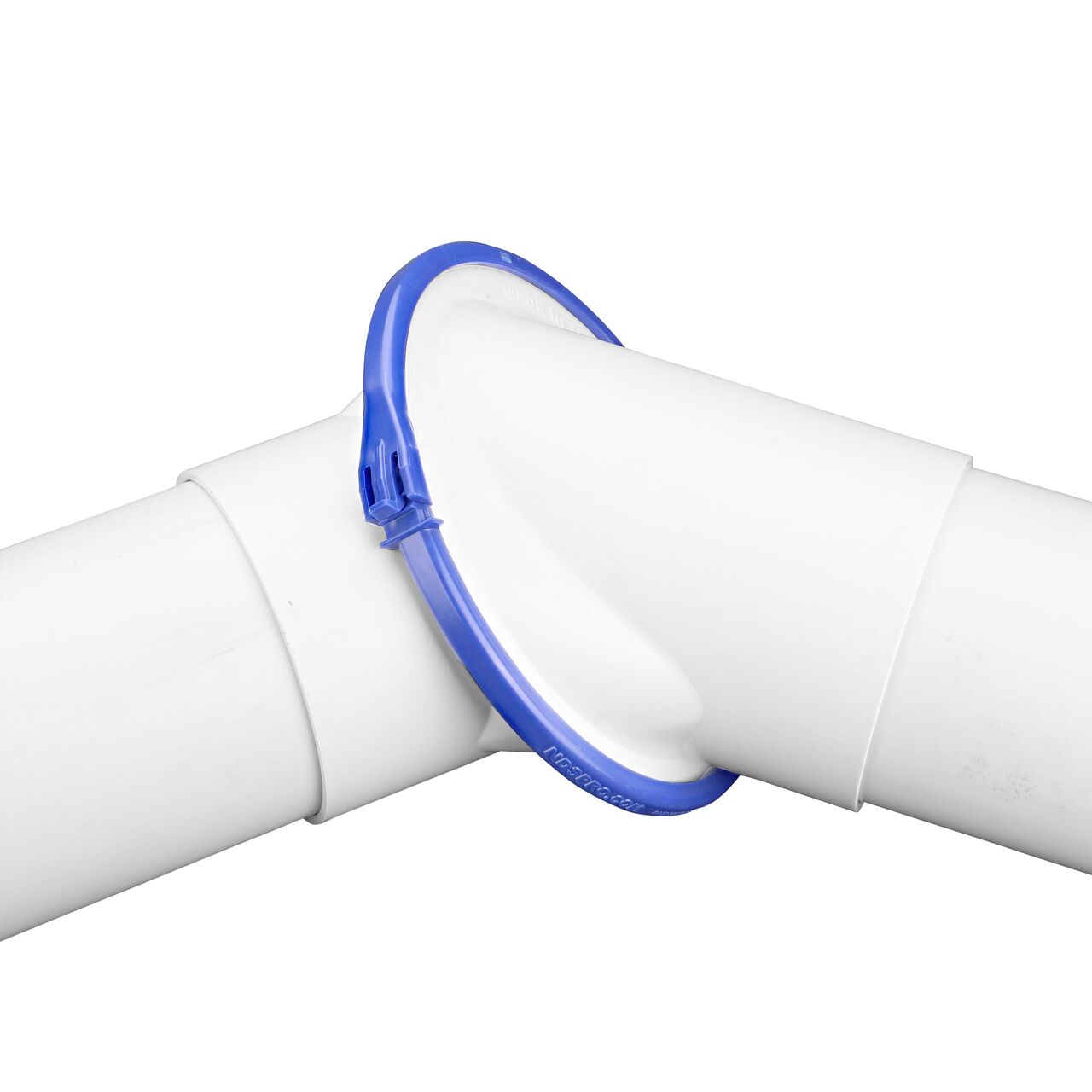

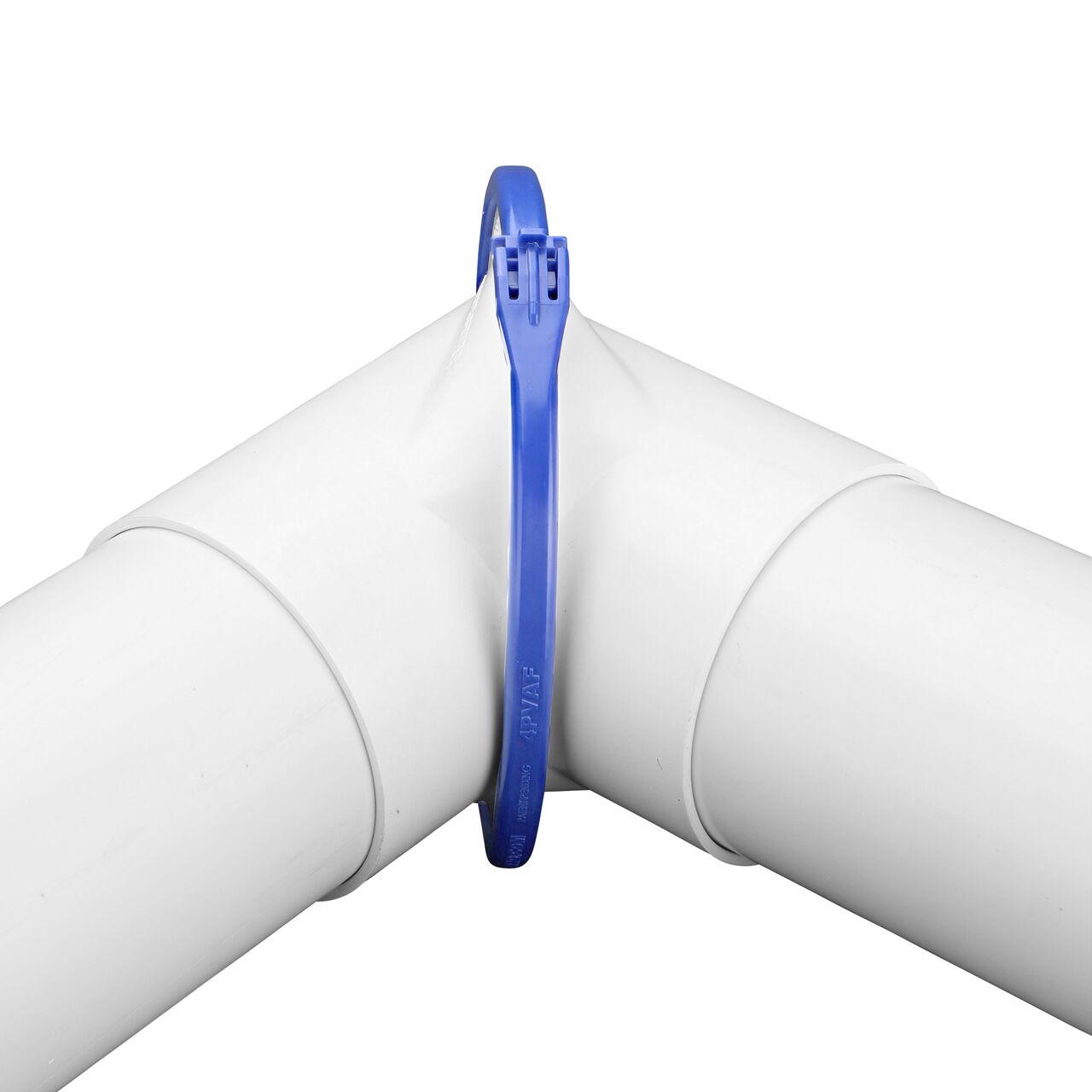

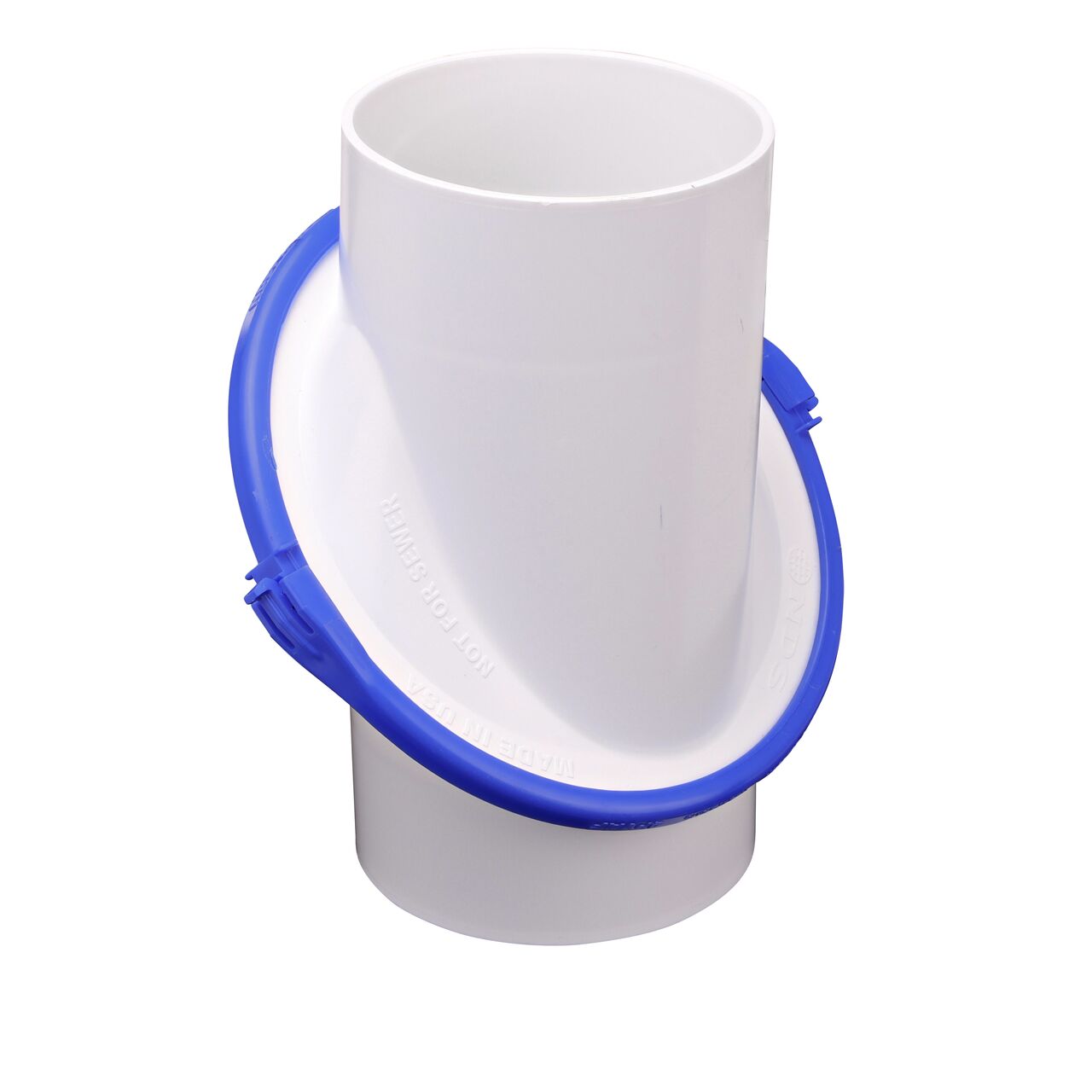

- Unique design enables fitting to be set at any angle from 0° to 90°; eliminates need for using multiple fixed-angle fittings to achieve the desired turn angle
