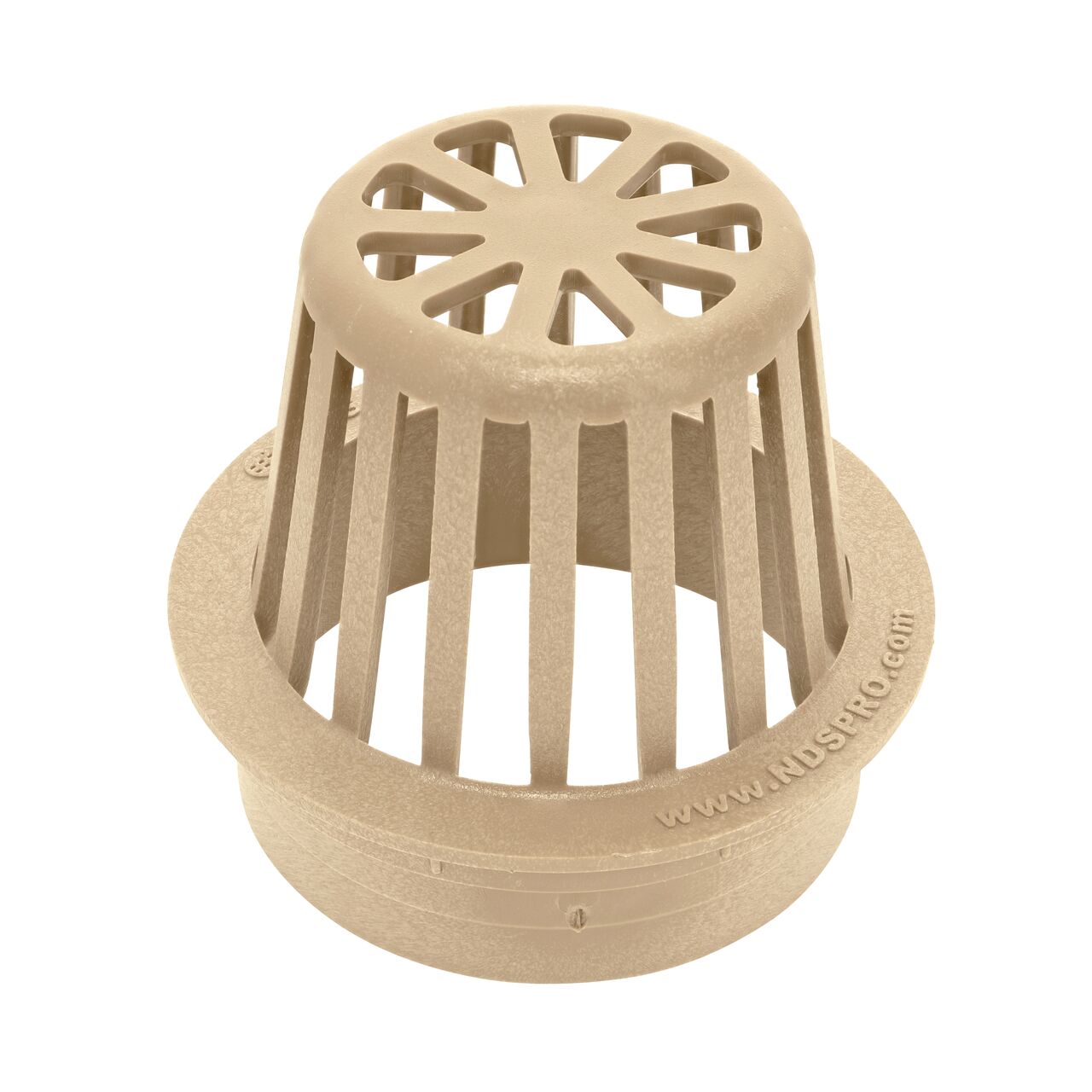

4 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Sand Plastic
SKU: 78S

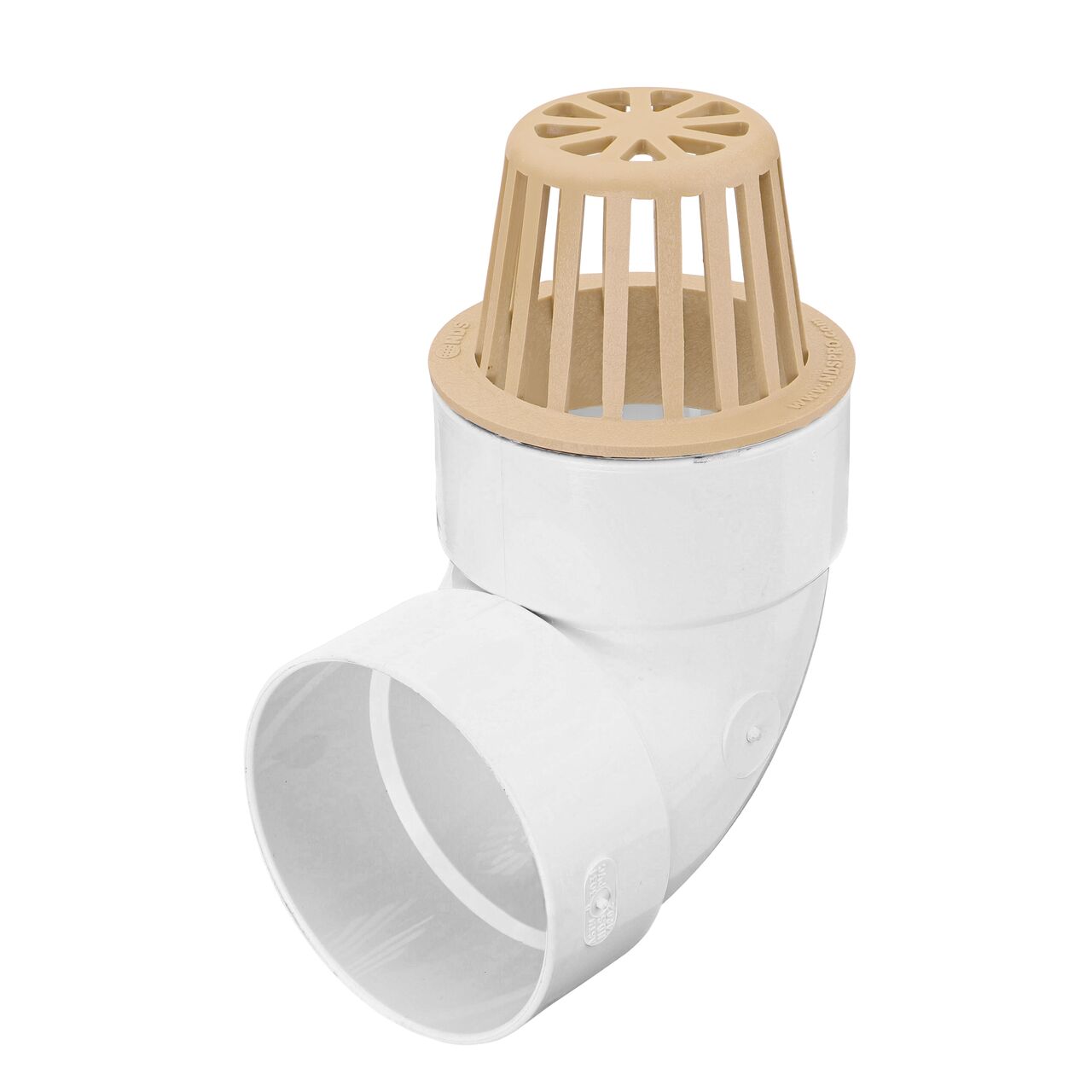

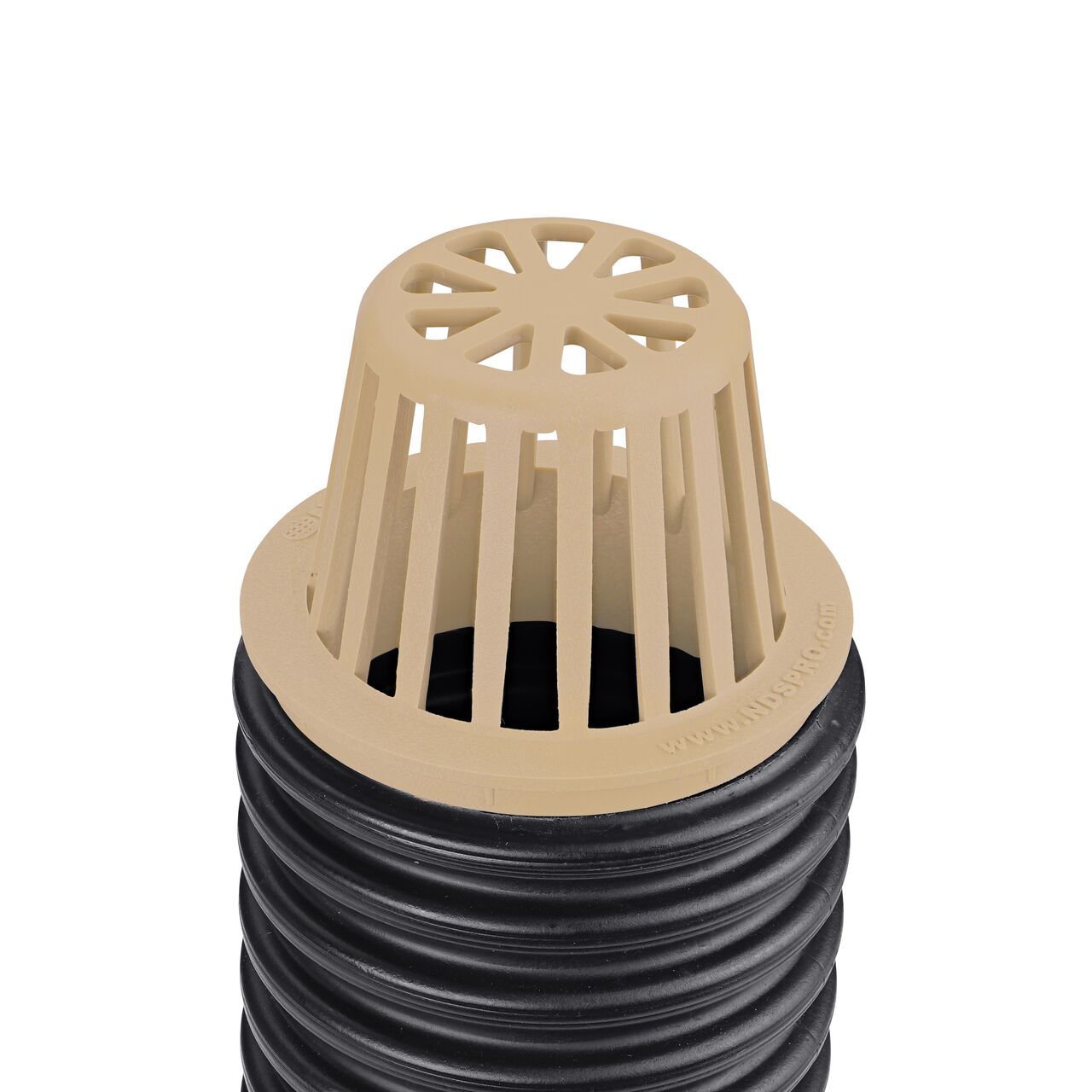

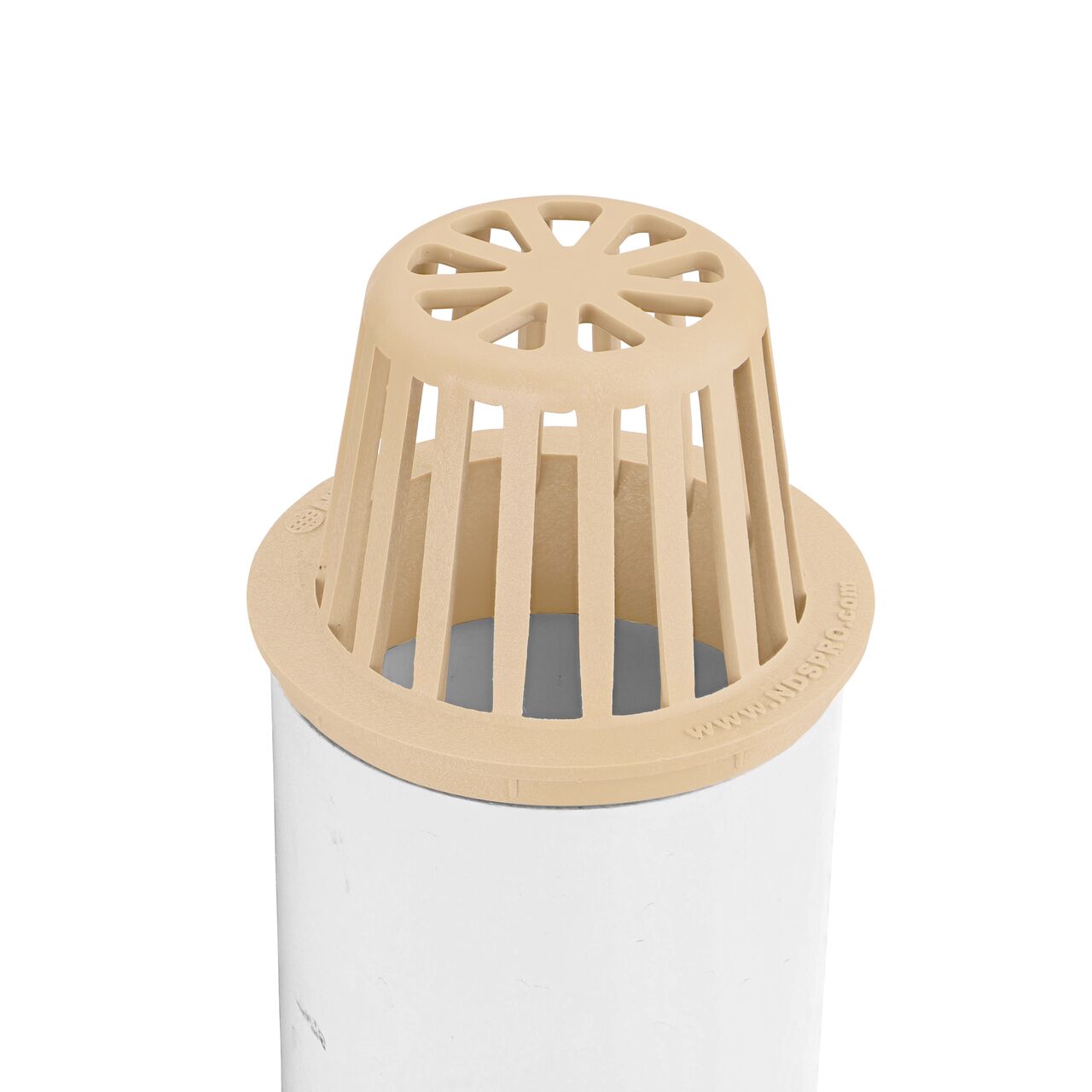

Draining water from an area with lots of leaves and mulch? The Atrium Drain Grate is designed to get the job done. The domed design rises above the surface of the ground to block debris near the base of the drain grate, while stormwater drains from above. The dome grate has an open surface area of 17.0 sq. in. and flow rate of 52 GPM. Use in mulched landscape beds, natural areas, and window wells to drain moderate flows of excess stormwater. The 4 in. Atrium Grate fits 4 in. sewer and drain pipe & fittings, 4 in. single-wall corrugated pipe, and 4 in. triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors.
Applications:
- Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
- Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells
- Works with connected drain pipe to capture and convey excess surface water for proper release downstream
Features:

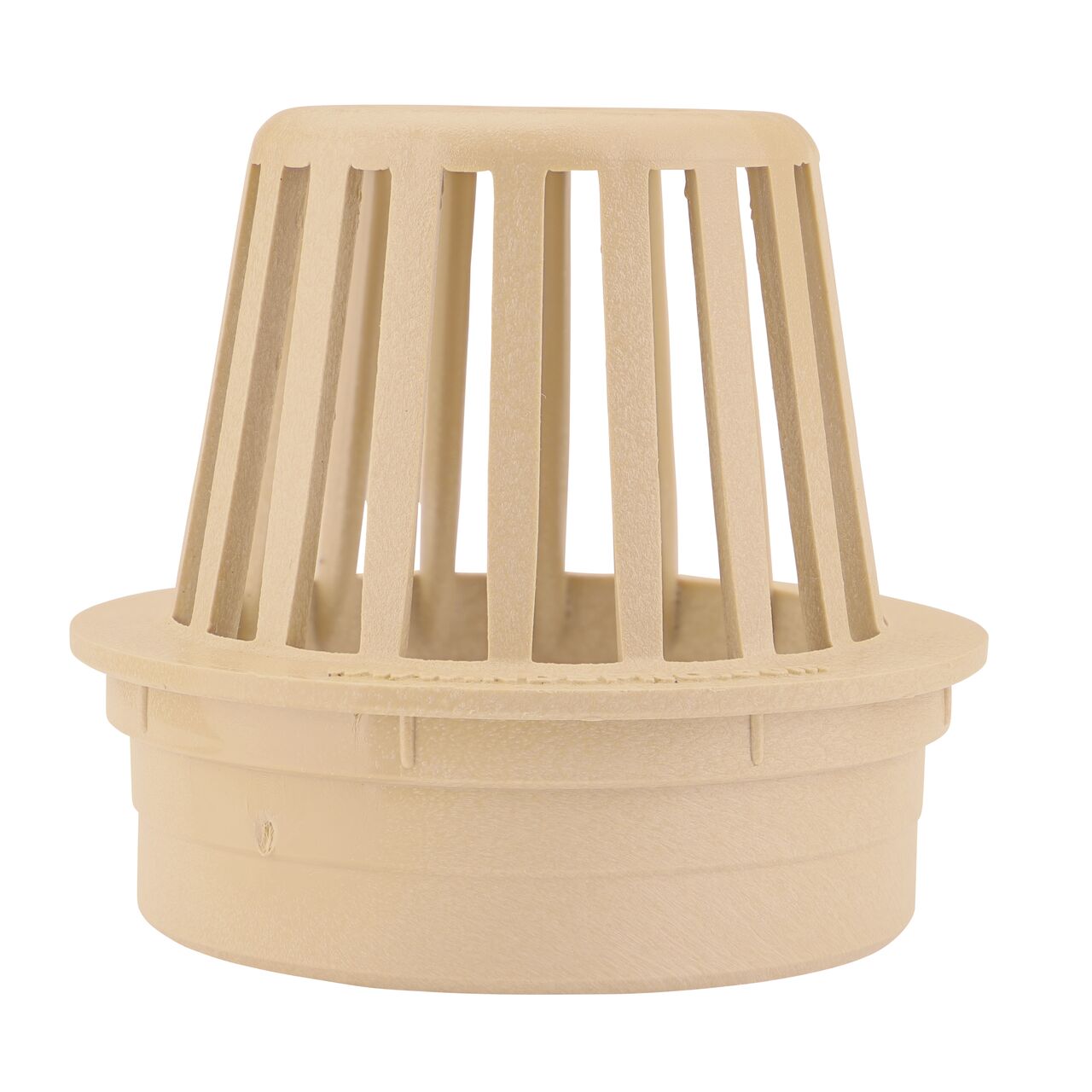

- Grate is 4-7/16 in. high; top is 2-3/4 in. wide in diameter; grate openings are ¼ in. wide
- 4 in. Atrium Drain Grates are available in a variety of colors and materials
