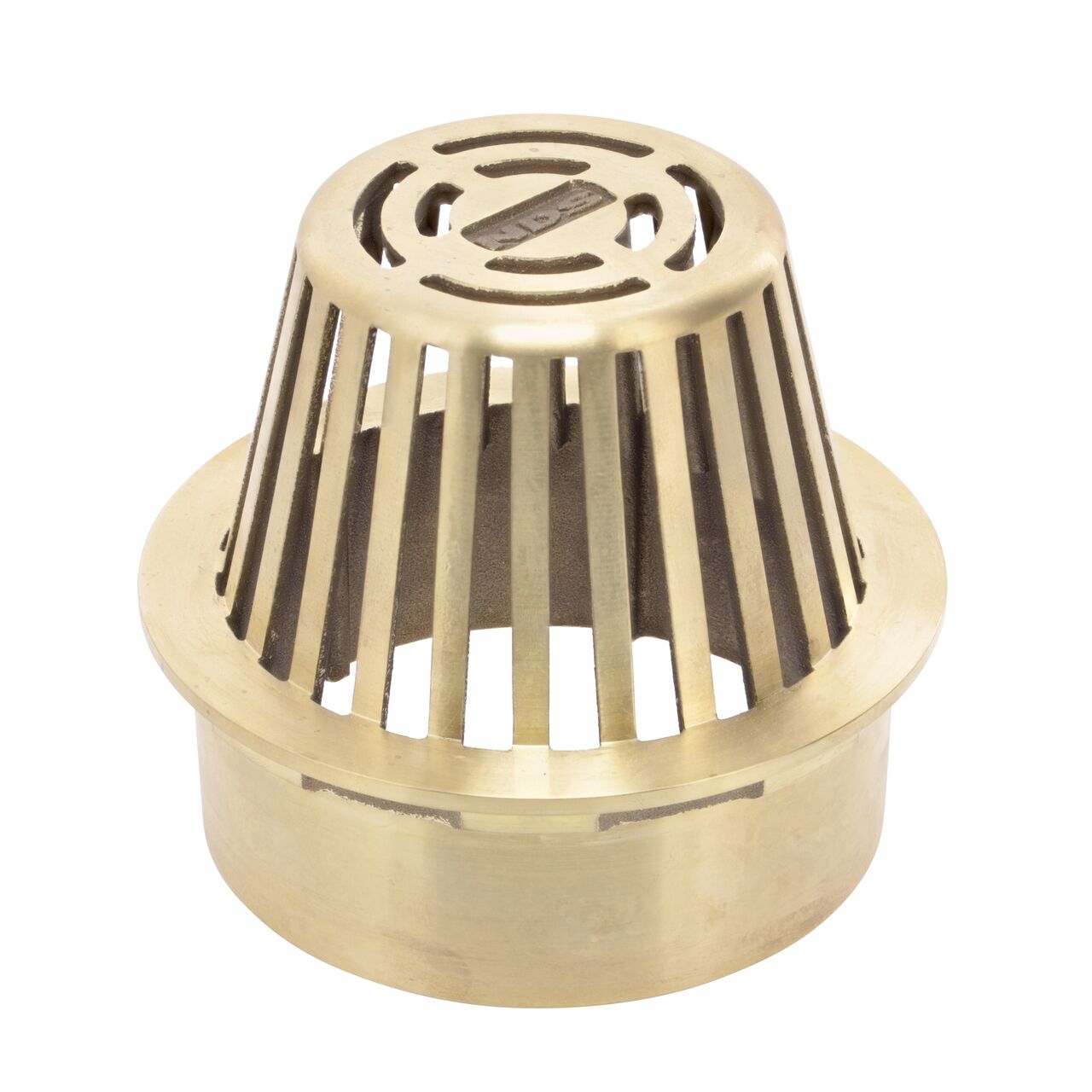

6 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Brass
SKU: 90B

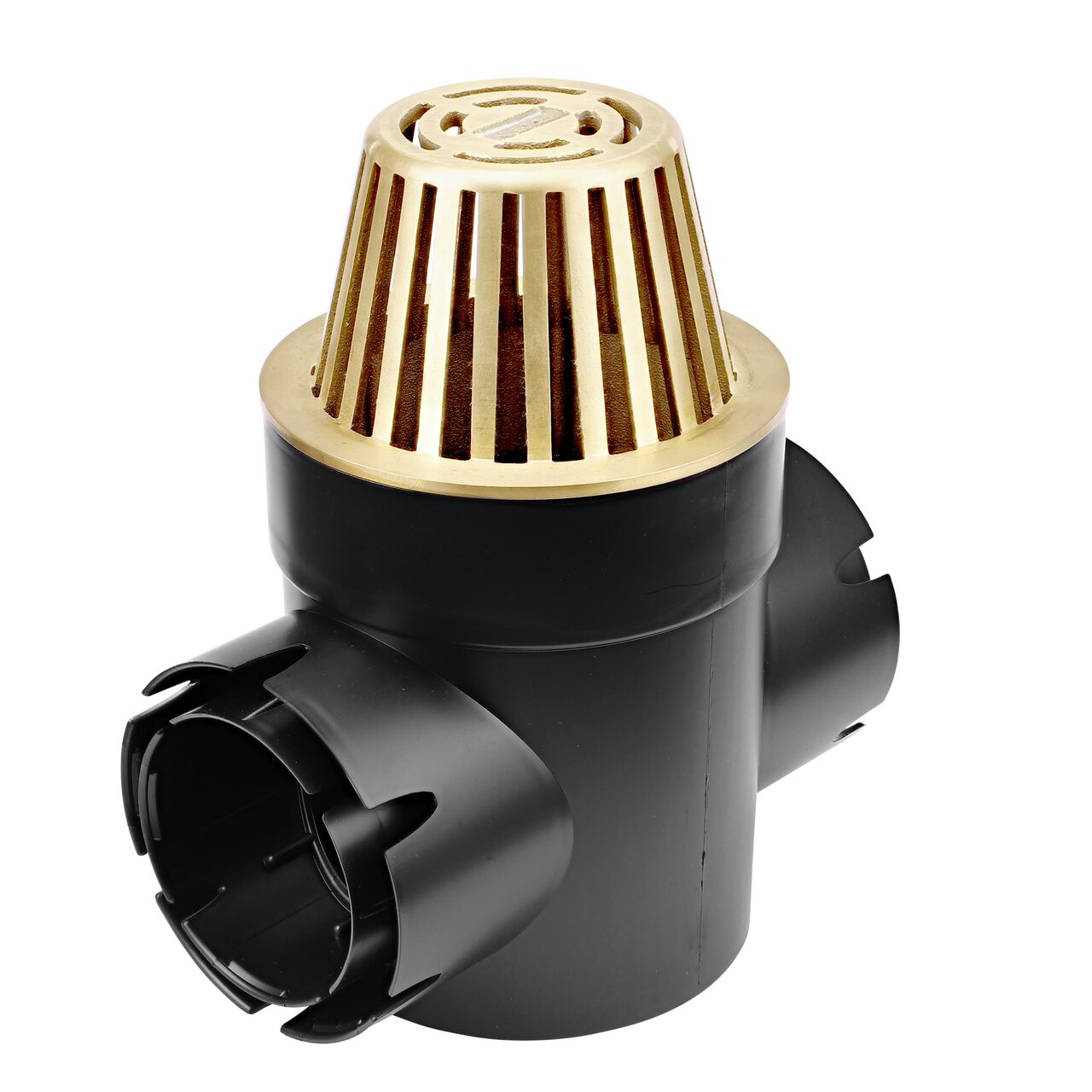

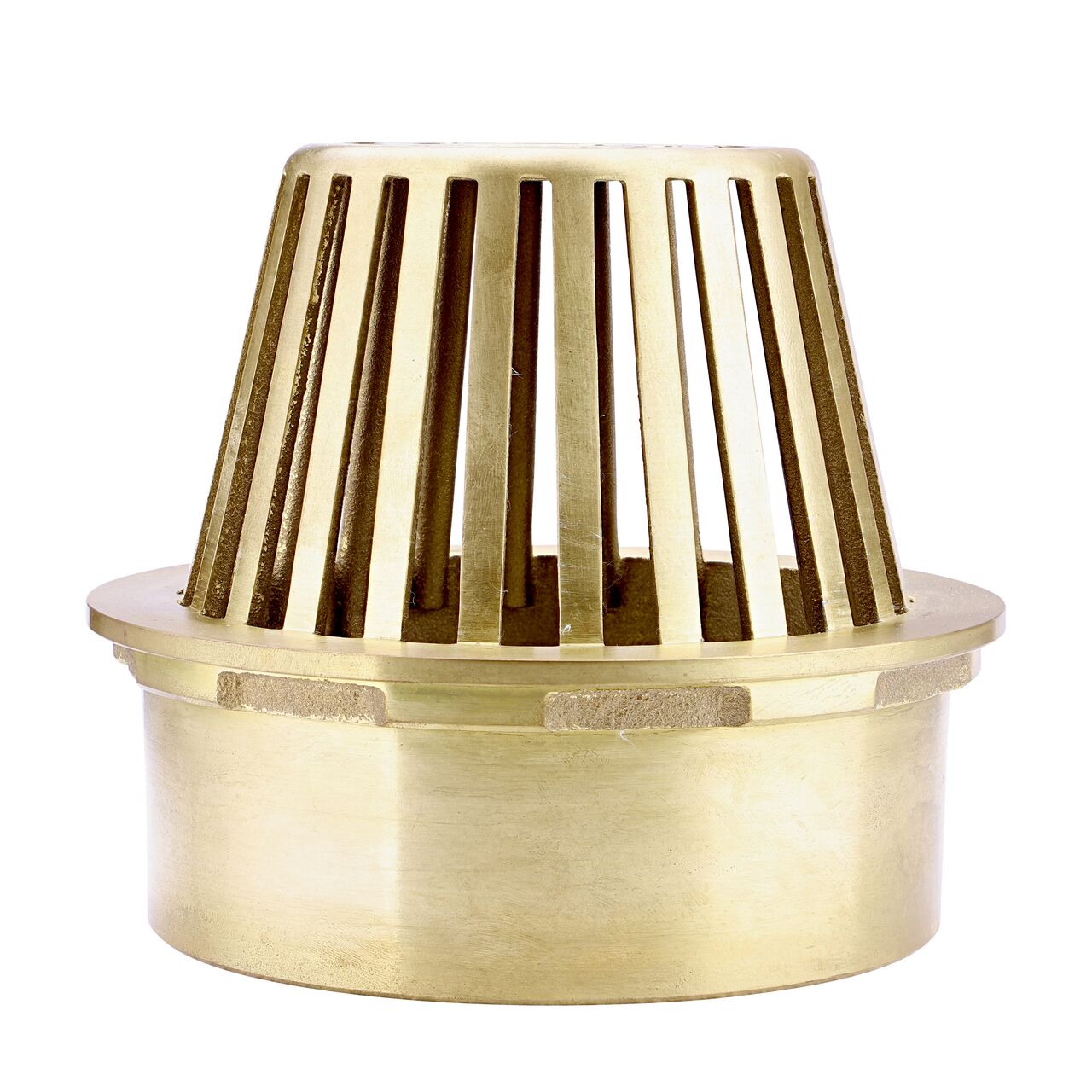

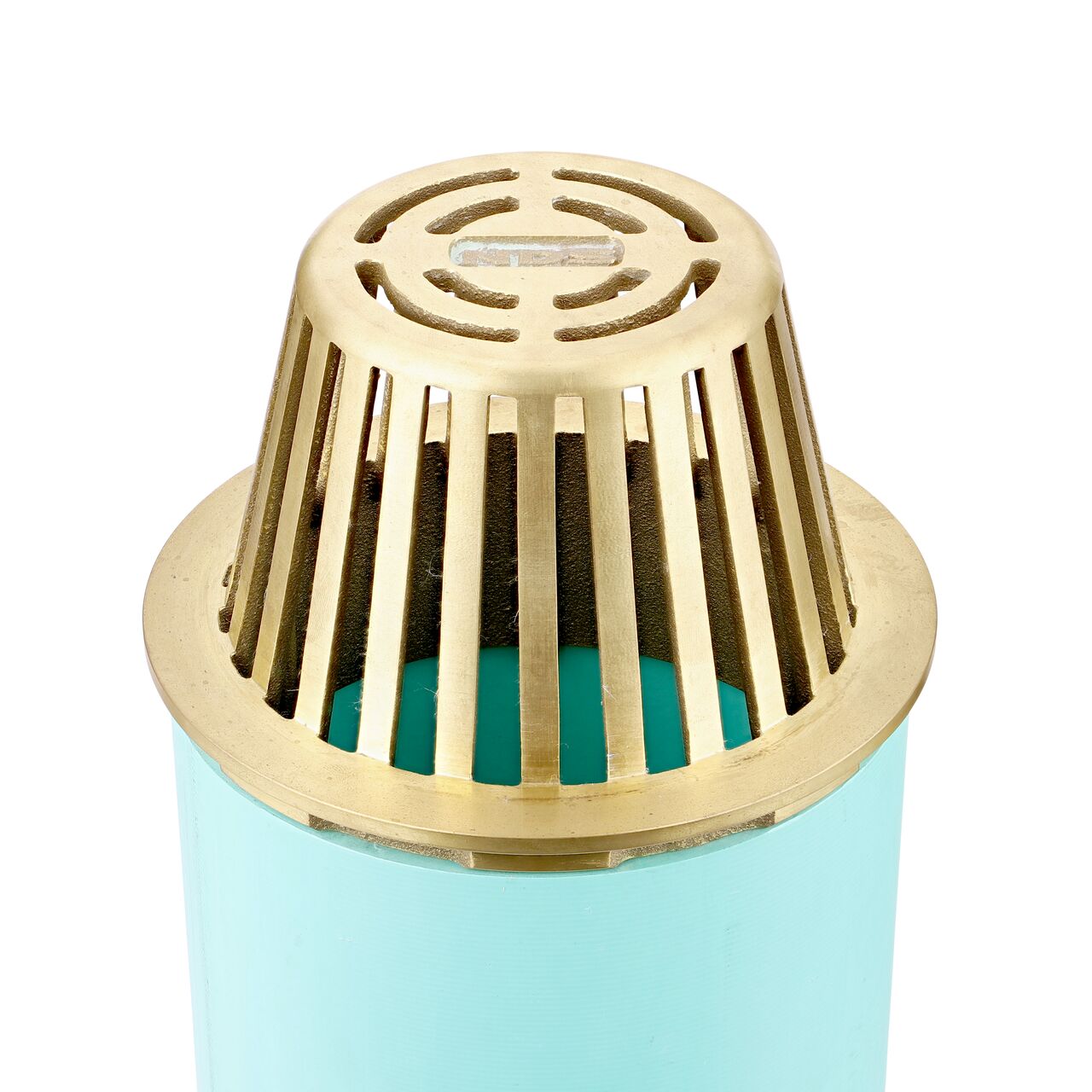

No need to worry about too much debris getting in the way of draining water—the 6 in. brass Atrium Grate is designed to get the job done. Unlike flat drain grates, the Atrium Drain Grate has a raised dome that rises above the surface of the ground so leaves and mulch are blocked near the base while water continues to drain from above. Dome grate has an open surface area of 22.5 sq. in. and 69 GPM flow rate, ideal for draining moderate flows from mulched landscape beds, natural areas, and window wells. The 6 in. Atrium Grate fits the Spee-D® Catch Basin Drain, 6 in. sewer and drain pipe & fittings for a soil-tight fit. Made of weather-resistant brass.
Applications:
- Protect your drainage system by using a drain grate, also known as a drain cover, on top of the Spee-D® Catch Basin Drain, drain pipe, or fitting to block debris from entering and potentially clogging the pipeline as water flows through
- Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells

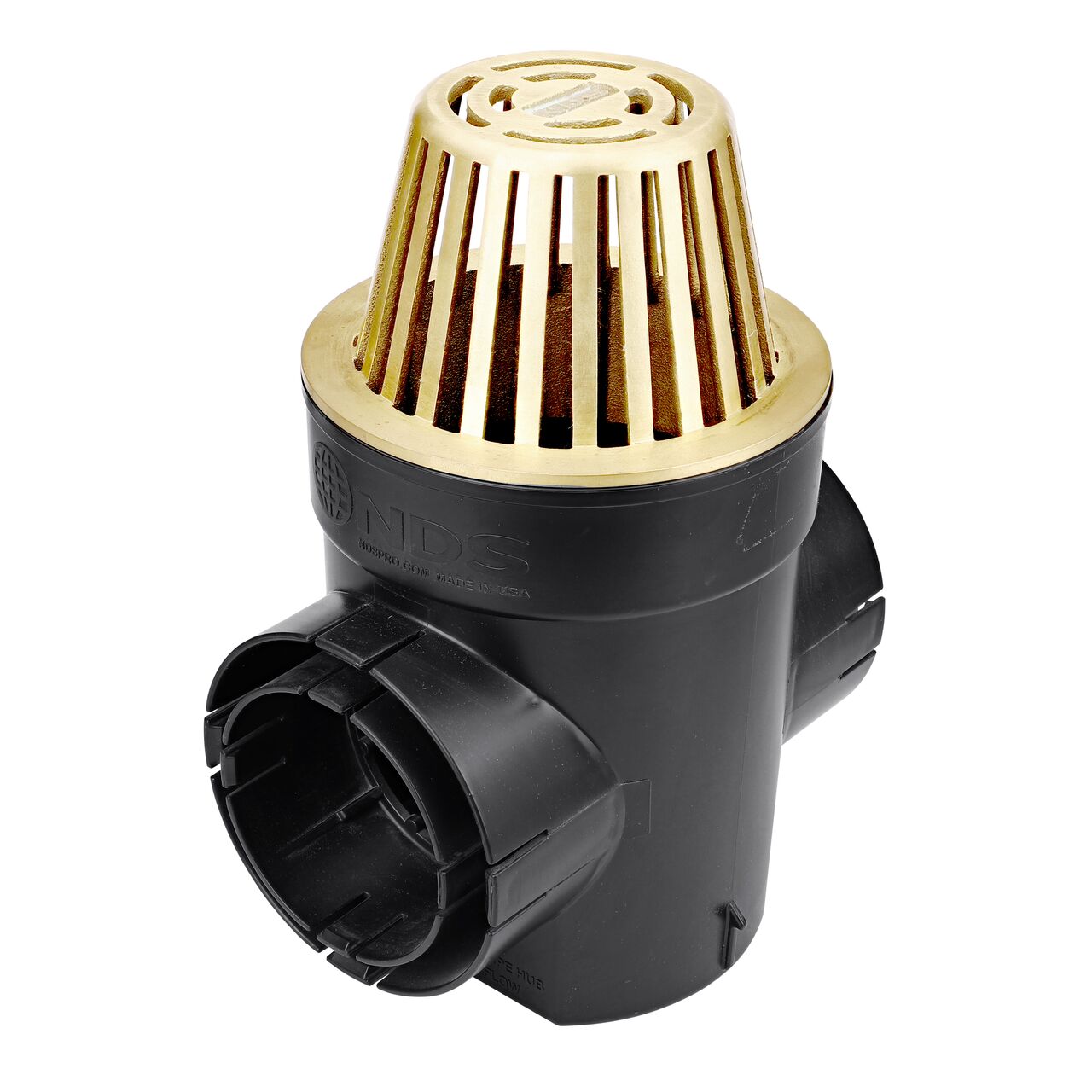

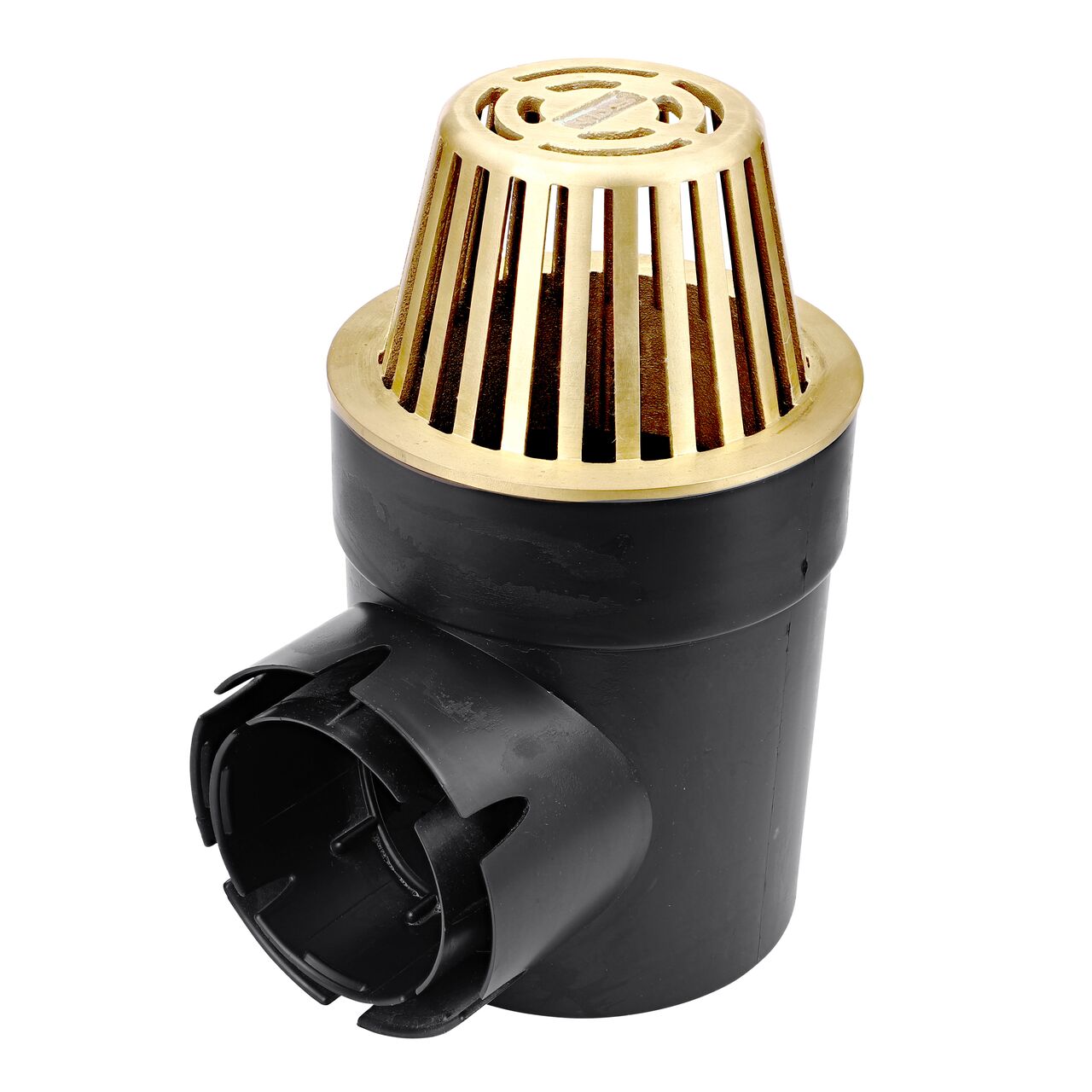

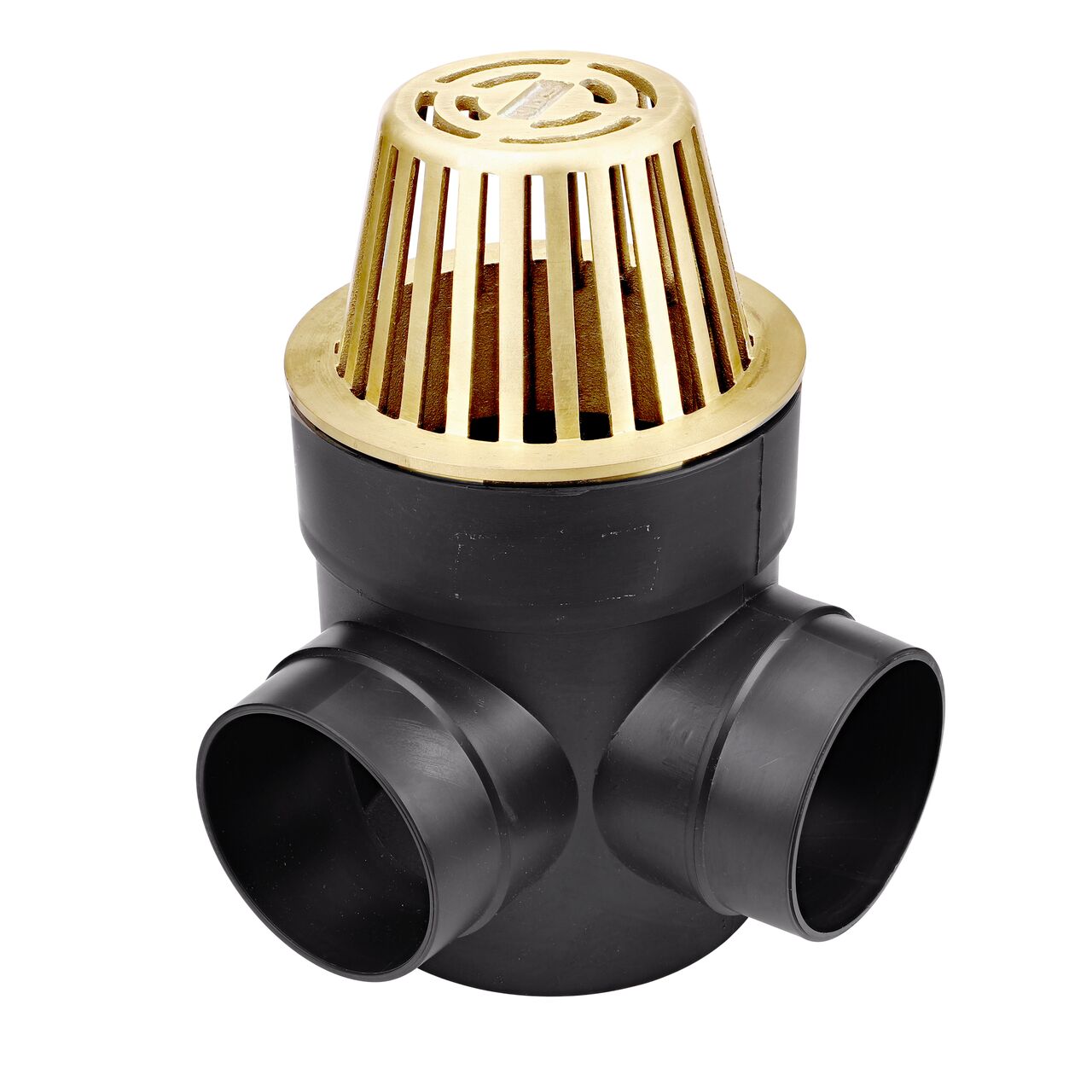

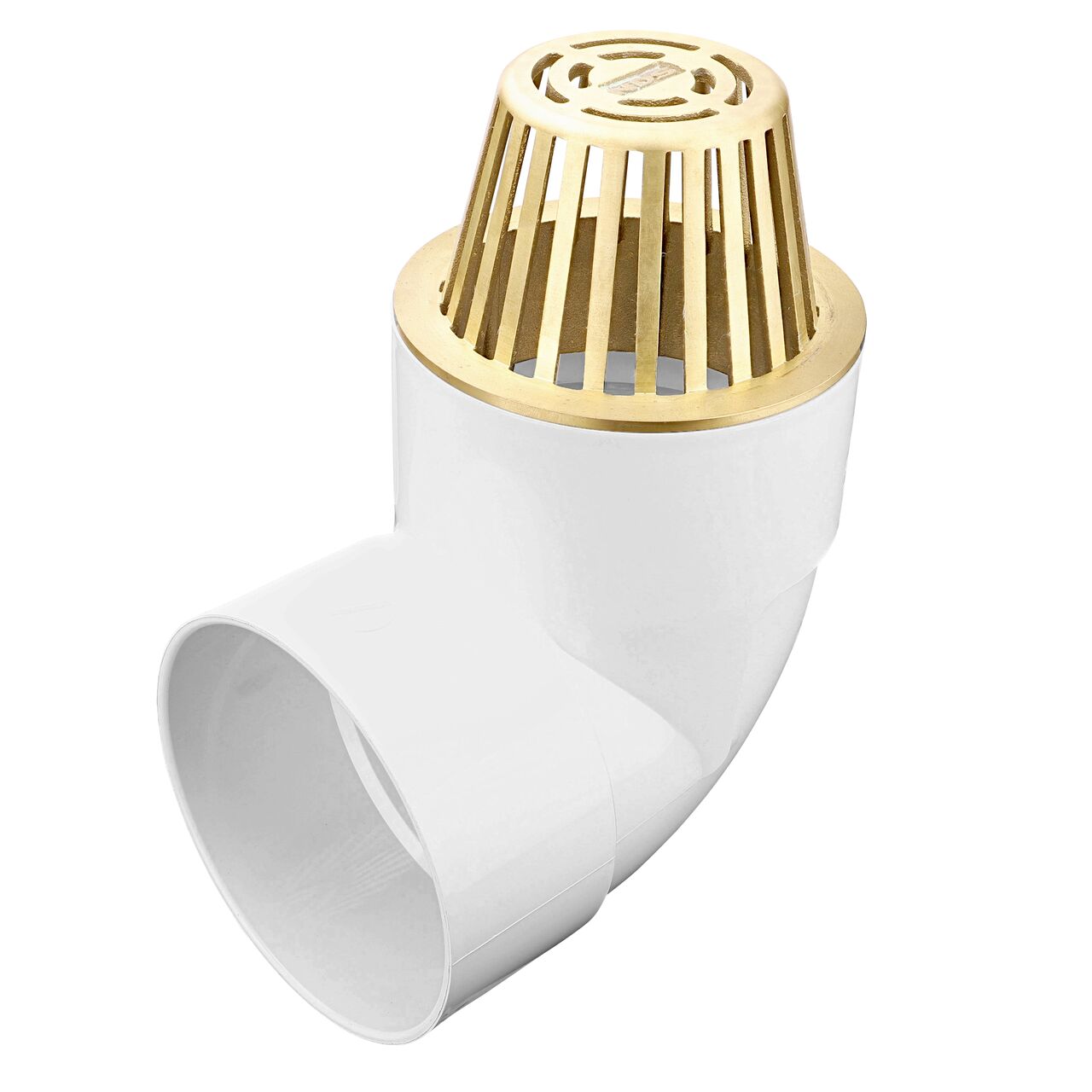

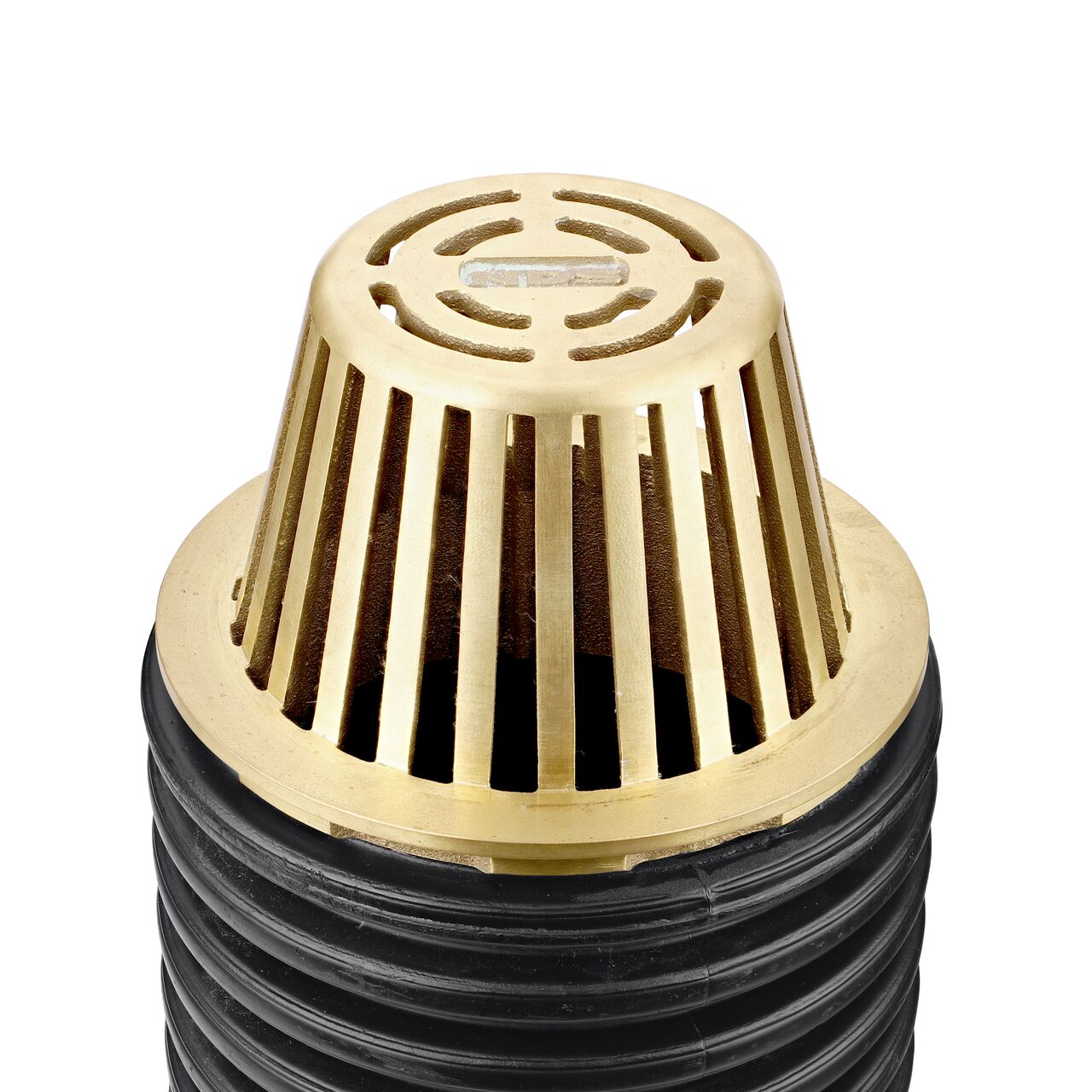

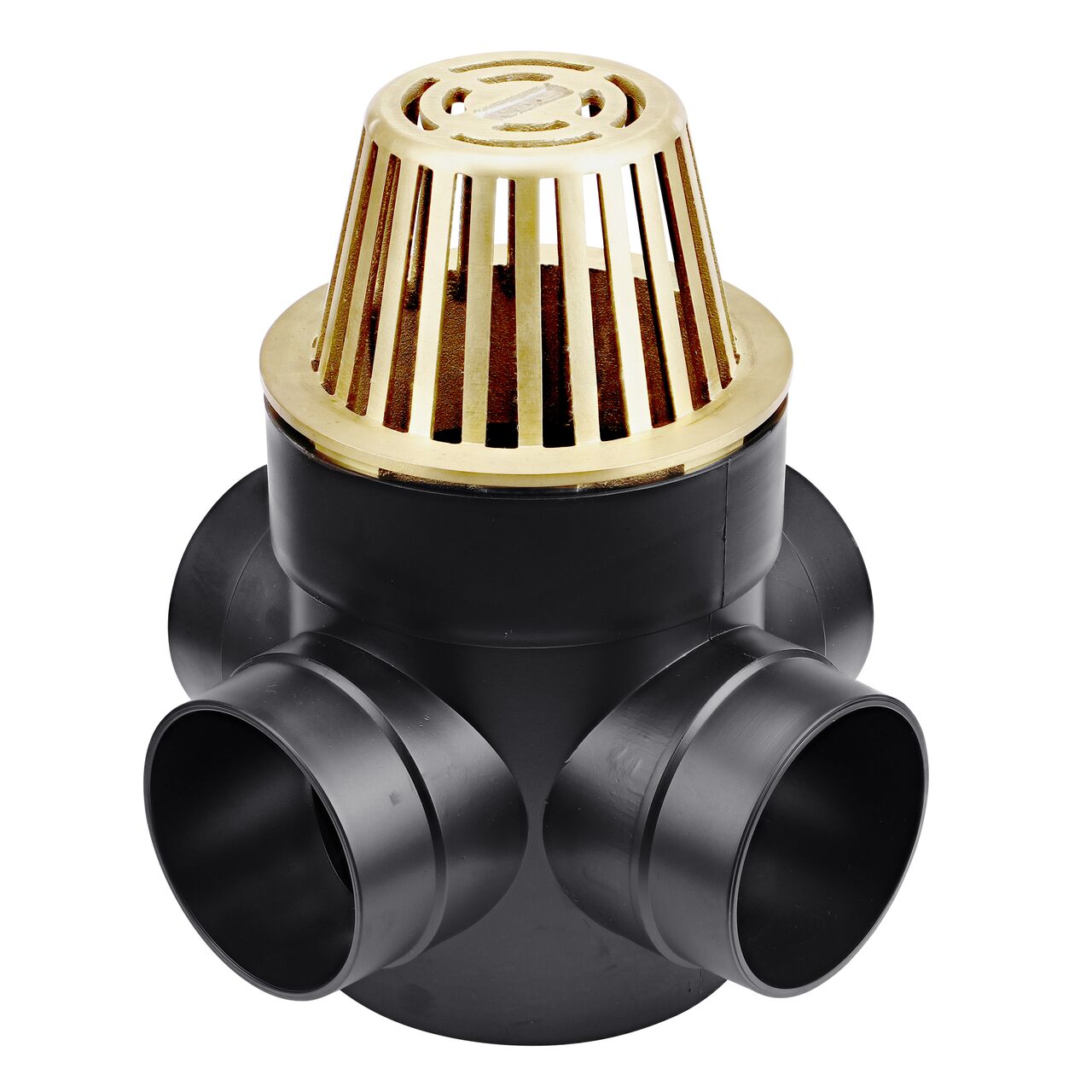

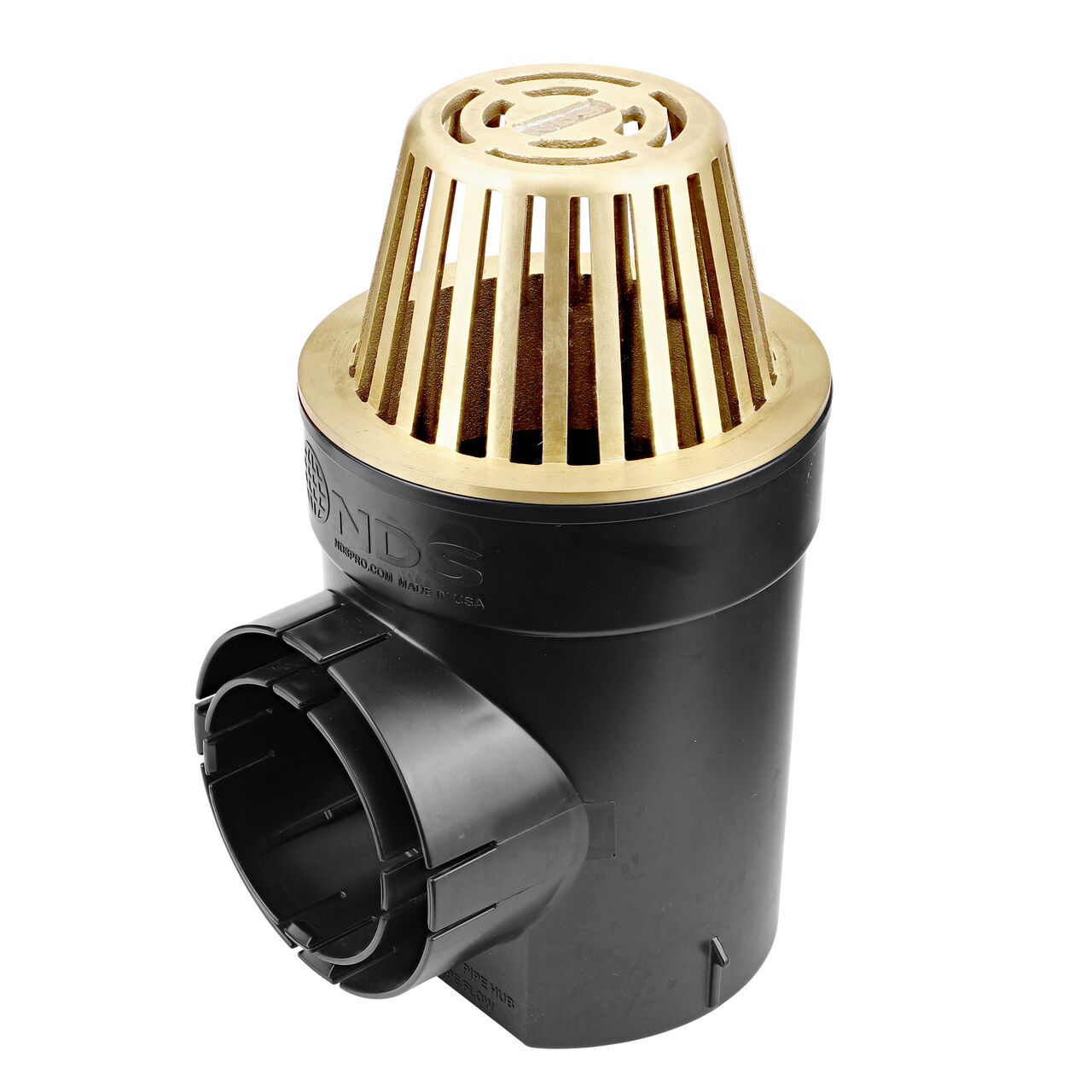

- Works with connected Spee-D® Catch Basin Drain, drain pipe, or fitting to capture and convey excess surface water for proper release downstream
Features:

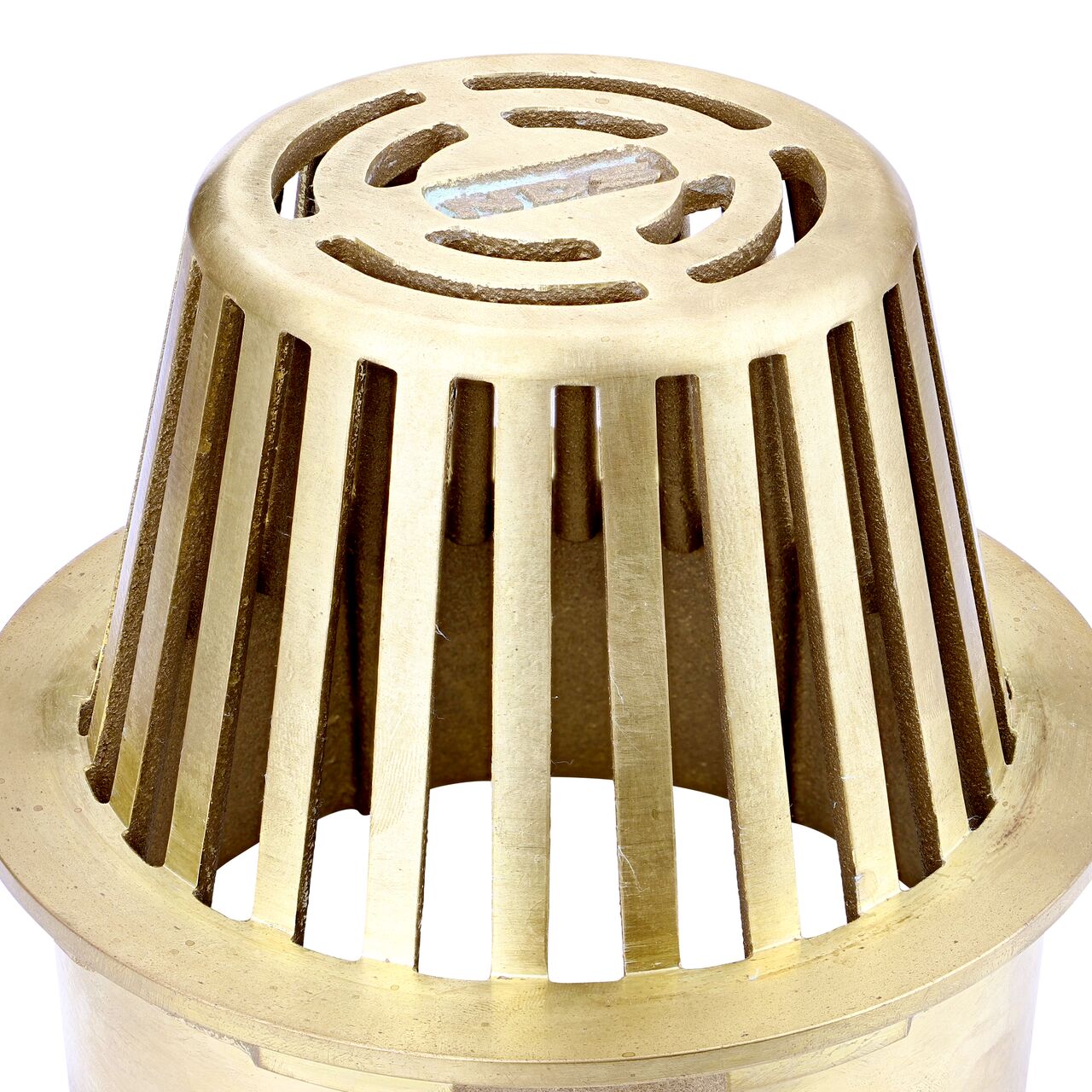

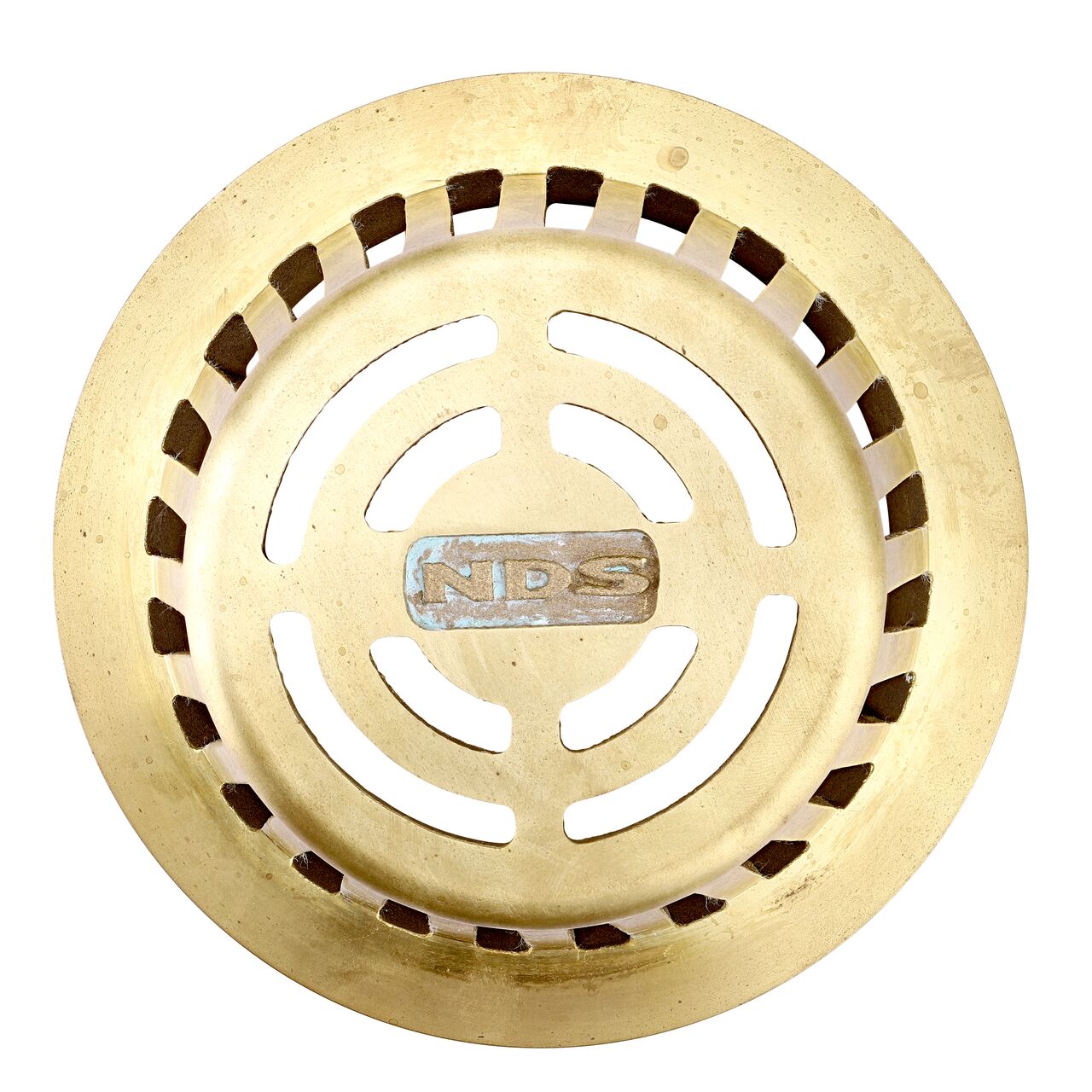

- Grate is 5-3/4 in. high; top is 3-7/8 in. wide in diameter; grate openings are ¼ in. wide
- 6 in. Atrium Drain Grates are available in a variety of colors and materials
