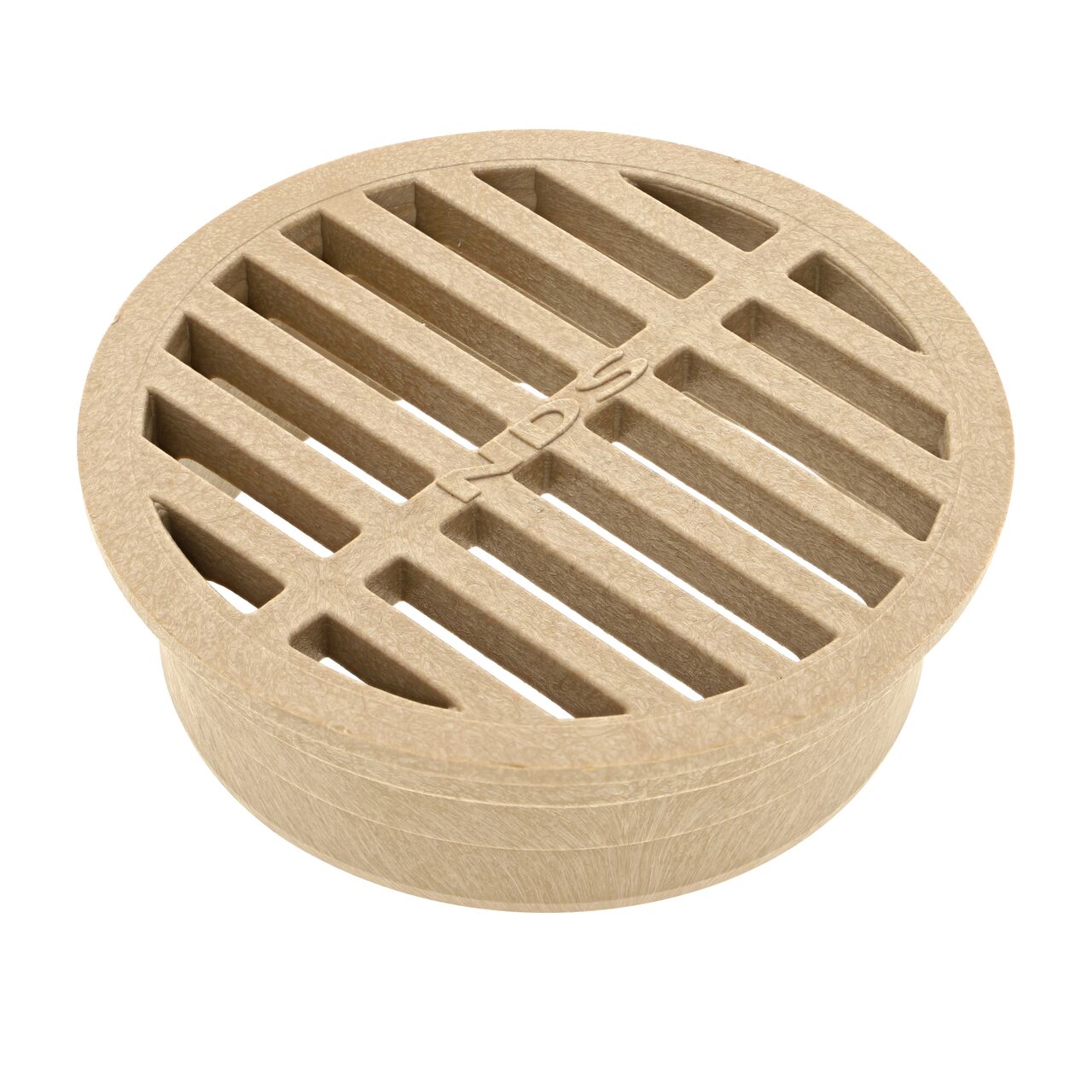

4 in. Round Grate, Connects to 4 in. Drain Pipes and Fittings, Sand Plastic
SKU: 13S

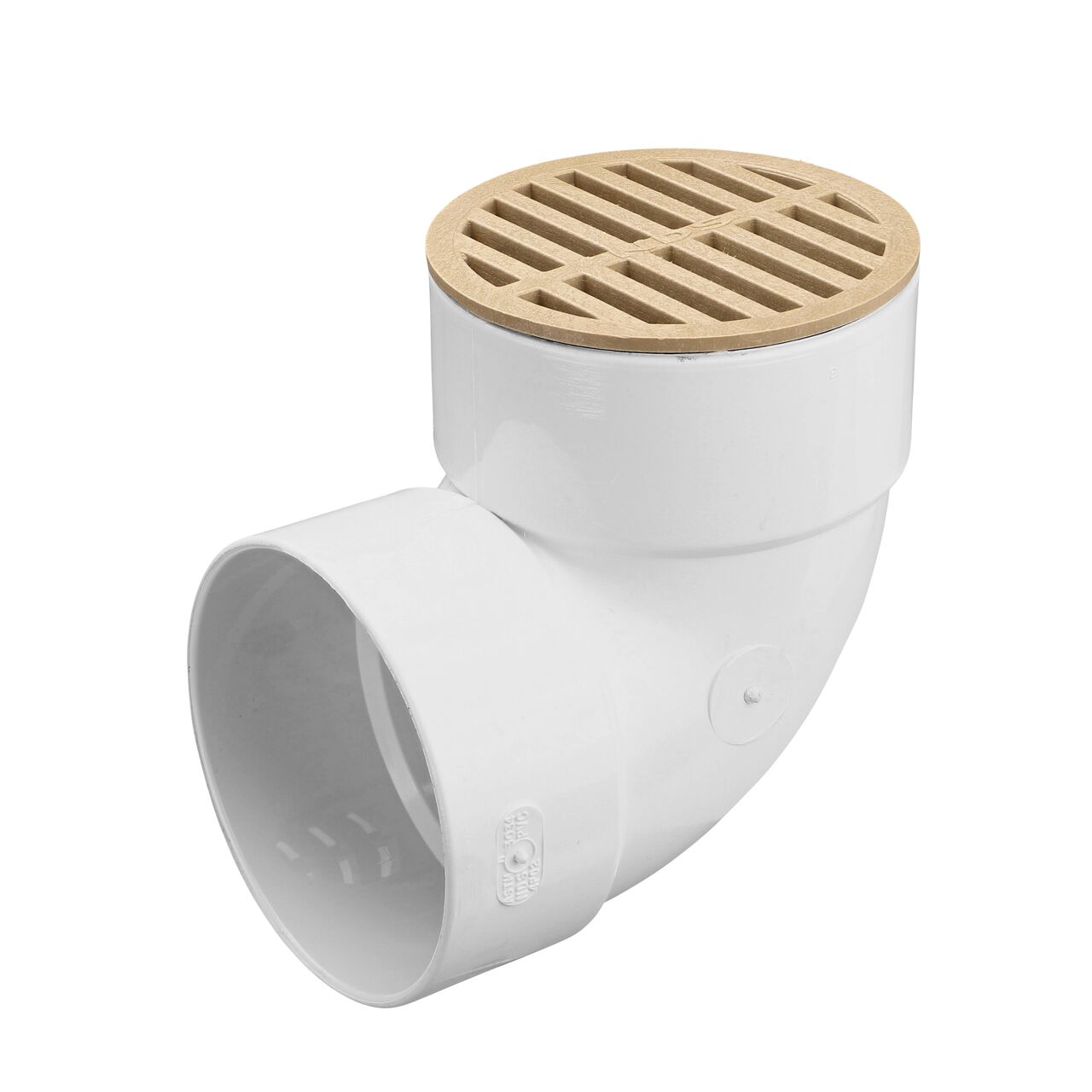

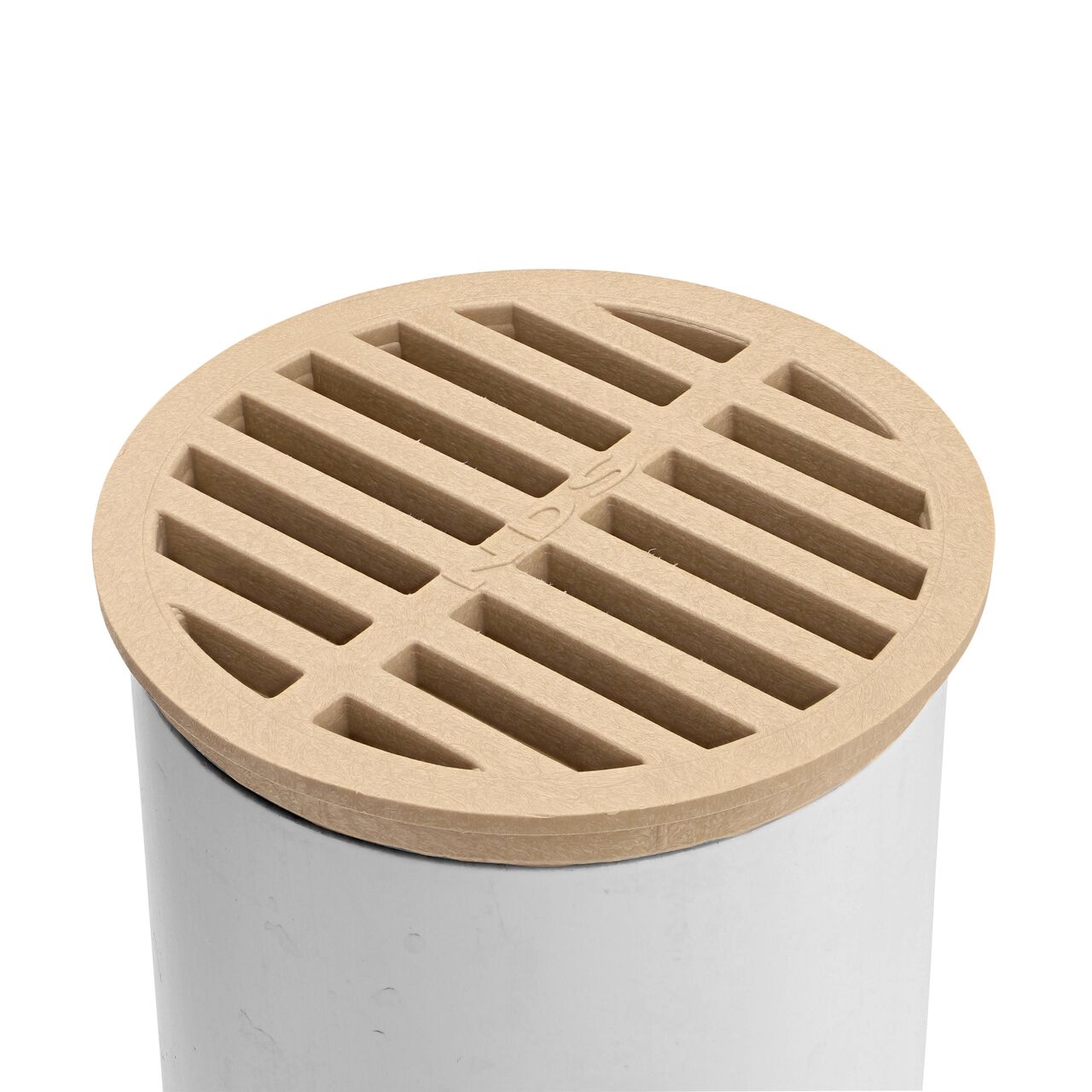

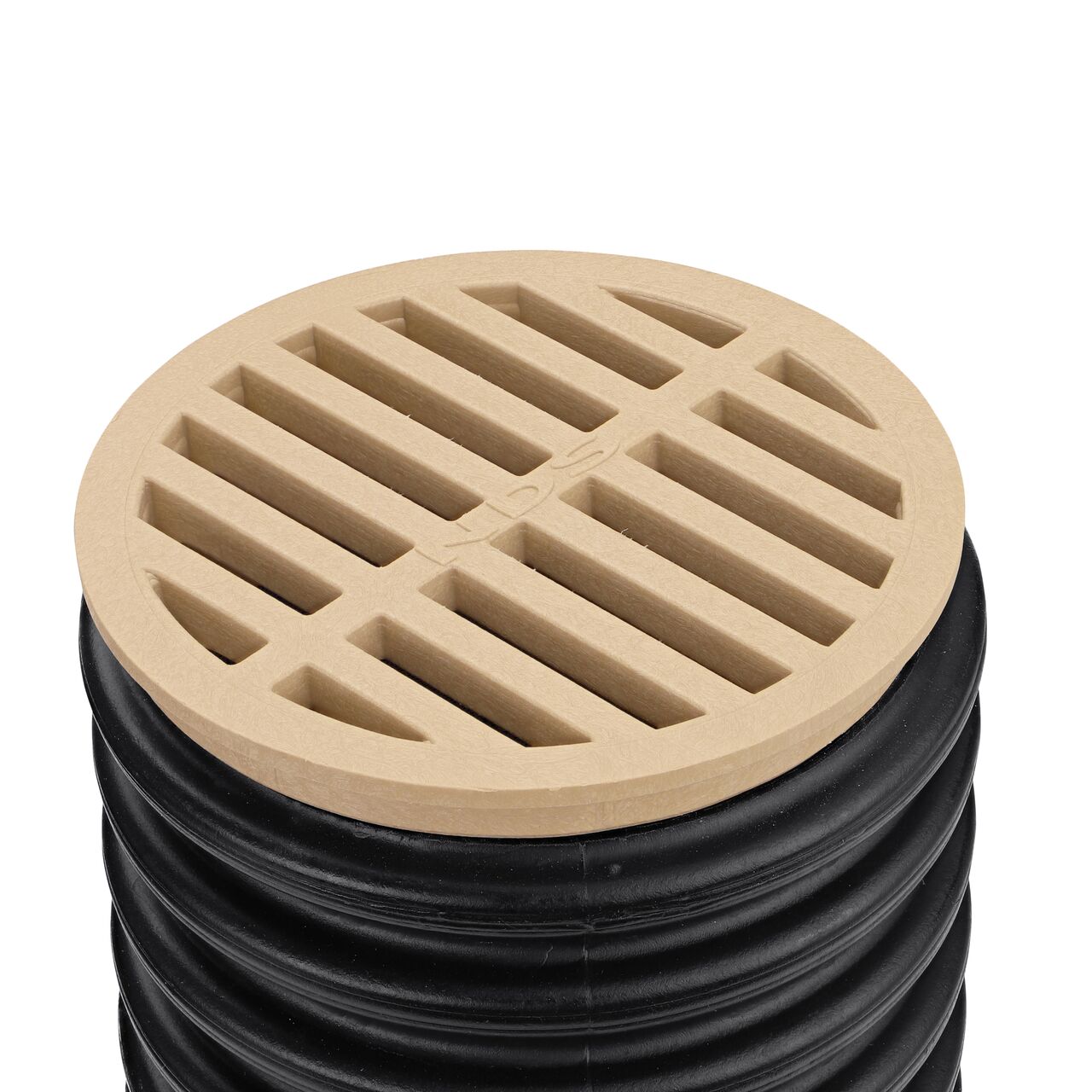

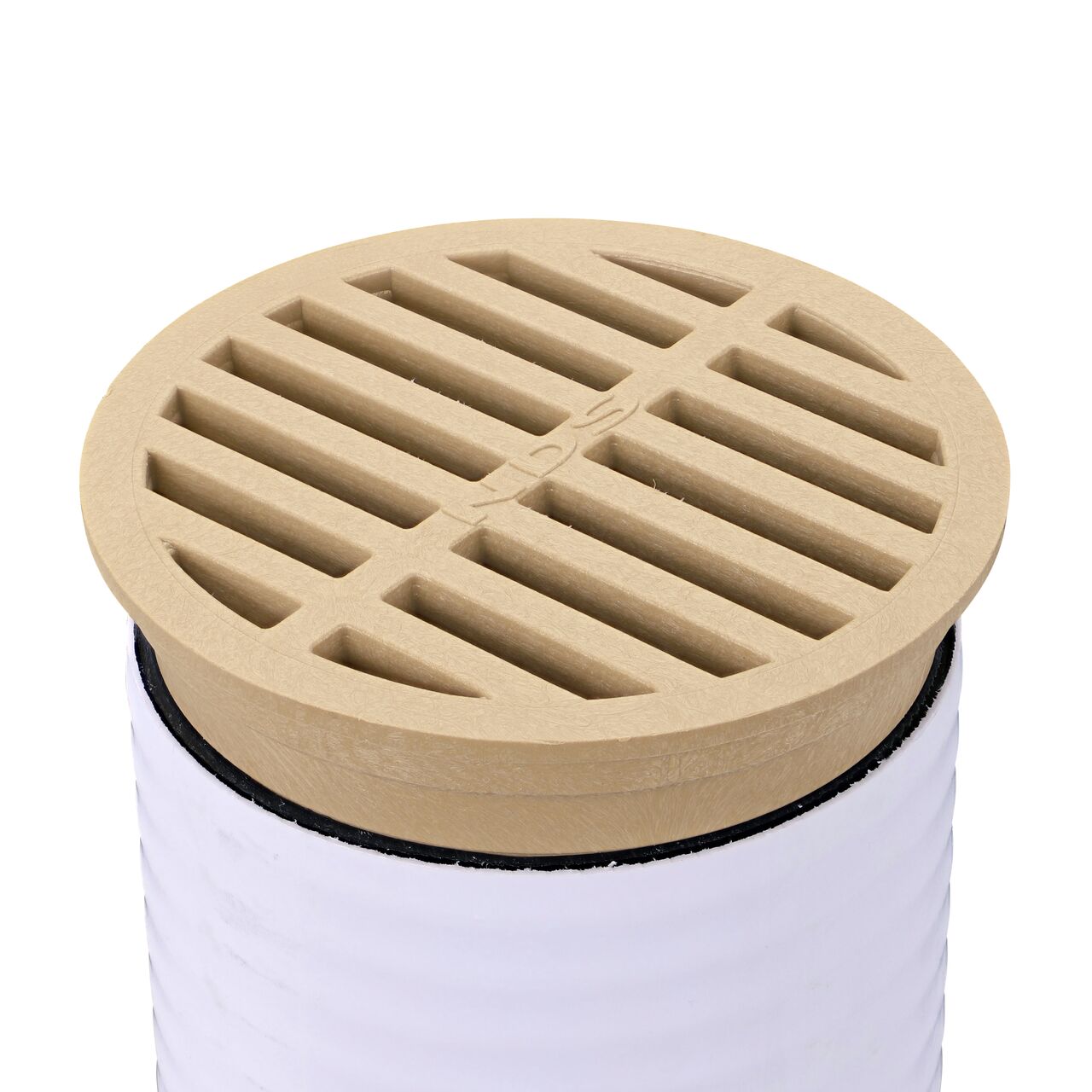

When you need to drain excess surface water before it does property damage, you don’t need those pesky leaves and debris getting in the way. The 4 in. Round Drain Grate blocks these intruders from entering and potentially clogging the pipeline. Open surface area of 3.9 sq. in. and flow rate of 12 GPM, it is ideal for draining light flows of stormwater from small lawns, landscaped areas, patios, and walkways. The 4 in. Round Grate connects to 4 in. sewer and drain pipe & fittings, 4 in. single-wall corrugated pipe, and 4 in. triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors. H
Applications:
- Protect your drainage system by using a drain grate, also known as a drain cover, on top of the drain pipe or fitting to block debris from entering and potentially clogging the pipeline as water flows through
- Ideal for draining light water flows from small lawns, landscaped areas, walkways, and patios
- Works with connected drain pipe to capture and convey excess surface water for proper release downstream
Features:

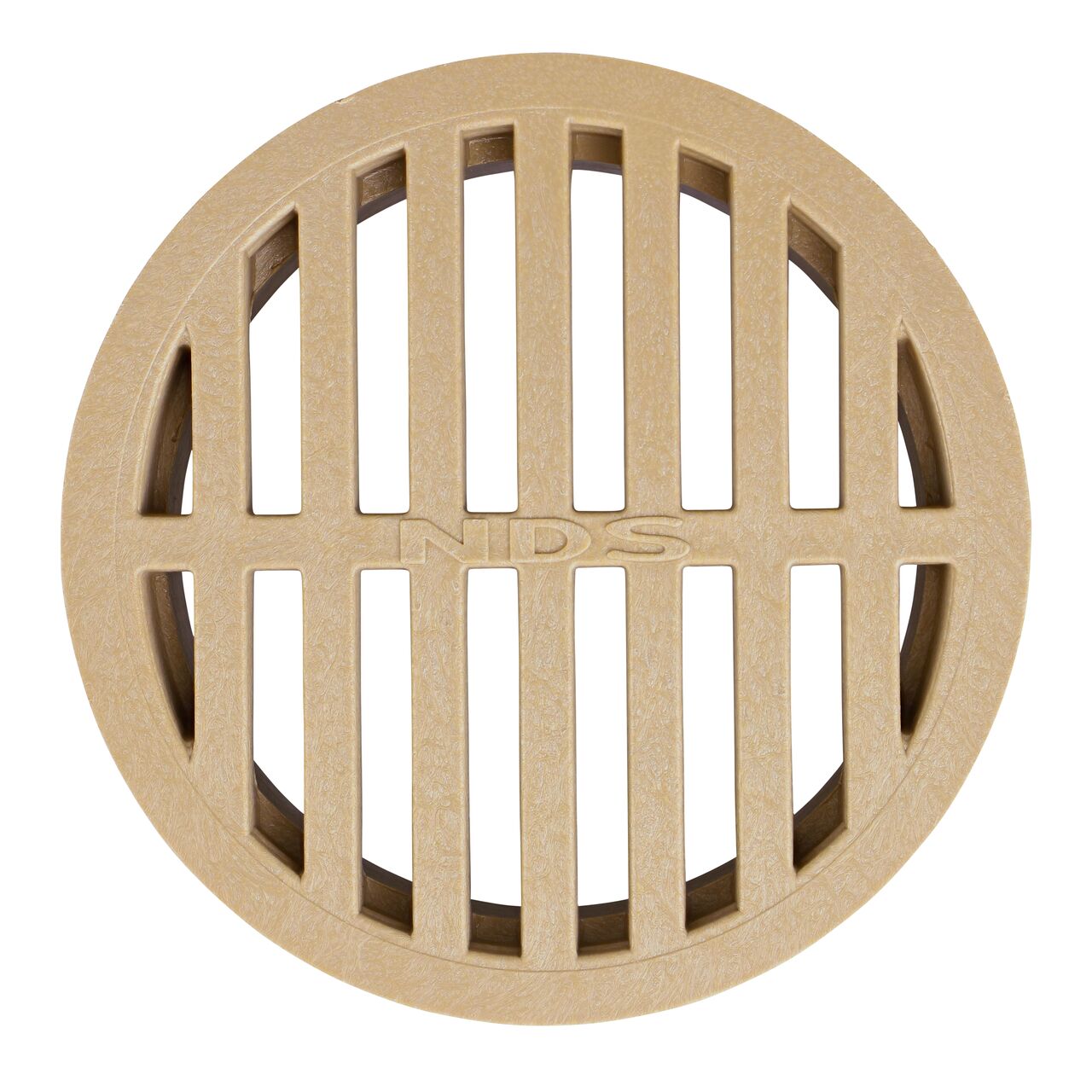

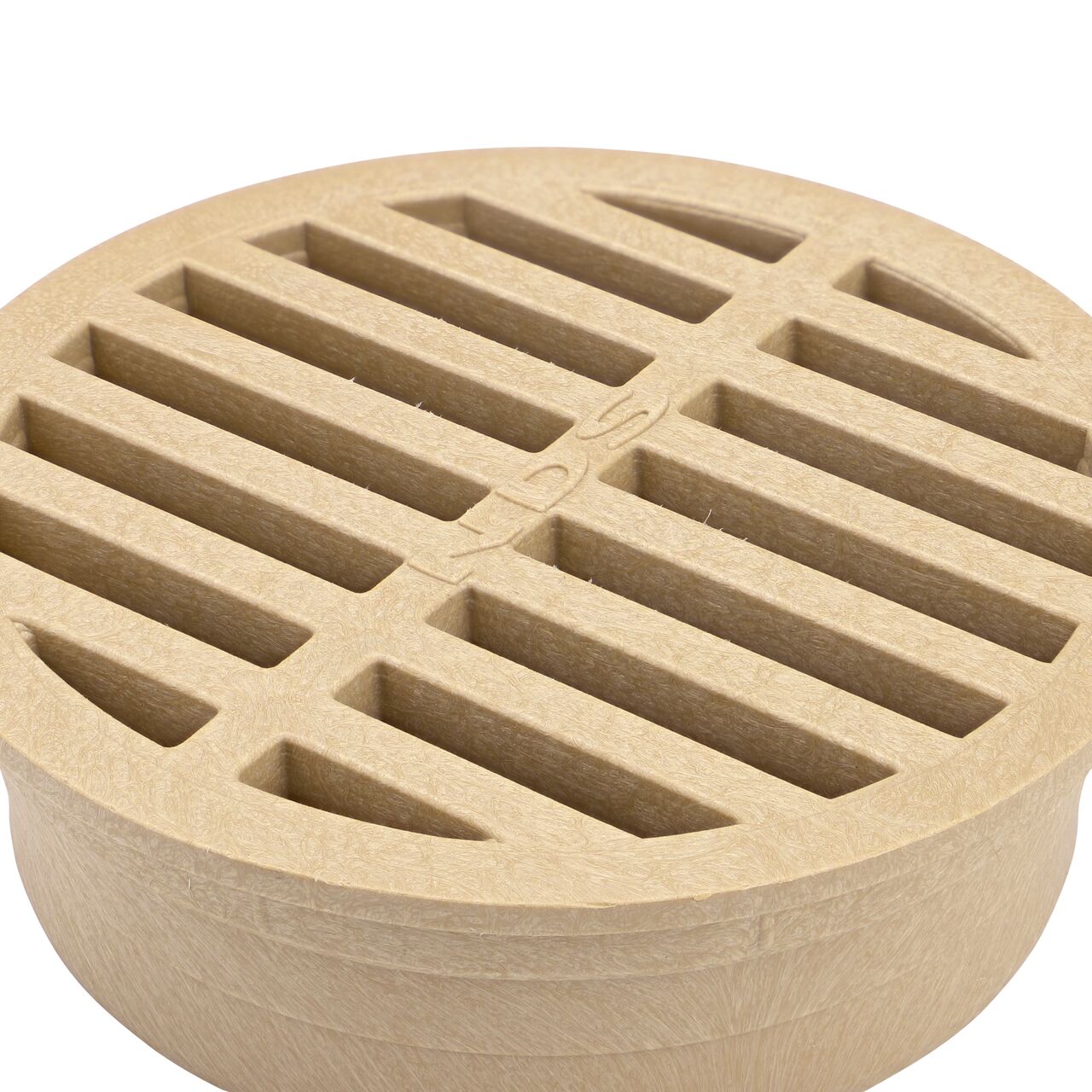

- Grate is 1-1/2 in. high; top is 4-5/8 in. wide in diameter; openings are 1/4 in. wide
- 4 in. Round Drain Grates are available in a variety of colors
