3 in. Round Grate, Connects to 3 in. Drain Pipes and Fittings, Black Plastic
SKU: 14

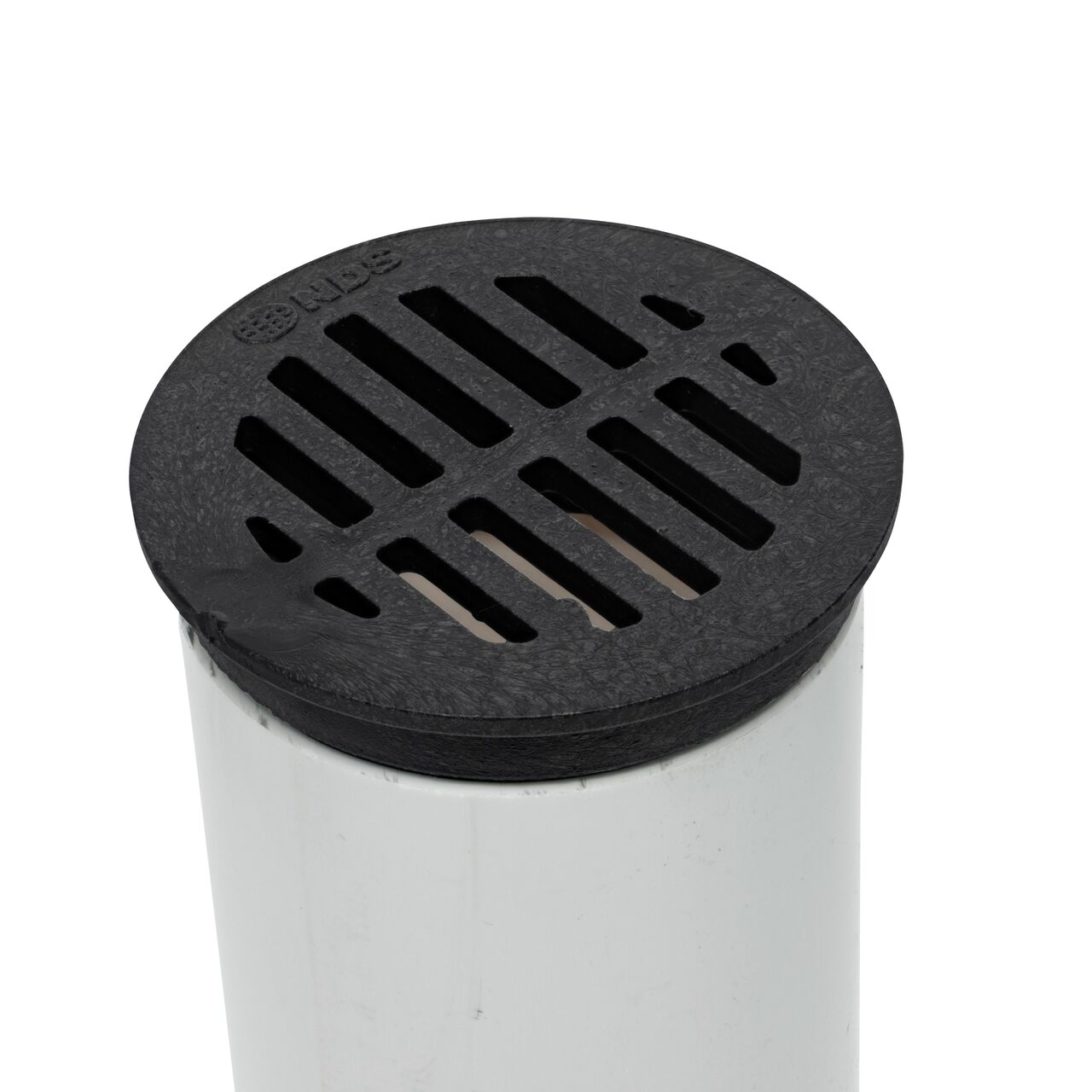

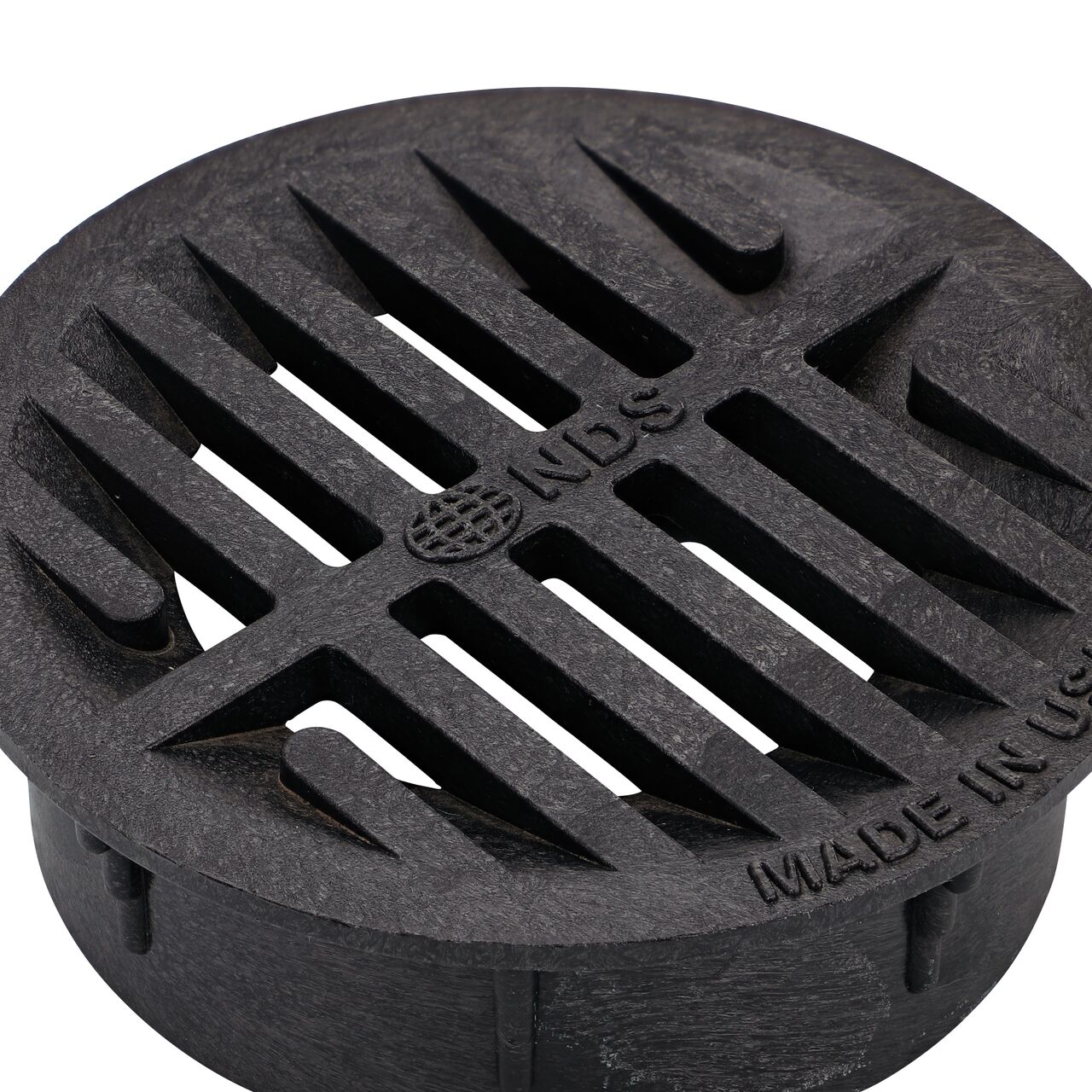

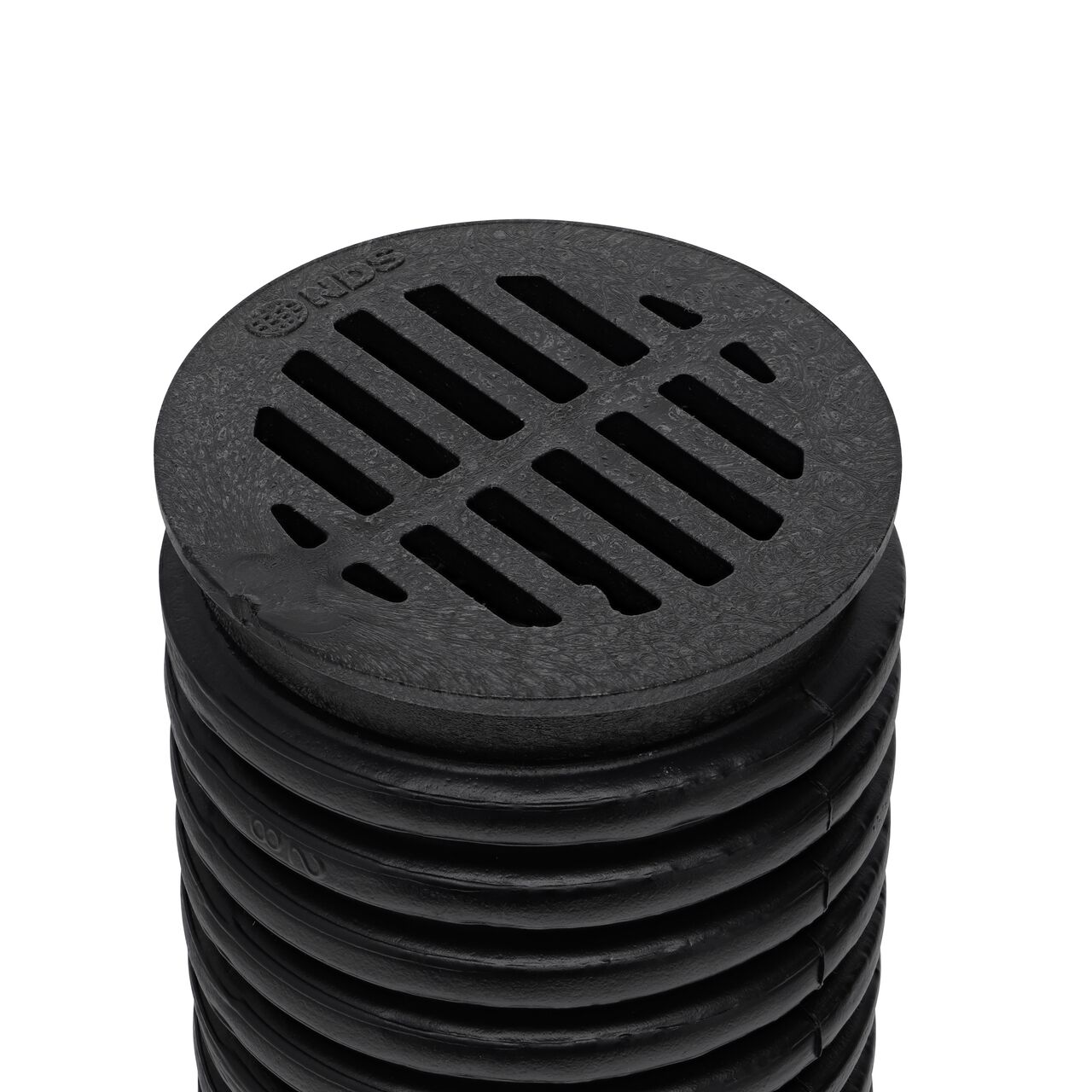

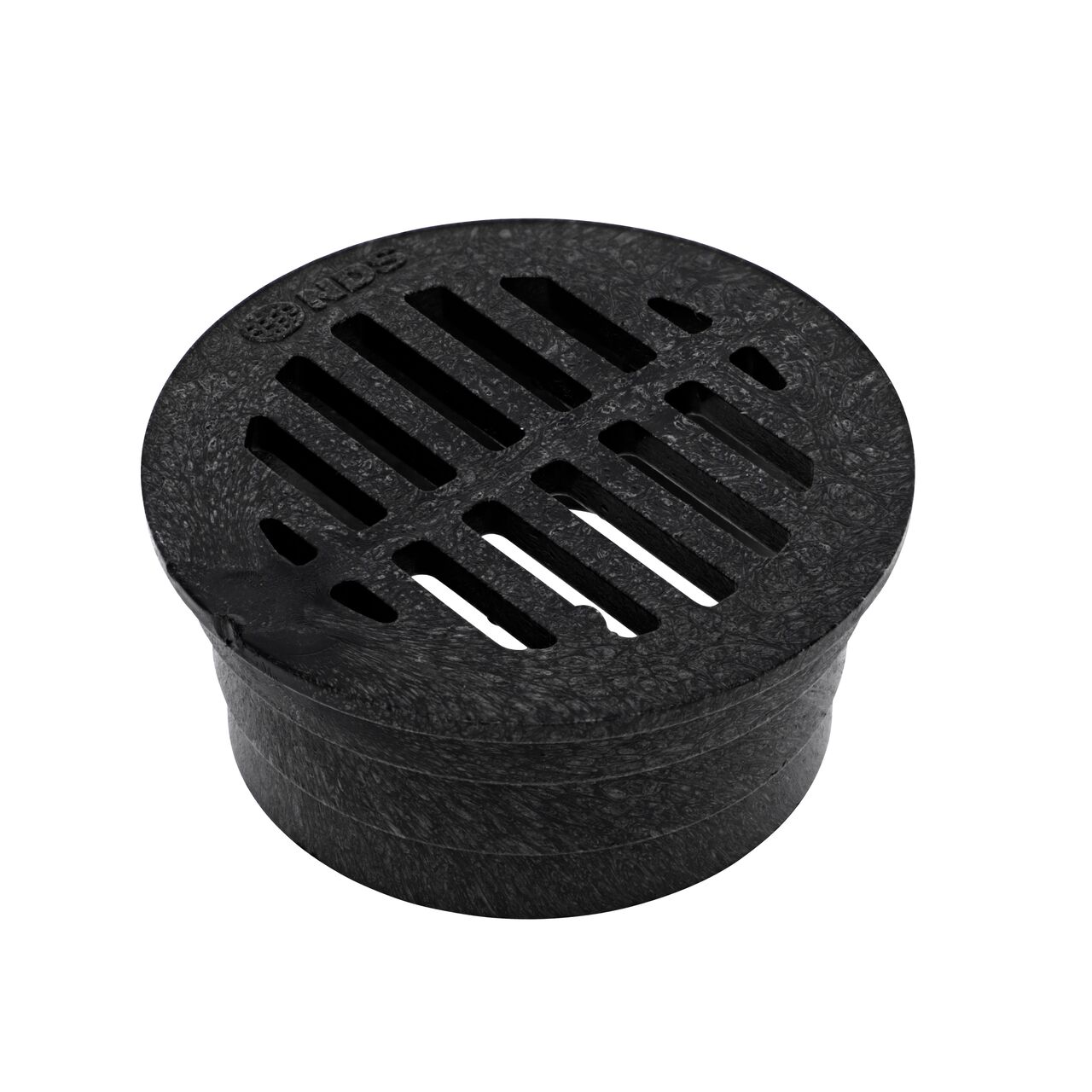

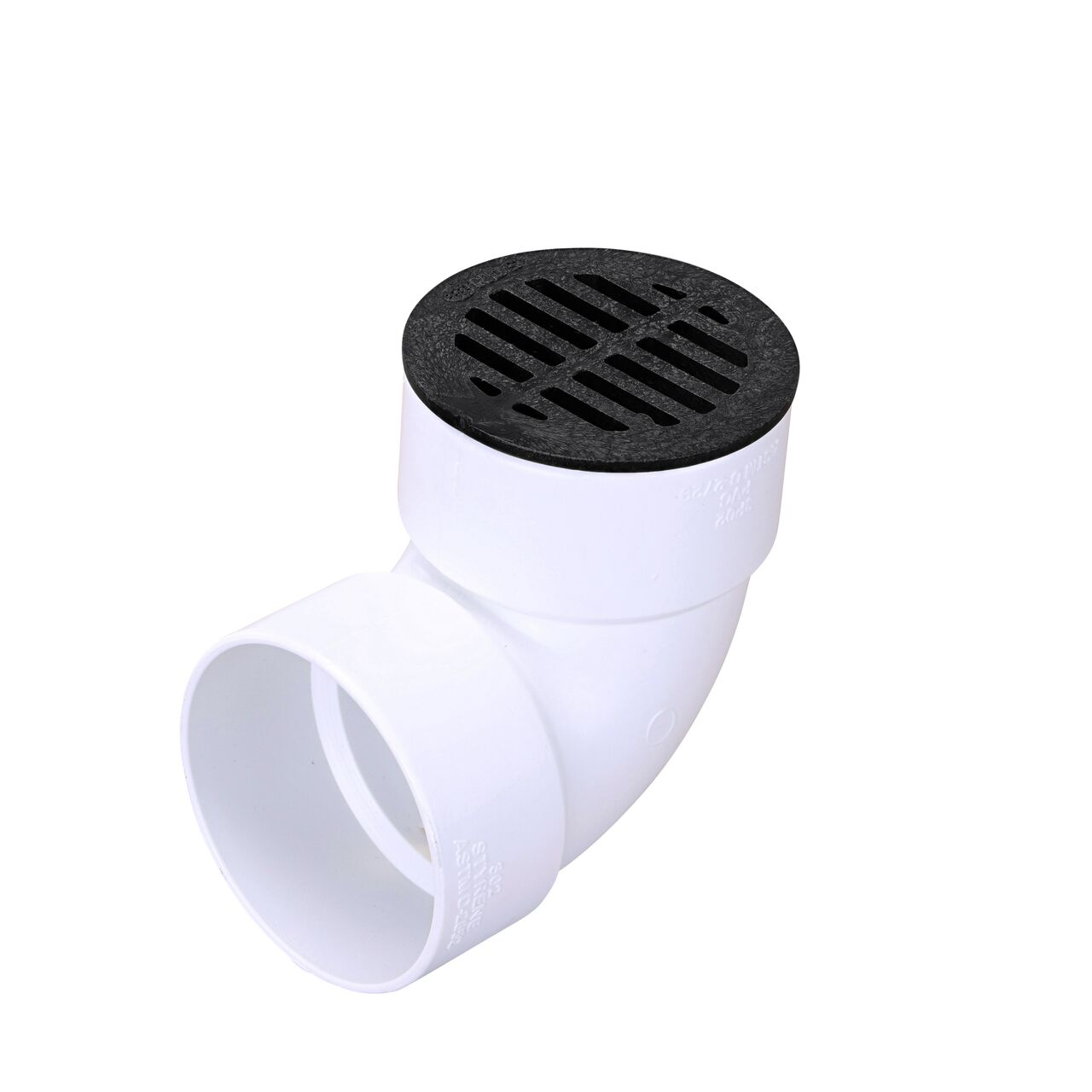

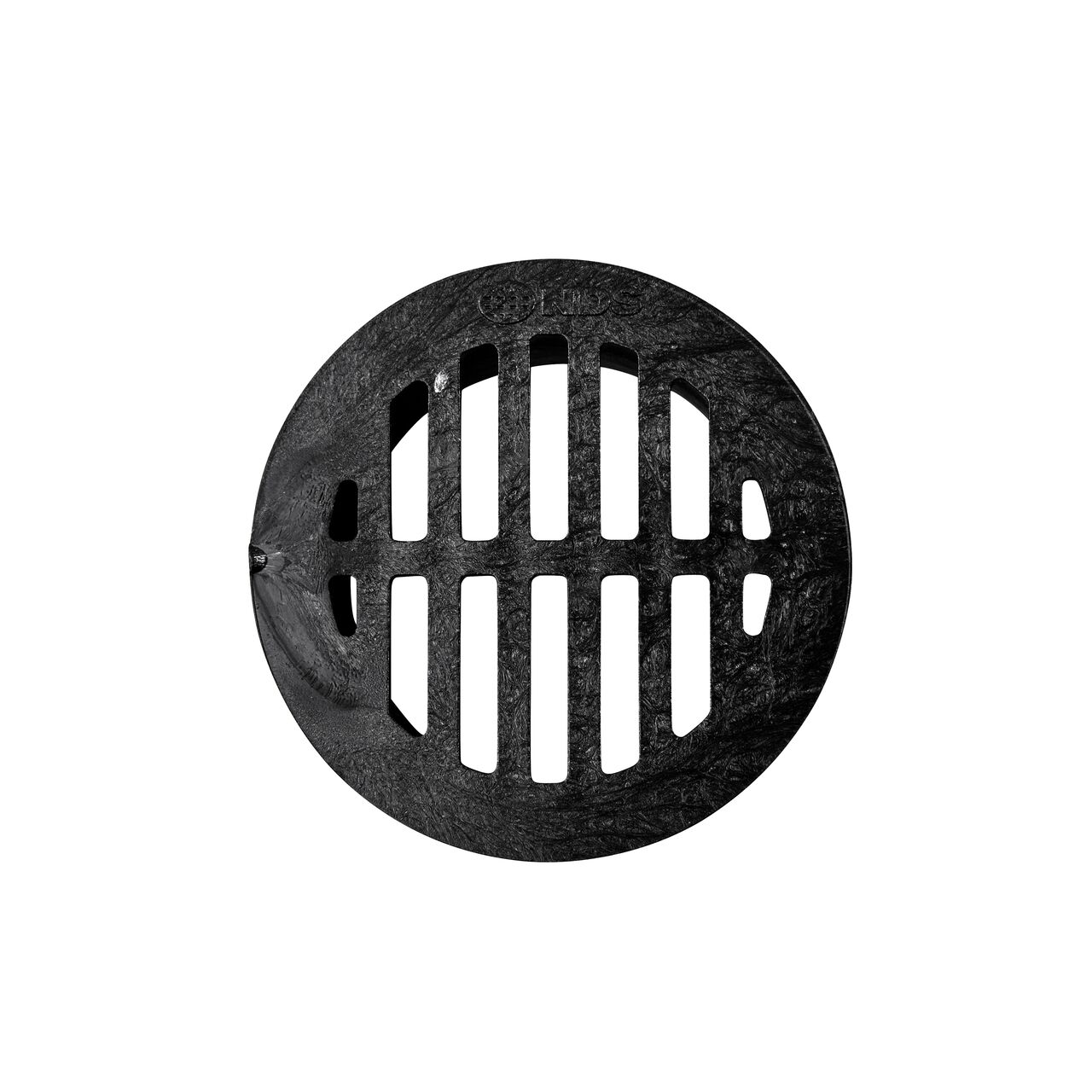

Small and mighty, the 3 in. Round Drain Grate drains light flows of stormwater from small lawns, landscaped areas, patios, and walkways. Leaves and debris are blocked from entering the drain pipe to prevent it from clogging and backing up. Grate has an open surface area of 2.6 sq. in. and flow rate of 8 GPM. The 3 in. Round Grate connects to 3 in. sewer and drain pipe & fittings, 3 in. single-wall corrugated pipe, and 3 in. triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors.
Applications:
- Protect your drainage system by using a drain grate, also known as a drain cover, on top of the drain pipe or fitting to block debris from entering and potentially clogging the pipeline as water flows through
- Ideal for draining light water flows from small lawns, landscaped areas, patios, and walkways
- Works with connected drain pipe to capture and convey excess surface water for proper release downstream
Features:
- Grate is 1-5/8 in. high; top is 3-9/16 in. in diameter; grate openings are 3/16 in. wide
- 3 in. Round Drain Grates are available in a variety of colors
