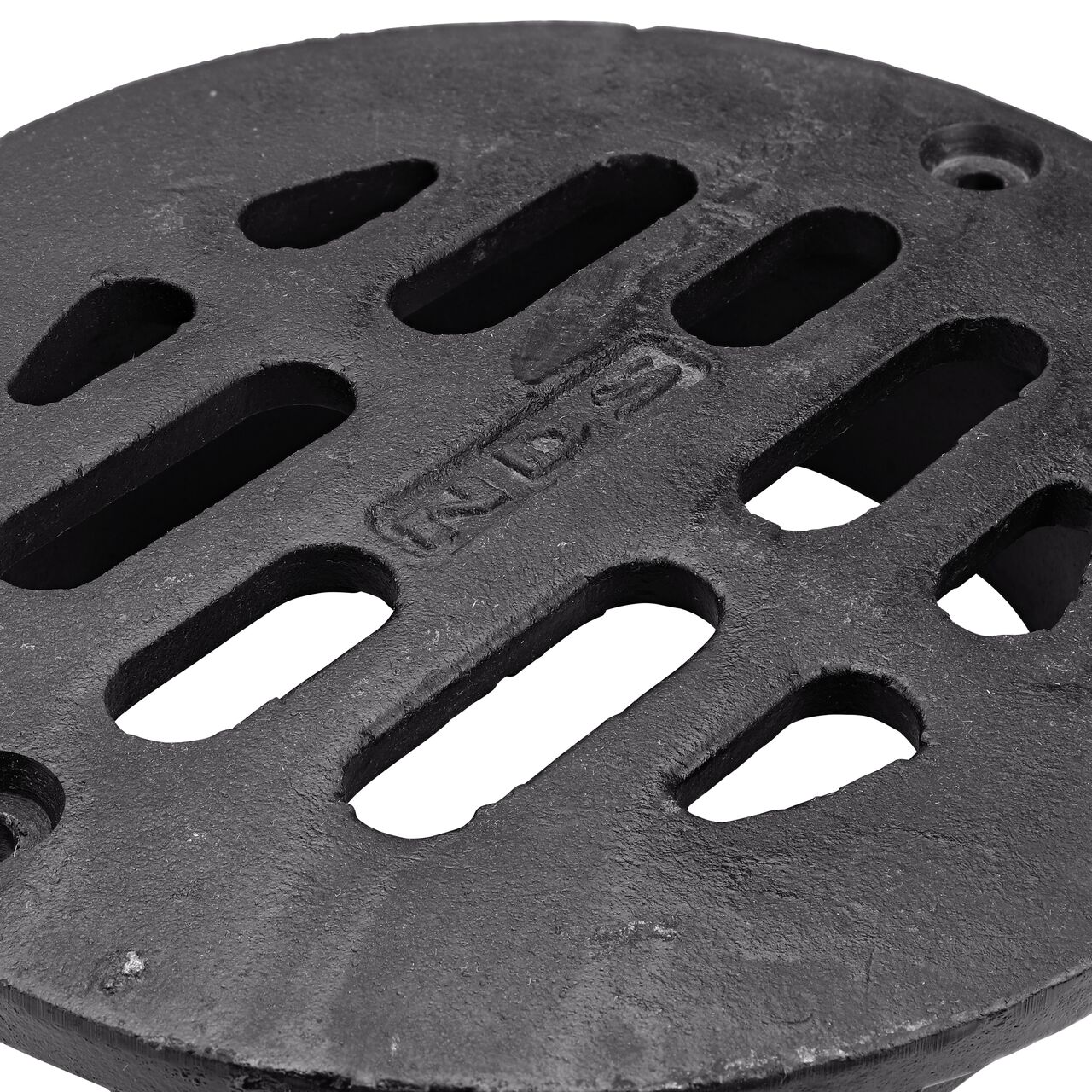

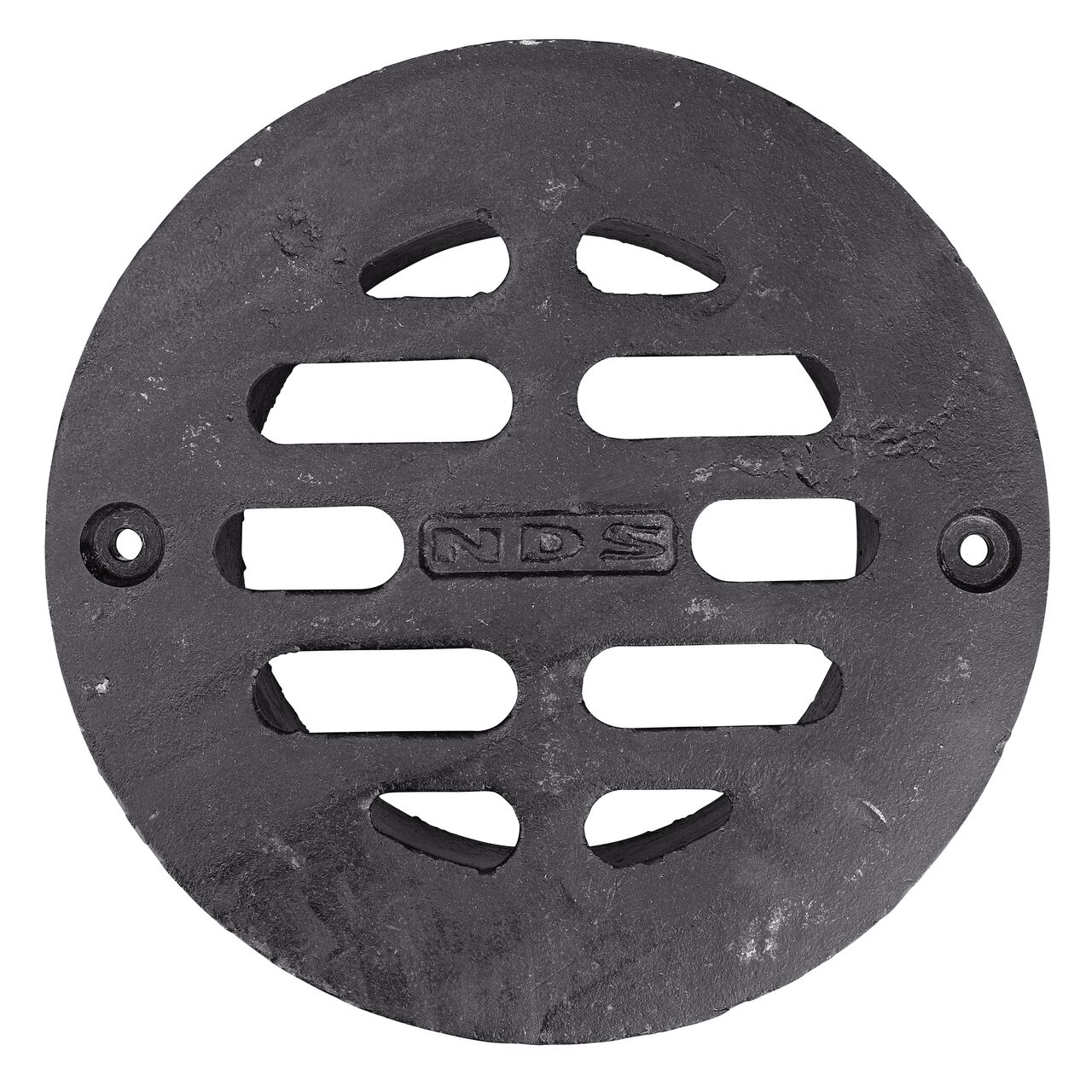

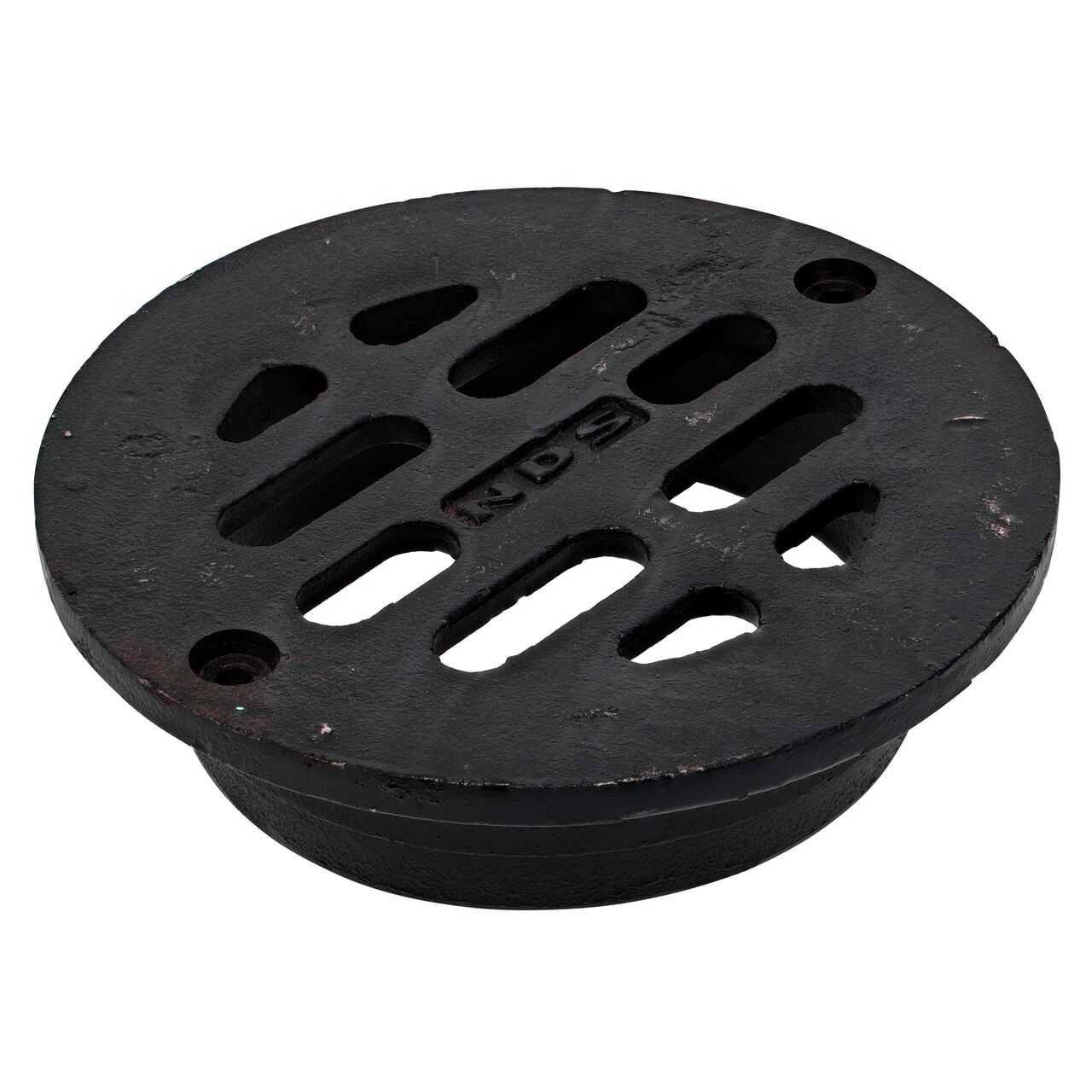

8 in. Round Duracast™ Grate, Connects to 8 in. Drain Pipes, Ductile Iron
SKU: D8

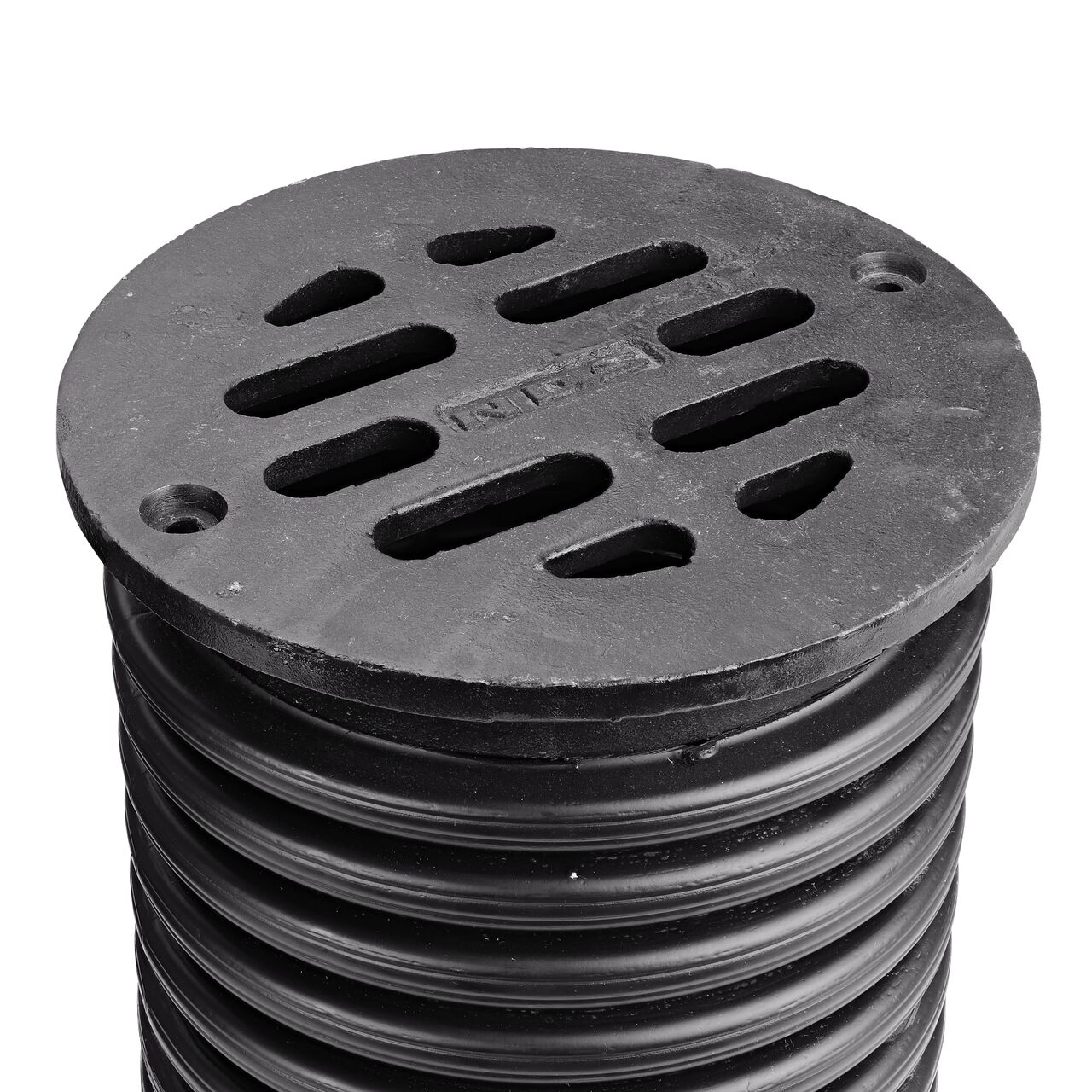

Block leaves and debris from clogging and harming your pipeline with one of the toughest grates around. The heavy-duty Duracast™ in-line 8 in. Round Grate is made of solid ductile iron and has an H-20 load rating. Open surface area of 14.0 sq. in. and 43 GPM flow rate makes it ideal for draining moderate flows of runoff on parking lots, driveways, plazas, courtyards, lawns, and landscaped areas. The 8 in. Round Grate in ductile iron connects to 8 in. sewer and drain pipe and 8 in. single-wall corrugated pipe for a soil-tight fit. Iron grates will rust over time, forming a protective iron-oxide patina that ages from red-orange to a deep, rich brown. NDS grates are lightly painted black to inhibit rust formation for shipping and storage purposes.
Applications:
- Protect your drainage system by using a drain grate, also known as a drain cover, on top of the drain pipe or fitting to block debris from entering and potentially clogging the pipeline as water flows through
- Ideal for draining moderate flows on parking lots, driveways, plazas, courtyards, lawns, and landscaped areas
- Works with connected drain pipe to capture and convey excess surface water for proper release downstream
Features:
- Grate is 2-5/8 in. high; top is 10-1/8 in. wide in diameter; grate openings are 1 in. wide
- 8 in. Round Drain Grates are available in a variety of colors and materials
