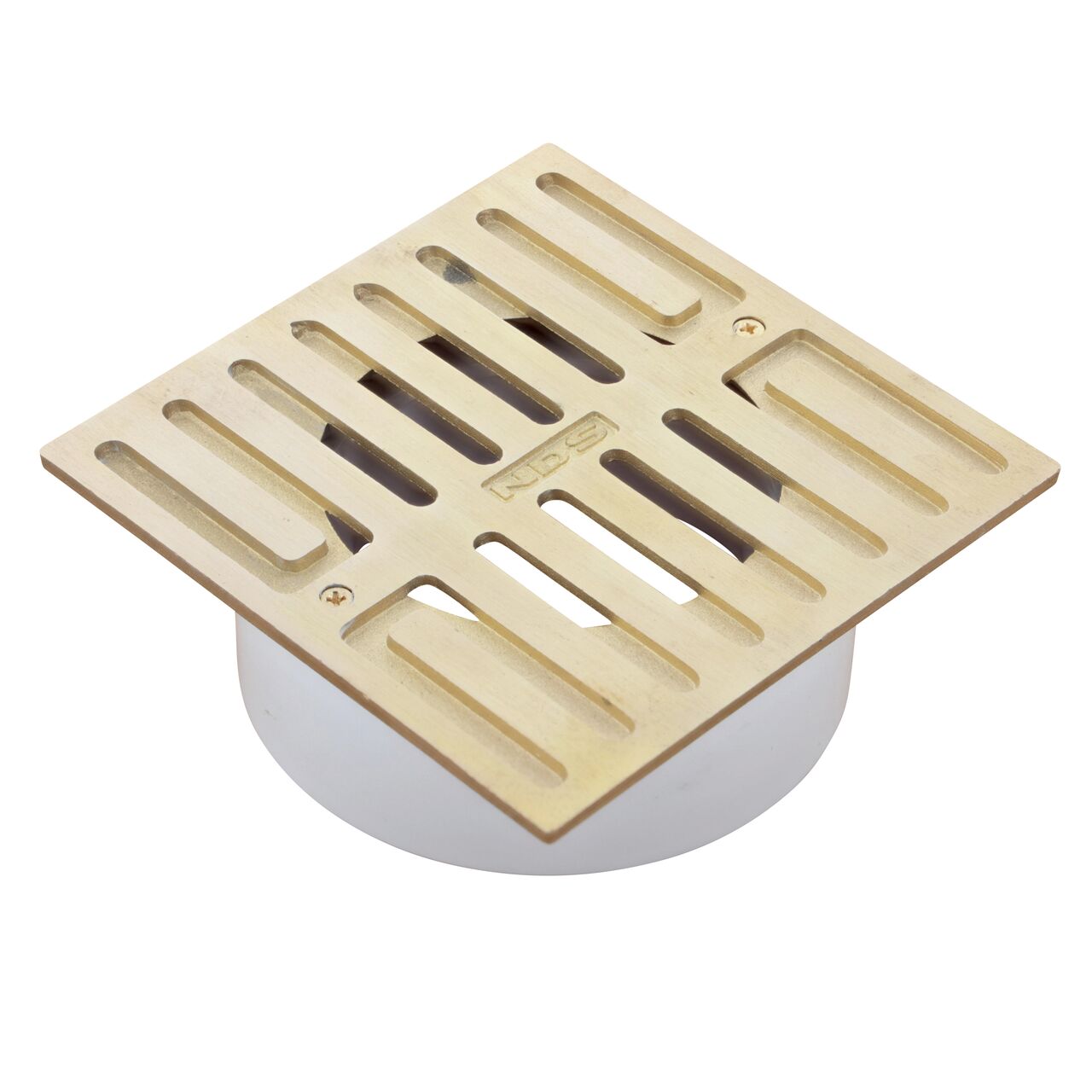

5 in. Square Grate with Collar, Connects to 3 in. Drain Pipes and 4 in. Fittings, Satin Brass and Plastic
SKU: 913B

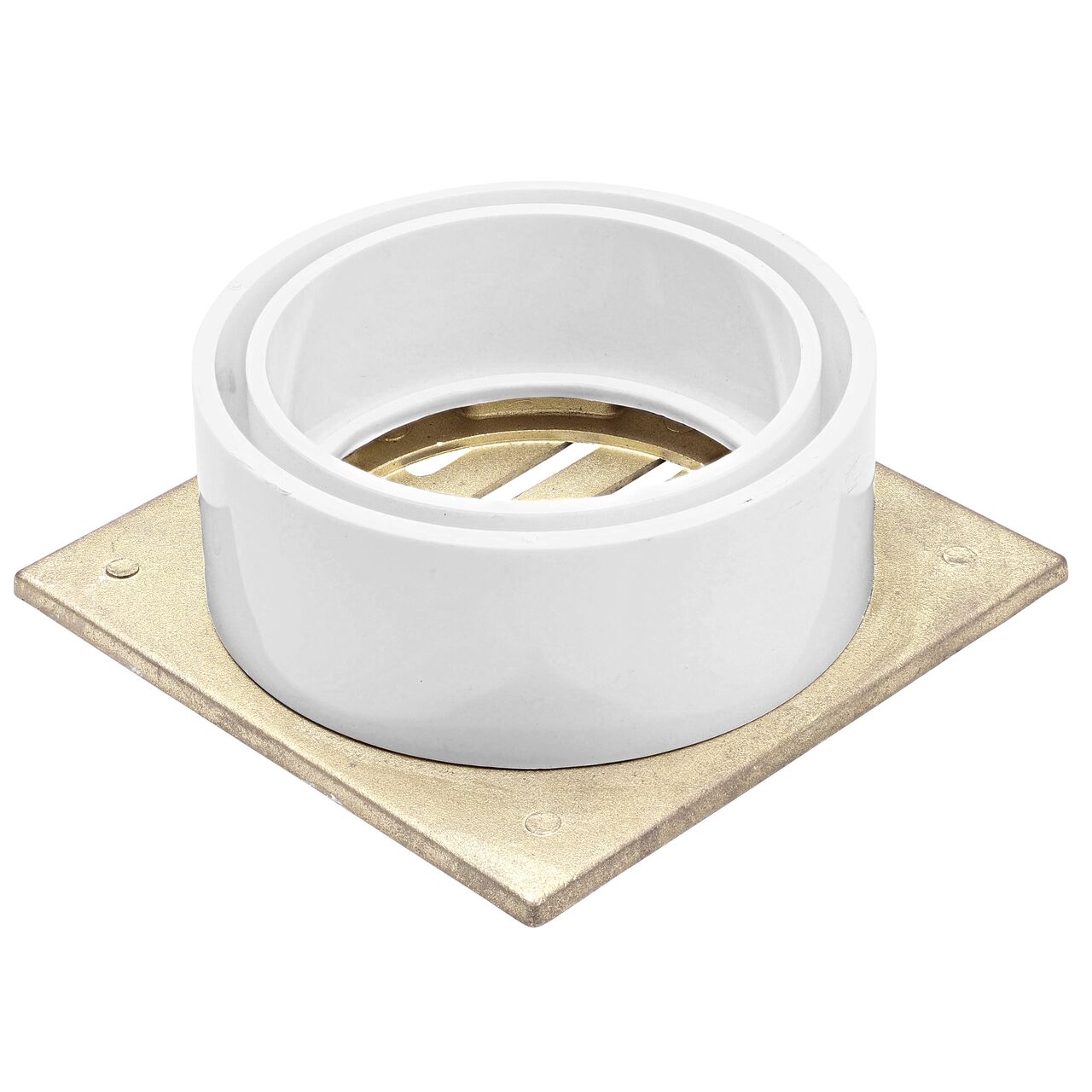

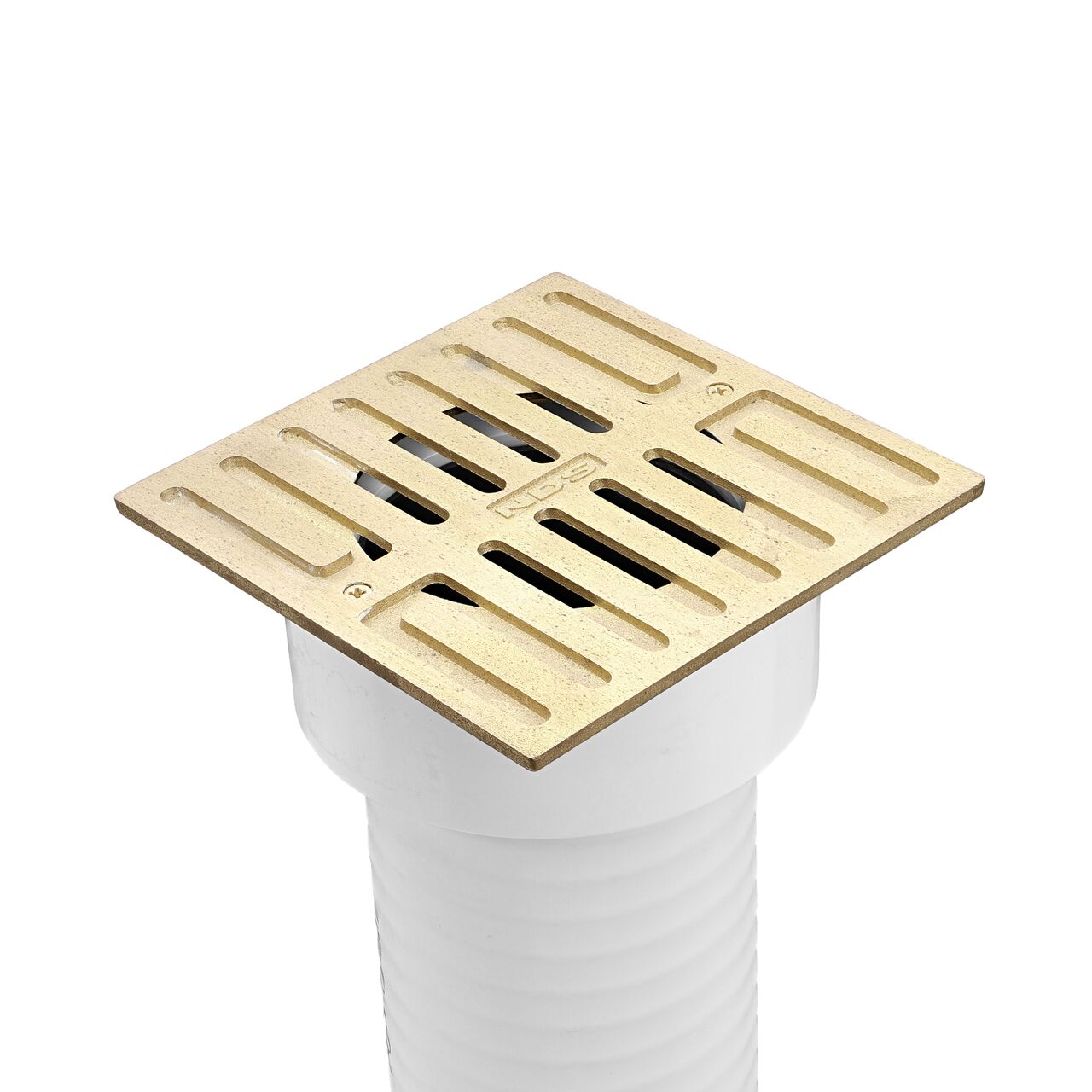

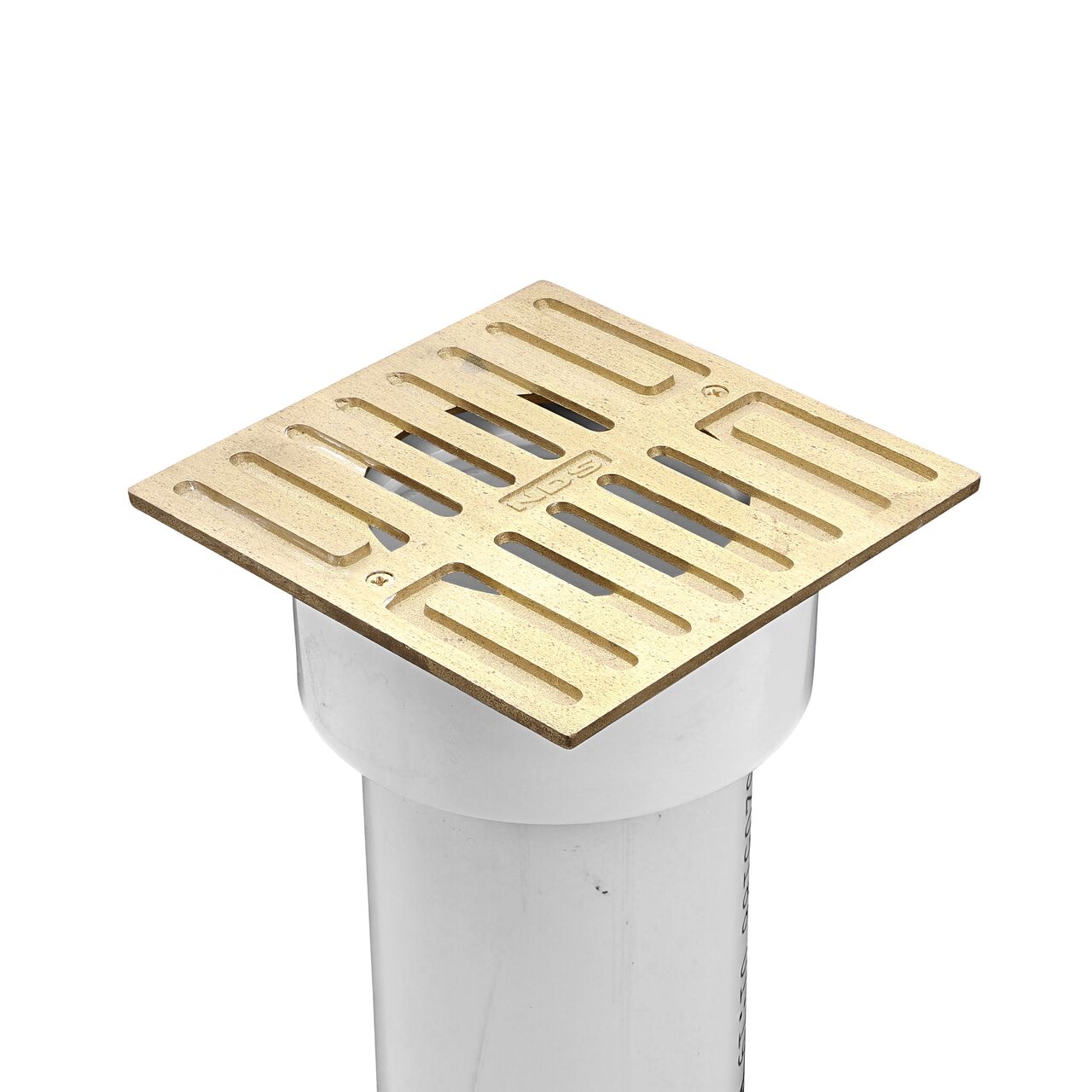

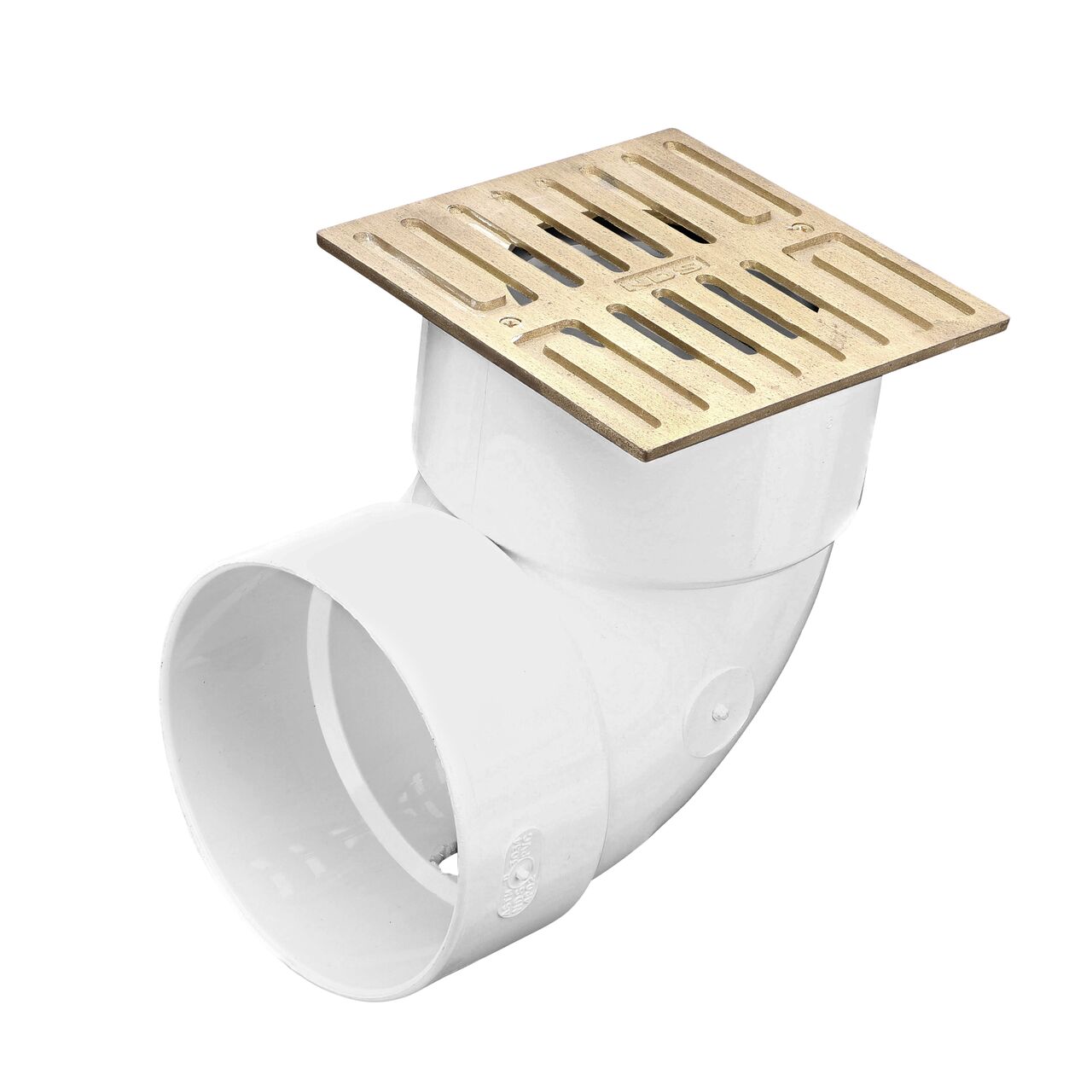

The Brass Drain Grate with PVC collar presents a stylish look as it drains light flows from small lawns, landscaped areas, patios, and walkways. The rust- and corrosion-resistant drain grate, also known as a drain cover, is fitted on a polyvinyl chloride collar that connects to pipe. Stormwater flows in, while leaves and debris are blocked from entering and potentially clogging the pipeline. Features an open surface area of 2.5 sq. in. and 8 GPM flow rate. Ideal for draining light flows from small lawns, landscaped areas, patios, and walkways. The 5 in. Square Grate with Collar connects to 3 in. sewer and drain pipe, 3 in. triple-wall pipe, and 4 in. sewer and drain fittings. The brass grate is resistant to rust and corrosion, and fitted onto a polyvinyl chloride (PVC) collar treated with UV inhibitors.
Applications:
- Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
- Ideal for draining light water flows from small lawns, landscaped areas, patios, and walkways
- Works with connected drain pipe to capture and convey excess surface water for proper release downstream
Features:

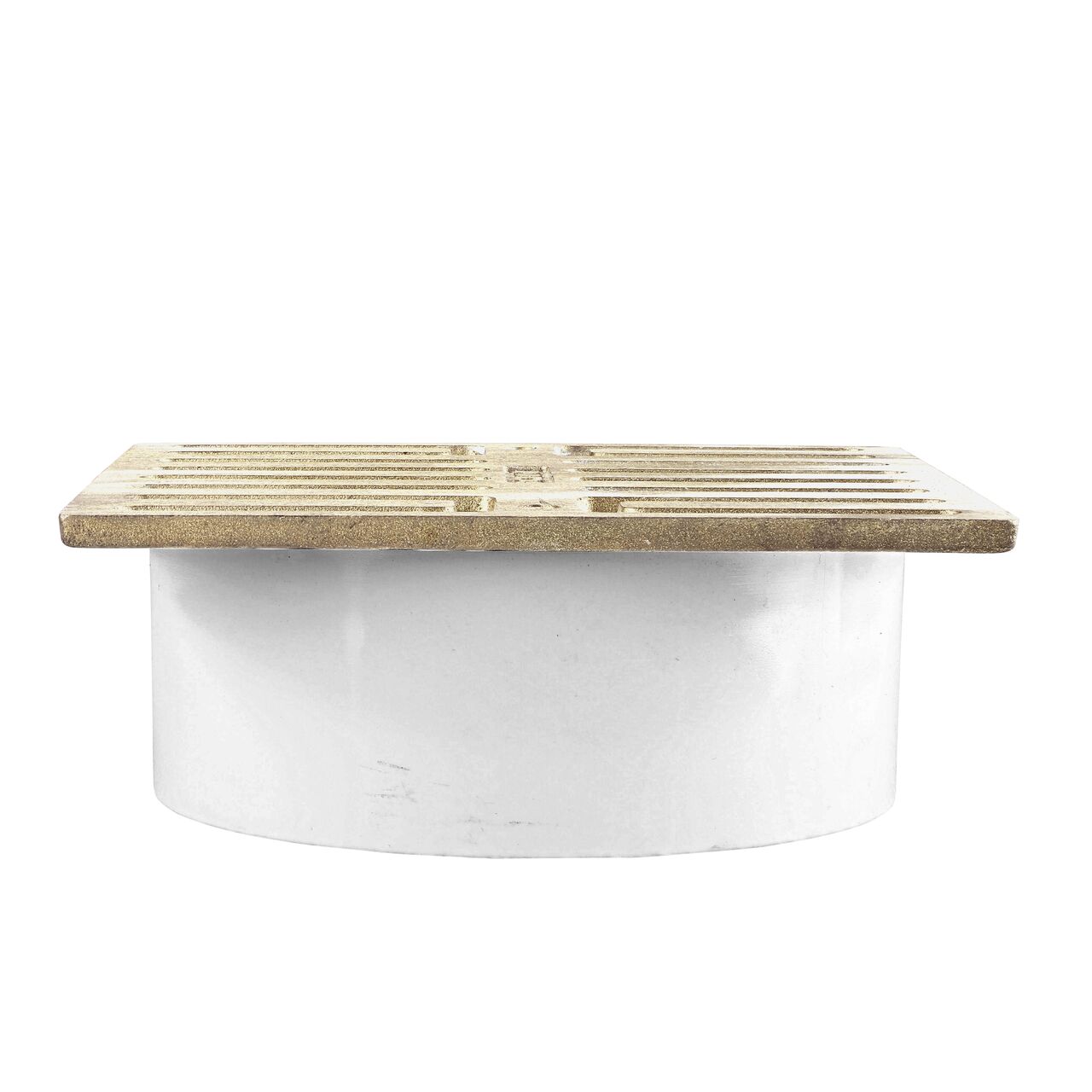

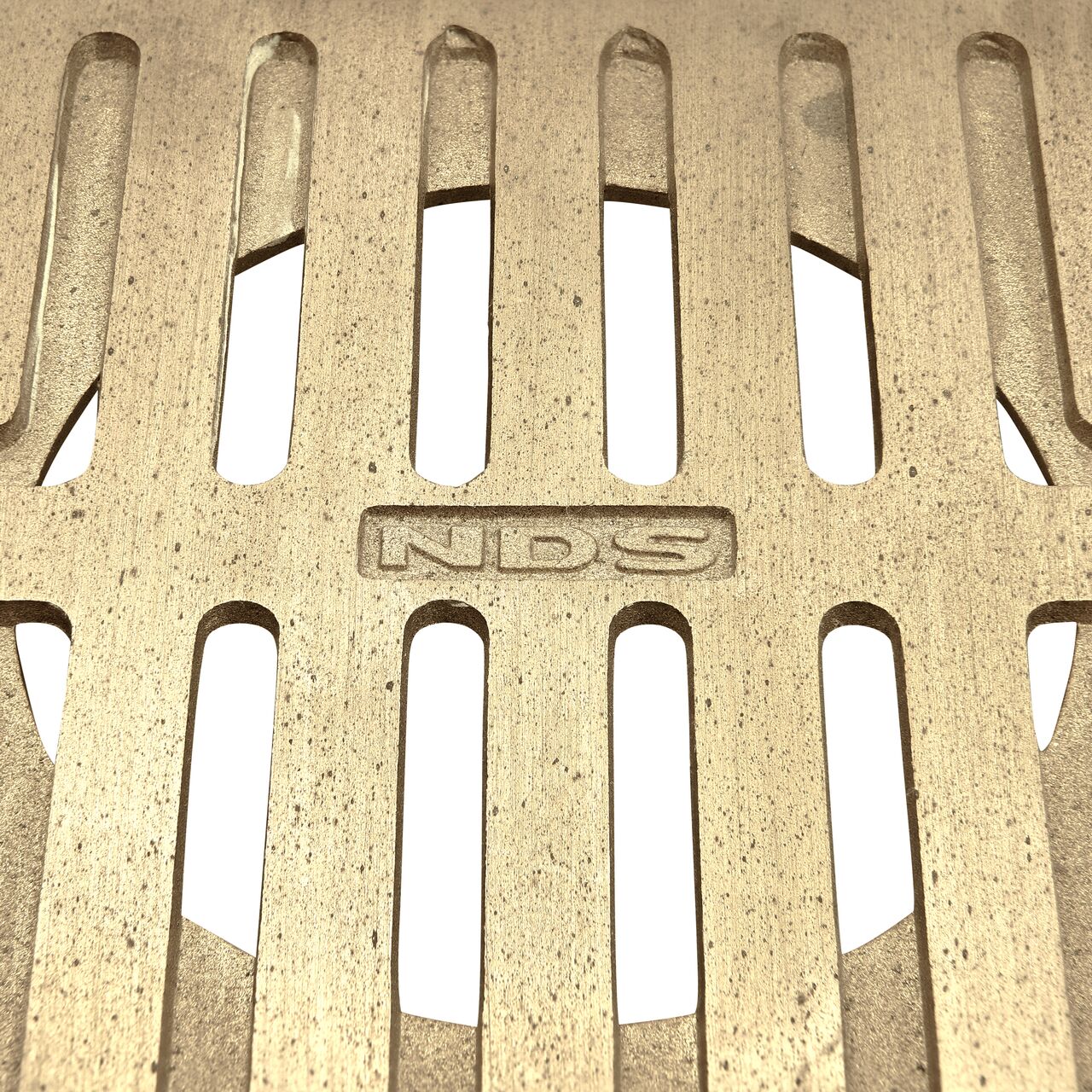

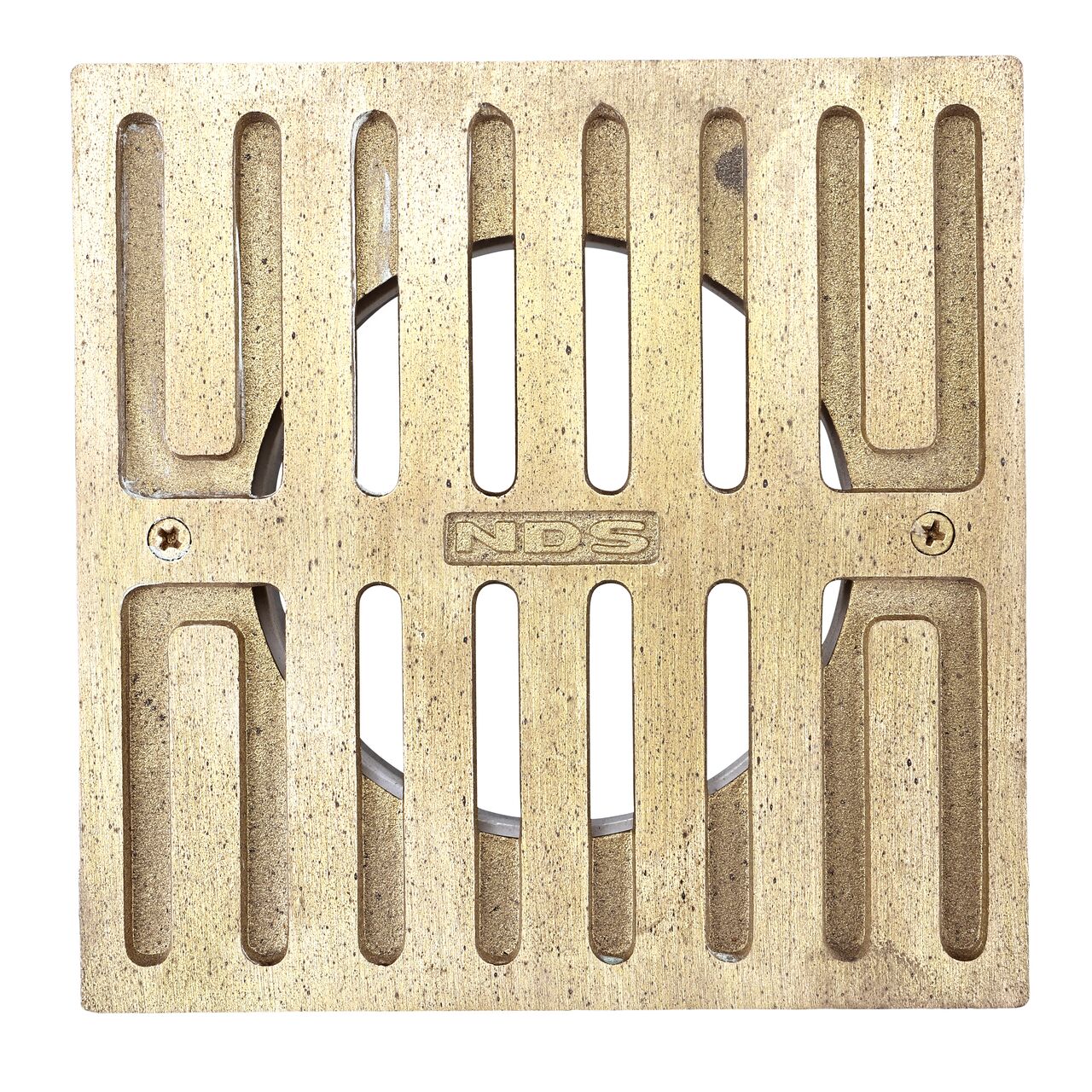

- Grate is 1-3/4 in. high; top is 4-3/4 in. square; grate openings are 3/8 in. wide
- 5 in. Square Drain Grates are available in a variety of colors and materials
