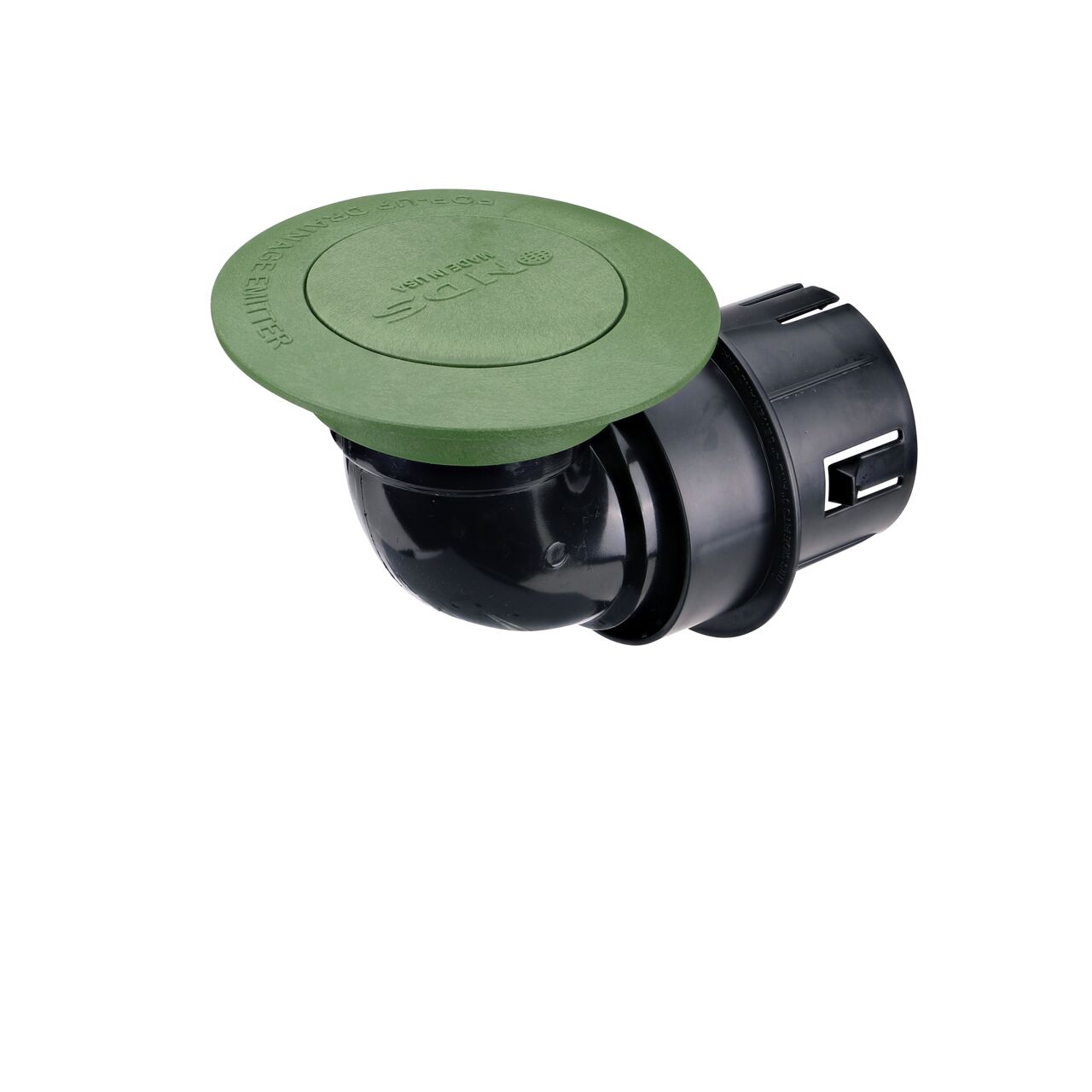

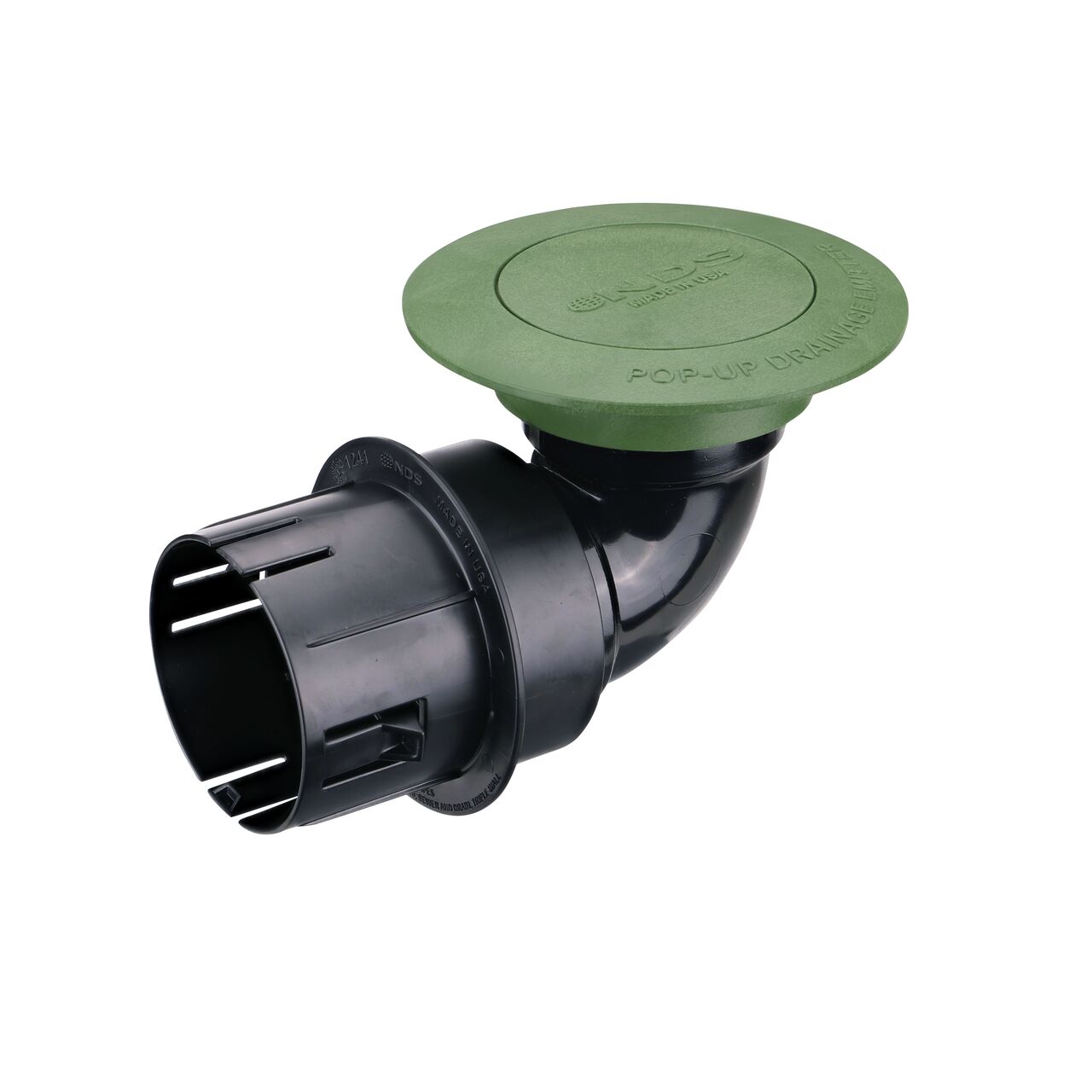

Pop-Up Drainage Emitter with Elbow and Adapter for 3 in. and 4 in. Drain Pipes, Spring Loaded, Green Plastic
SKU: 430

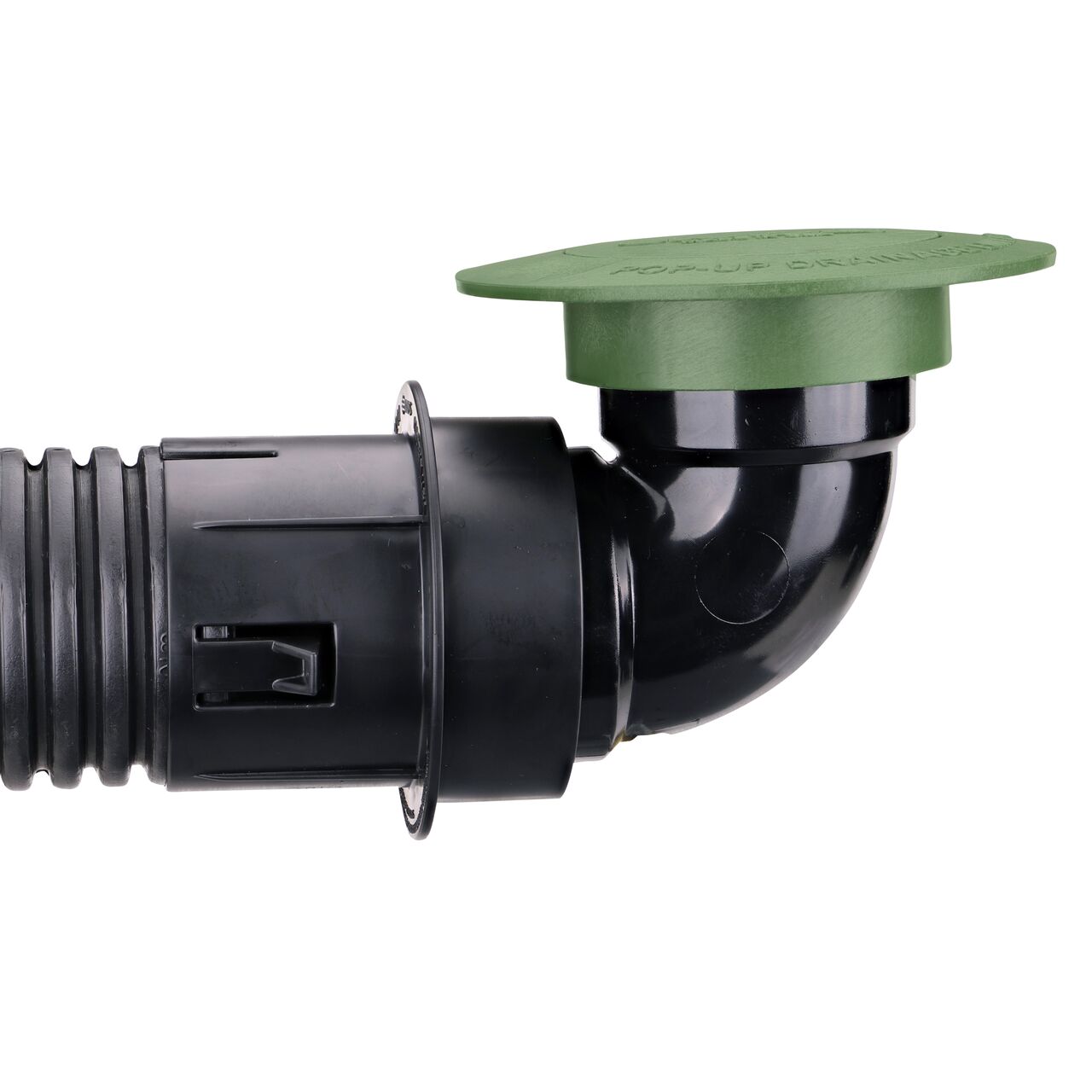

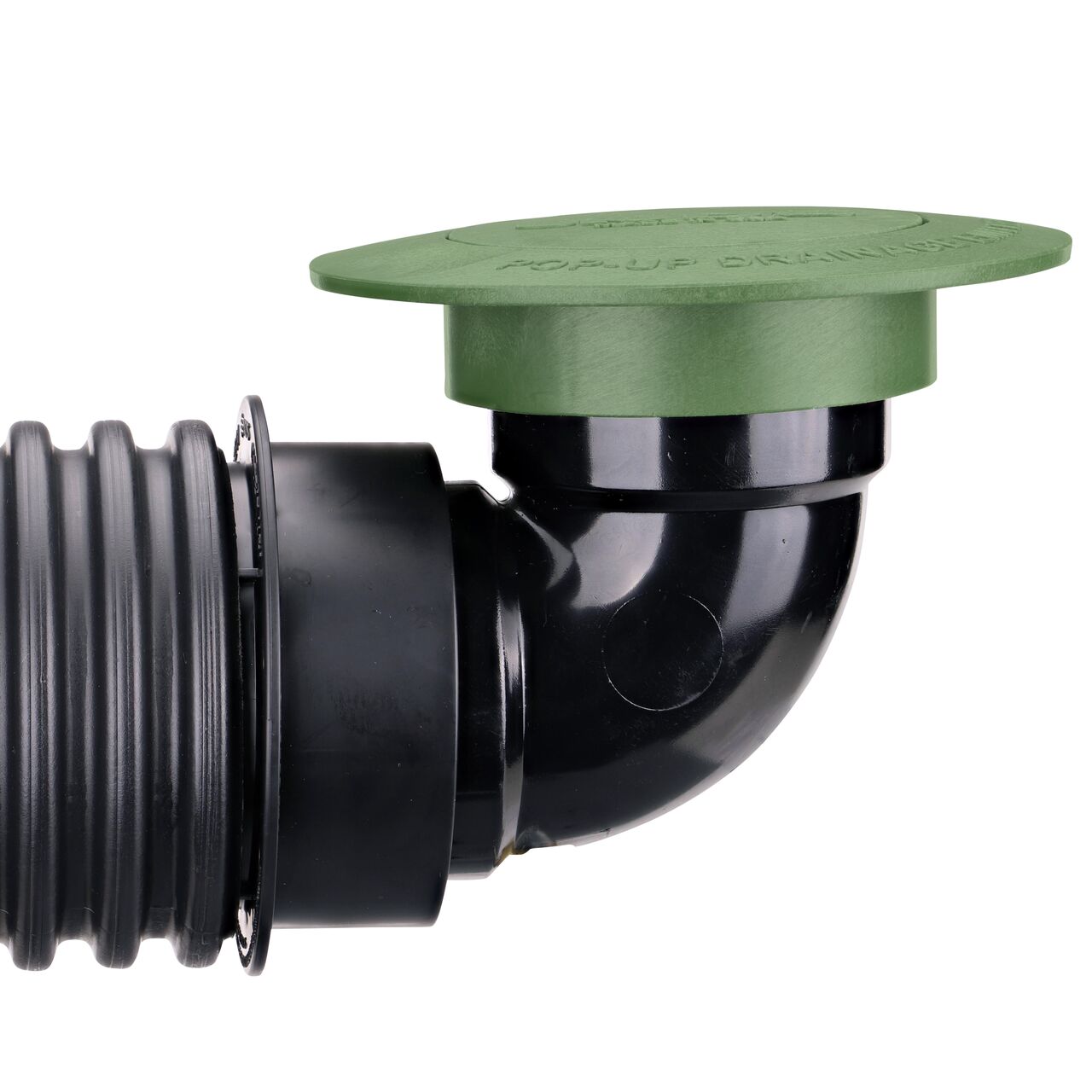

Essential to every drainage system is a point of release to prevent back-up issues. Use the Pop-Up Drainage Emitter to safely discharge collected water away from structures, erosion-prone landscapes, and poor drainage areas. The Pop-Up Drainage Emitter with Elbow and Adapter connects to 3 in. & 4 in. single-wall corrugated pipes and 4 in. Sch. 40 pipe; remove the adapter to connect to 3 in. sewer and drain pipe and triple-wall pipe. When water pressure builds, the spring-loaded cap “pops up” as high as 1 in. to release water at up to 56 GPM. Cover closes automatically once the flow diminishes. Cap and cover is made of high-density polyethylene (HDPE) and the elbow is made of polyvinyl chloride (PVC)
Applications:
- Provides a downstream point of release for water collected upstream
- Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
- Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage
Features:

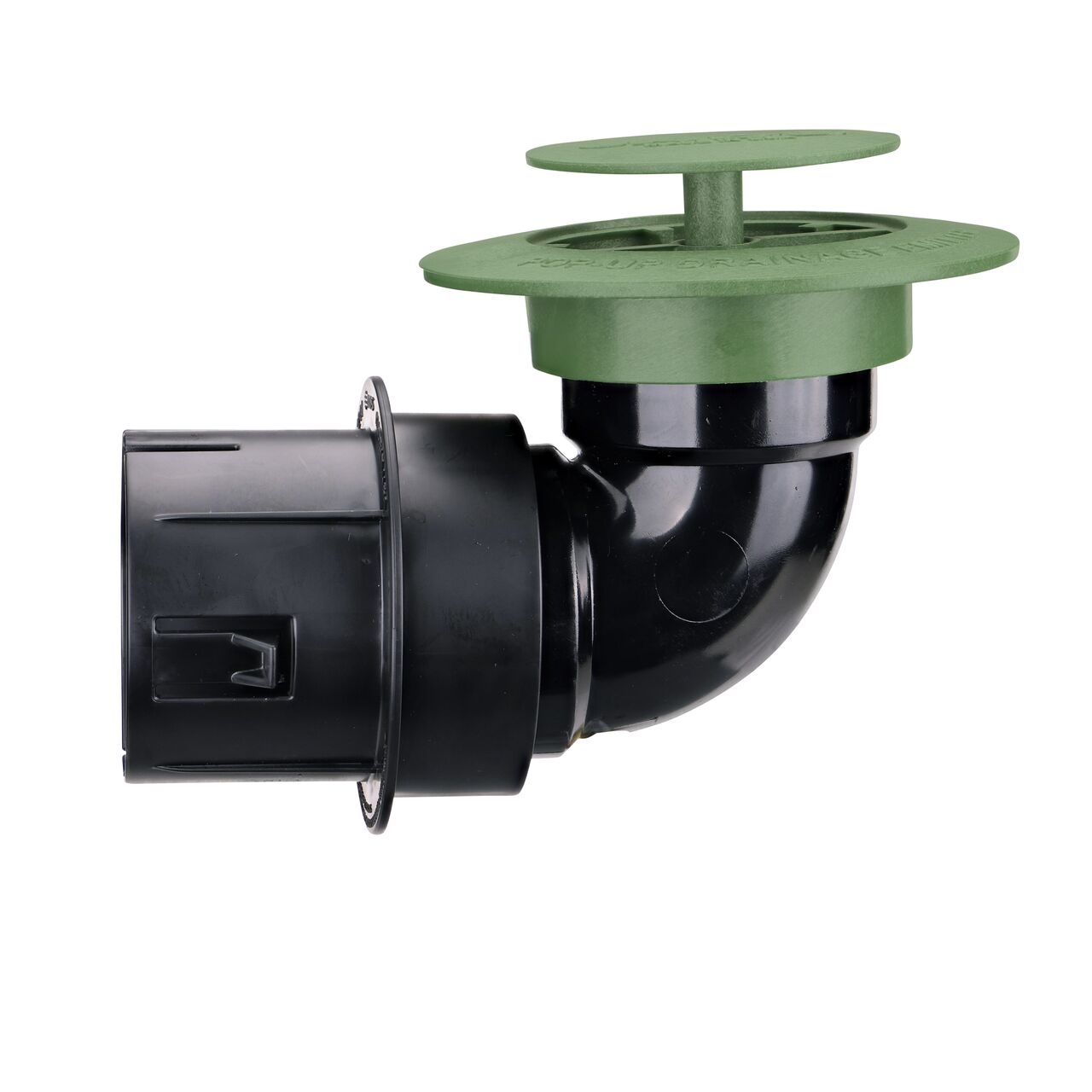

- Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds and closes as flow diminishes; when not in use, cap stays closed to keep debris and rodents out of drain
- Flange design prevents grass from growing over the cover
- Small weep hole in elbow drains out any water in the pipe to prevent stagnation or freezing in cold weather

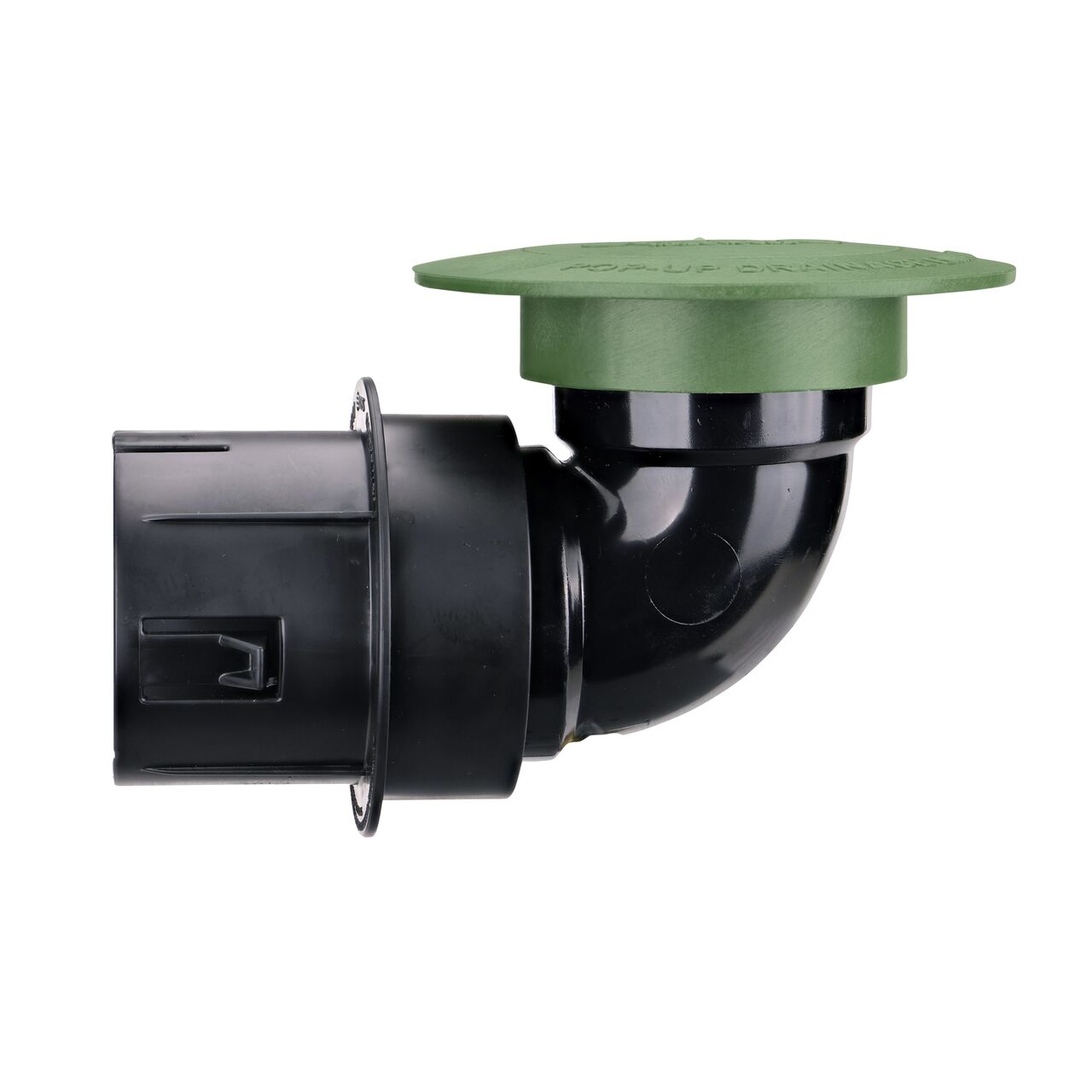

- Flat profile design reduces trip hazard posed by open drain; closed position keeps emitter flush to the ground and safe from lawn mower blades
- Rounded contours on interior edges reduce the potential for clogging and internal ribs provide durability and strength
