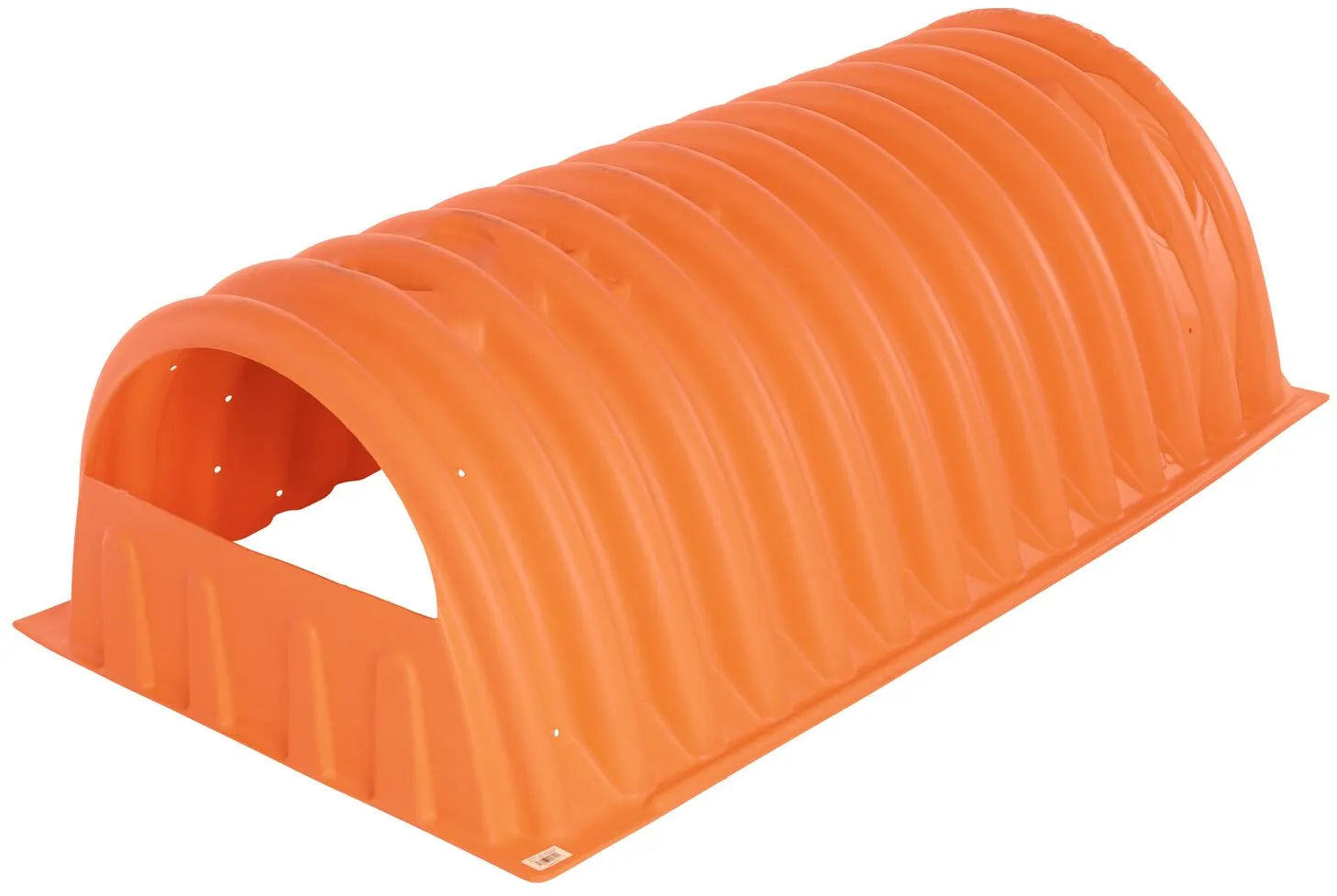

34 in. High StormChamber® Systems
Protect the landscape and prevent flooding even in limited footprints with the StormChamber® system. The 34 in. high arched, modular storm chambers can be configured in unique layouts to fit the requirements of the job site, and can also be stacked in layers.
Key Features
- Holds significant volume compared to other same size stormwater chambers on the market
- Minimum installed storage for start unit 121 cu.ft., middle unit 107 cu.ft., end unit 121 cu.ft., closed unit 159 cu.ft.
- Internal chamber volume start unit 71 cu.ft 24 cu.ft., middle unit 69 cu.ft., end unit 71 cu.ft., closed unit 74 cu.ft.
- Designed for strength due to thermoformed high-density weight polyethylene (HMWPE) material; withstands extreme environments, and exceeds the AASHTO H-20 design load
- Simple install internal crossover eliminates expensive header pipe manifold system; modular chambers overlap to form rows; side portal feed connects rows, provides greater flexibility and hydraulic design
- Easy maintenance saves water and money by removing sediments from SedimenTrap™ devices using an air vacuum truck rather than jet cleaning with water
- Long life expectancy designed by engineers, ecologists, and biologists to ensure maximum efficiency and effectiveness
