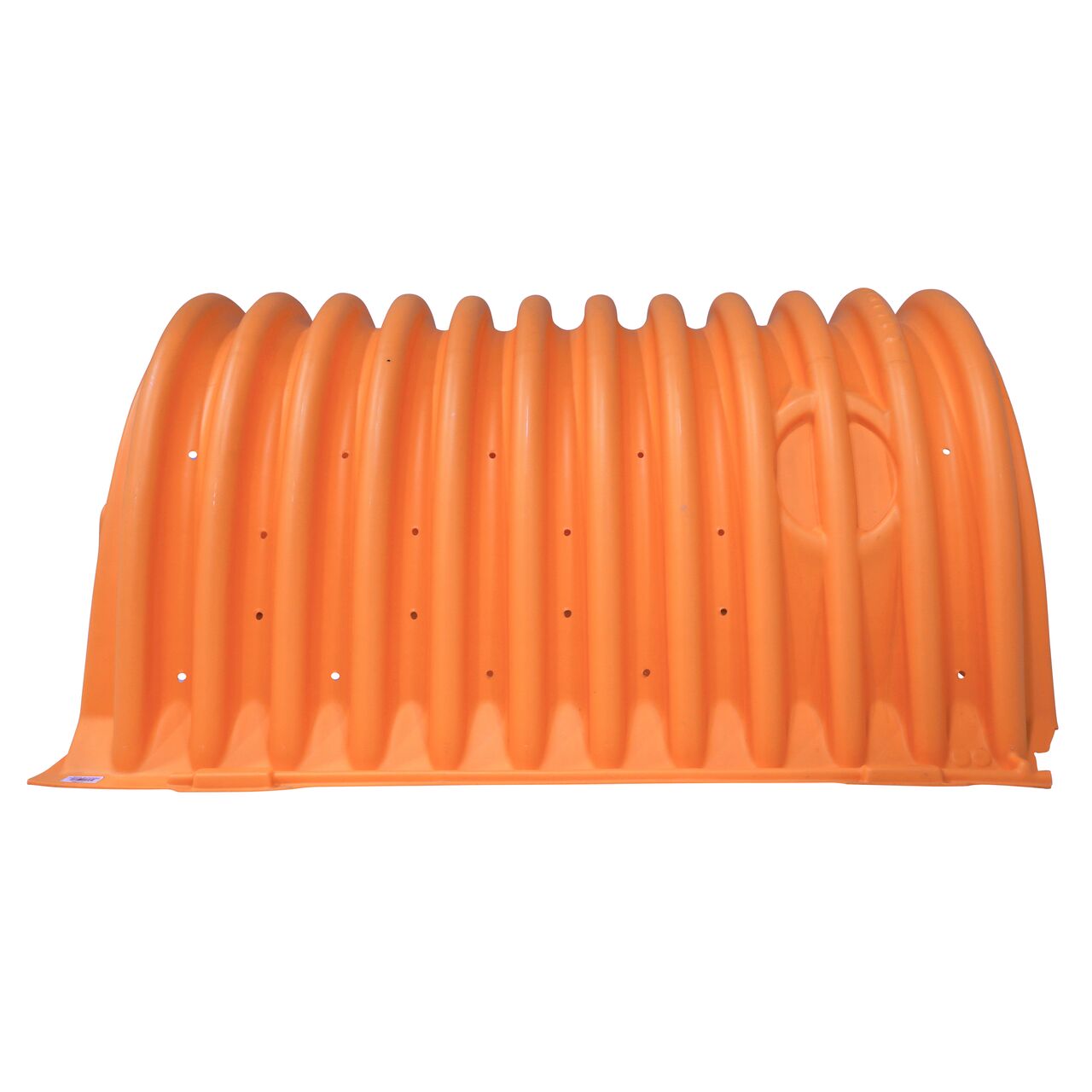

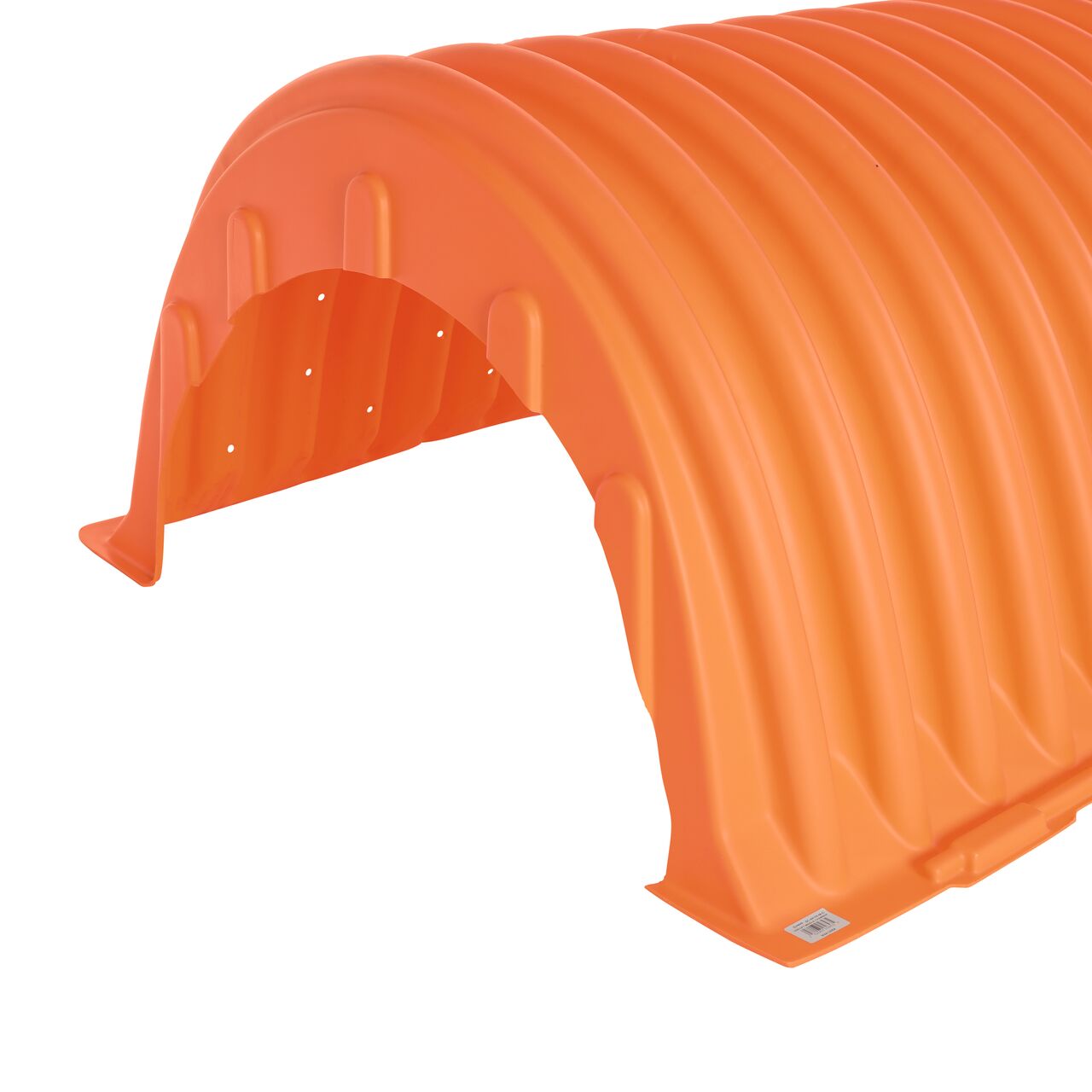

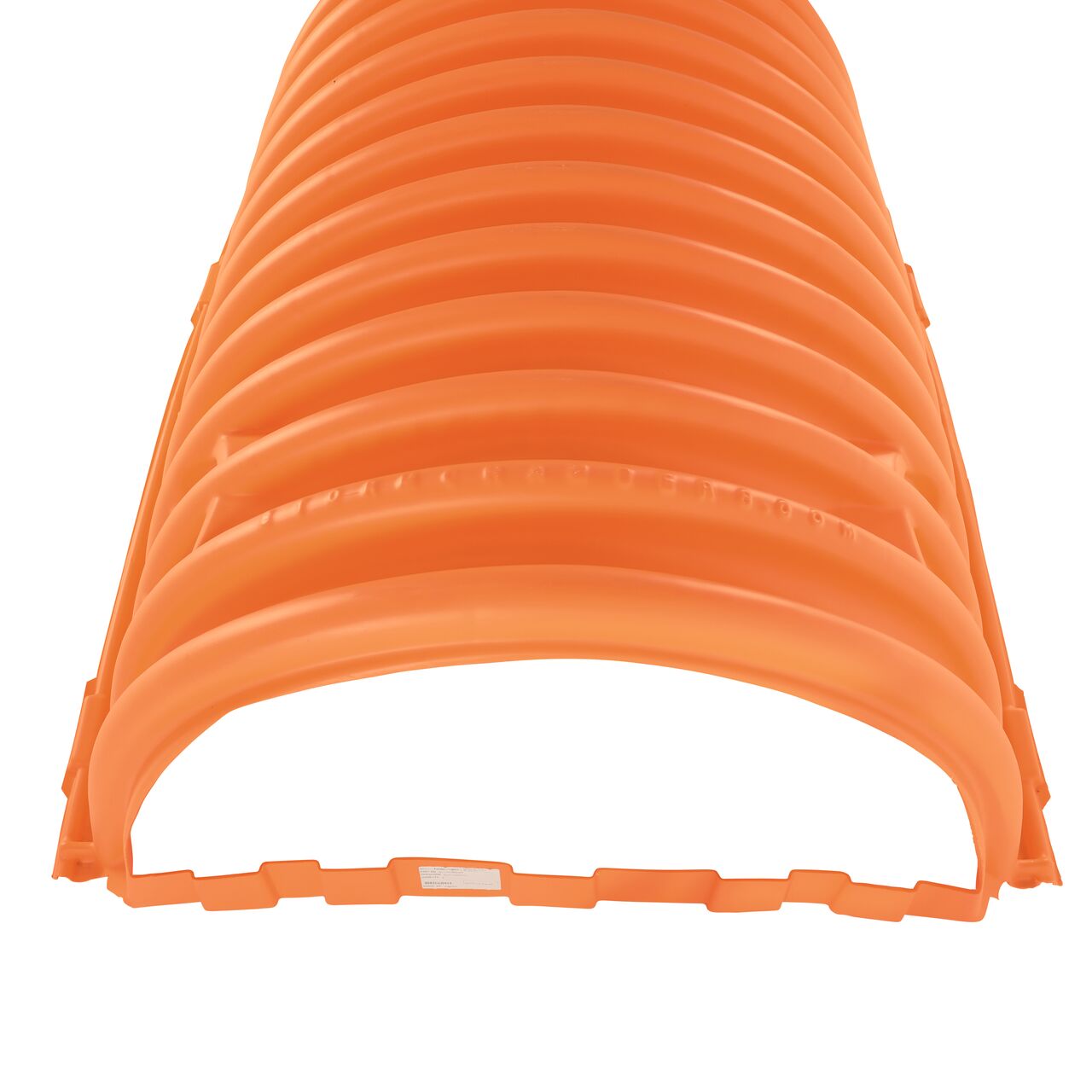

StormChamber® Stormwater Chamber, 41 in. High, Middle Unit, Orange
SKU: SC-44105-M-O

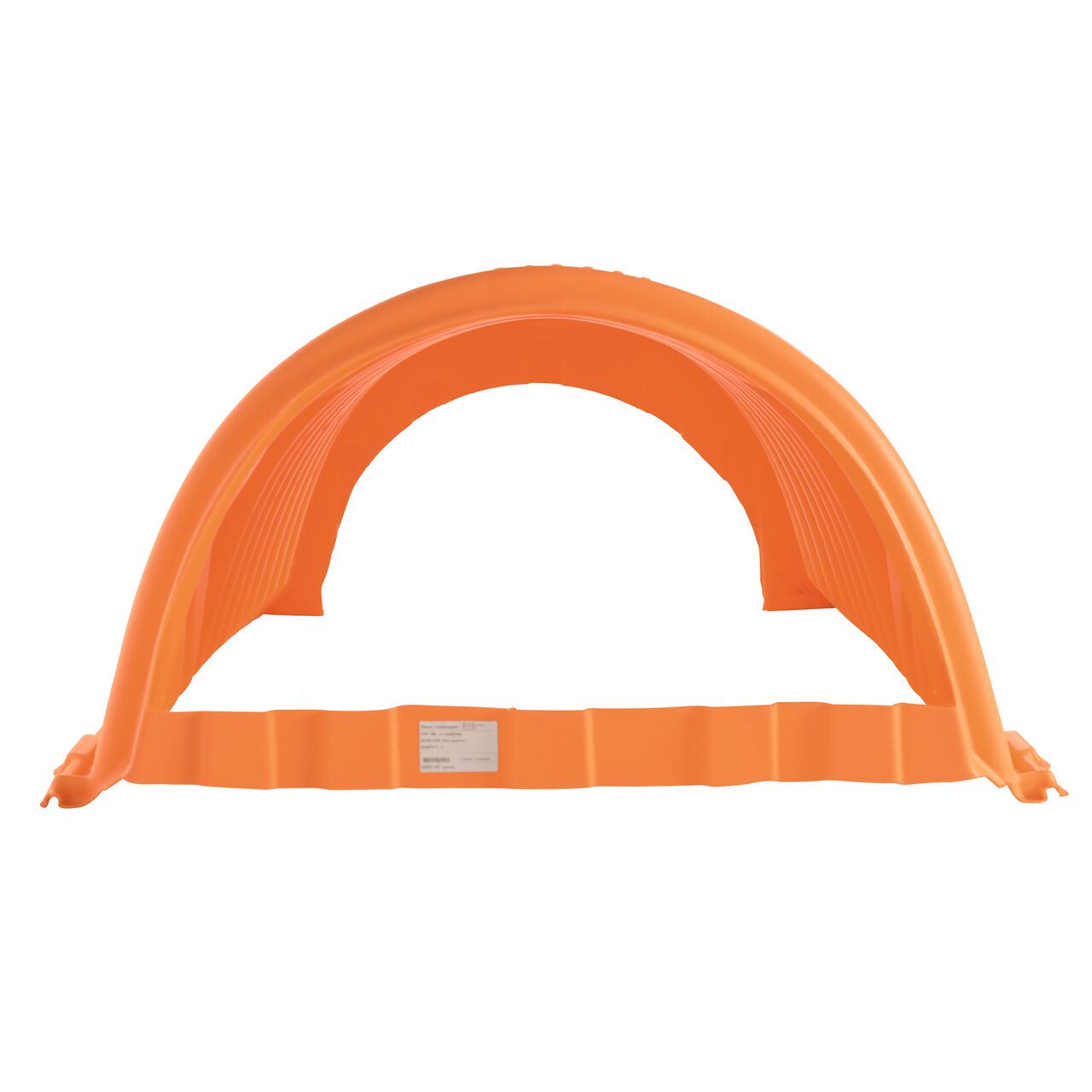

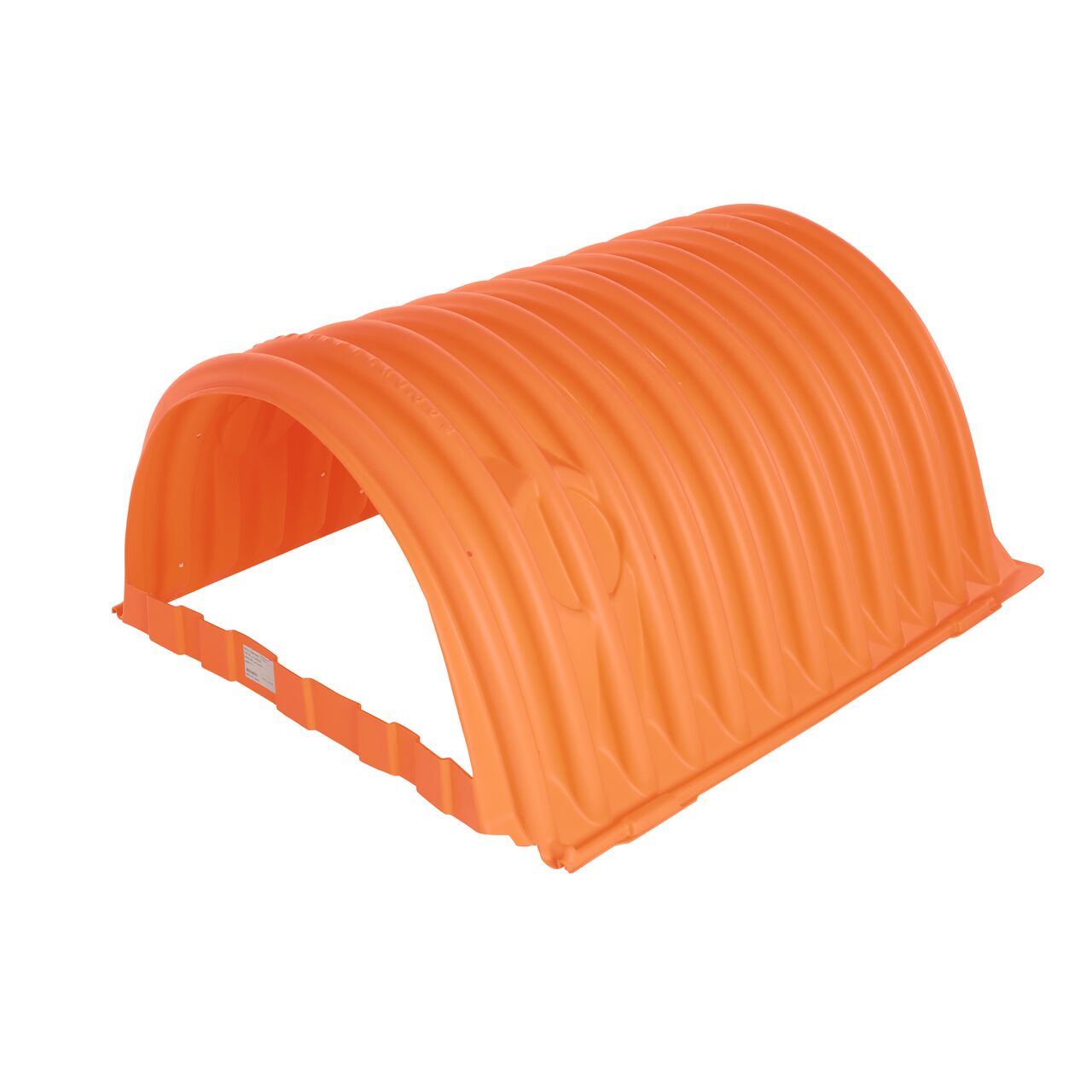

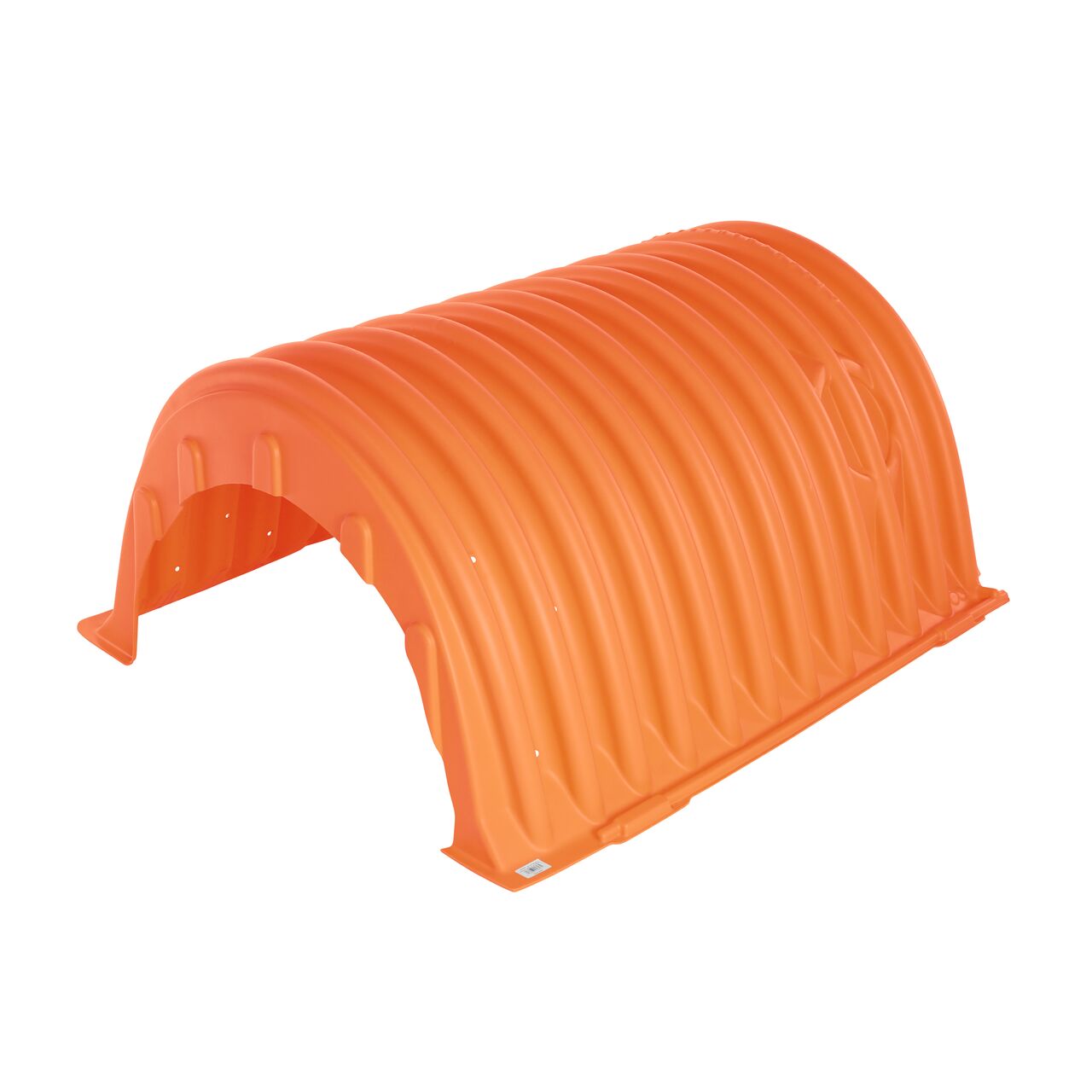

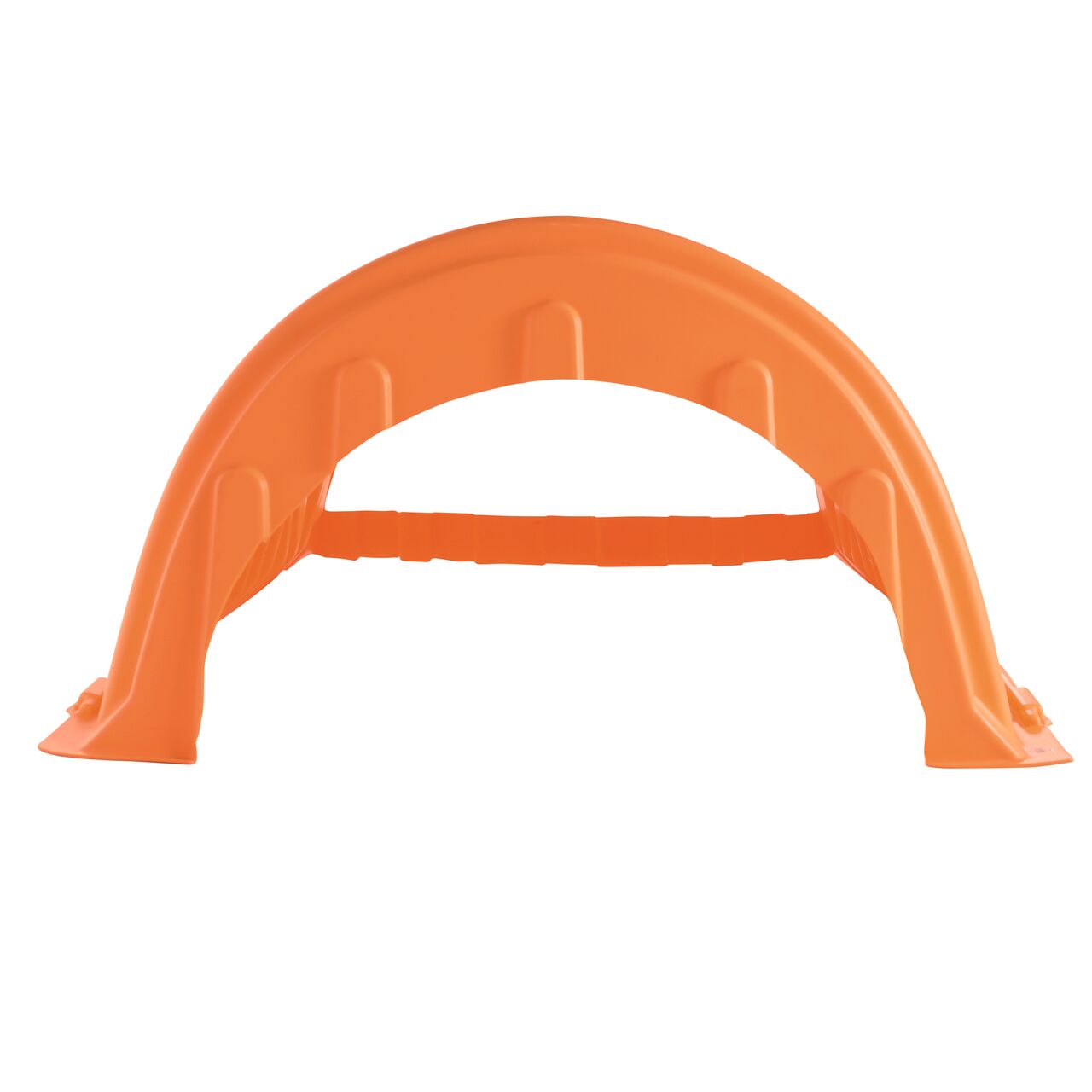

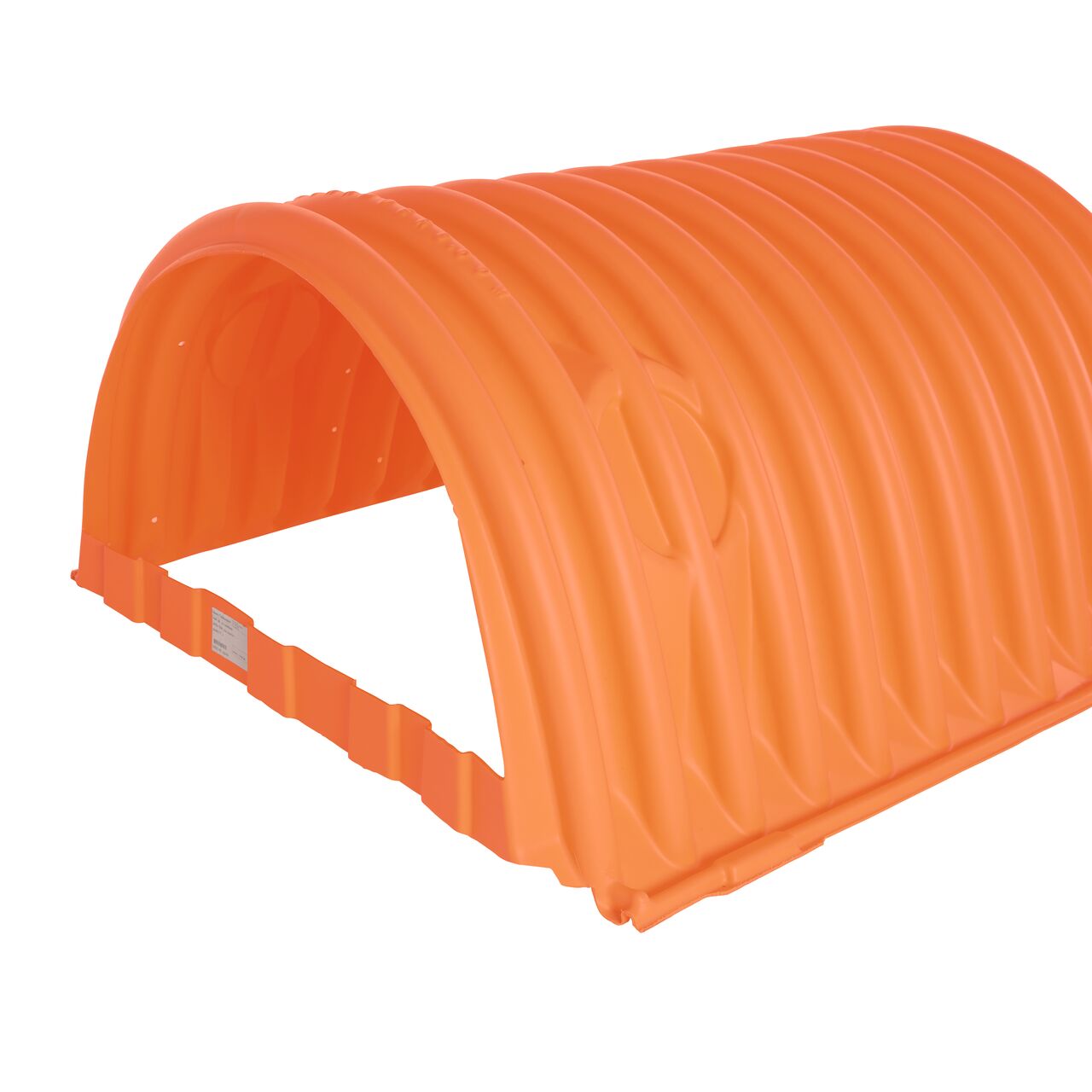

Maximize storage volume using a smaller footprint with the NDS StormChamber® system. This stormwater management powerhouse features an open bottom, arch-shaped chamber that allows it to work in both permeable and non-permeable soils to ensure the stormwater best management practices (BMPs) work at the highest removal rate possible. This modular subsurface drainage chamber can be configured in rows and also layered to meet job site requirements. The 41 in. high unit features a minimum of 147 cubic feet of storage and internal chamber volume of 88 cubic feet. Place the middle unit (or multiple middle units) between the start unit and end unit to form a row. To increase storage, additional rows can be interconnected with pipe from side portals. StormChamber units are made of thermoformed high-density weight polyethylene, engineered to withstand extreme environments, exceeds the AASHTO H-20 design load, and allow for deeper cover than other systems. Use included SedimenTrap™ devices to capture sediments and help extend the lifespan of the system.
Applications:
- Detains, infiltrates, and conveys stormwater runoff; modular system maximizes storage volume with a smaller footprint than traditional concrete and stone systems; easy to maintain
- Works in commercial, industrial, municipal, and residential settings to manage stormwater runoff; ideal for installing underneath parking lots, playing fields, and landscapes
- As part of a complete stormwater management system, the StormChamber® system works with a capture device or drainage inlet to detain, infiltrate, and convey collected stormwater
Features:
- Holds significant volume compared to other same size stormwater chambers on the market
- Designed for strength due to thermoformed high-density weight polyethylene (HMWPE) material; withstands extreme environments, and exceeds the AASHTO H-20 design load

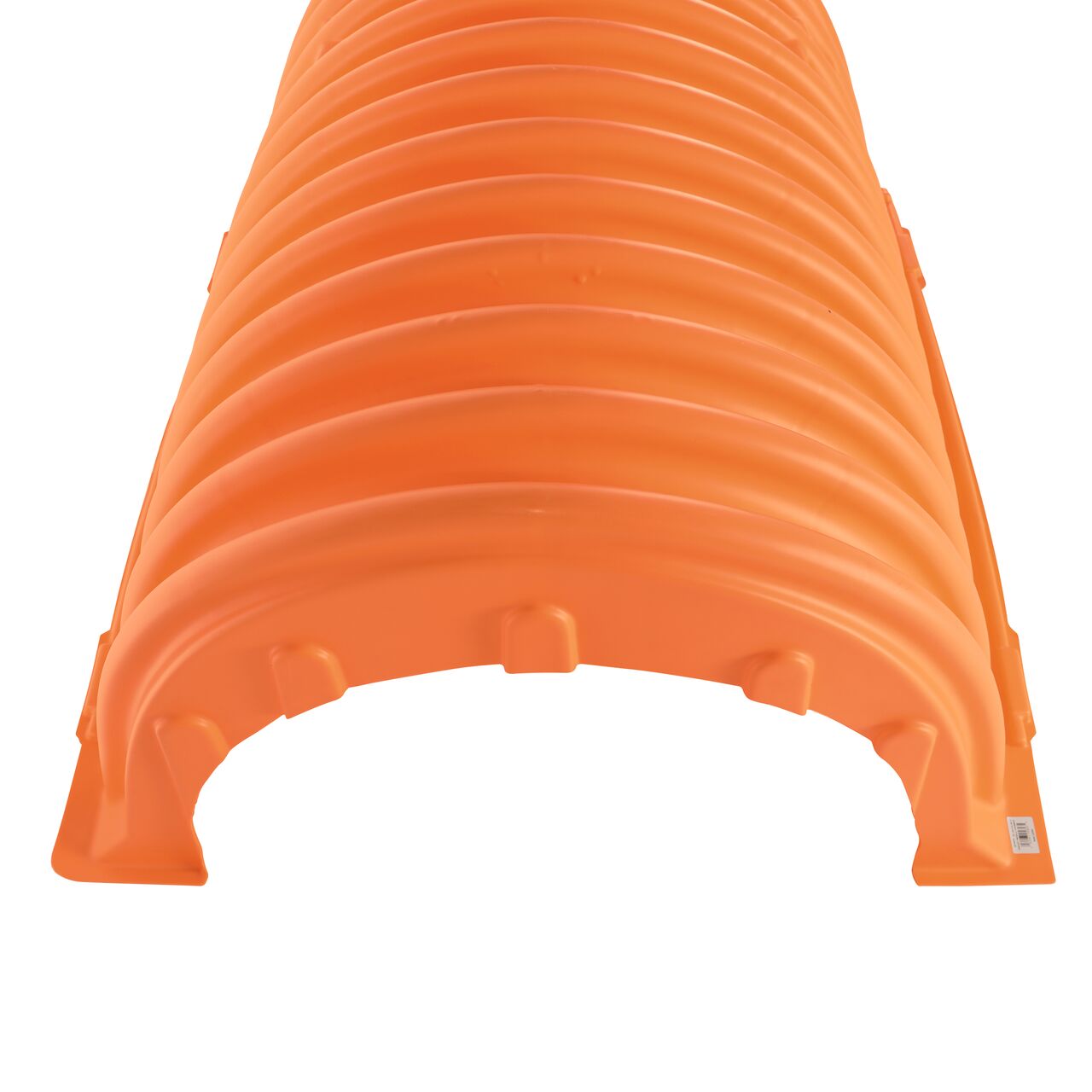

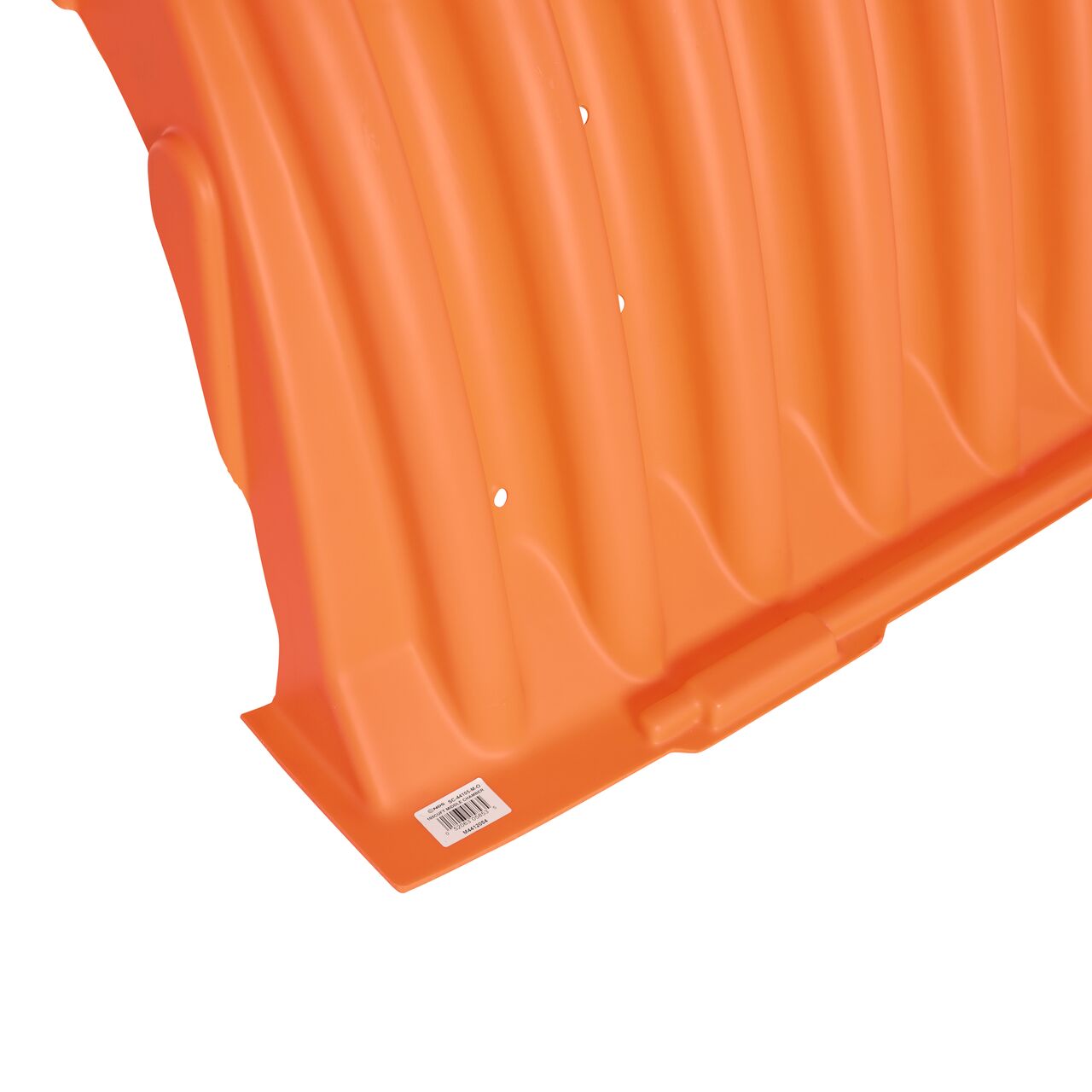

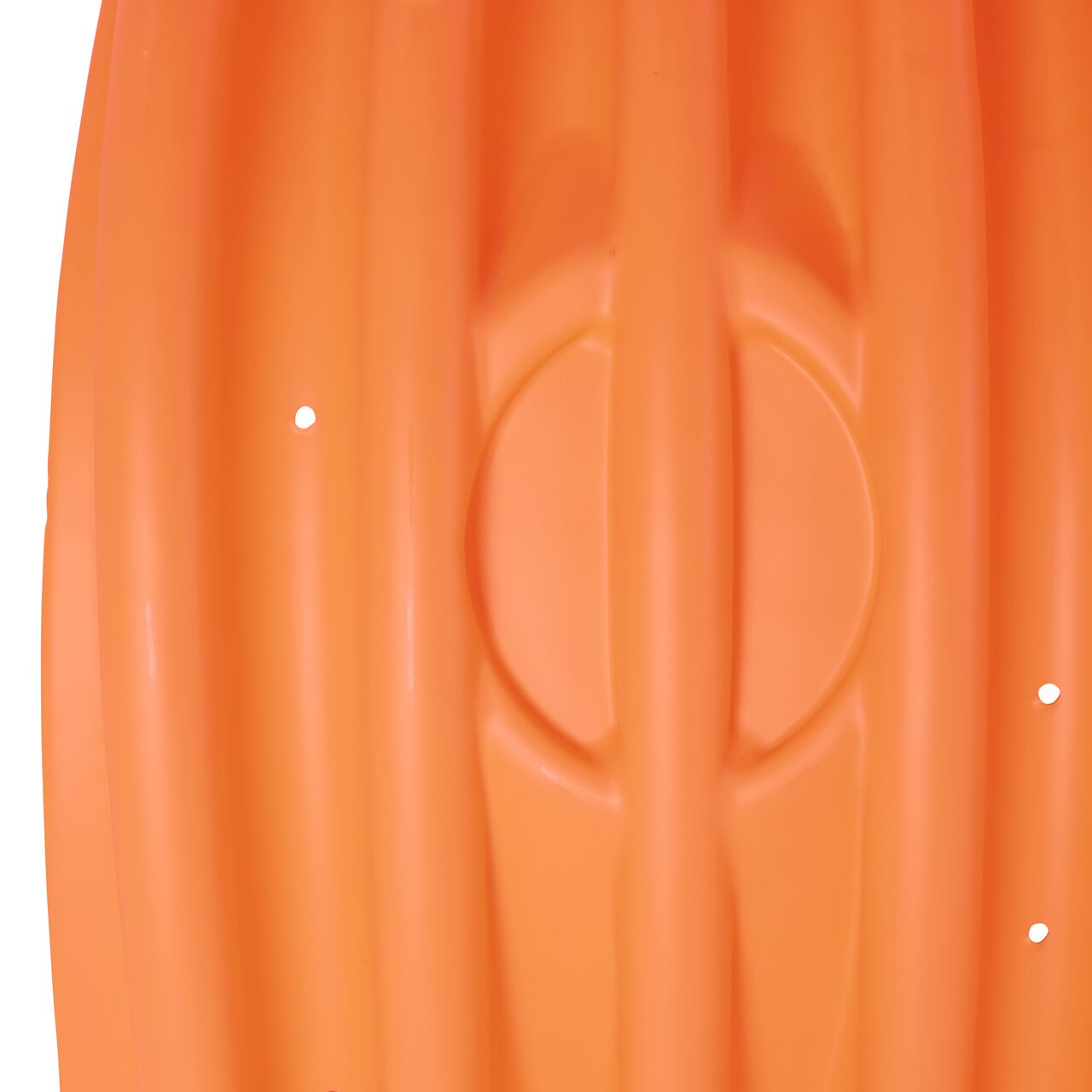

- Simple install; internal crossover eliminates expensive header pipe manifold system; modular chambers overlap to form rows; side portal feed connects rows, provides greater flexibility and hydraulic design
- Easy maintenance; saves water and money by removing sediments from SedimenTrap™ devices using an air vacuum truck rather than jet cleaning with water
- LONG LIFE EXPECTANCY - designed by engineers, ecologists, and biologists to ensure maximum efficiency and effectiveness
