1/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 6 in. Spacing, Black Polyethylene, 1,000 ft.

SKU: SFJR-BL-06-10

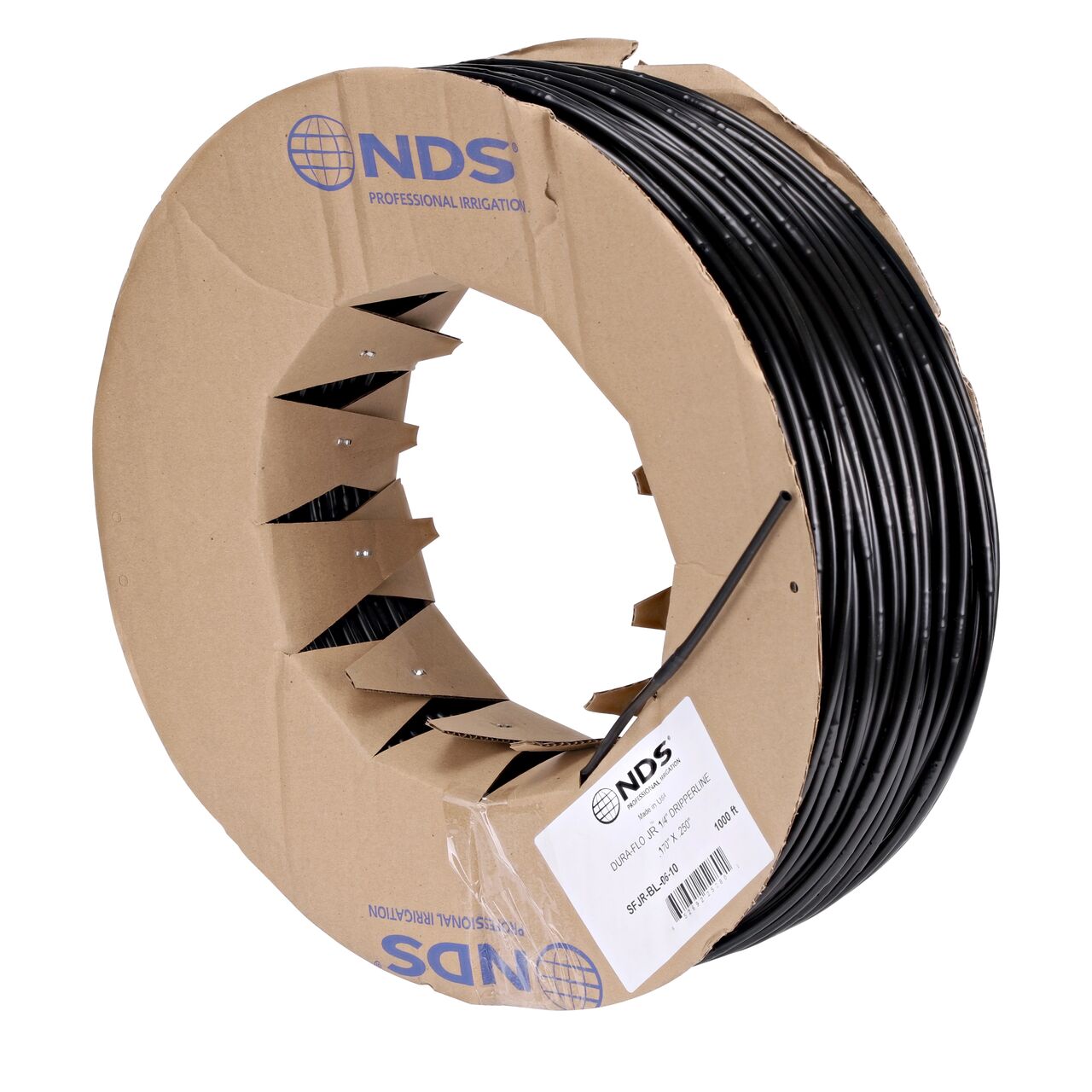

Alternate view of the labeled NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)

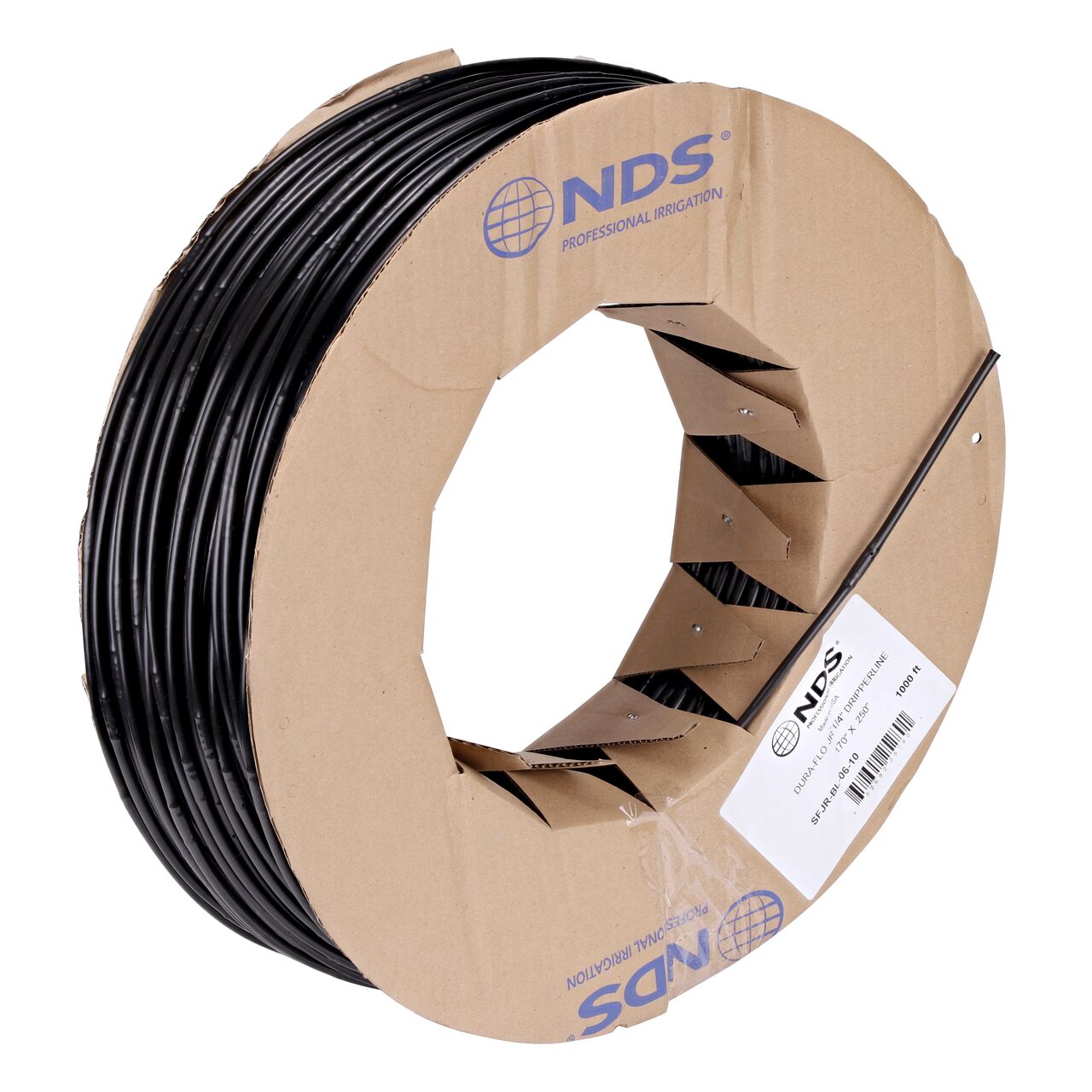

Alternate view of the NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)

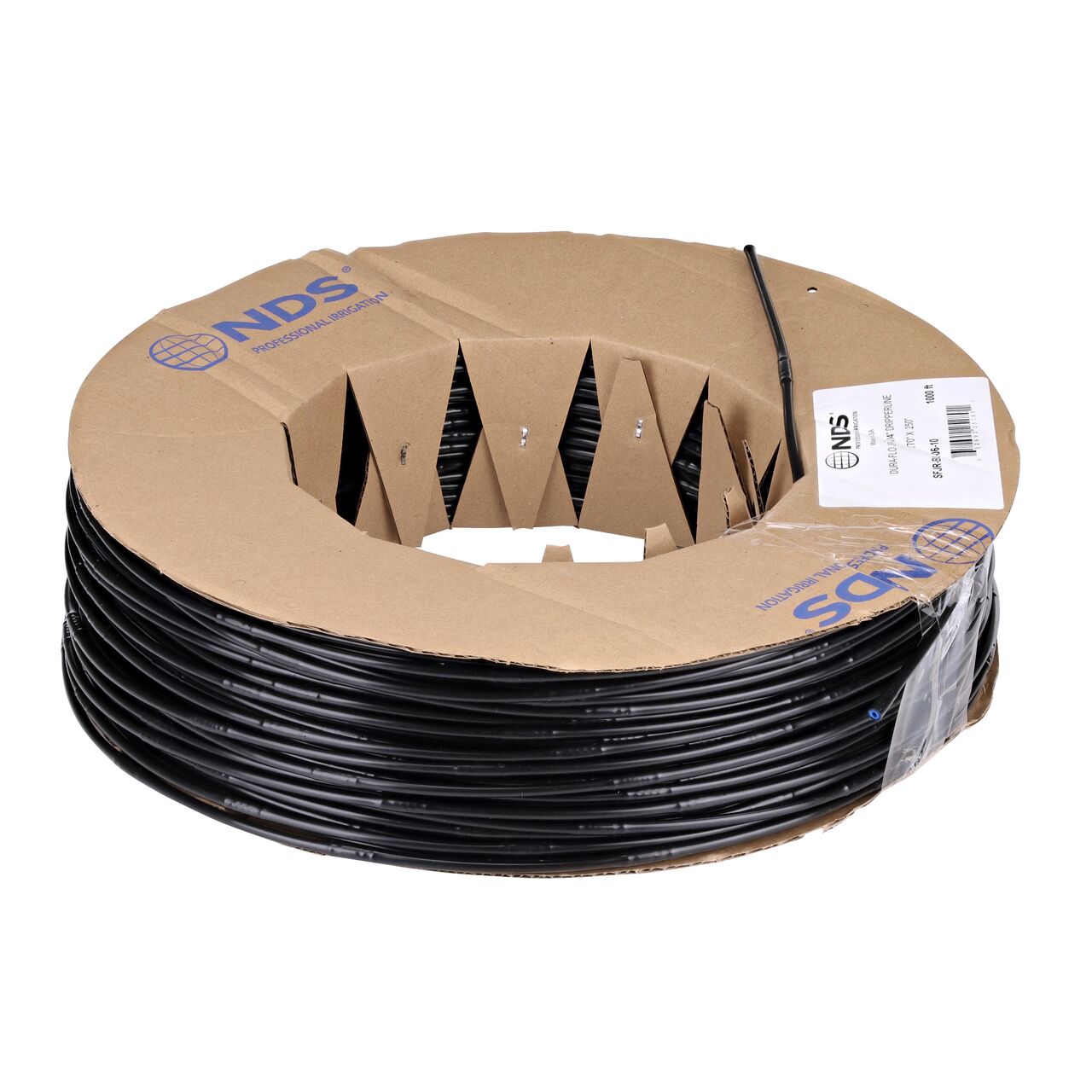

NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)

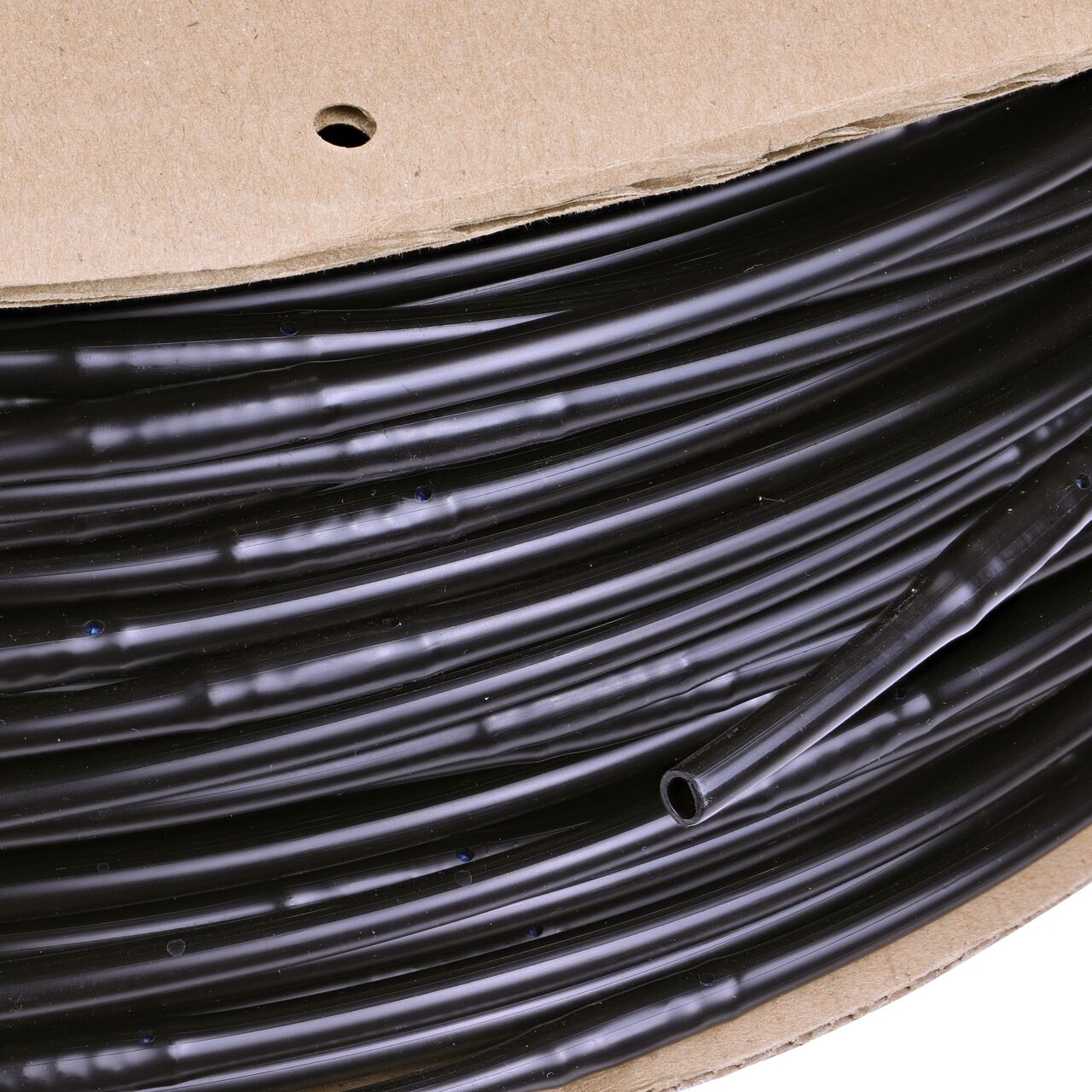

Closeup of the outside end of the NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
Closeup showing the 1/4 in. Dura Flo™ JR Dripline in both the 6 in. emitter spacing (NDS SFJR-BL-06-01) and the 12 in. emitter spacing (NDS SFJR-BL-12-01)

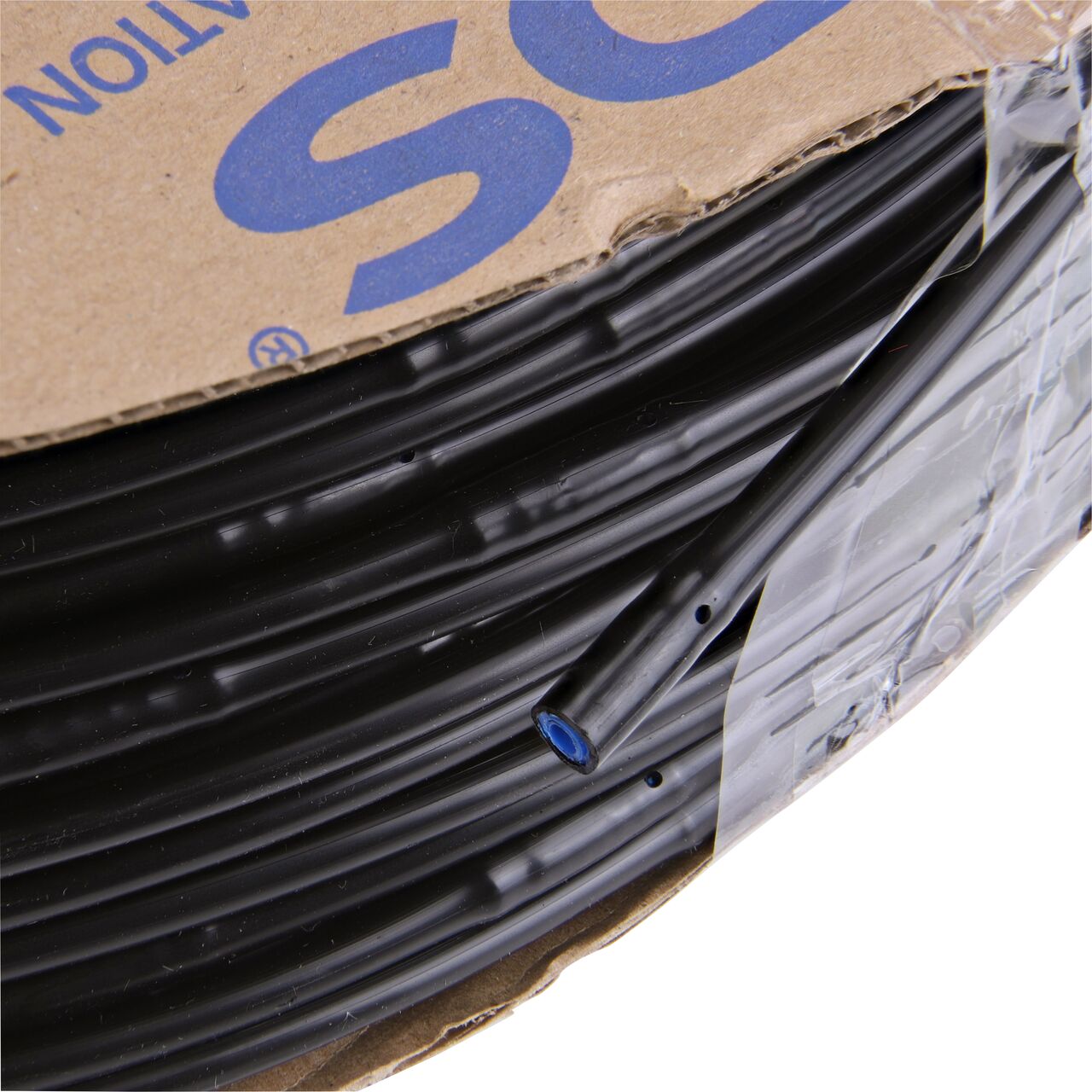

Closeup of the ned to show how to pull out the dripline of the NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
Closeup showing the emitter spacing on the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01)
Alternate view of the labeled NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
Alternate view of the NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
Closeup of the outside end of the NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
Closeup showing the 1/4 in. Dura Flo™ JR Dripline in both the 6 in. emitter spacing (NDS SFJR-BL-06-01) and the 12 in. emitter spacing (NDS SFJR-BL-12-01)
Closeup of the ned to show how to pull out the dripline of the NDS 1,000 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-10)
Closeup showing the emitter spacing on the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01)

Release water along the entire line with the 1/4 in. Dura Flo™ JR Dripline (0.170 in. ID X 0.250 in. OD). The durable tubing encases 0.5 GPH non-pressure compensating (Non-PC) emitters spaced 6 in. apart. The emitters feature a labyrinth design to flush out sediments that can lead to clogging. This dripline, also known as a dripperline, is made of polyethylene and the emitters are made of polyethylene and silicone, all treated with UV inhibitors. Connect, set, and you’re ready to water.

Applications:

  • Delivers water along the entire line to keep the soil moist and hydrate the plants' root zones
  • Ideal for watering closely spaced plants, hedges, vegetable gardens, planter boxes, and new plantings of ground cover; its flexibility also works as a watering ring for large pots and containers, and makes loops around large trees
  • As part of a complete drip irrigation system, the dripline delivers water along the entire line; with non-pressure compensating emitters, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source

Features:

  • 0.5 GPH non-pressure compensating emitters are spaced 6 in. apart along the length of dripline

Literature & Resources
