1/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 12 in. Spacing, Black Polyethylene, 100 ft.

SKU: SFJR-BL-12-01

NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)

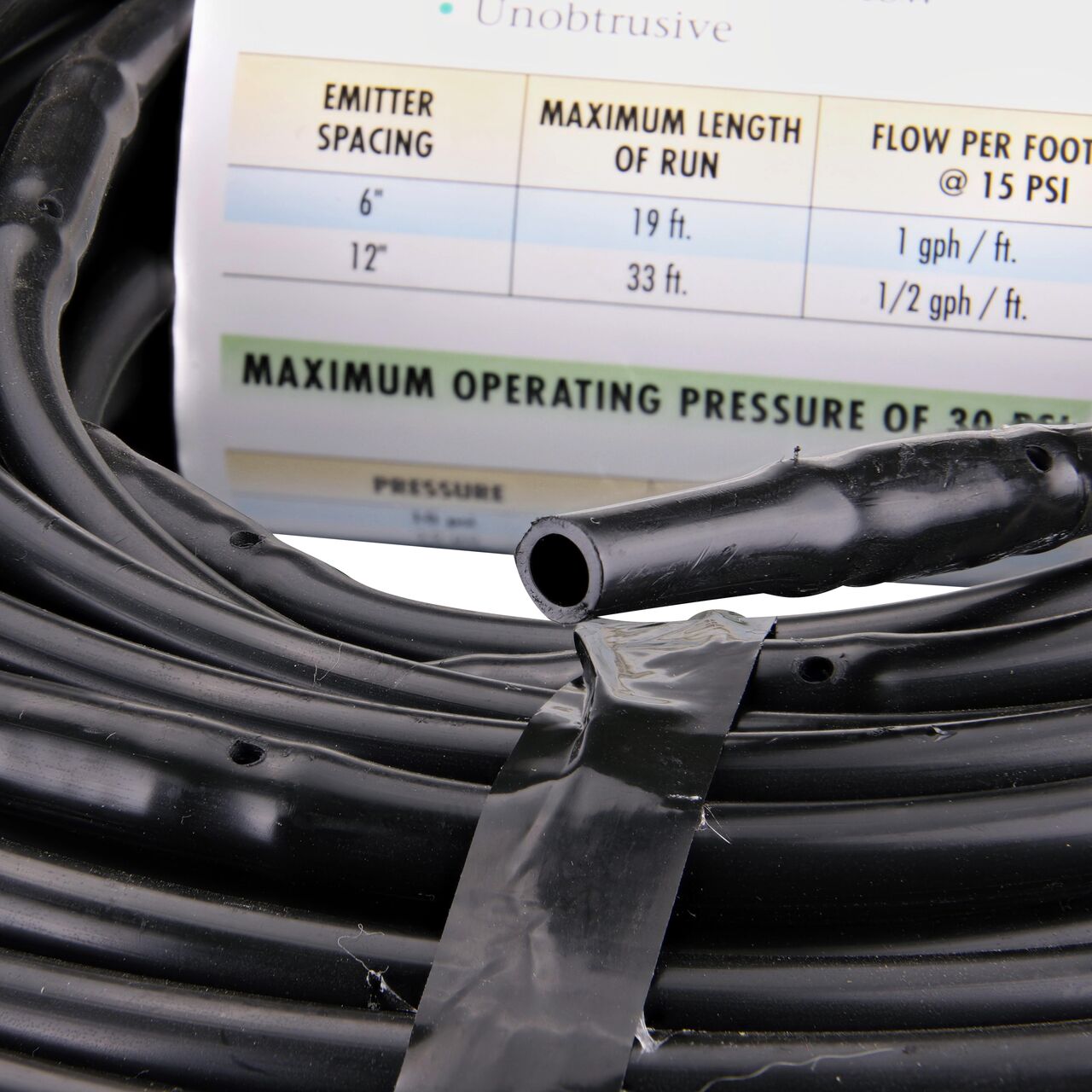

Closeup of inside end to show how to pull out the dripline of the NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)

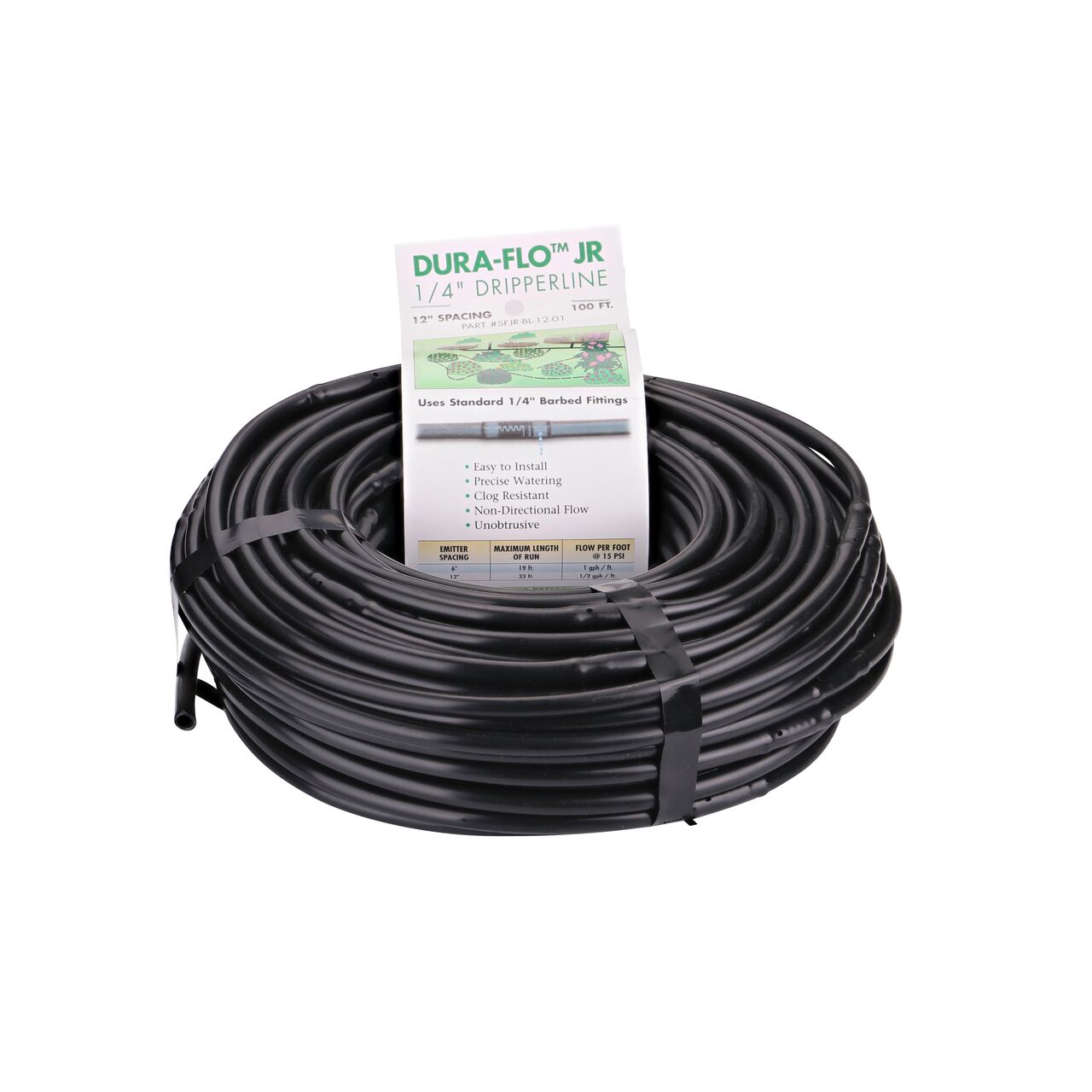

Coil with packaging on the NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)

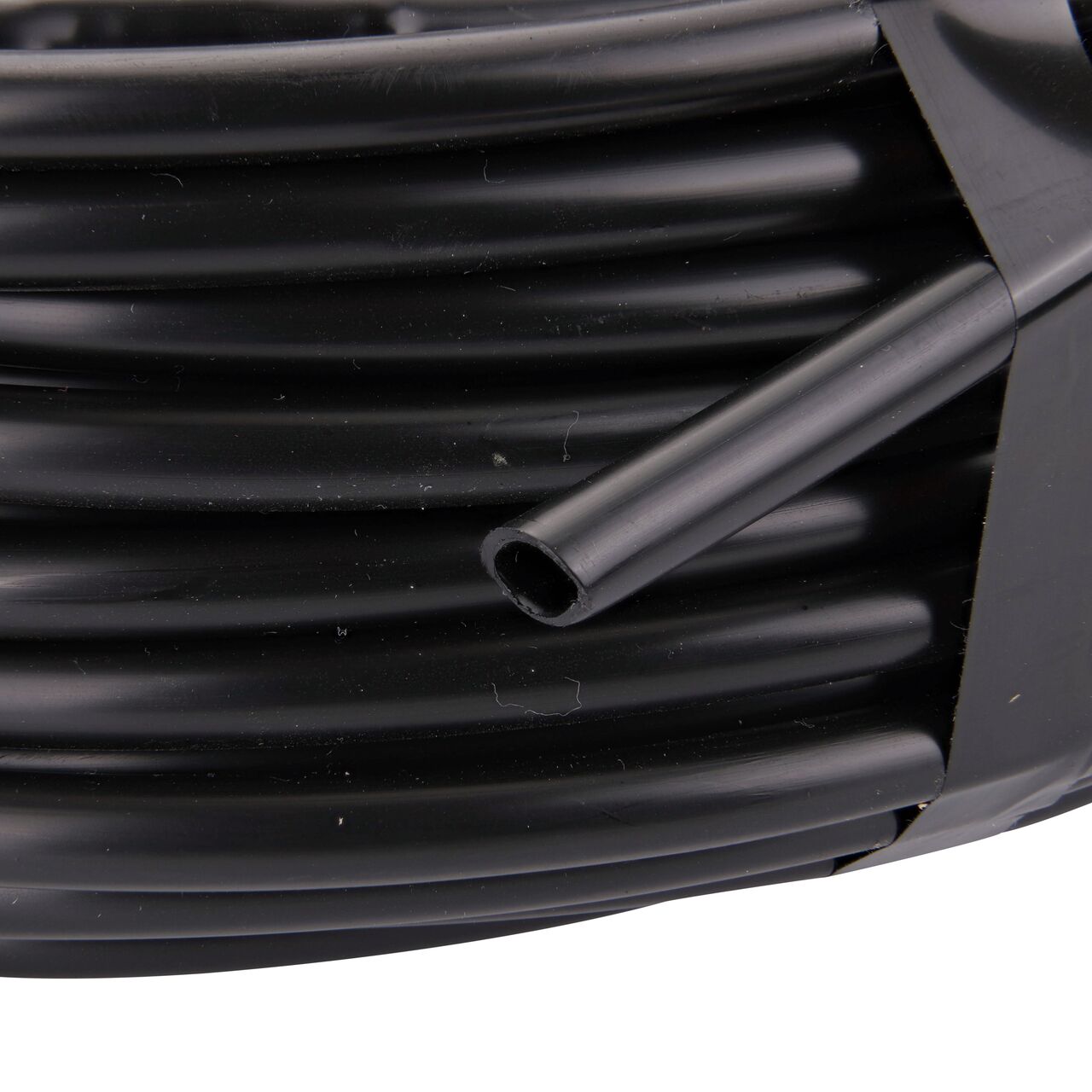

Closeup of the outside end of the NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)
Closeup showing the 1/4 in. Dura Flo™ JR Dripline in both the 6 in. emitter spacing (NDS SFJR-BL-06-01) and the 12 in. emitter spacing (NDS SFJR-BL-12-01)
NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)
Closeup of inside end to show how to pull out the dripline of the NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)
Coil with packaging on the NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)
Closeup of the outside end of the NDS Black 100 ft. 1/4 in. Dura Flo™ JR Dripline with 12 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-12-01)
Closeup showing the 1/4 in. Dura Flo™ JR Dripline in both the 6 in. emitter spacing (NDS SFJR-BL-06-01) and the 12 in. emitter spacing (NDS SFJR-BL-12-01)

Distribute water along the length of tubing with the 1/4 in. Dura Flo™ JR Dripline (0.170 in. ID X 0.250 in. OD). The 0.5 GPH non-pressure compensating (Non-PC) emitters are embedded in the dripperline and spaced 12 in. apart. The emitters feature a labyrinth design to flush out sediments that can lead to clogging. This dripline is made of polyethylene and the emitters are made of polyethylene and silicone, all treated with UV inhibitors. Connect, set, and you’re ready to water.

Applications:

  • Delivers water along the entire line to keep the soil moist and hydrate the plants' root zones
  • Ideal for watering closely spaced plants, hedges, vegetable gardens, planter boxes, and new plantings of ground cover; its flexibility also works as a watering ring for large pots and containers, and makes loops around large trees
  • As part of a complete drip irrigation system, the dripline delivers water along the entire line; with non-pressure compensating emitters, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source

Features:

  • 0.5 GPH non-pressure compensating emitters are spaced 12 in. apart along the length of dripline
