Risers

Elevate sprinkler heads and emitters above ground for overhead watering with irrigation extension risers from NDS. Available with stakes for added height.

Where to Buy
The NDS 3/4 in. IPS MPT Flexible Riser provides a connection point between irrigation line and landscape watering devices above ground surface for effective water distribution (NDS FR-0750-6)
Where to Buy

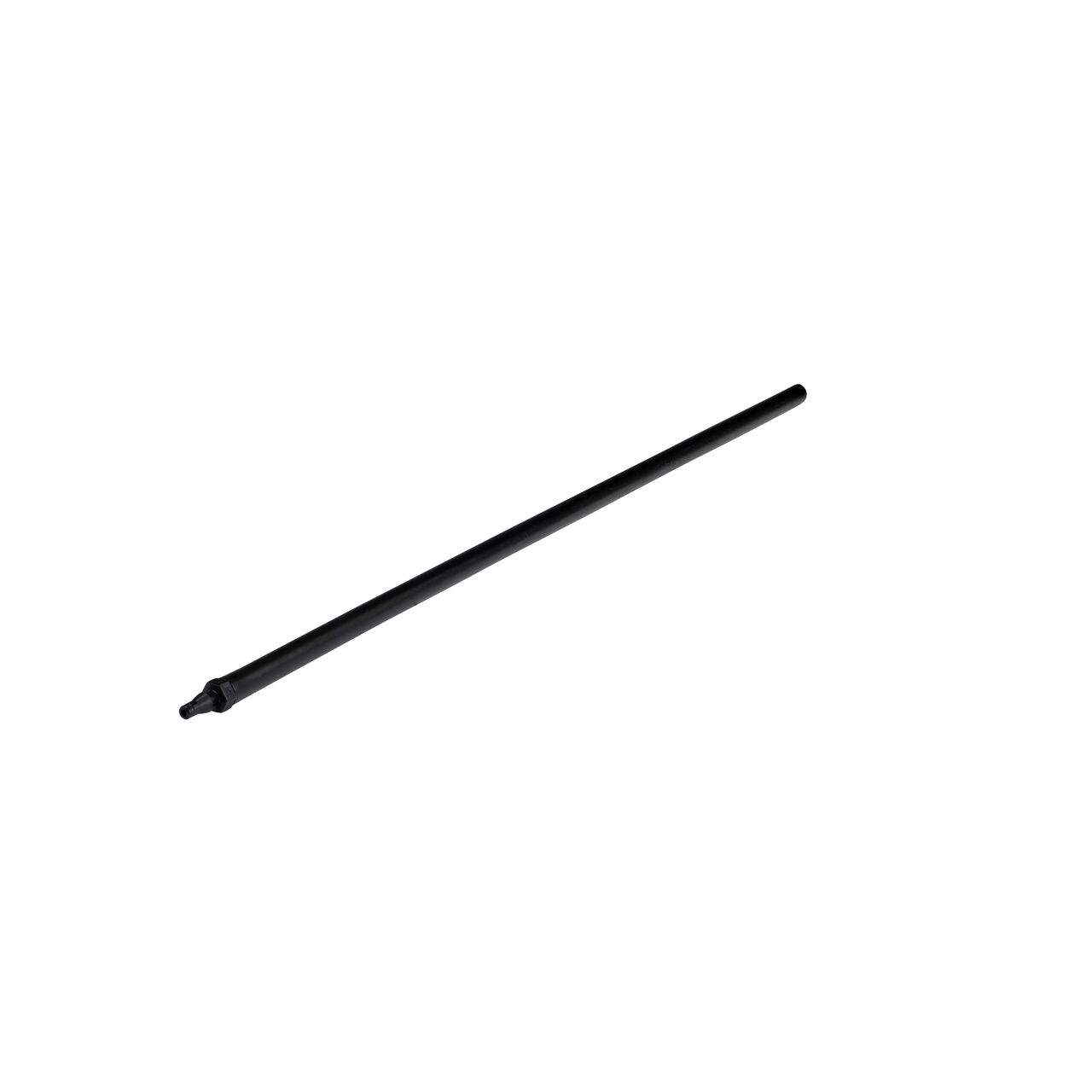

NDS 12 in. Flexible Riser with 1/4 in. Barbed Adapter (NDS RABT 12)

Key Features

  • Adds height to a jet, micro sprinkler, or micro sprayer; lifts emitter off ground for overhead watering
  • Emitters connect to 10-32 threaded inlet
  • Risers connect to water supply with inlet for 1/4 in. tubing (A220 or A250)
  • Designed to work with standard drip irrigation water pressures up to 50 PSI
  • Hydro-Pop™ pop-up risers extend for additional height with pressure

Applications

  • Adds height to the emitter to provide plants with overhead irrigation; pop-up riser pops up with pressure
  • Use for on grade installation; works with tubing to transport water to trees, shrubs, flower beds, groundcover, vegetable gardens, and container plants
  • As part of a complete drip irrigation system, the riser lifts up the low-flow emitter, connects to tubing, and makes it easy to move and position the emitter as desired for overhead watering

Installation & Maintenance

  • Attach 1/4 in. inlet to 1/4 in. tubing (A220/A250); screw emission device onto top
  • Top of Hydro-Pop riser should extend about 1 in. above grade
  • Periodically check for damage and replace or repair as needed; recommended operating pressure is up to 50 PSI

Materials & Sustainability

  • Riser is made of polyethylene treated with UV inhibitors to prevent fading and cracking
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Filter results
Family
Color

14 products

    Part Number
    (click for more info)    		 Description
    RABT 12 12 in. Riser with 1/4 in. Barbed Adapter, 100-Pack
    S5R12 6 in. Stake with 12 in. Riser, 100-Pack
    S5R6 6 in. Stake with 6 in. Riser, 100-Pack
    S5R8 6 in. Stake with 8 in. Riser, 100-Pack
    CRE-0500-3 Cut-off Riser Extension, 1/2 in. IPS MPT X FPT, 2-3/4 in. Long, Black
    CRE-0750-4 Cut-off Riser Extension, 3/4 in. IPS MPT X FPT, 4-1/4 in. Long, Black
    FCO-0500 Flexee Cut-off Riser, 1/2 in. IPS MPT, 6 in. Long, Black
    FR-0500-4F Flexible Riser, 1/2 in. IPS MPT X 1/2 in. FPT, 4-1/10 in. Long, Black
    FR-0500-4 Flexible Riser, 1/2 in. IPS MPT, 4-1/4 in. Long, Black
    FR-0500-6 Flexible Riser, 1/2 in. IPS MPT, 6 in. Long, Black
    FR-0750-6 Flexible Riser, 3/4 in. IPS MPT, 6-1/10 in. Long, Black
    HYPJ 250 Hydro-Pop™ Pop-up Riser with 1/4 in. Compression Fit Inlet, Maximum 5 in. Extension, 25-Pack
    HYP 250 Hydro-Pop™ Pop-up Riser with 1/4 in. Compression Fit Inlet, Maximum 9 in. Extension, 25-Pack
    SW-0500-C Stub Wrench, 1/2 in. and 3/4 in. Riser Extractor, Steel Handle
