Cuatro-Flo™ Pressure Compensating Bubblers

Cuatro-Flo™ pressure-compensating bubblers provide steady watering for up to 4 plants, with a constant flow from each outlet, even when the water pressure varies. Choose from 2.0, 6.0, 10.0, or 20.0 GPH per outlet.

Where to Buy

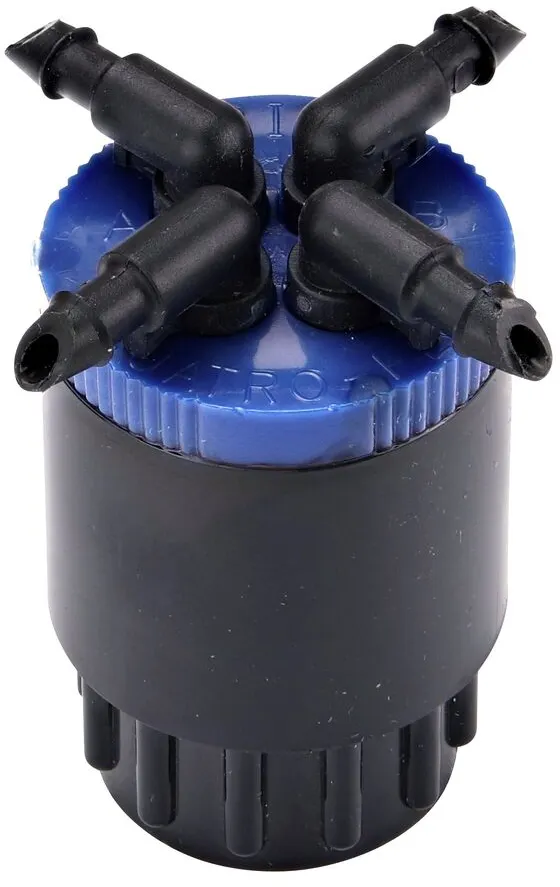

Convert your sprinkler system into a drip system with the Cuatro-Flo Pressure Compensating Bubbler with four 2PGH swivel barbed outlets (NDS CFL 2)
Where to Buy

Key Features

  • Converts a sprinkler riser into a multi-outlet, low-flow drip irrigation emitter
  • Four barbed swivel outlets enable tubing to be positioned where desired
  • Each pressure compensating outlet maintains a steady discharge rate, even when the water pressure varies
  • Color coded for easy identification of flow rate: blue – 2.0 GPH; black – 6.0 GPH; red – 10 GPH; green – 20 GPH
  • Designed to work with standard drip irrigation water pressures up to 50 PSI

Applications

  • Converts an underground sprinkler system to a micro irrigation drip system that waters up to 4 plants with a constant flow rate
  • Ideal for landscaped perimeters and garden areas; can be used above grade or below grade in an emitter access box
  • As part of a complete drip system, the bubbler delivers low volume irrigation to the plant’s root zone; the pressure compensating emitter maintains a constant flow rate should the water pressure change, and at varying positions from the water source

Installation & Maintenance

  • Connect the 1/2 in. FPT inlet to a 1/2 in. MPT connection point on an underground sprinkler riser; 4 barbed outlets connect to 1/4 in. distribution tubing (A220 and A250) or 1/4 in. Dura Flo™ JR dripline
  • Periodically check for leaks or damage and repair as needed; recommended operating pressure for most emitters is up to 50 PSI

Materials & Sustainability

  • Emitter made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking
  • Made in the USA
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Filter results
Family
Color

3 products

    Part Number
    (click for more info)    		 Description
    CFL 10 Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 10 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack
    CFL 2 Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 2.0 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack
    CFL 20 Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 20 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack

    Specifications & Documents
