Control Zone Kits

The Control Zone Kit includes all the components you need to set up a low volume drip irrigation zone in minutes. It includes a valve for automatic operation and components for filtration and pressure regulation, already preassembled and ready to connect to an irrigation controller.

Where to Buy

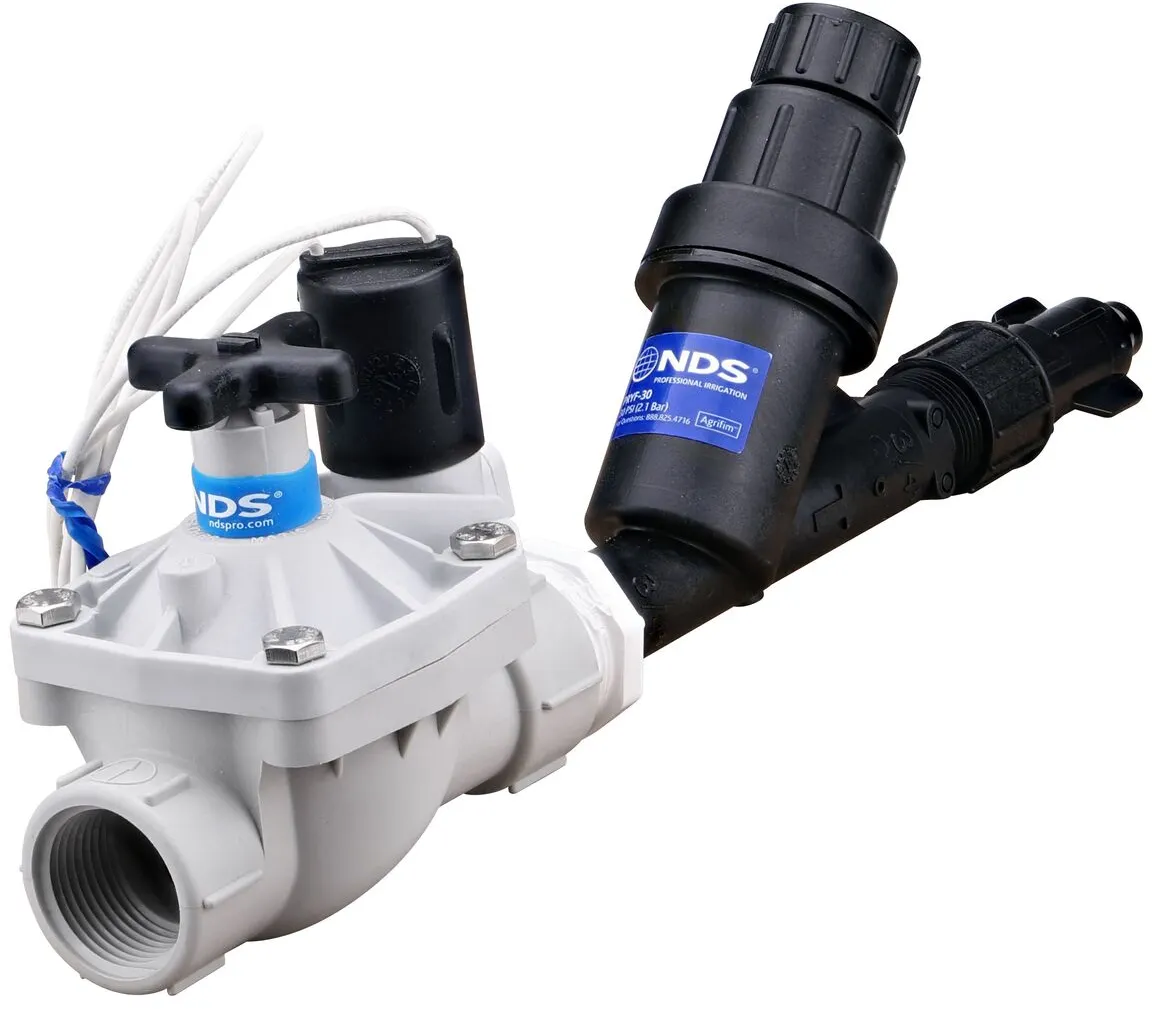

NDS Control Zone Kit includes a 1 in. Valve with Flow Control and 30 PSI Pressure Regulating Filter (NDS CZK 100-30F)
Where to Buy

Key Features

  • Preassembled for convenience and ease of installation
  • Compact design makes it easier to fit inside valve box
  • Control the amount of water flowing through the valve by rotating the flow control stem
  • Internal bleed valve opens valve when kit is not connected to an irrigation controller
  • Pressure-regulating filter lowers water pressure and filters out particulates in water

Applications

  • Quick and easy set up of a low volume drip irrigation zone by using a preassembled kit
  • Use above or below ground, protected by an irrigation valve box (sold separately)
  • As part of a complete drip irrigation system, the control zone kit provides components to optimize performance and extend lifespan of drip system

Installation & Maintenance

  • Connect inlet to 1 in. pipe of water supply line
  • Position pressure-regulating filter down and connect to 3/4 in. FPT or tubing adapter
  • Connect one solenoid wire to the controller common and the other wire to the controller power
  • Periodically check for leaks or damage and replace or repair as needed; filter can be flushed out by removing the flush cap and running water through or screen removed from housing to clean; recommended operating pressure is up to 50 PSI

Materials & Sustainability

  • Valve made of high-strength glass-filled nylon body and cover; stainless steel bolts; brass body inserts
  • Pressure-regulating filter is made of high-impact Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent cracking; filter screen made of stainless steel
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Filter results
Family

2 products

    Part Number
    (click for more info)    		 Description
    CZK 100-30F Control Zone Kit with 1 in. Valve with Flow Control and 30 PSI Pressure-Regulating Filter, 0.2 - 5 GPM
    CZK 100-40F Control Zone Kit with 1 in. Valve with Flow Control and 40 PSI Pressure-Regulating Filter, 0.2 - 15 GPM

    Specifications & Documents
