Drip Zone Kit

Set up a low volume drip irrigation zone to go with an existing valve using this drip zone kit. Save the hassle of gathering parts—the kit includes a reducing bushing, Y filter, 30 PSI pressure regulator, and multi-diameter adapter fitting, and works with most manufacturers' valves.

Where to Buy

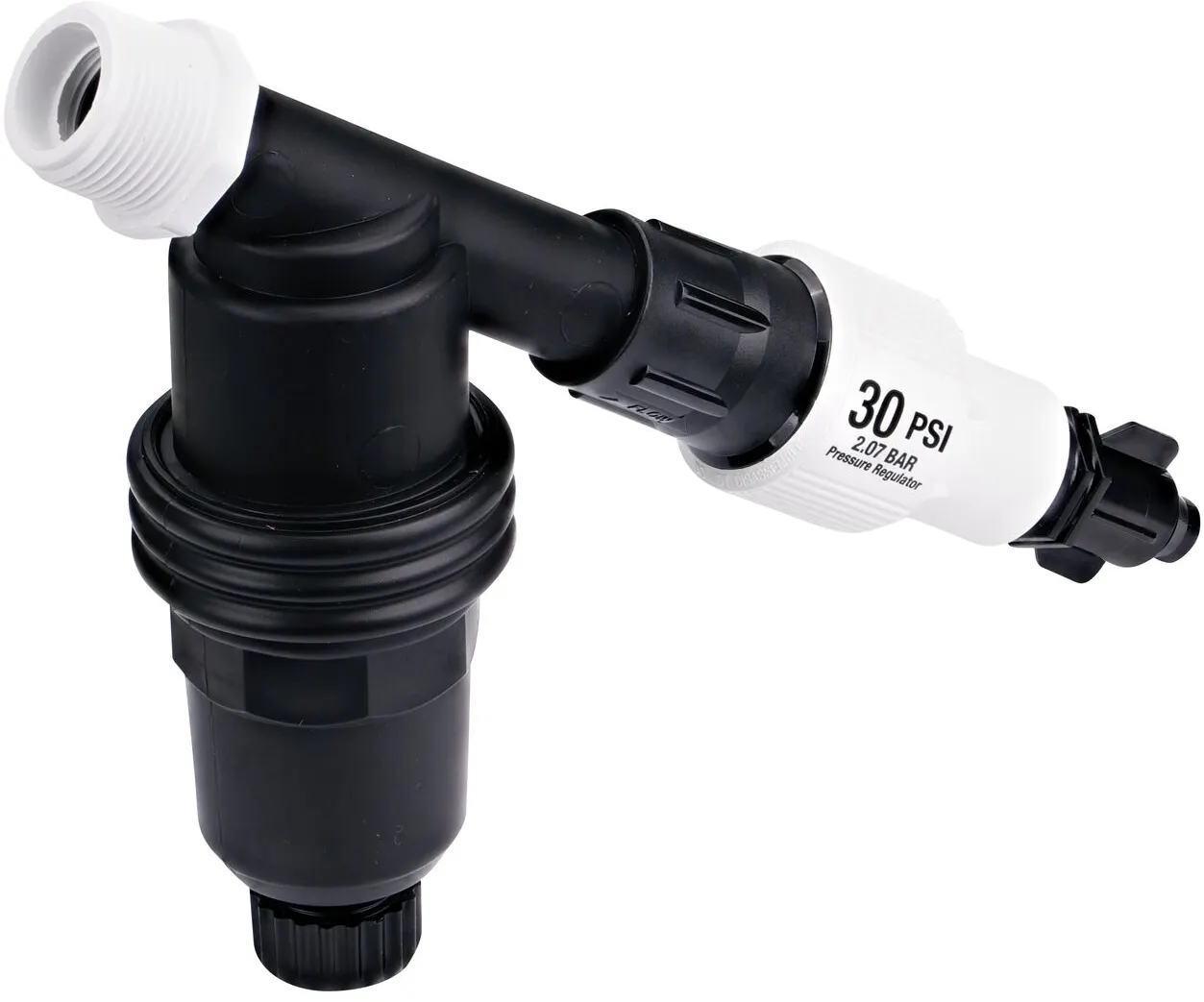

NDS Drip Zone Kit with Reducing Bushing (NDS DZK 700/710)
Where to Buy

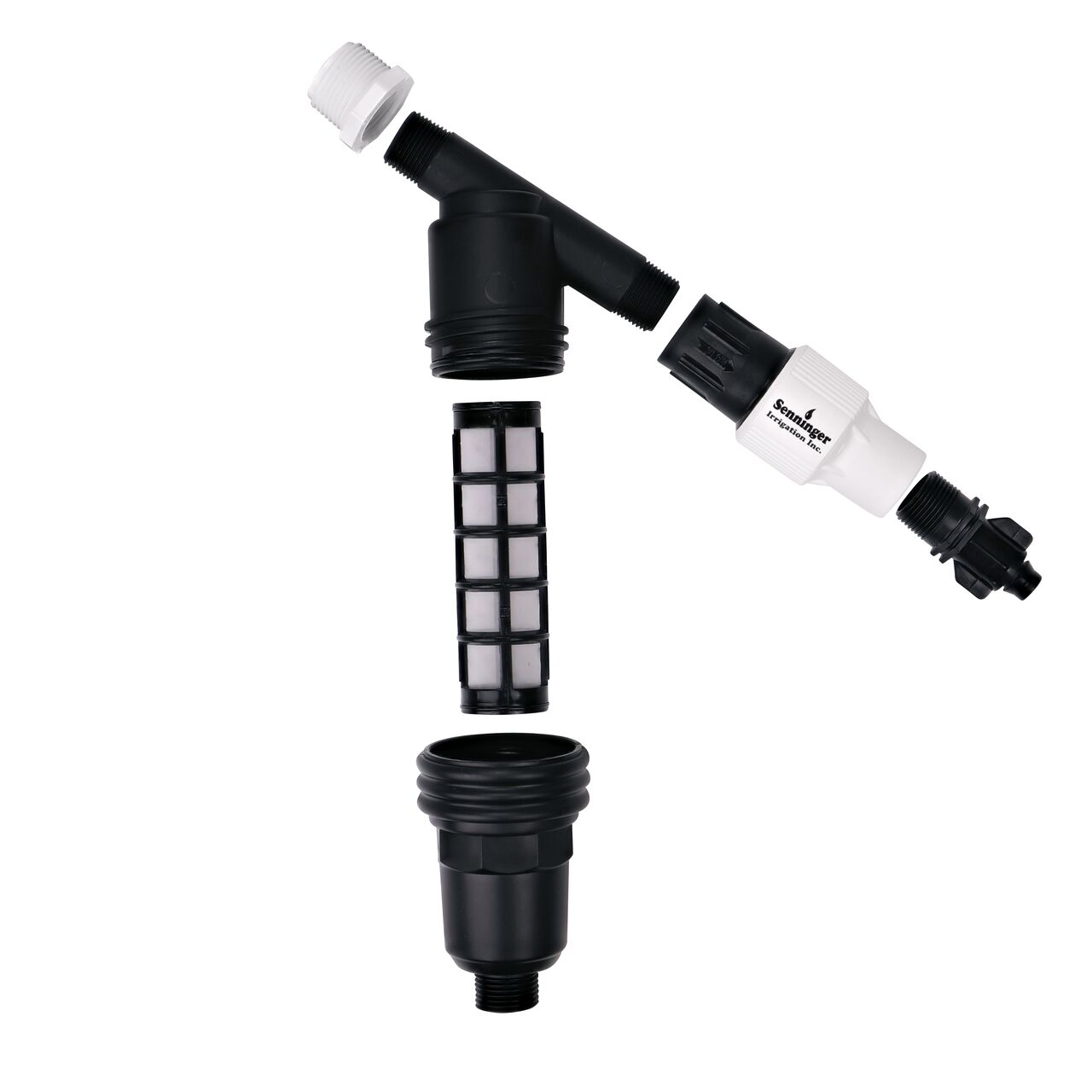

Dissassembled view of the NDS Drip Zone Kit with Reducing Bushing (NDS DZK 700/710)

Key Features

  • Designed to work with most manufacturers' valves
  • Y filter with 150-mesh polyester filter screen blocks particles in the water to prevent clogging emitters; screen is removable for cleaning and maintenance
  • Pressure regulator lowers water pressure from water source; maintains 30 PSI
  • Smart Loc™ multi-diameter fitting accommodates 16mm, 17mm, and 18mm tubing (0.680 - 0.710 in. OD); secures tubing with nut for a tight fit

Applications

  • Connects to an existing valve for a quick and easy set up of a low volume drip irrigation zone
  • Use above or below ground, protected by an irrigation valve box (sold separately)
  • As part of a complete drip irrigation system, the drip zone kit provides components to optimize performance and extend lifespan of drip system

Installation & Maintenance

  • Use reducing bushing if necessary to transition from 1 in. pipe of water supply line to 3/4 in. Y filter; pressure regulator connects to Y filter; Smart Loc™ multi-diameter fitting makes the transition to various sizes of supply tubing
  • Periodically check for leaks or damage and replace or repair as needed; filter can be flushed out by removing the flush cap and running water through or screen removed from housing to clean; recommended operating pressure is up to 50 PSI

Materials & Sustainability

  • Y filter housing made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking; filter screen made of polyester
  • Pressure regulator and Smart Loc™ fitting are made of high-impact Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Filter results
Family

1 product

    Part Number
    (click for more info)    		 Description
    DZK 700/710 Drip Zone Kit with Reducing Bushing, 3/4 in. MPT "Y" Filter, 30 PSI Pressure Regulator, and 3/4 in. MPT Adapter X Smart Loc™ Multidiameter Fitting, 1.0 - 8 GPM
