Hydro-Flo™ Jets and Assemblies

Get low-volume, overhead irrigation with the Hydro-Flo™ micro spray jet. Available with 90°, 180° and 360° fan spray.

Where to Buy

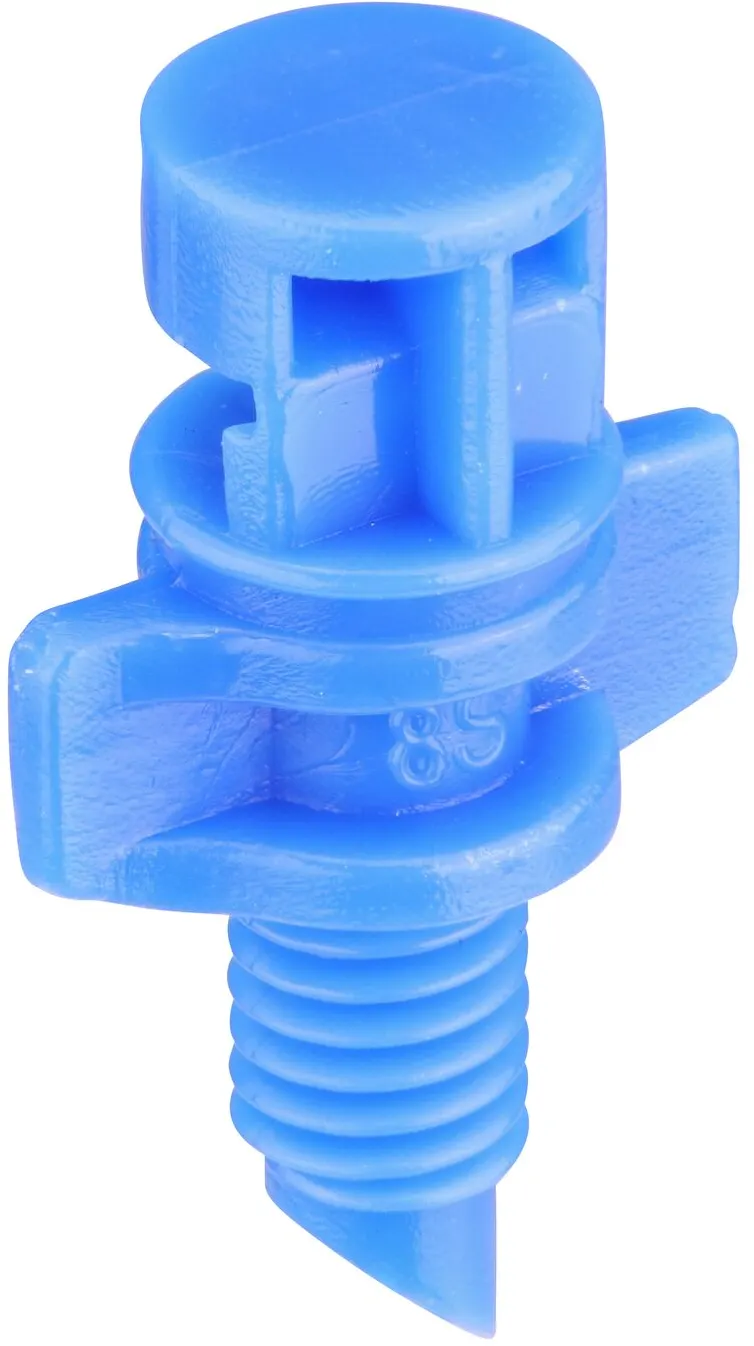

NDS Hydro-Flo™ Micro Spray Jet with a 180-Degree Fan Spray and .04 in. Nozzle (NDS TF 418)
Where to Buy

Key Features

  • Available with 10-32 threaded inlet or 1/4 in. barbed inlet
  • Jet assemblies include spray jet with 1/4 in. barbed inlet, nozzle, 24 in. vinyl tubing, and 12 in. stake
  • Choose from 90°, 180°, 360° fan spray or 360° stream spray
  • Nozzle sizes: 0.03, 0.04, 0.05, and 0.06; larger nozzle sizes discharge water at a higher GPH with a longer radius
  • Designed to work with standard drip irrigation water pressures up to 35 PSI

Applications

  • Releases water with a fan or stream spray for low-volume, overhead irrigation
  • Ideal for watering groundcover, flower beds, planting beds, vegetable gardens, and plants which prefer some humidity
  • As part of a complete drip irrigation system, the jet-spray delivers water gradually; with a non-pressure compensating emitter, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source

Installation & Maintenance

  • For barbed inlets: attach 1/4 in. barbed inlet found at end of 1/4 in. tubing into a punched hole in supply tubing, and insert stake into desired location in the ground
  • For 10-32 threaded inlets: attach inlet onto a riser; connect 1/4 in. distribution tubing (A220 and A250) or 1/4 in. Dura Flo™ JR dripline to inlet barb on riser; lift riser and emitter with stake
  • Periodically check for damage or leaks and repair as needed; recommended operation pressure is up to 35 PSI

Materials & Sustainability

  • Emitter made of polyethylene treated with UV inhibitors to prevent fading and cracking
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Filter results
Family
Color

11 products

    Part Number
    (click for more info)    		 Description
    TA 24-4 Assembly (No Jet), 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
    VF 180 Hydro-Flo™ Adjustable Jet, 180-Degree Fan Spray, 0 to 26 GPH, 10-32 Threaded Inlet, 100-Pack
    VF 360 Hydro-Flo™ Adjustable Jet, 360-Degree Stream Spray, 0 to 21 GPH, 10-32 Threaded Inlet, 100-Pack
    VF 90 Hydro-Flo™ Adjustable Jet, 90-Degree Fan Spray, 0 to 25 GPH, 10-32 Threaded Inlet, 100-Pack
    TA 24-3H Hydro-Flo™ Jet Assembly with Adjustable Jet, 180-Degree Fan Spray, 0.03 in. Nozzle, 24 in. Vinyl Tubing, 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
    TF 418 Hydro-Flo™ Micro Spray Jet, 180-Degree Fan Spray, 0.04 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
    TF 518 Hydro-Flo™ Micro Spray Jet, 180-Degree Fan Spray, 0.05 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
    TF 618 Hydro-Flo™ Micro Spray Jet, 180-Degree Fan Spray, 0.06 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
    TF 436 Hydro-Flo™ Micro Spray Jet, 360-Degree Fan Spray, 0.04 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
    TF 636 Hydro-Flo™ Micro Spray Jet, 360-Degree Fan Spray, 0.06 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
    TA 24-7 Valve Assembly (No Jet), 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet, on 12 in. Stake, 100-Pack
