3.96 ft. x 152 ft. EZ Roll®Grass Pavers, 602 sq. ft. per roll, Black

SKU: EZ4X150

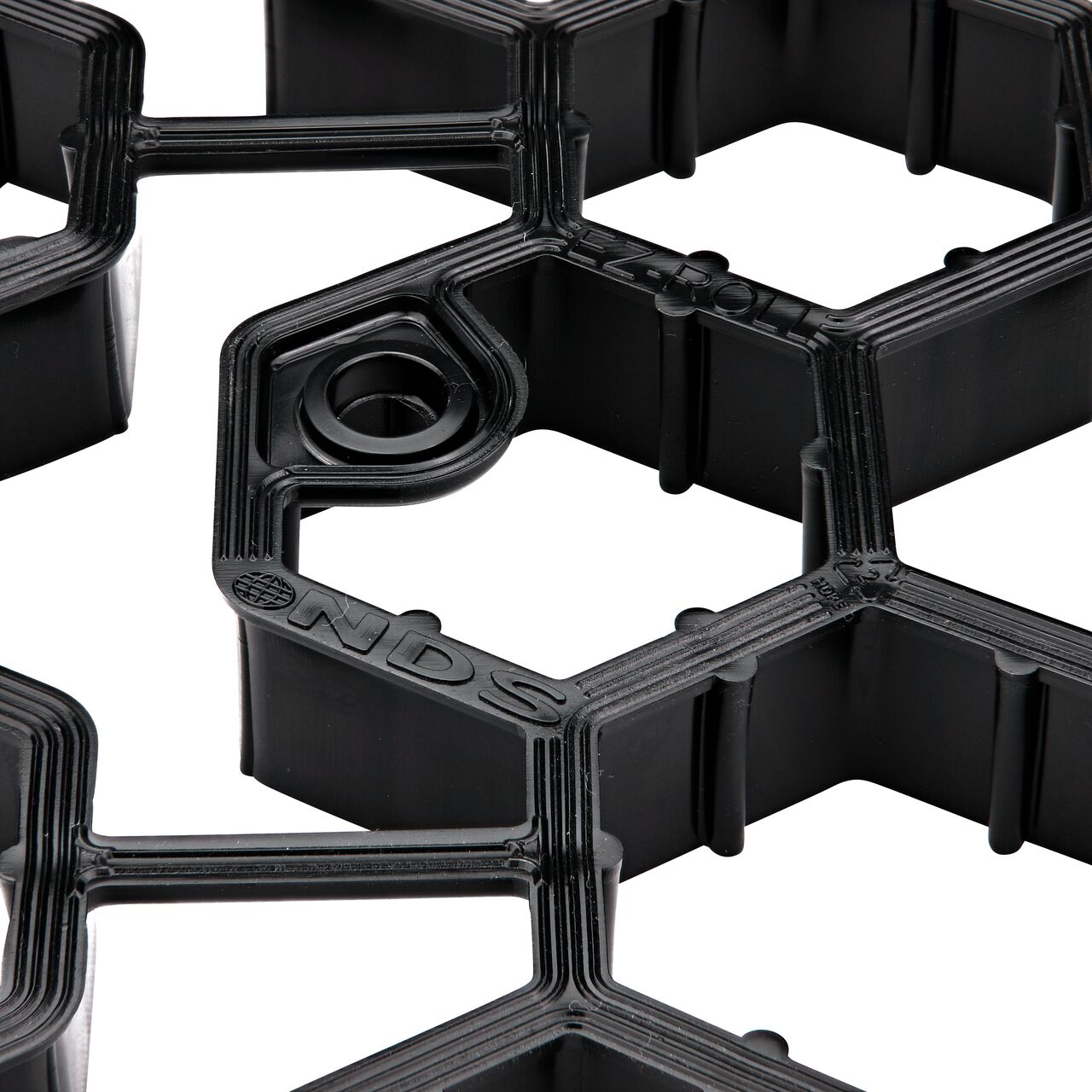

Bottom side closeup view of the support provided by the NDS EZ Roll® Grass Pavers as well as the stake hole

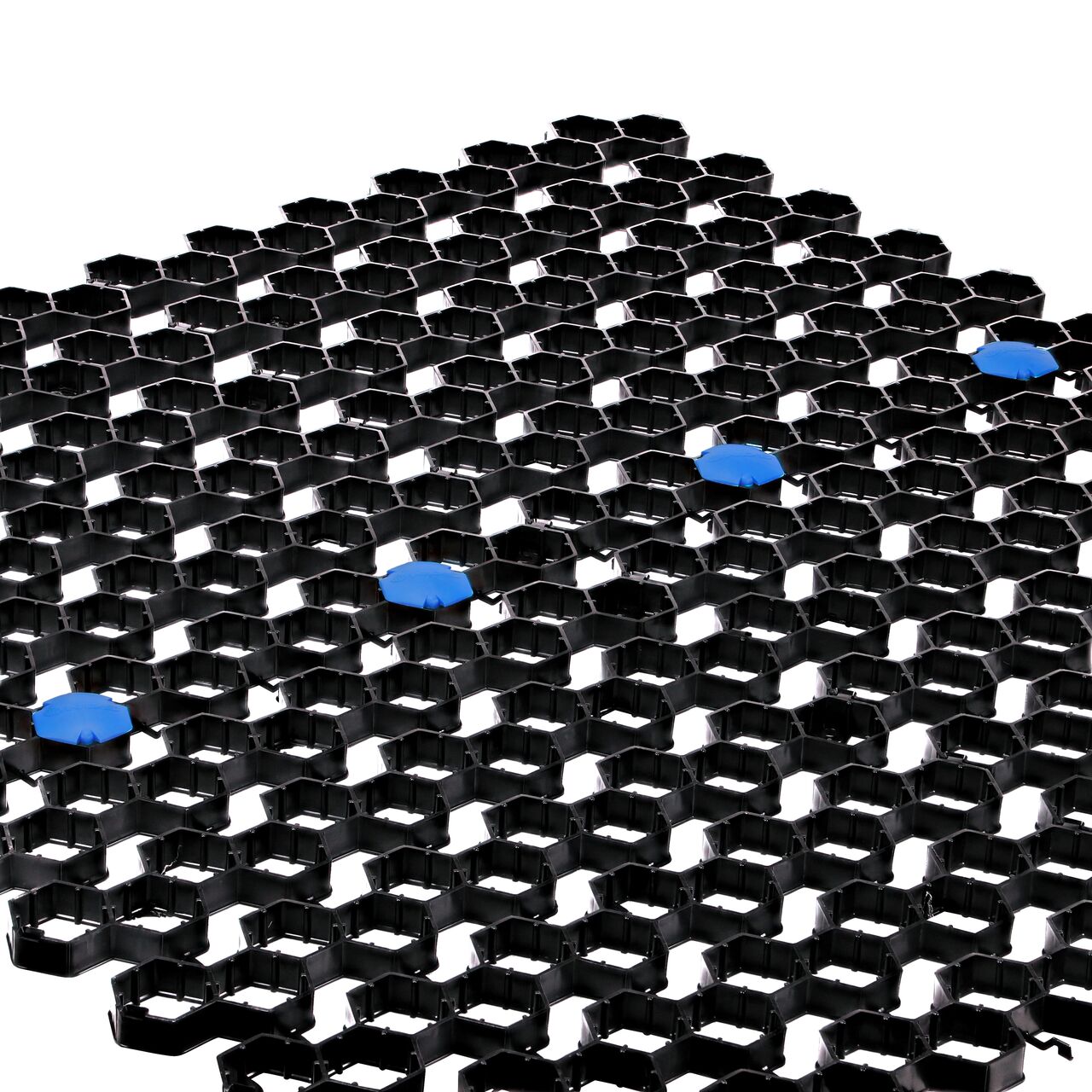

Use multiple Blue NDS EZ Marker™ Parking Delineators (NDS EZMARKER-B) in the NDS EZ Roll® Grass Pavers to guide motorists
Each 2 ft. X 2 ft. section of the NDS EZ Roll® Grass Pavers features 72 nested honeycomb cells with lateral connection points

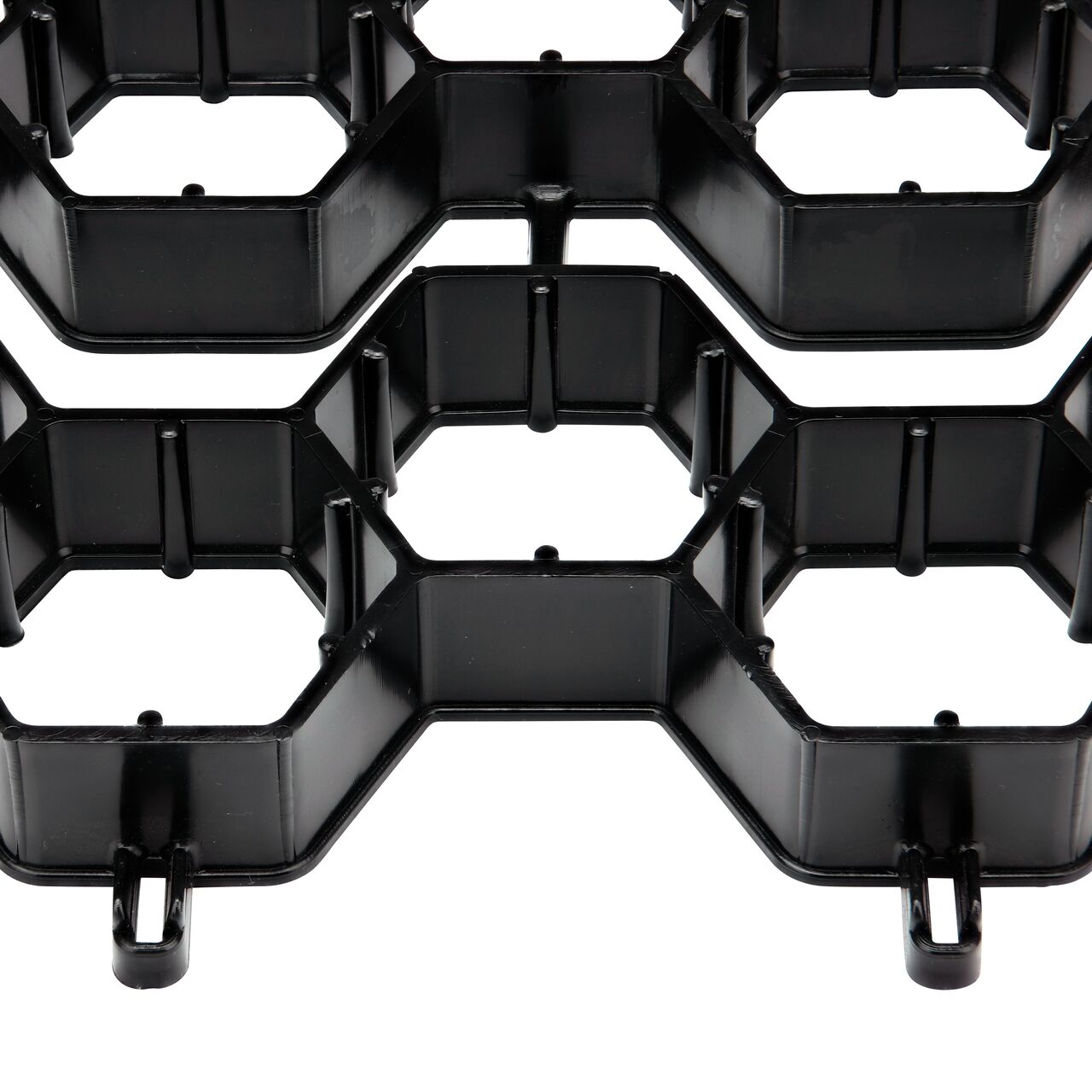

Another view of the end to end hook style locking mechanism on the NDS EZ Roll® Grass Pavers

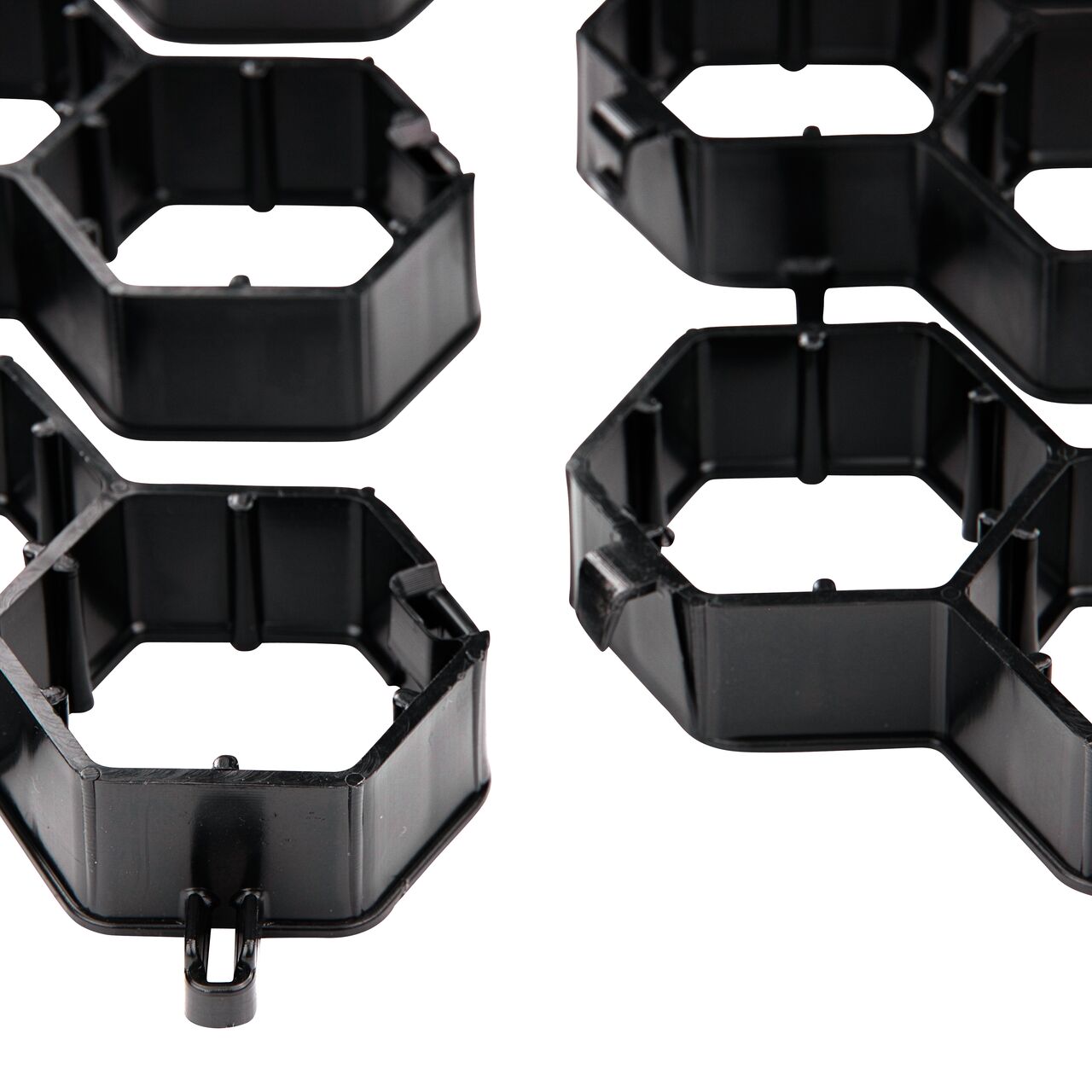

Step 1: Lay the NDS EZ Roll® Grass Pavers side by side with the tongue and groove ends lined up
Use multiple Yellow NDS EZ Marker™ Parking Delineators (NDS EZMARKER-B) in the NDS EZ Roll® Grass Pavers to guide motorists
Use multiple Red NDS EZ Marker™ Parking Delineators (NDS EZMARKER-B) in the NDS EZ Roll® Grass Pavers to guide motorists

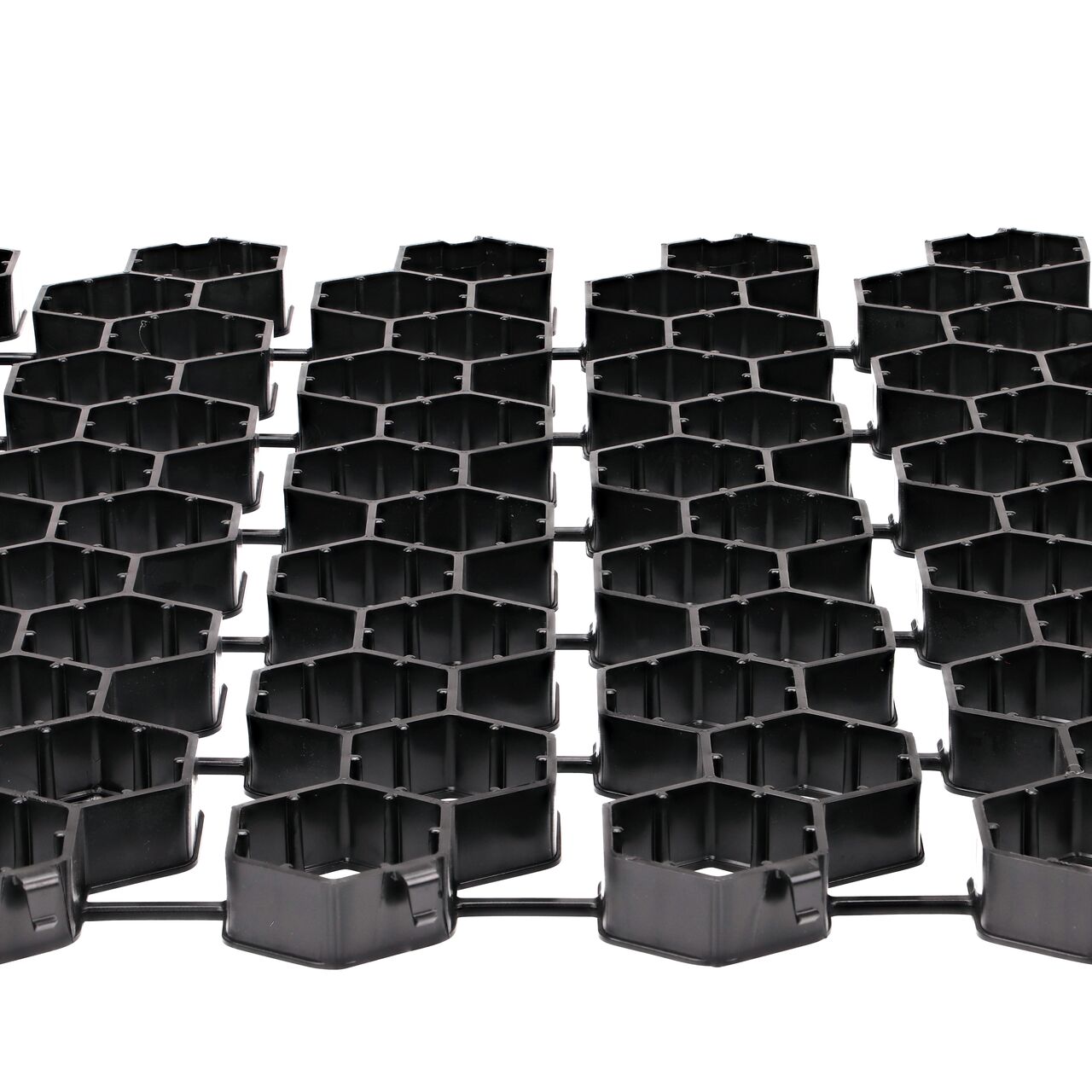

Secure two NDS EZ Roll® Grass Pavers rolls together side by side with the Top-down locking tabs for a quicker, easier installation; no tools required

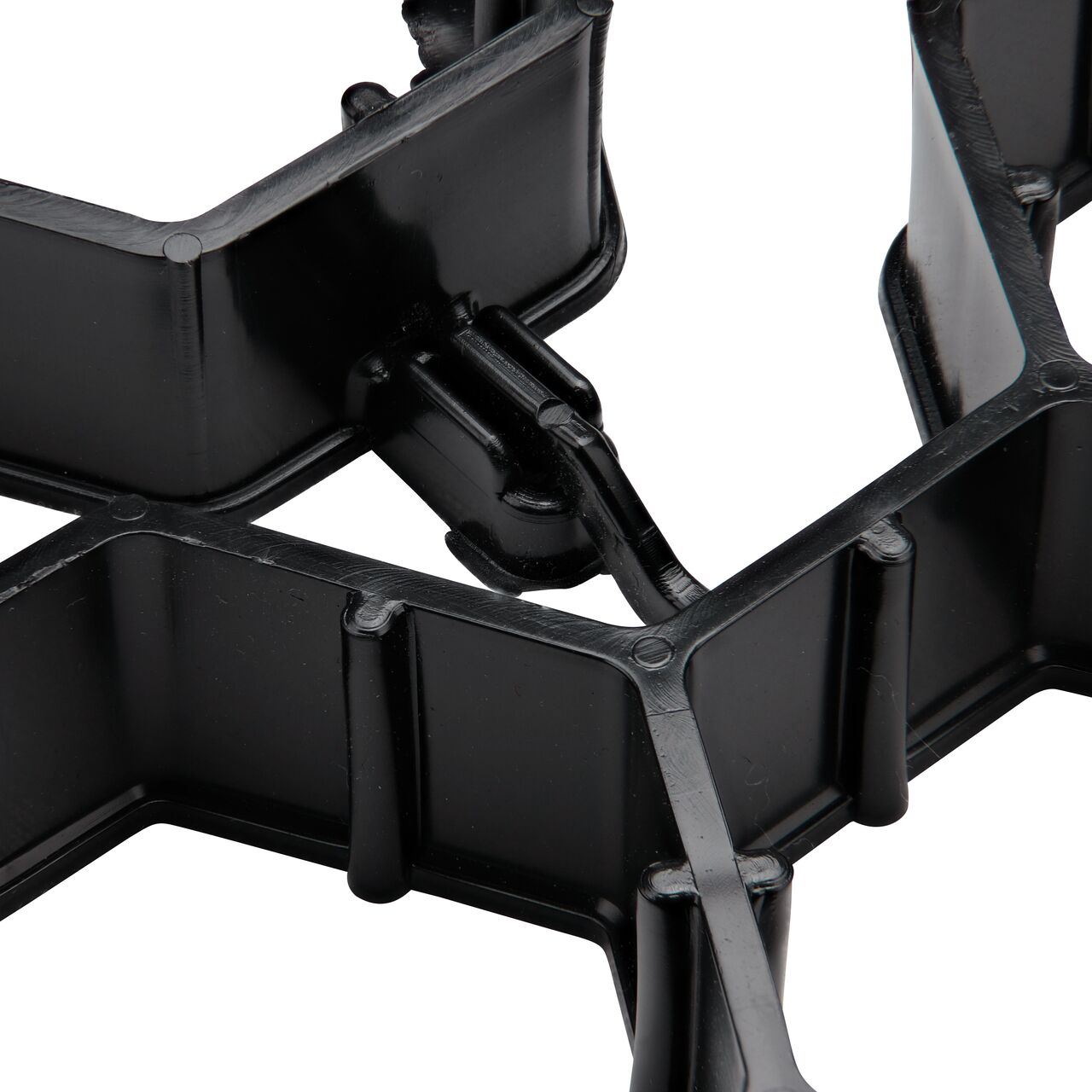

Closeup view of the end to end hook style locking mechanism securely connected on the NDS EZ Roll® Grass Pavers

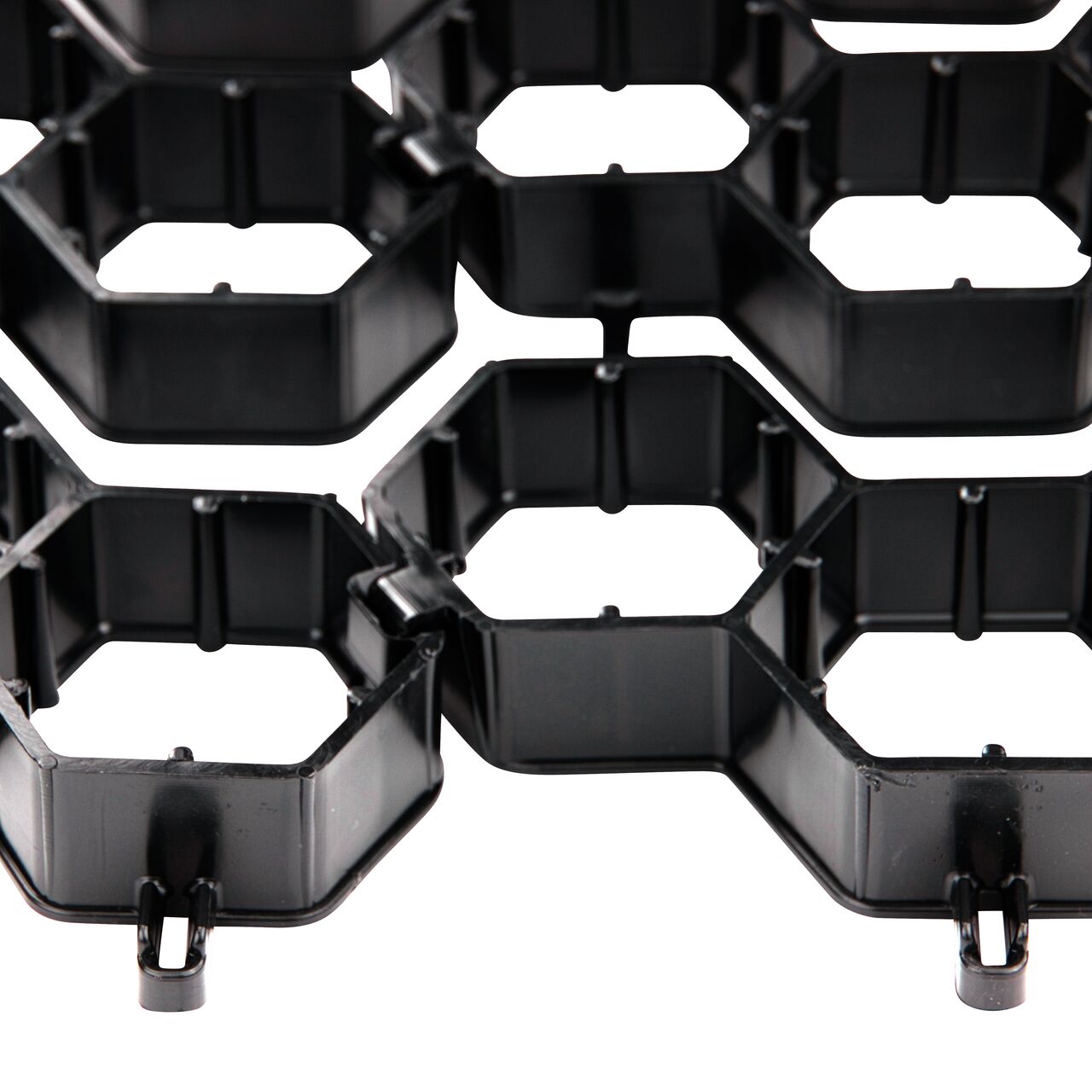

Step 3:  Snap pavers together with lateral locking tab system
Use multiple White NDS EZ Marker™ Parking Delineators (NDS EZMARKER) in the NDS EZ Roll® Grass Pavers to guide motorists

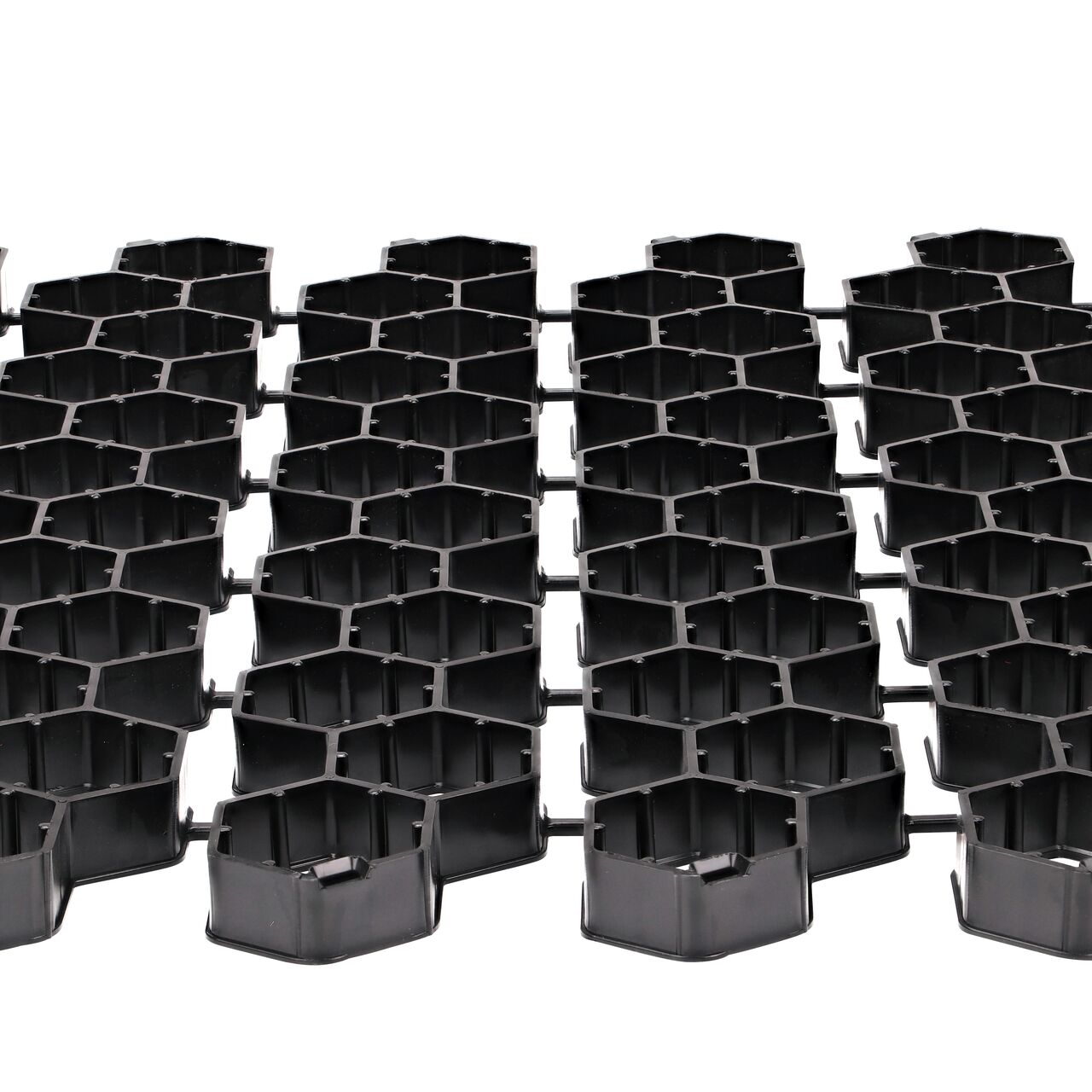

Lay two NDS EZ Roll® Grass Paver rolls side by side to use the locking tabs which snap in the open grooves for a quicker, easier installation; no tools required

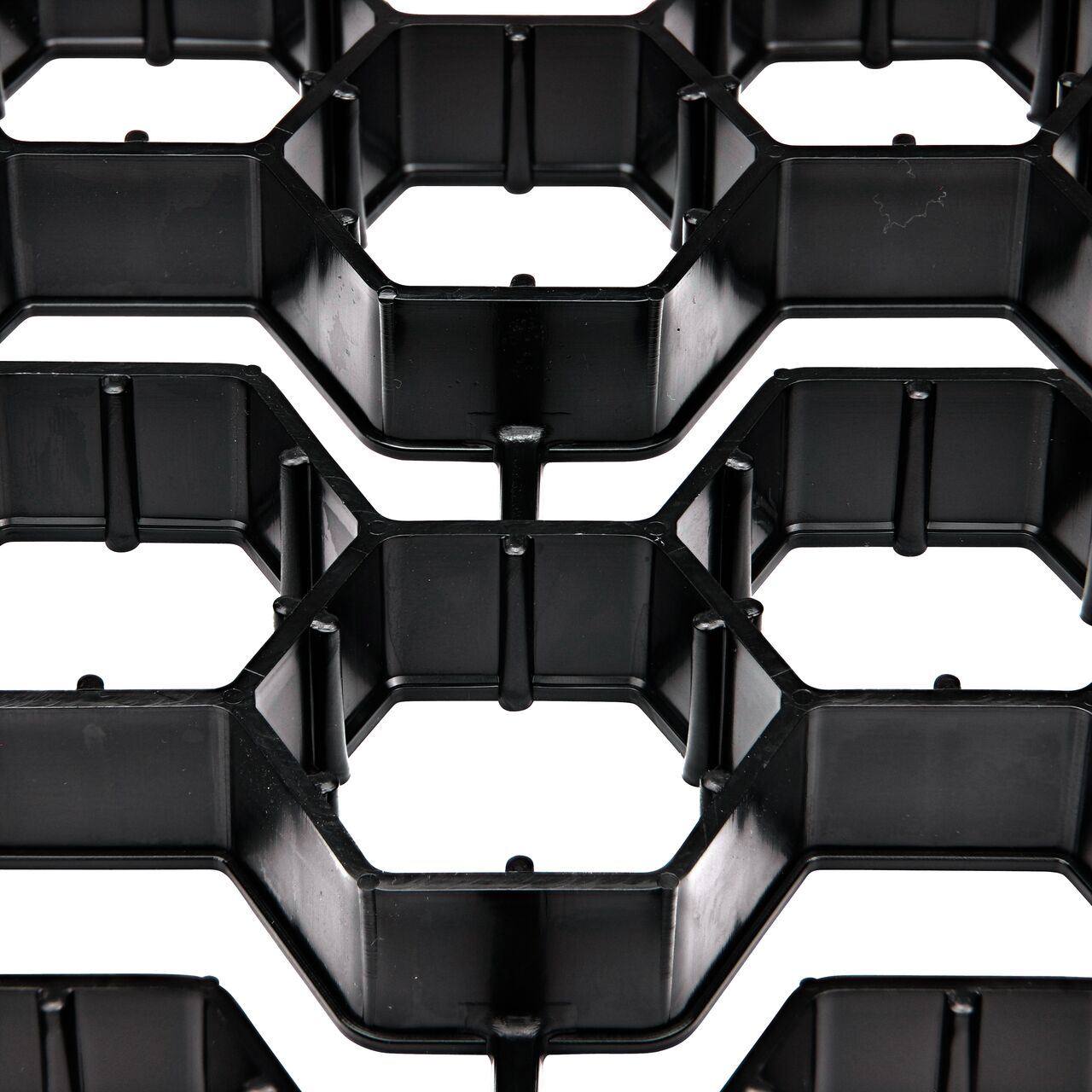

Closeup view of the interconnected hexagonal cells with shared walls which protect the root zone and prevent soil compaction that would inhibit healthy root growth

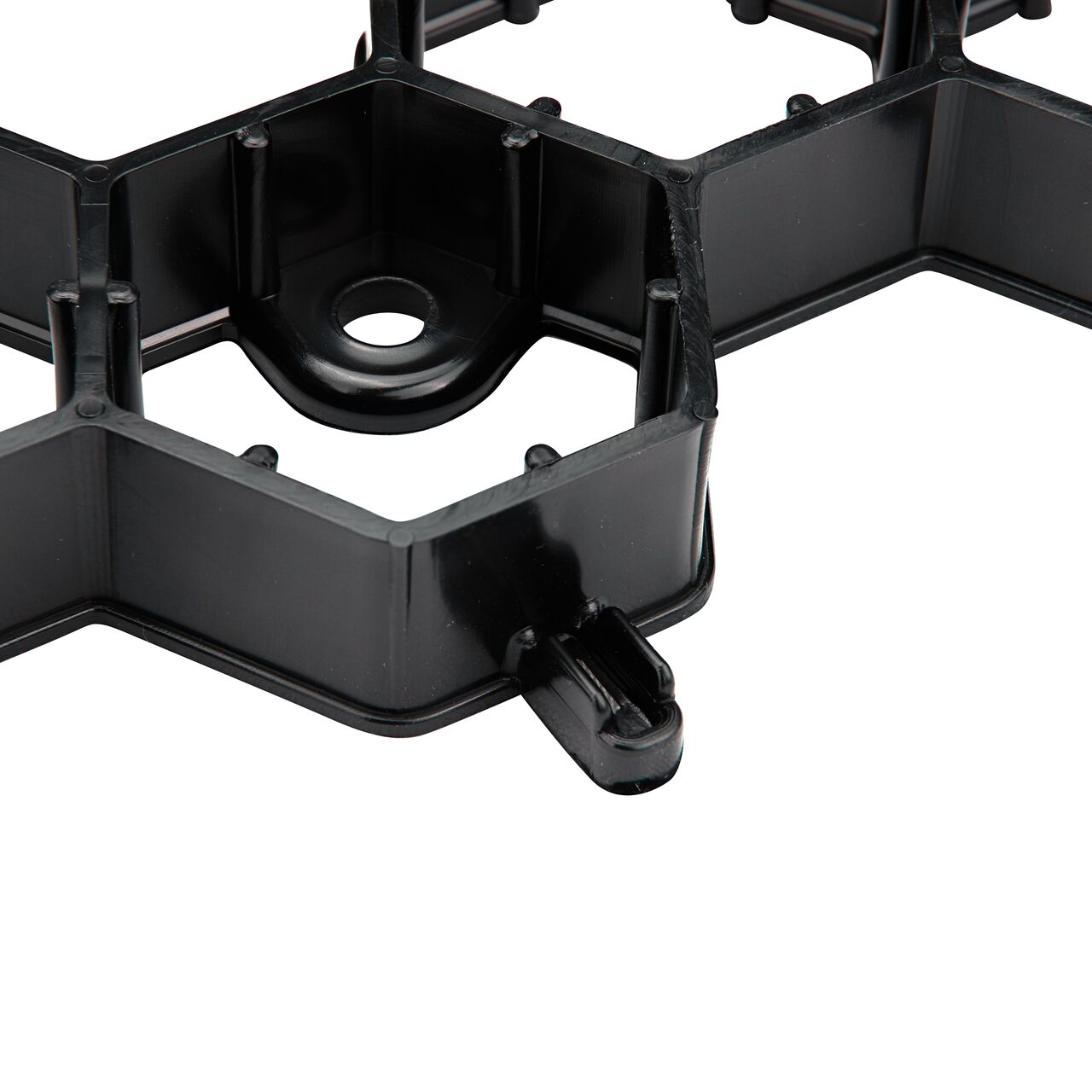

Closeup view of the end to end locking mechanism and the stake holder on the NDS EZ Roll® Grass Pavers

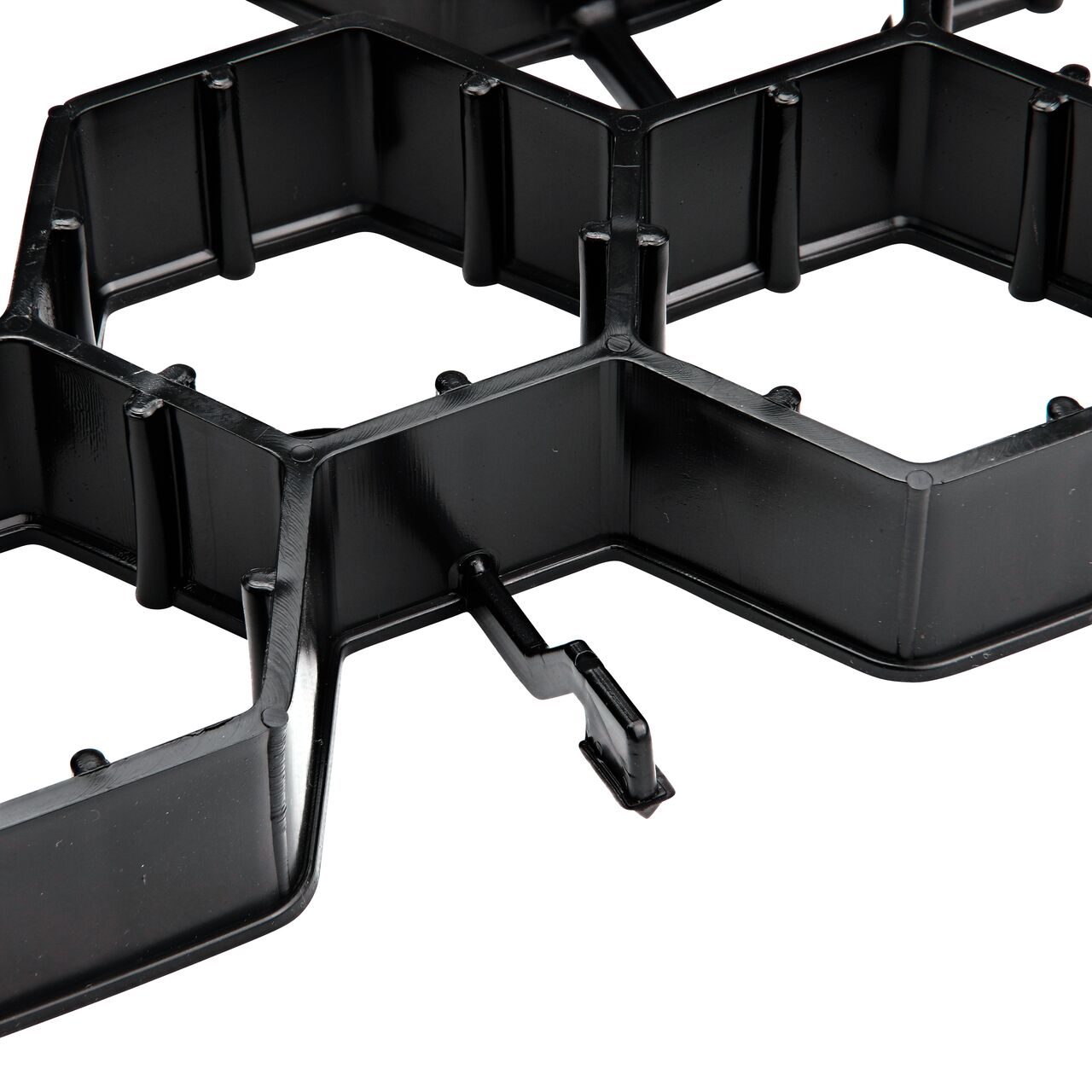

Closeup view of the end to end hook style locking mechanism on the NDS EZ Roll® Grass Pavers

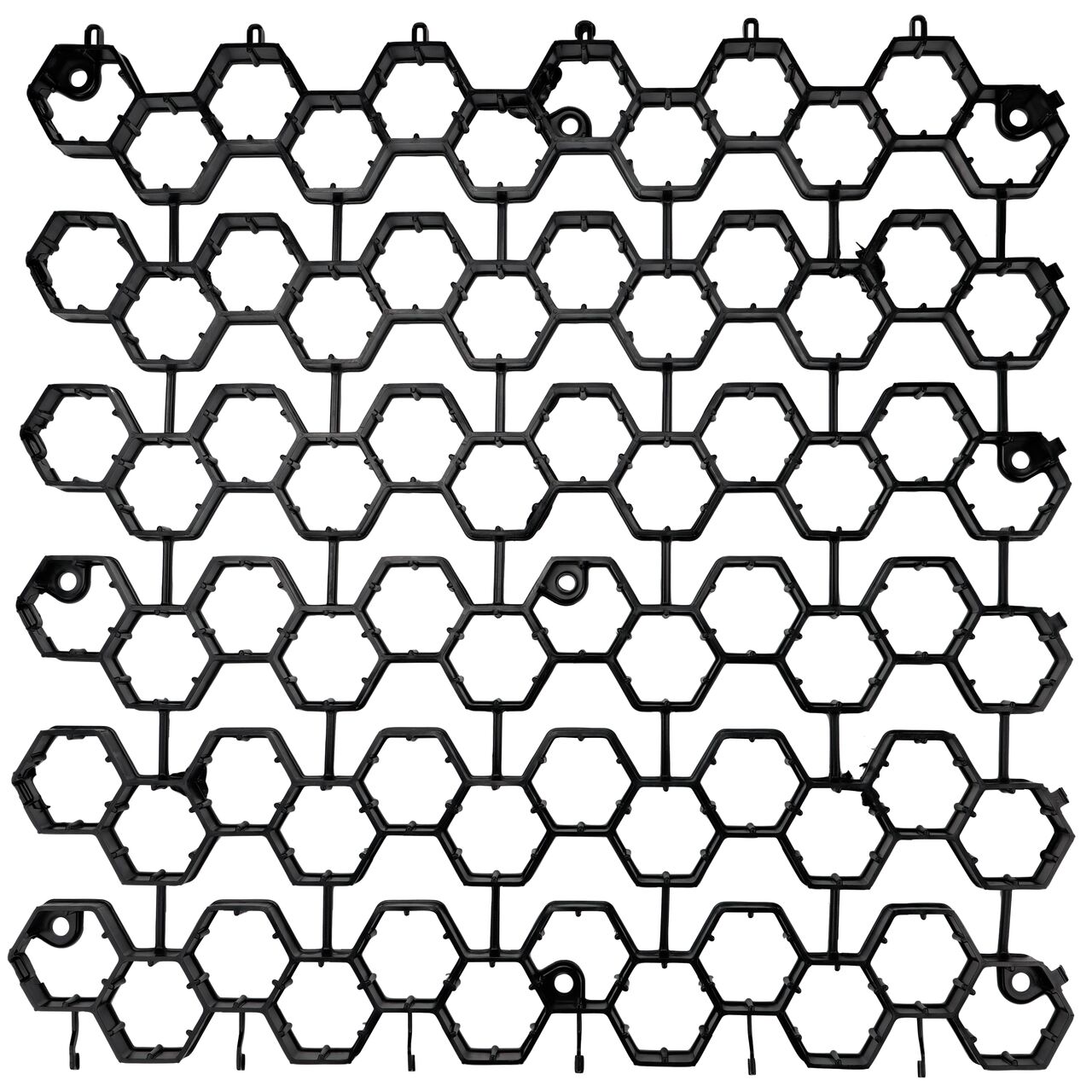

Top Down View of the NDS EZ Roll® Grass Pavers which have an unfilled compressive strength of 53,683 psf; supports H-20 and H-25 loads

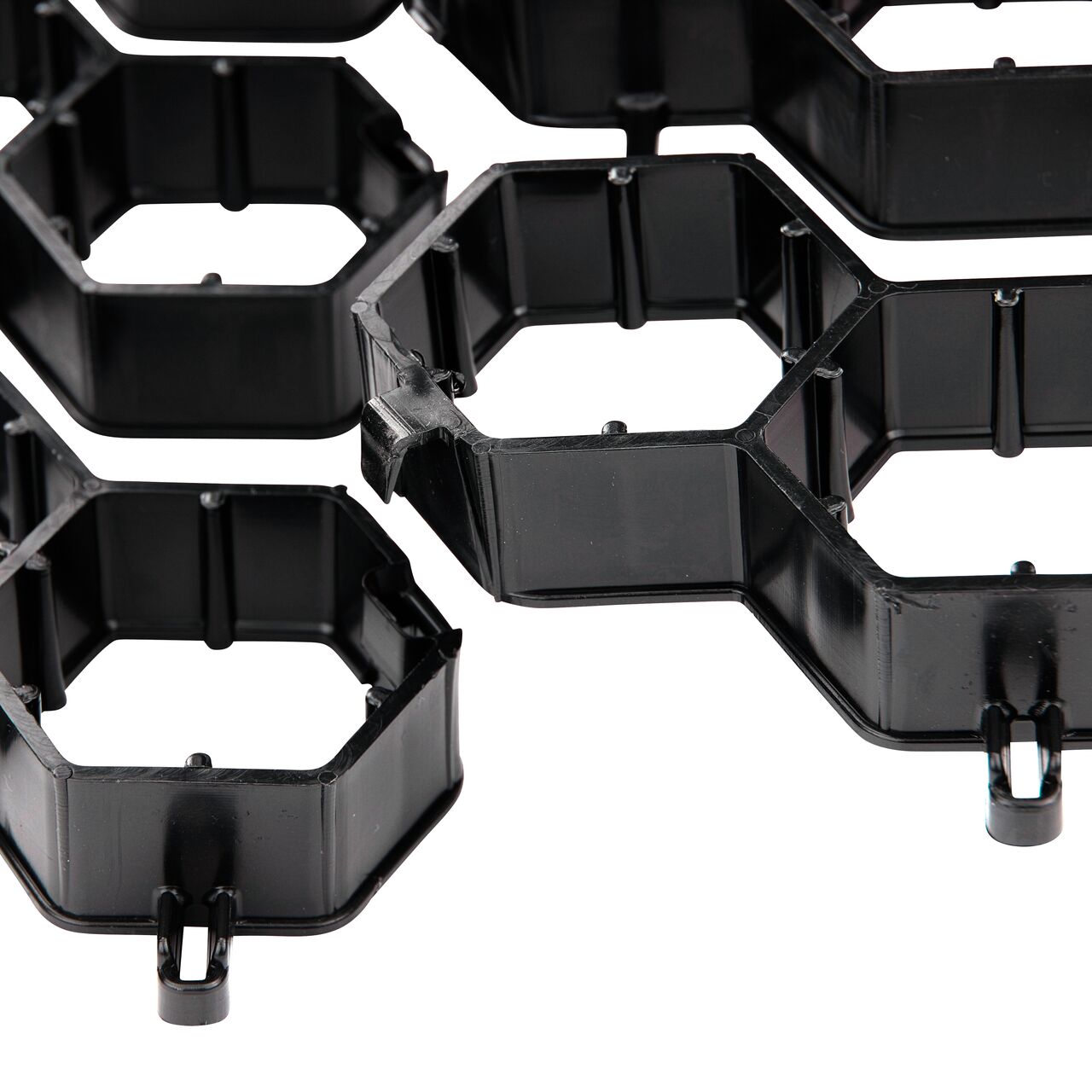

Step 2: Lift the tongue side of the NDS EZ Roll® Grass Pavers to lock into the groove side
Bottom side closeup view of the support provided by the NDS EZ Roll® Grass Pavers as well as the stake hole
Use multiple Blue NDS EZ Marker™ Parking Delineators (NDS EZMARKER-B) in the NDS EZ Roll® Grass Pavers to guide motorists
Each 2 ft. X 2 ft. section of the NDS EZ Roll® Grass Pavers features 72 nested honeycomb cells with lateral connection points
Another view of the end to end hook style locking mechanism on the NDS EZ Roll® Grass Pavers
Step 1: Lay the NDS EZ Roll® Grass Pavers side by side with the tongue and groove ends lined up
Use multiple Yellow NDS EZ Marker™ Parking Delineators (NDS EZMARKER-B) in the NDS EZ Roll® Grass Pavers to guide motorists
Use multiple Red NDS EZ Marker™ Parking Delineators (NDS EZMARKER-B) in the NDS EZ Roll® Grass Pavers to guide motorists
Secure two NDS EZ Roll® Grass Pavers rolls together side by side with the Top-down locking tabs for a quicker, easier installation; no tools required
Closeup view of the end to end hook style locking mechanism securely connected on the NDS EZ Roll® Grass Pavers
Step 3:  Snap pavers together with lateral locking tab system
Use multiple White NDS EZ Marker™ Parking Delineators (NDS EZMARKER) in the NDS EZ Roll® Grass Pavers to guide motorists
Lay two NDS EZ Roll® Grass Paver rolls side by side to use the locking tabs which snap in the open grooves for a quicker, easier installation; no tools required
Closeup view of the interconnected hexagonal cells with shared walls which protect the root zone and prevent soil compaction that would inhibit healthy root growth
Closeup view of the end to end locking mechanism and the stake holder on the NDS EZ Roll® Grass Pavers
Closeup view of the end to end hook style locking mechanism on the NDS EZ Roll® Grass Pavers
Top Down View of the NDS EZ Roll® Grass Pavers which have an unfilled compressive strength of 53,683 psf; supports H-20 and H-25 loads
Step 2: Lift the tongue side of the NDS EZ Roll® Grass Pavers to lock into the groove side

Create a drivable grass surface as a reinforced turf system that can support heavy vehicles with EZ Roll® Grass Pavers. Maintains permeable conditions on grass or meadows, unlike impervious surfaces which do not reduce runoff. Using a web of hexagonal cells with shared walls and a high unfilled compressive strength of 53,683 psf, this durable paver is capable of supporting H-20 & H-25 loads when properly installed. EZ Roll Pavers roll out in a matter of minutes, making it the fastest and easiest product to install. Rolled permeable pavers are an efficient alternative to traditional paving methods such as concrete and asphalt. Engineered for high compressive strength, heavy-duty pavers support heavy vehicles without relying on fill material for load bearing. Unlike impervious surfaces, permeable grass pavers reduce stormwater runoff by absorbing water into soil, while recharging groundwater and slowing down erosion. Unlike other systems that require sand as fill, EZ Roll Grass Pavers use soil which offers the best growth media for seed or sod. Owners prefer EZ Roll due to the much thicker and more lush grass as a result of using soil media.

Applications:

  • An alternative for occasional use to traditional paving methods such as concrete and asphalt, EZ Roll® Grass Pavers create a durable and drivable grass surface that can support heavy vehicles while blending into the surroundings
  • Ideal for emergency vehicle access roads, parking lots, golf cart paths, jogging tracks, bike paths, ATV paths, equestrian parks, trail reinforcements, and runoff areas
  • Best used in areas where subsoil infiltrates the water; poor draining soil may require an underdrain

Features:

  • Unfilled compressive strength of 53,683 psf; supports H-20 and H-25 loads; built for durability with a life expectancy of 25 years when well maintained
  • Panels come preassembled in easy-to-install rolls; top-down locking tabs snap together for a quicker, easier installation; no tools required
  • Each 2 ft. X 2 ft. section features 72 nested honeycomb cells with lateral connection points
  • Interconnected hexagonal cells with shared walls protect the root zone and prevent soil compaction that would inhibit healthy root growth
  • May contribute points for LEED certification
