Flexible Saddles and Rigid Saddles

Use the flexible saddle to add a lateral sewer line at an angle. Use the Flo-Tap™ rigid saddle to add a line to PVC pipeline without needing to shut off water. Use the Clamp-It™ rigid saddle to install a sprinkler irrigation system to pipe.

Where to Buy

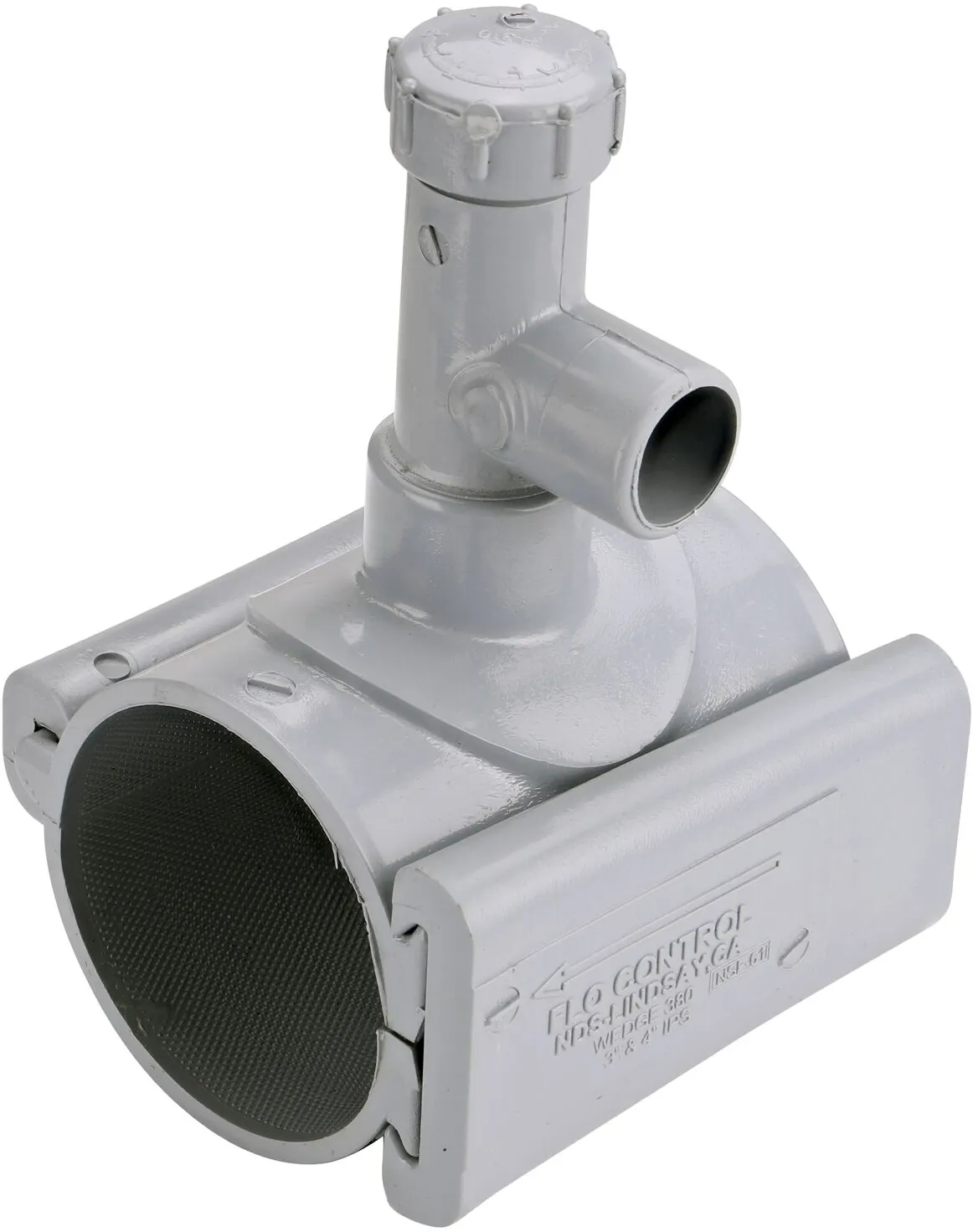

The 3 in. NDS Flo-Tap™ Rigid PVC Saddle with 3/4 in. socket or 1 in. spigot connection on top (NDS 3130) has a patented wedge design to add a branch connection to existing pipe without any bolts
Where to Buy
Tap into a sewer main line to add a lateral sewer line at a 45° angle with the NDS Flexible Elastomeric PVC Saddle Wye with 6 in. inlet (NDS 6Y/WOC), pipe clamps not included

Key Features

  • Elastomeric construction provides strength and flexibility to allow saddle to securely fit 6 in. sewer main pipe diameters and up
  • Self-piercing Flo-Tap™ saddle has a unique cutter that captures debris as it cuts so there's no need for cleaning up, and prevents debris from entering the water supply
  • Clamp-It™ rigid saddle features a patented wedge design eliminates the need for bolts, washers, or nuts to connect to pipe; requires less space to install compared to a traditional saddle
  • Clamp-It™ rigid saddle has proven success in copper and gold mines for heap leach mining
  • Flexible saddle body made of flexible elastomeric PVC
  • Rigid saddle body made of polyvinyl chloride (PVC)

Applications

  • Flexible saddle adds a lateral sewer line at an angle to a sewer main line; flexible elastomeric material enables saddle to securely fit around a range of sewer main pipe diameters
  • Flo-Tap™ rigid saddle provides a fast and easy way to add a branch connection to an existing pipeline without the need to shut off water or bolt saddle onto pipe
  • Clamp-It™ rigid saddle makes it quick and easy to add a sprinkler or riser to an existing pipeline with its bolt-free patented wedge design

Installation & Maintenance

  • To install the flexible saddle: drill hole in pipe wall with a hole saw; place saddle on pipe; tighten clamps around the saddle with torque wrench; position pipe into saddle inlet and tighten the clamp around inlet to secure
  • To install the Flo-Tap™ rigid saddle: clamp saddle over pipe and tap in wedge; remove cap and turn internal cutter to cut pipe opening; solvent-weld new line; remove cutter and debris; replace cap to prevent leaking
  • To install the Clamp-It™ rigid saddle: drill hole in pipe; place saddle over hole and attach clamping hinge around pipe; apply wedge and secure in place with a tap of a rubber mallet
  • If water is leaking out, tighten clamp on flexible saddle to ensure a firm seal.  Saddle performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Flexible saddle body made of flexible elastomeric PVC
  • Rigid saddle body made of polyvinyl chloride (PVC)
  • Flexible saddle clamps made of stainless steel
  • Flo-Tap saddle O-ring made of EPDM; cutter made of stainless steel
  • Clamp-It saddle O-ring made of EPDM
  • Onsite flow management protects pipe systems from backflow which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Filter results
Family
Color

49 products

    Part Number
    (click for more info)    		 Description
    322010P Clamp-It™ Rigid PVC Saddle for 2 in. PE Pipe, 1 in. FPT, Gray
    332010P Clamp-It™ Rigid PVC Saddle for 2 in. PE Pipe, 1 in. S, Gray
    422010 Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1 in. FPT, Gray
    432010 Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1 in. S, Gray
    422015 Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1-1/2 in. FPT, Gray
    422007 Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 3/4 in. FPT, Gray
    432515 Clamp-It™ Rigid PVC Saddle for 2-1/2 in. PVC Pipe, 1-1/2 in. S, Gray
    443010 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1 in. FPT, Gray
    453010 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1 in. S, Gray
    443015 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1-1/2 in. FPT, Gray
    453015 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1-1/2 in. S, Gray
    443012 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1-1/4 in. FPT, Gray
    443020 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 2 in. FPT, Gray
    453020 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 2 in. S, Gray
    443007 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 3/4 in. FPT, Gray
    453007 Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 3/4 in. S, Gray
    344007P Clamp-It™ Rigid PVC Saddle for 4 in. PE Pipe, 3/4 in. FPT, Gray
    444010 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1 in. FPT, Gray
    454010 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1 in. S, Gray
    444015 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1-1/2 in. FPT, Gray
    454015 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1-1/2 in. S, Gray
    444012 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1-1/4 in. FPT, Gray
    444020 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 2 in. FPT, Gray
    454020 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 2 in. S, Gray
    444007 Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 3/4 in. FPT, Gray
    446010 Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1 in. FPT, Gray
    446015 Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1-1/2 in. FPT, Gray
    456015 Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1-1/2 in. S, Gray
    446020 Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 2 in. FPT, Gray
    456020 Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 2 in. S, Gray
    458015 Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 1-1/2 in. S, Gray
    448020 Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 2 in. FPT, Gray
    458020 Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 2 in. S, Gray
    4T/C Flexible Elastomeric PVC Saddle Tee with Clamps, 4 in. Inlet, Black
    6T/C Flexible Elastomeric PVC Saddle Tee with Clamps, 6 in. Inlet, Black
    4T/WOC Flexible Elastomeric PVC Saddle Tee without Clamp, 4 in. Inlet, Black
    6T/WOC Flexible Elastomeric PVC Saddle Tee without Clamp, 6 in. Inlet, Black
    4Y/C Flexible Elastomeric PVC Saddle Wye with Clamps, 4 in. Inlet, Black
    6Y/C Flexible Elastomeric PVC Saddle Wye with Clamps, 6 in. Inlet, Black
    4Y/WOC Flexible Elastomeric PVC Saddle Wye without Clamp, 4 in. Inlet, Black
    6Y/WOC Flexible Elastomeric PVC Saddle Wye without Clamp, 6 in. Inlet, Black
    3220 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
    3120 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
    3225 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2-1/2 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
    3130 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 3 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
    3240 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 4 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
    3140 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 4 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
    3260 Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 6 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
    3230 Flo-Tap™ Rigid Hot/Wet Tap Saddle for 3 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
