Triple Swing Joints

Connect a sprinkler to irrigation pipeline and easily position it where you need it with the triple swing joints assembly. Triple swing joints come preassembled for hassle-free installation.

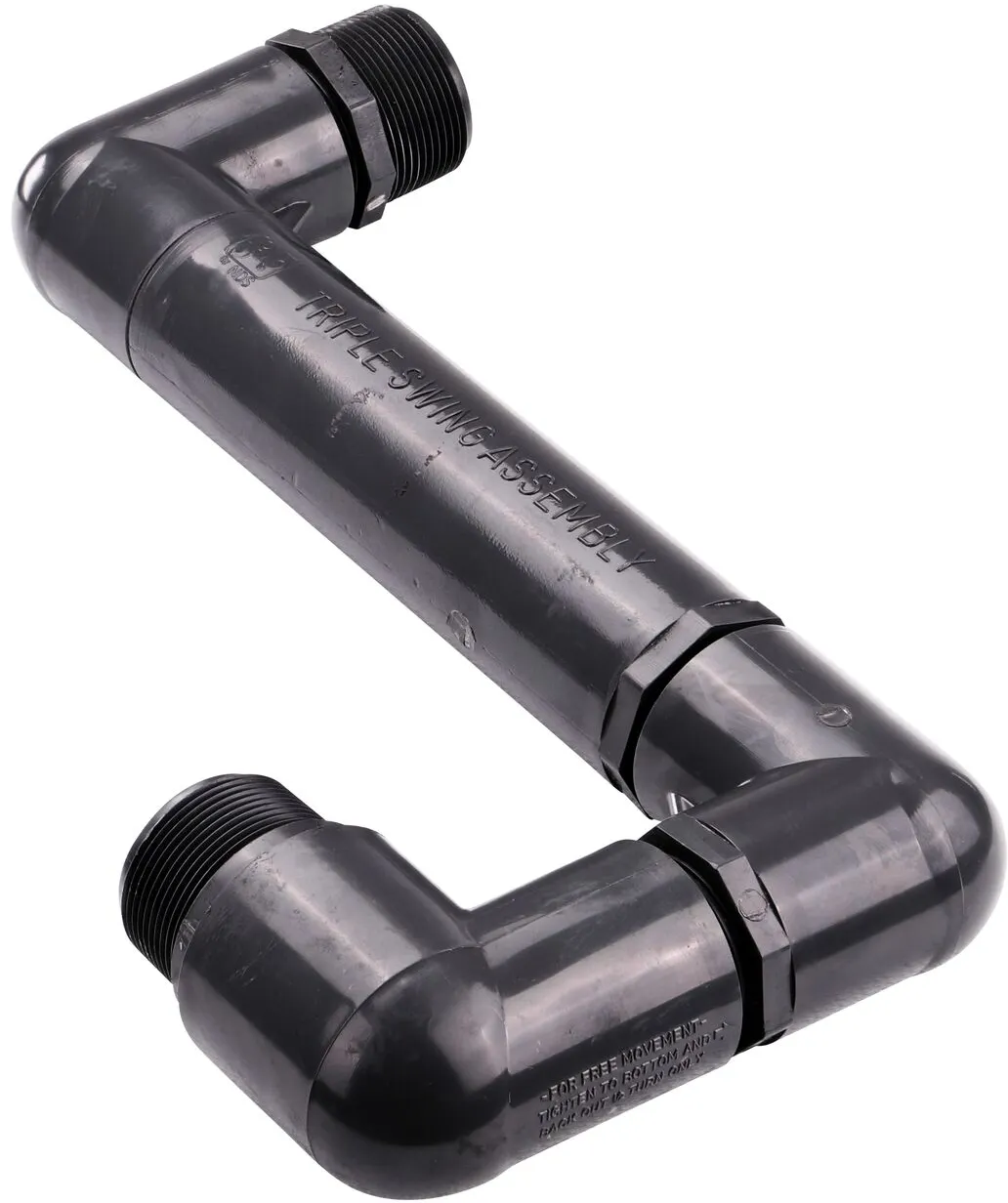

Closeup view of the 1-1/2 in. MPT end on NDS PVC Triple Swing Joints Assembly, Sch. 80 1-1/2 in. MPT that connects pipe for subsurface irrigation and sprinkler applications (NDS TSA-1500-TT)

Key Features

  • Triple swing joints come preassembled to provide flexible placement for sprinkler off pipeline path
  • Swing joint has two swivel joints to position sprinkler; one swivel joint on other end to connect to pipe
  • Flexibility protects pipeline from damage
  • Easily replace sprinklers connected to pipeline; can easily be repositioned after install if needed
  • Allows sprinkler to be installed in narrow or uneven areas

Applications

  • Connects sprinkler to underground irrigation pipeline; allows movement for easier sprinkler placement or relocation independently from pipe
  • Use for subsurface irrigation  and sprinkler applications; connects sprinkler to most sch. 80 pipe
  • As part of a complete flow management system, the swing joint connects sprinkler to irrigation pipeline

Installation & Maintenance

  • Swing joint has one spigot end that connects into sch. 80 pipe end and one MPT end that threads into FPT sprinkler connection point; can correct sprinkler depth and angle to be ground level after install
  • Swing joint performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Swing joint is made of polyvinyl chloride (PVC)
  • Onsite flow management helps provide a leak-resistant and corrosion-free system

Product Models

Filter results

Family
Color

7 products

    Part Number
    (click for more info)
    Description
    TSA-1000-TT PVC Triple Swing Joints Assembly, Sch. 80 1 in. MPT X 1 in. MPT, Gray
    TSA-1000-ST PVC Triple Swing Joints Assembly, Sch. 80 1 in. Spigot X 1 in. MPT, Gray
    TSA-0500-TT PVC Triple Swing Joints Assembly, Sch. 80 1/2 in. MPT X 1/2 in. MPT, Gray
    TSA-0500-ST PVC Triple Swing Joints Assembly, Sch. 80 1/2 in. Spigot X 1/2 in. MPT, Gray
    TSA-1500-TT PVC Triple Swing Joints Assembly, Sch. 80 1-1/2 in. MPT X 1-1/2 in. MPT, Gray
    TSA-0750-TT PVC Triple Swing Joints Assembly, Sch. 80 3/4 in. MPT X 3/4 in. MPT, Gray
    TSA-0750-ST PVC Triple Swing Joints Assembly, Sch. 80 3/4 in. Spigot X 3/4 in. MPT, Gray
