14 in. X 19 in. Rectangular Pro-Spec® Series Valve Box and Cover, 12 in. Height, Purple Box, Purple Reclaimed Water Cover, Includes Bolt

SKU: 314PBCBR

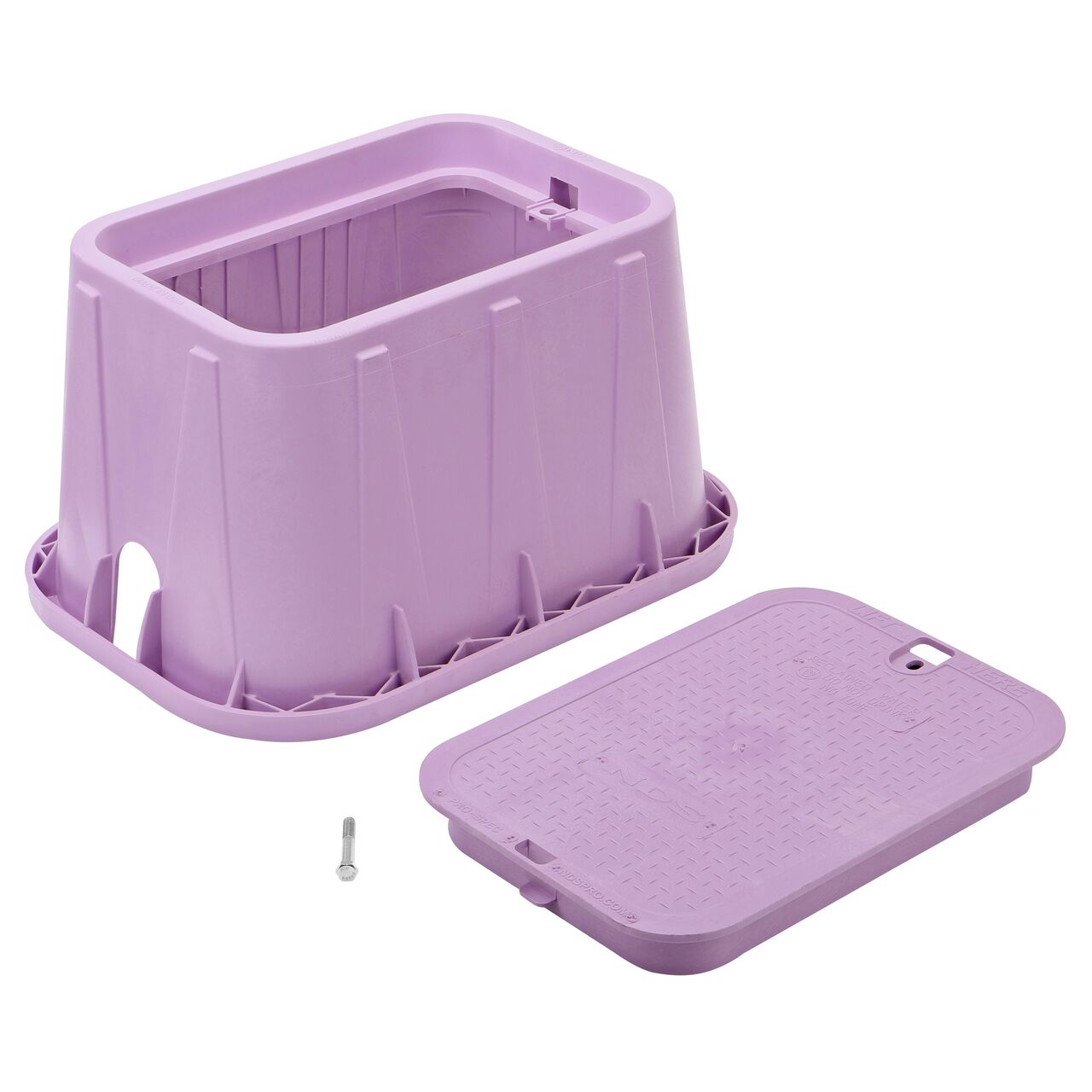

Unassembled View of the NDS 14 in. x 19 in. Purple Rectangular Pro-Spec® Series valve box and Purple Reclaimed Water cover (NDS 314PBCBR)

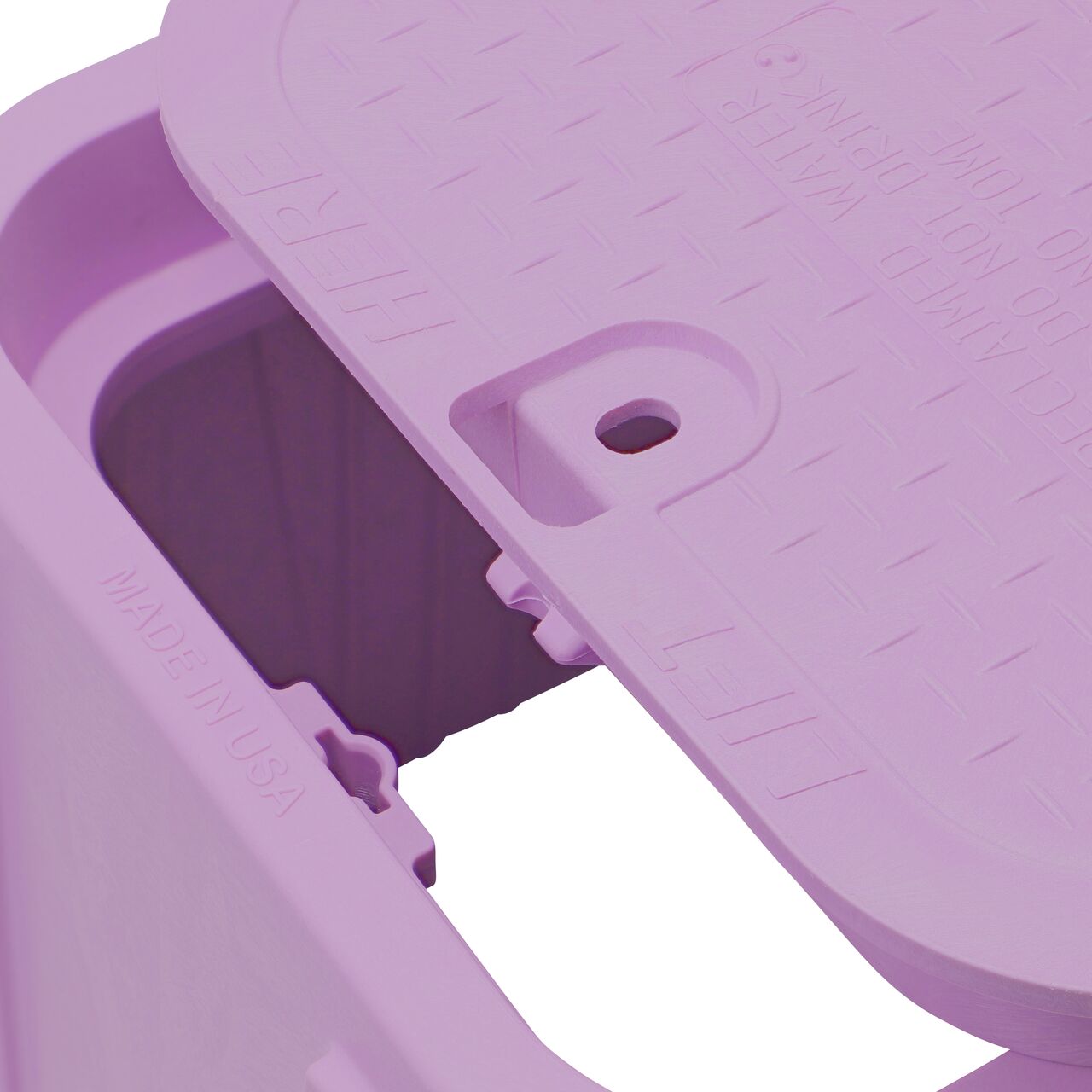

Align the bolt hole on the lid with the bolt hole from the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Purple Box and Purple Reclaimed Water Cover (NDS 314PBCBR) for a secure fit

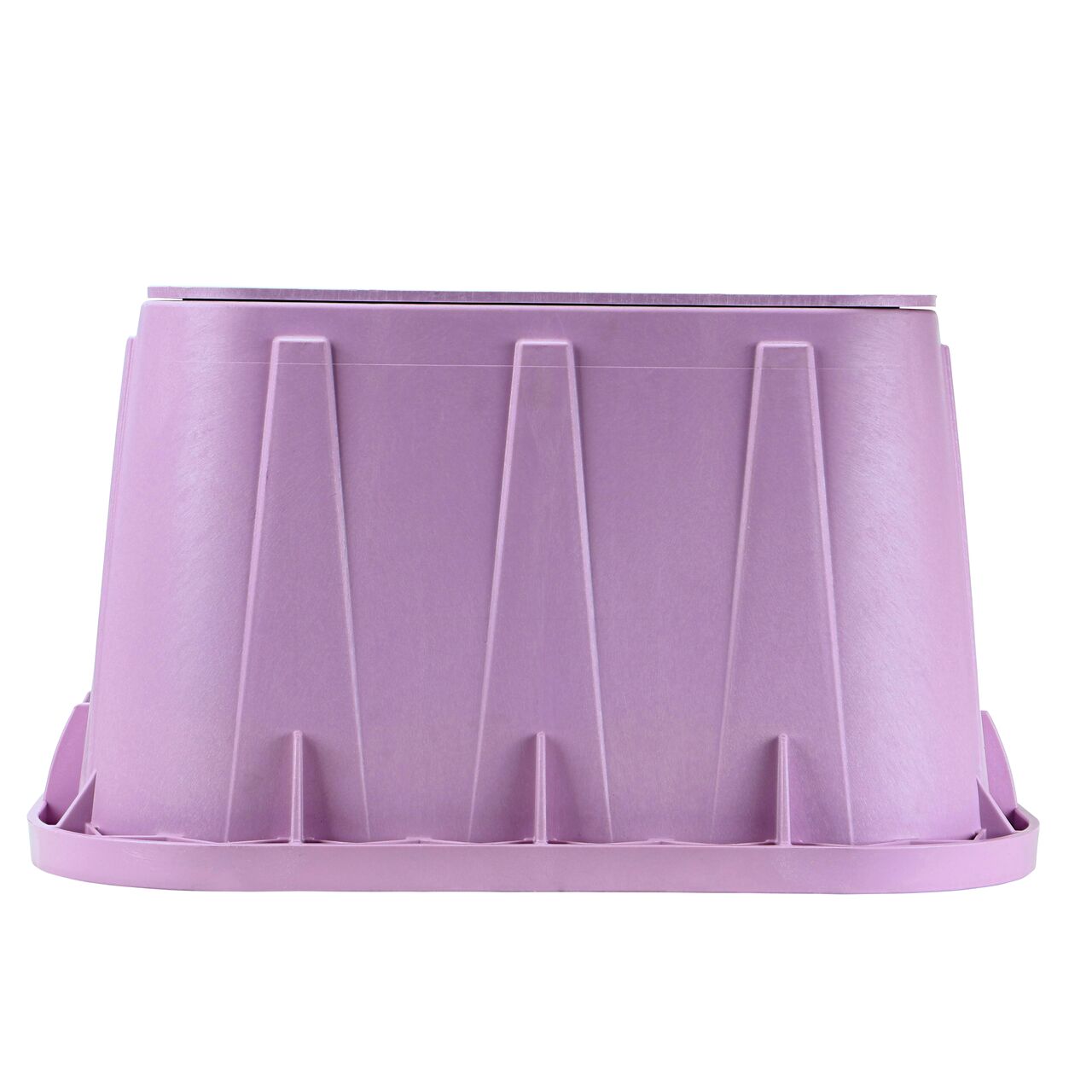

Side view of the longer length side of the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Valve Box & Reclaimed Water Cover (NDS 314PBCBR) which is engineered for superior strength with structural reinforcing ribs

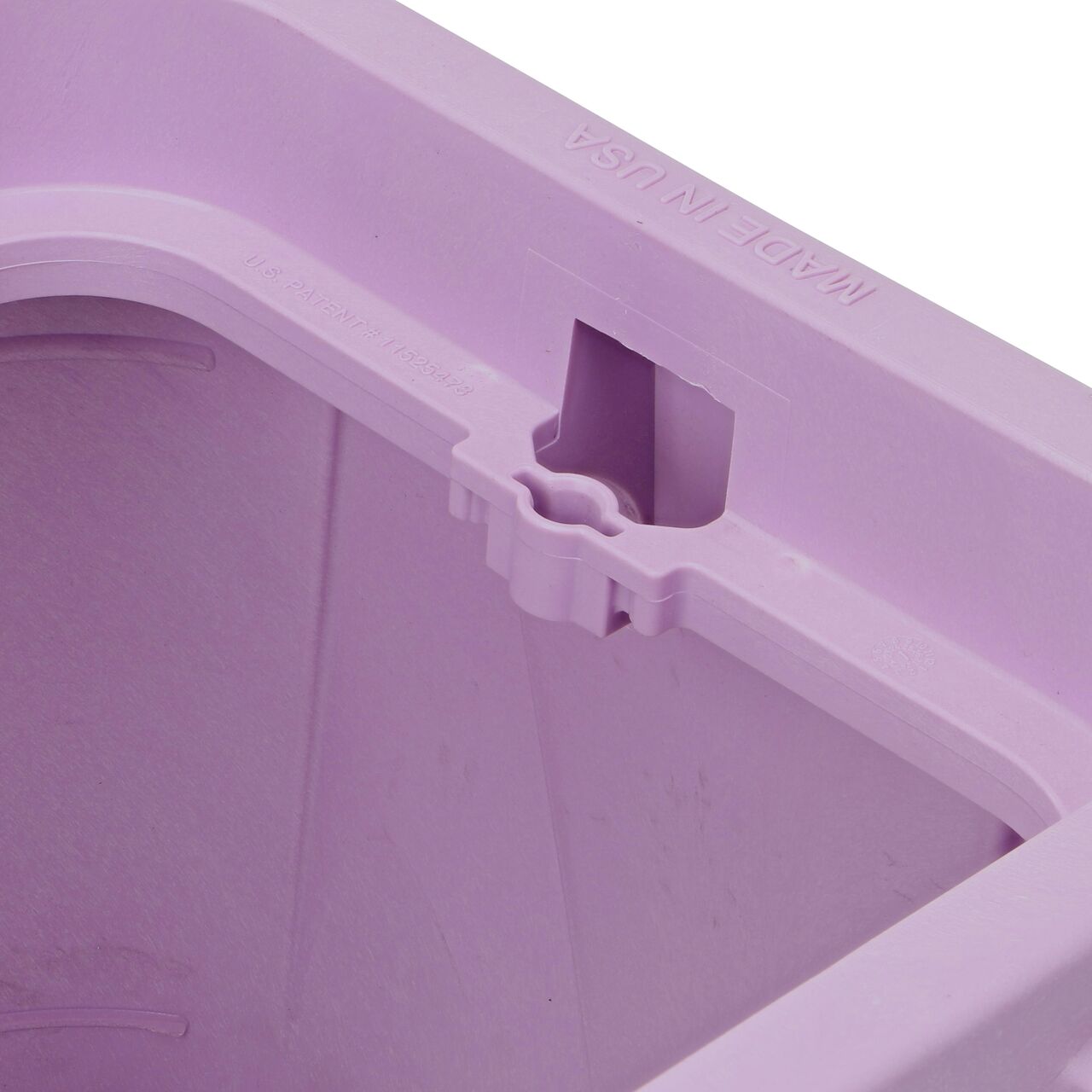

Closeup view of the bolt hole on the Purple NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Valve Box (NDS 314PBCBR) for securing valve lid or cover to the valve box

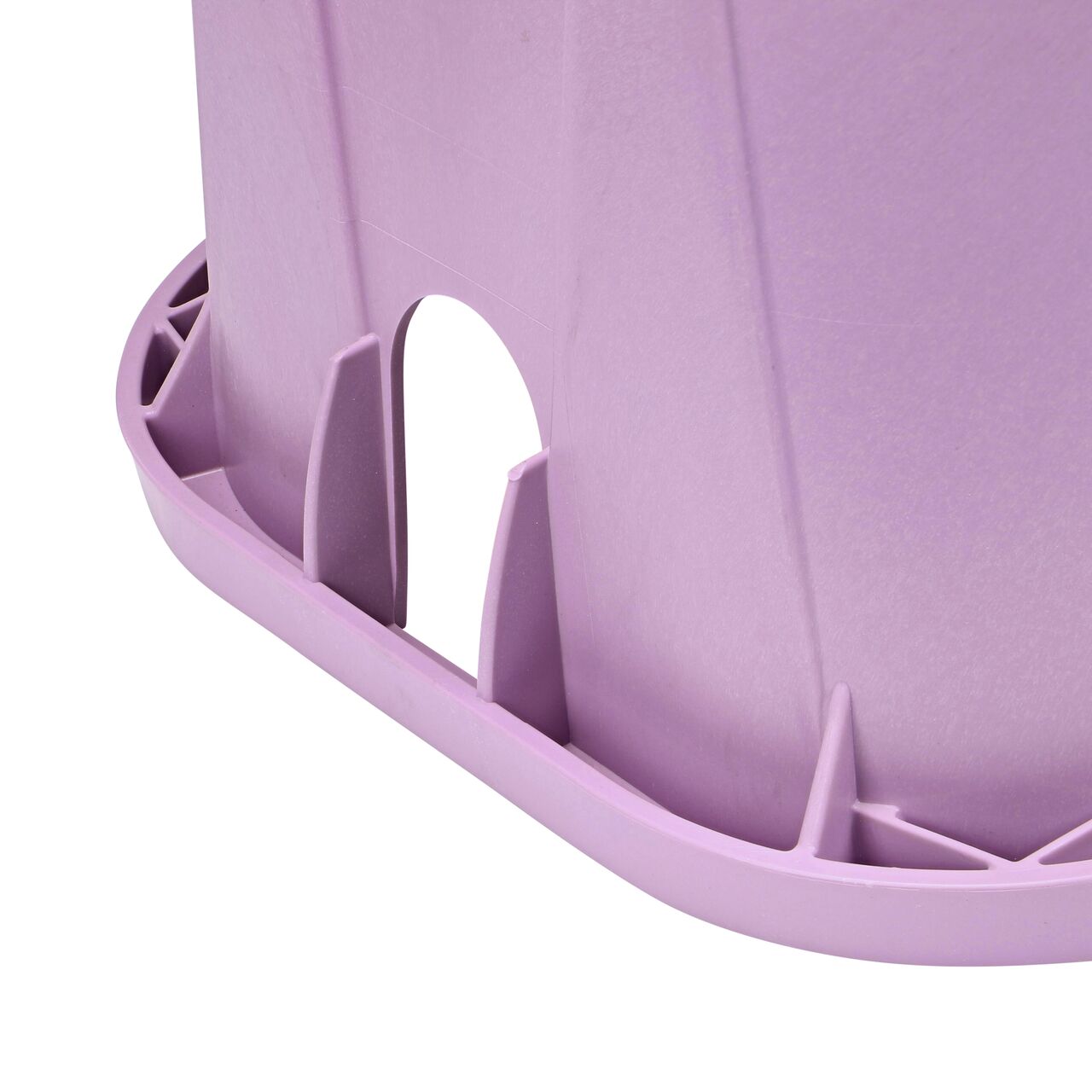

Closeup view of the pipe hole on the Purple NDS 14 X 19 in. Rectangular Pro-Spec® Series Valve Box (NDS 314PBCBR) for water and irrigation pipe connections

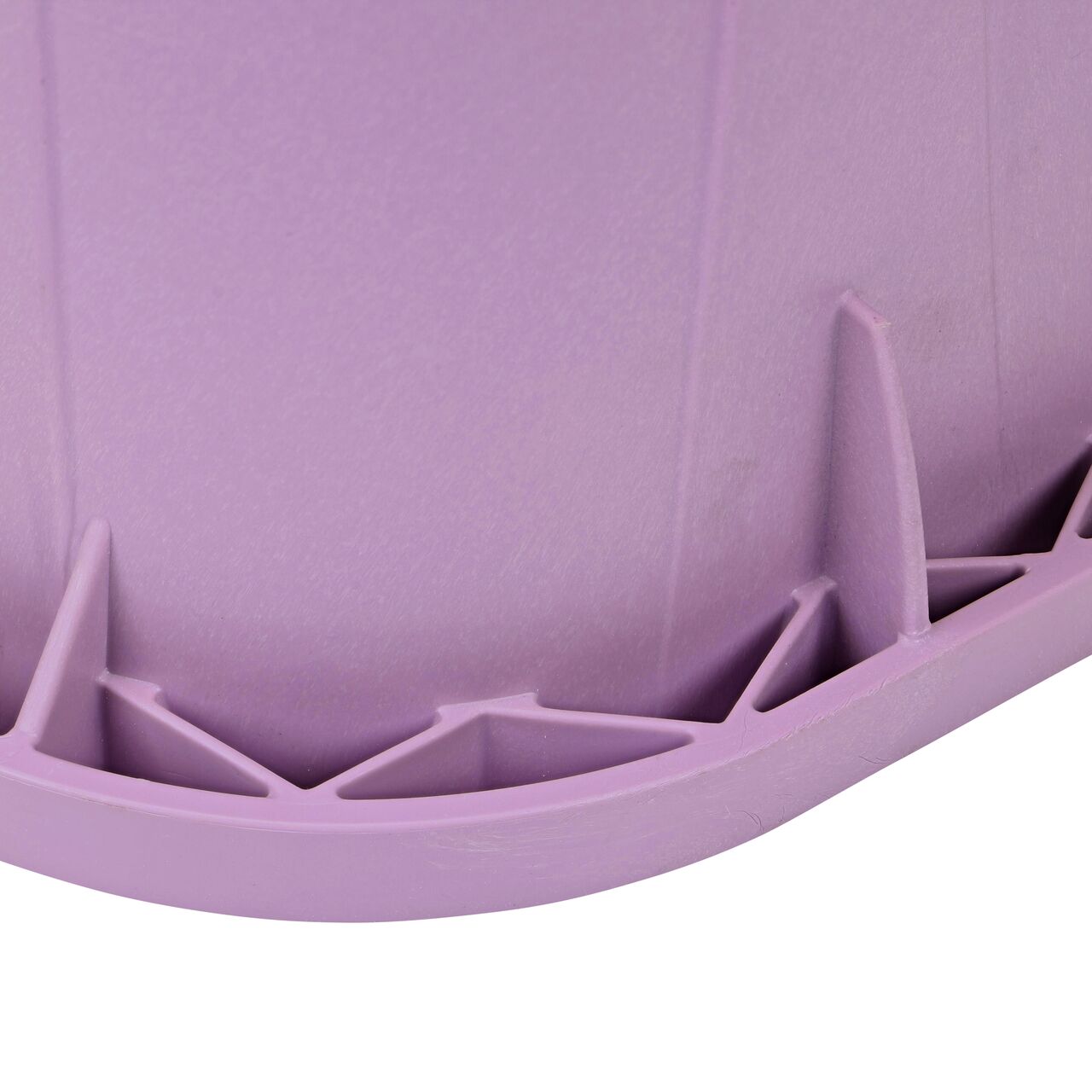

Closeup view of the outside reinforced edges on the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Box (NDS 314PBCBR)

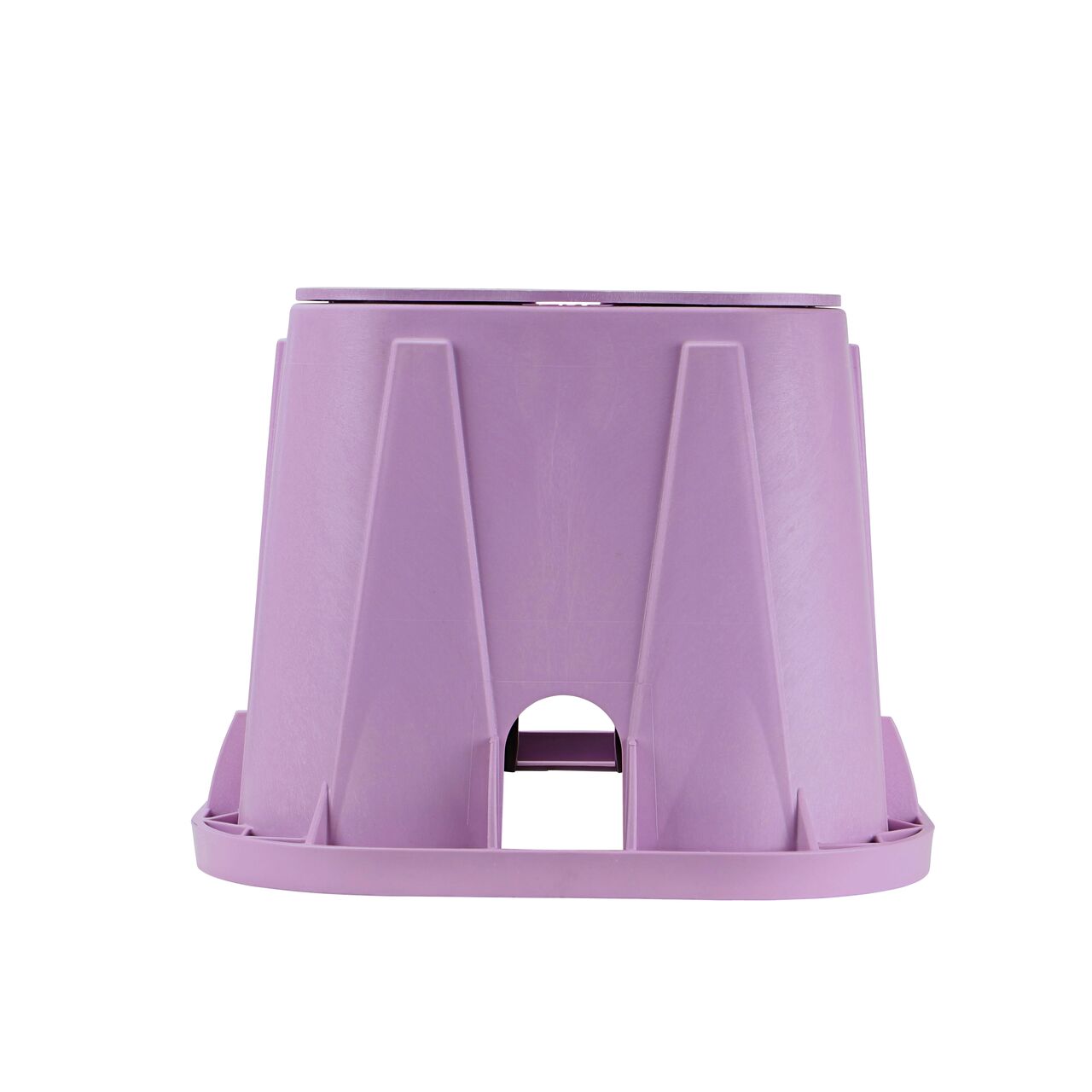

Side view of the shorter width side of the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Valve Box & Reclaimed Water Cover (NDS 314PBCBR) rugged enclosure that features a pipe hole for water and irrigation pipe connections

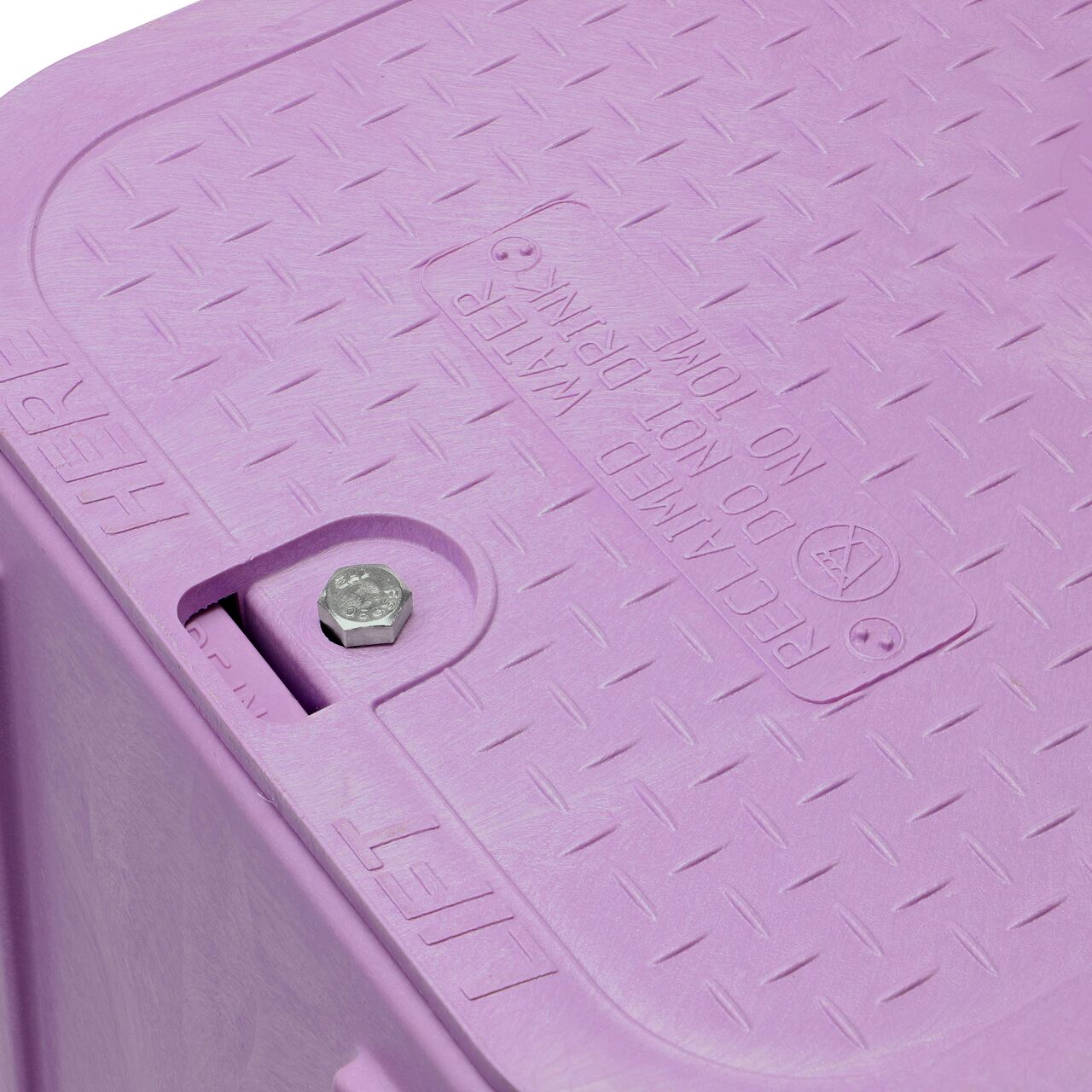

The valve box lid securely in place on the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Purple Box and Purple Reclaimed Water Cover (NDS 314PBCBR) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight

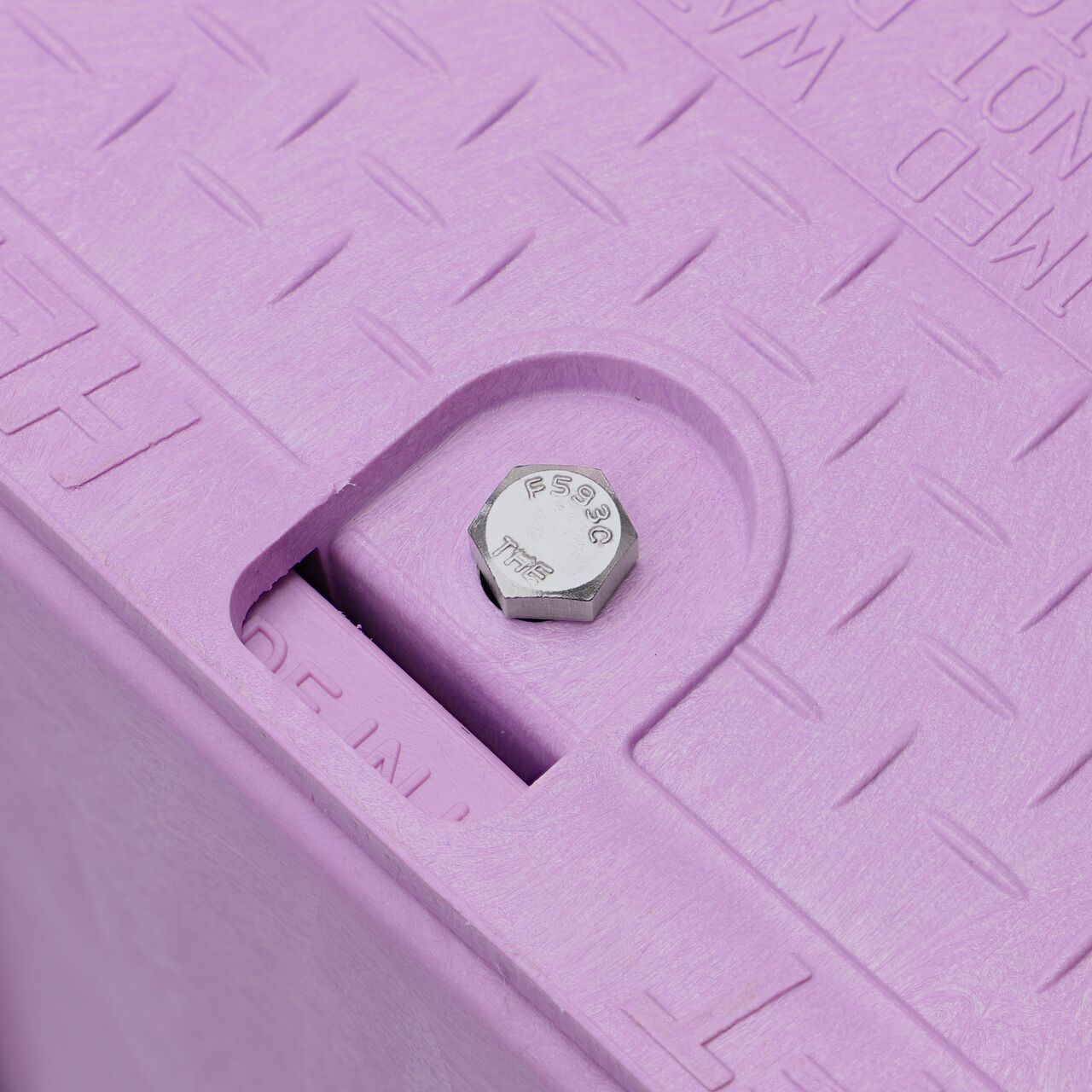

Closeup view of the inside reinforced edges on the NDS 14 in. X 19 in. Rectangular Pro-Spec® Series Valve Box and Cover (NDS 314PBCBR)

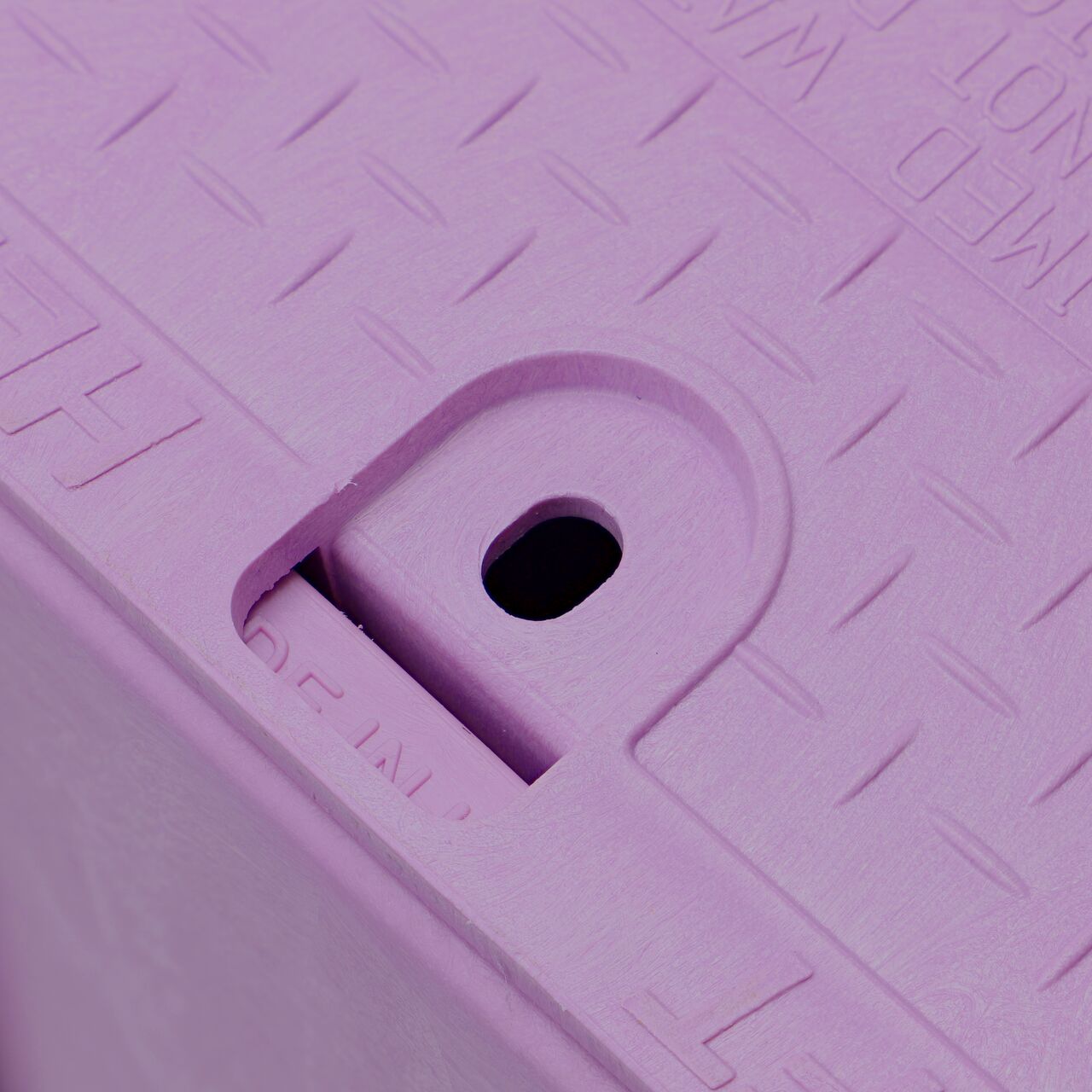

Closeup view of the traditional bolt hole on the Purple NDS 14 in. X 19 in. Rectangular Pro-Spec® Series Valve Box (NDS 314PBCBR) for securing valve lid or cover to the valve box
Unassembled View of the NDS 14 in. x 19 in. Purple Rectangular Pro-Spec® Series valve box and Purple Reclaimed Water cover (NDS 314PBCBR)
Align the bolt hole on the lid with the bolt hole from the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Purple Box and Purple Reclaimed Water Cover (NDS 314PBCBR) for a secure fit
Side view of the longer length side of the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Valve Box & Reclaimed Water Cover (NDS 314PBCBR) which is engineered for superior strength with structural reinforcing ribs
Closeup view of the bolt hole on the Purple NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Valve Box (NDS 314PBCBR) for securing valve lid or cover to the valve box
Closeup view of the pipe hole on the Purple NDS 14 X 19 in. Rectangular Pro-Spec® Series Valve Box (NDS 314PBCBR) for water and irrigation pipe connections
Closeup view of the outside reinforced edges on the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Box (NDS 314PBCBR)
Side view of the shorter width side of the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Valve Box & Reclaimed Water Cover (NDS 314PBCBR) rugged enclosure that features a pipe hole for water and irrigation pipe connections
The valve box lid securely in place on the NDS 14 in. x 19 in. Rectangular Pro-Spec® Series Purple Box and Purple Reclaimed Water Cover (NDS 314PBCBR) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight
Closeup view of the inside reinforced edges on the NDS 14 in. X 19 in. Rectangular Pro-Spec® Series Valve Box and Cover (NDS 314PBCBR)
Closeup view of the traditional bolt hole on the Purple NDS 14 in. X 19 in. Rectangular Pro-Spec® Series Valve Box (NDS 314PBCBR) for securing valve lid or cover to the valve box

Secure important underground components such as irrigation control valves, sewer cleanouts, and wire splices with the 14 in. X 19 in. Rectangular Pro-Spec® Series Valve Box and Cover. The commercial grade valve box is engineered with corrugated sidewalls for added strength while reducing material and weight. The durable enclosure features the patented Universal Locking Mechanism (ULM) that enables the valve box cover to be secured with a variety of bolts and screws (3/8 to 1/2 in. diameter, minimum 2-1/2 in. length) and without the need for a nut. A speed nut shelf is also built into the box as an alternative way to fasten the cover using the traditional bolt/screw and nut (bolt and nut not included). Built-in pipe holes allow piping to pass through the walls of the box so that the box does not rest on the pipe. Box stands 12 in. high and comes with an overlapping cover that keeps debris from entering the box. The cover is marked "RECLAIMED WATER" to identify components. The purple valve box is made of HighDensityPolyethyleneHDPE. The purple lid is made of polypropylene (PP). Both box and lid are treated with UV inhibitors to prevent fading and cracking, and come with a stainless steel bolt.

Applications:

  • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
  • Fits over underground irrigation components
  • Use to protect irrigation system components

Features:

  • Patented Universal Locking Mechanism (ULM) enables the valve box lid to be secured without requiring a traditional nut; works with a variety of bolts and screws from 3/8 in. to 1/2 in. in diameter and at least 2-1/2 in. long
  • Conceal and protect irrigation components without cluttering the landscape
  • Built to last with structural reinforcing ribs for durability; box made of HighDensityPolyethyleneHDPE and lid made with polyethylene (PP), both treated with UV inhibitors to stand up to the elements
  • Prevents debris from entering; overlapping cover can be levered open with a flathead screwdriver; easy installation with built-in pipe holes to accommodate irrigation pipe connections
  • Load rated to withstand pedestrian traffic and the rigors of lawn care equipment
