10 in. Round Standard Series Valve Box, 10 in. Height, Green

SKU: 112B

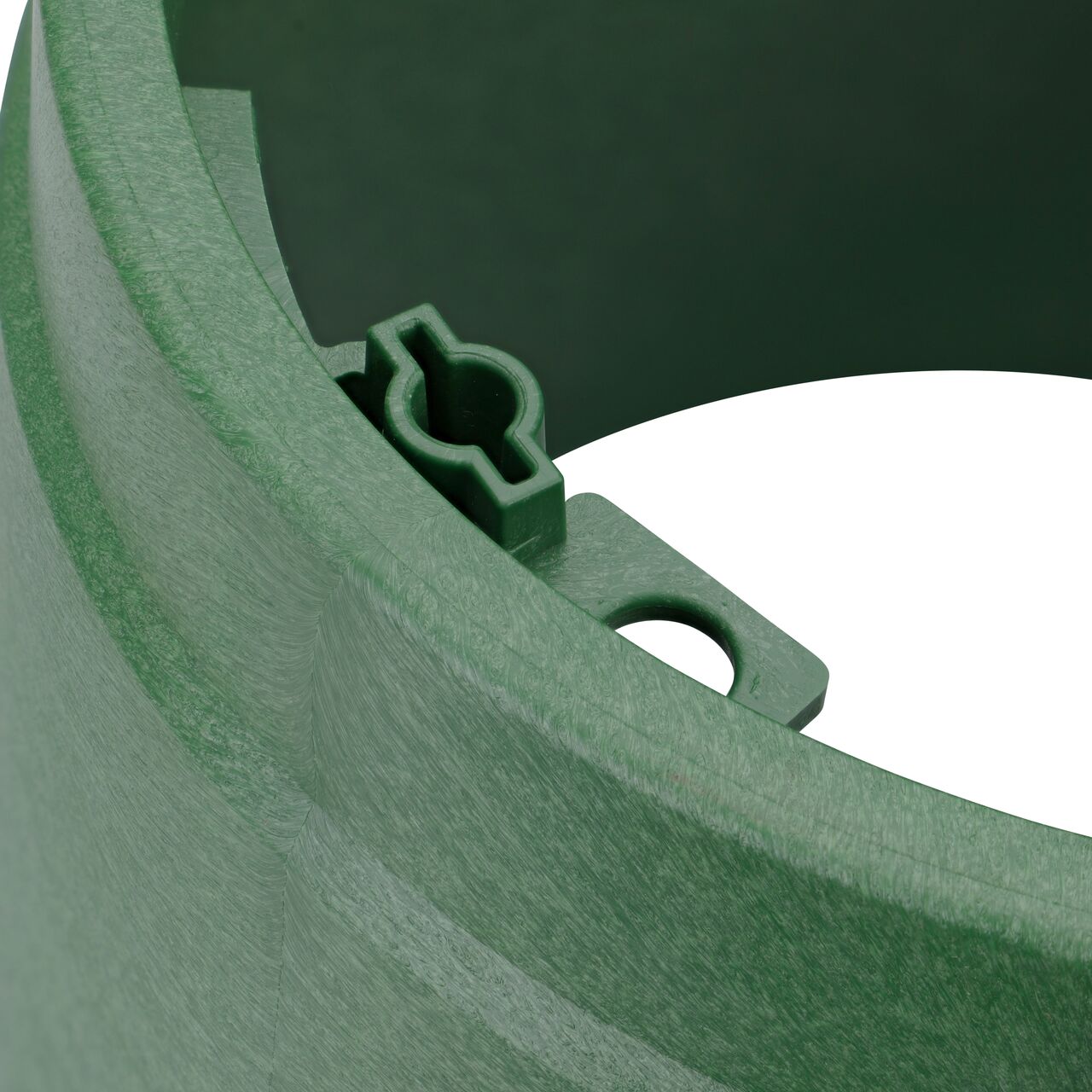

Closeup view on the bolt hole on the NDS green plastic 10 in. Round Standard Series Valve Box (NDS 112B)

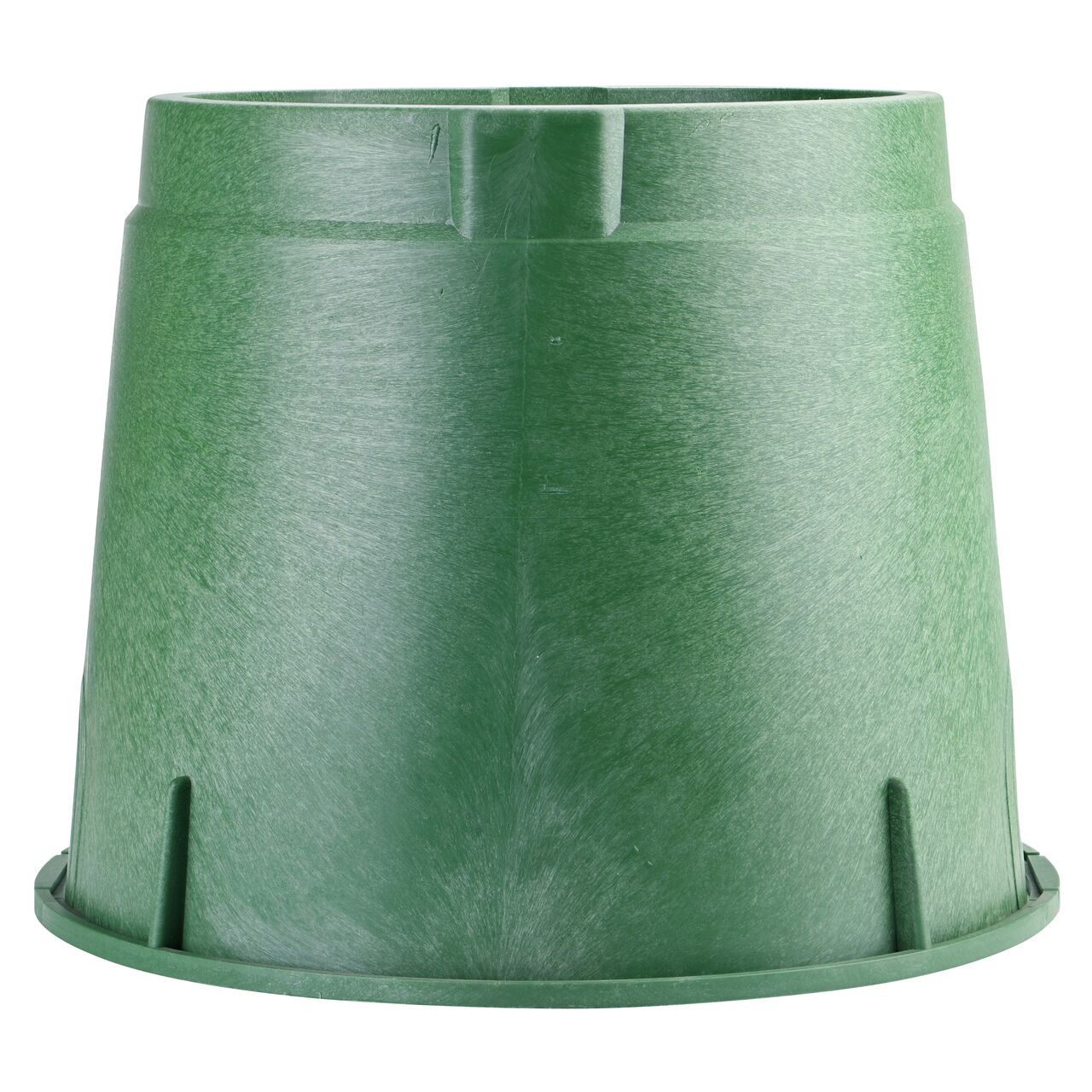

Side view of the non-pipe hole side on the NDS Green plastic 10 in. Round Standard Series Valve Box (NDS 112B) showing durability through the reinforced ribs and edging

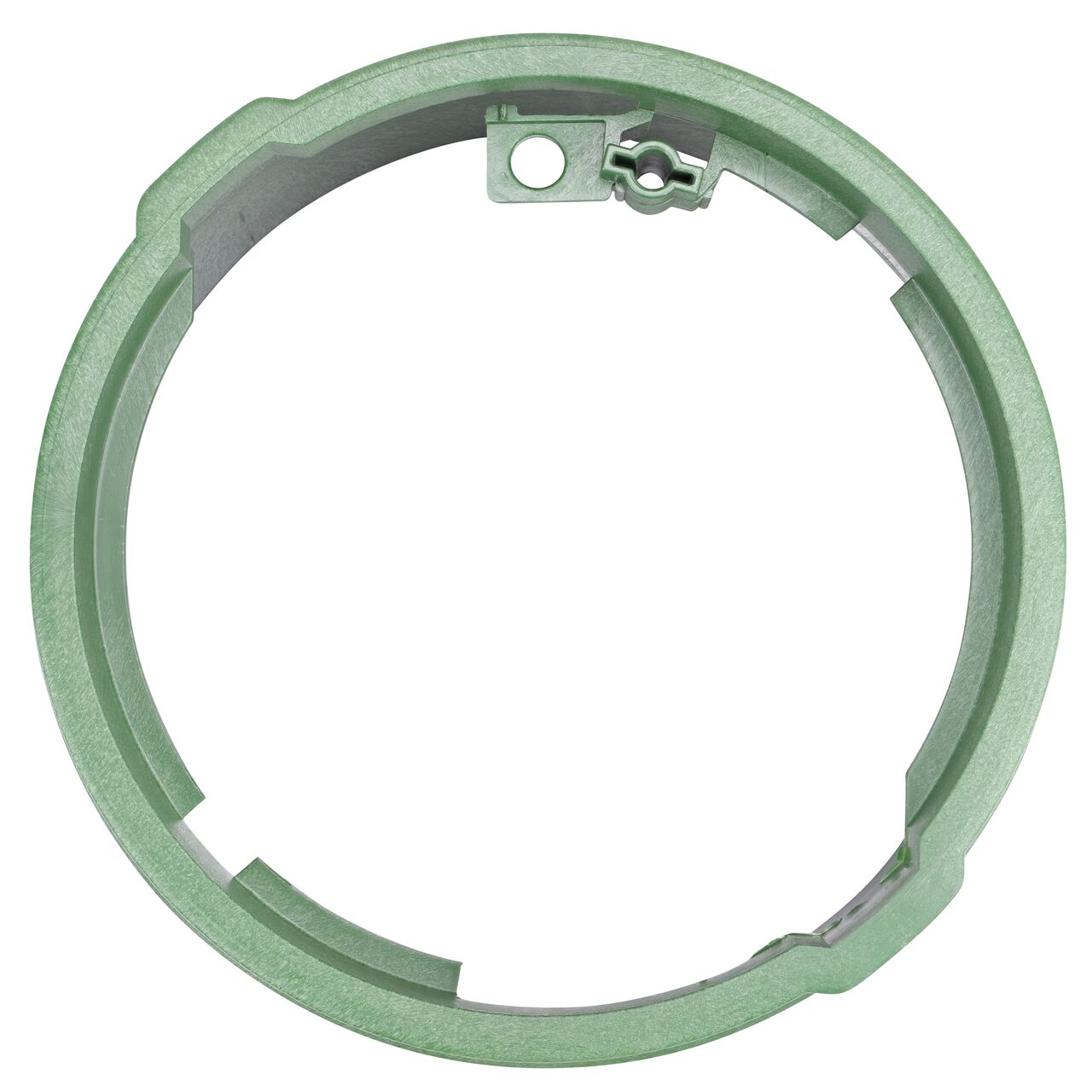

Top down view of the inside of the durable Green plastic 10 in. Round Standard Series Valve Box (NDS 112B) showing bolt hole, and twist and lock feature to secure the valve cover to the valve box

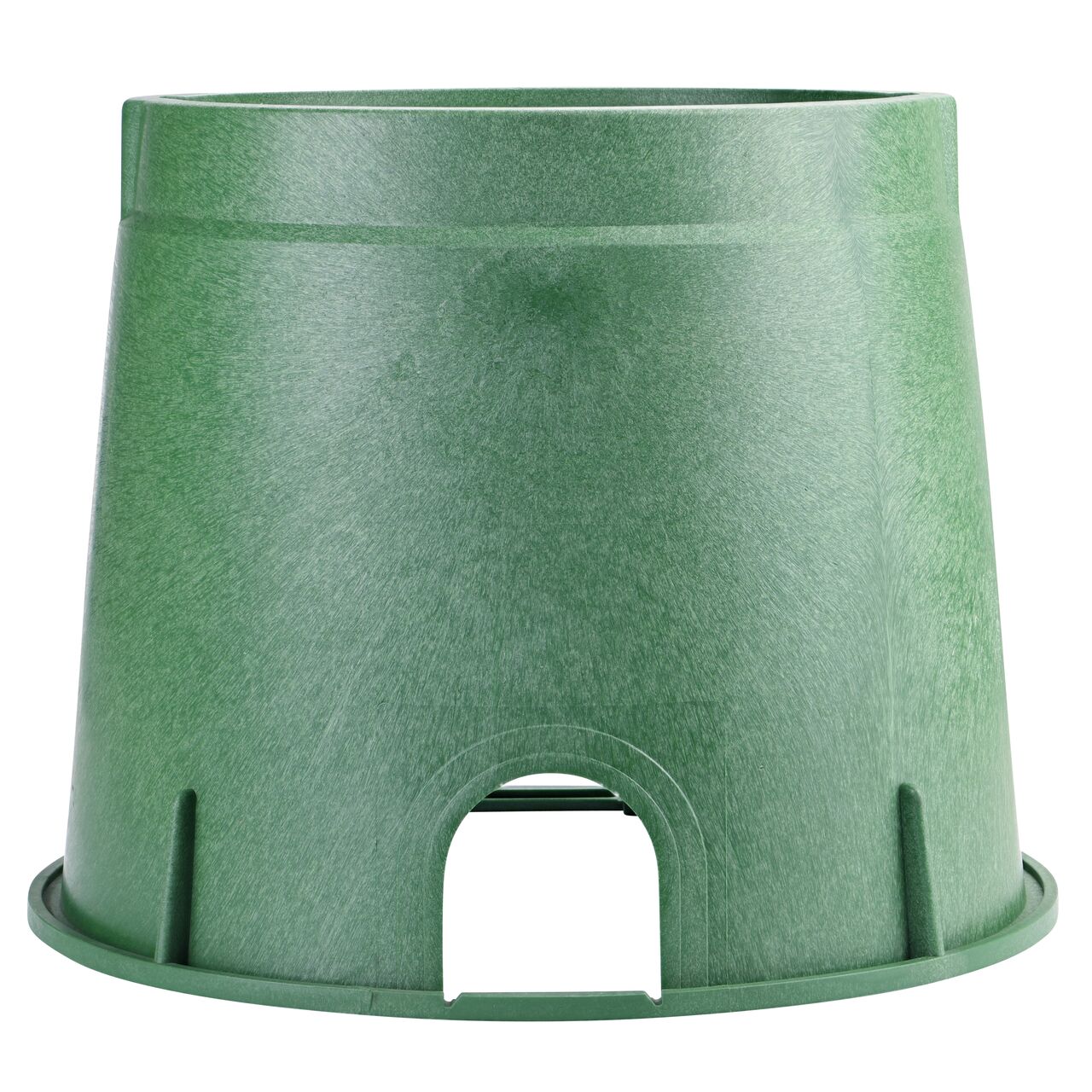

Side view of the pipe hole side on the NDS Green plastic 10 in. Round Standard Series Valve Box (NDS 112B) showing both pipe holes available to connect valves to your irrigation system

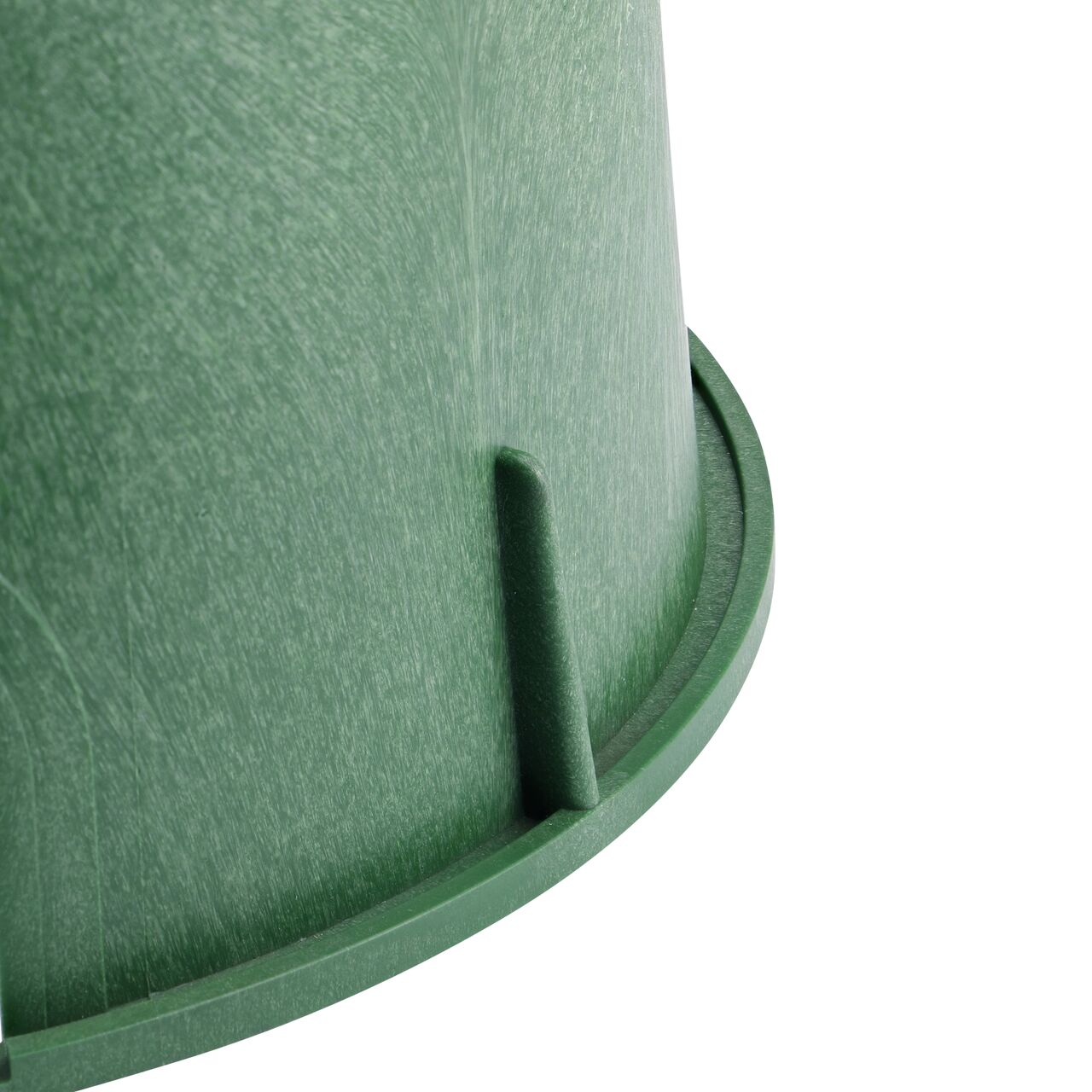

Closeup view of the outside reinforced edges on the NDS 10 in. Round Standard Series Valve Box (NDS 112B)

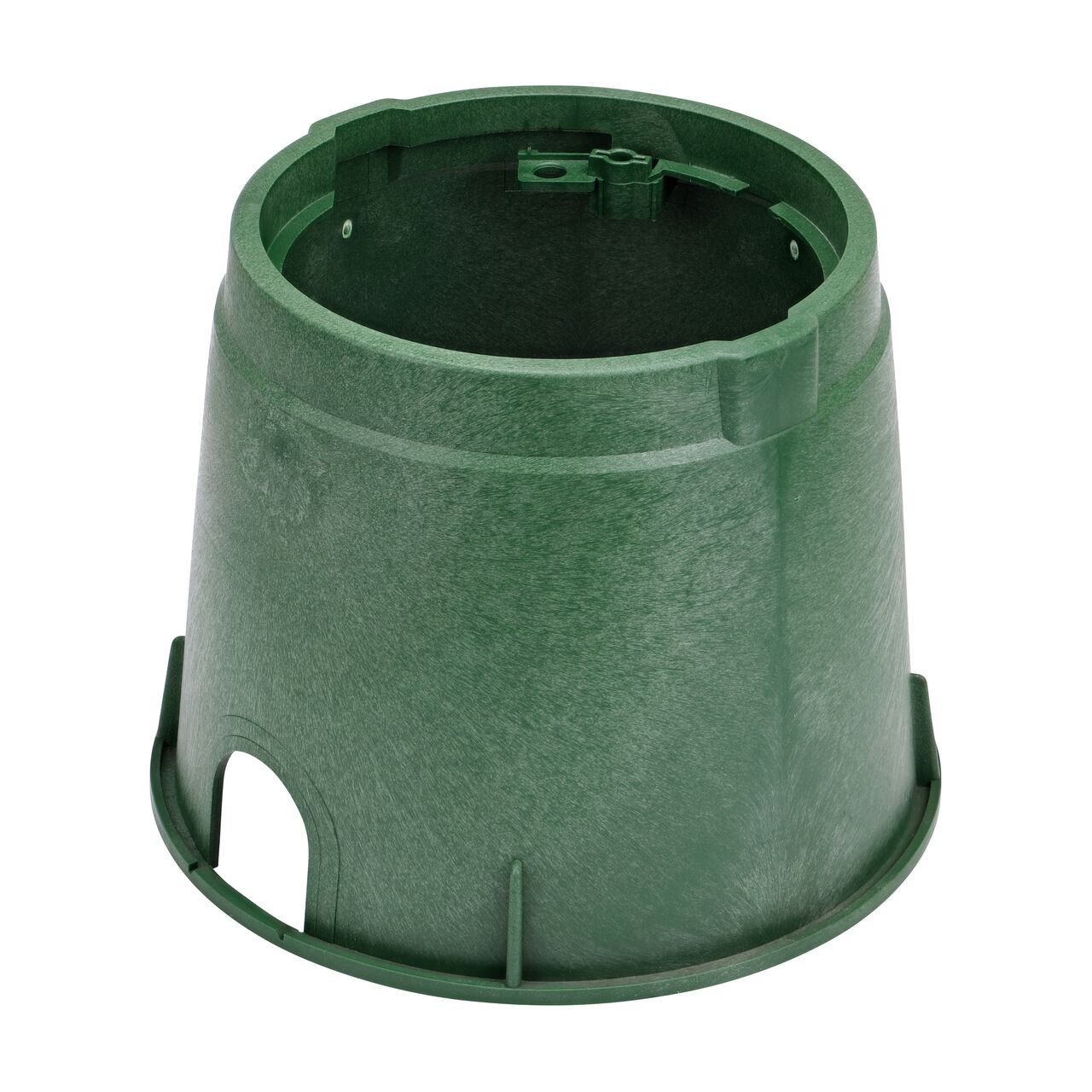

The NDS 10 in. Round Standard Series Valve Box is an 10 in. high Green Box that protects and conceals components (NDS 112B)

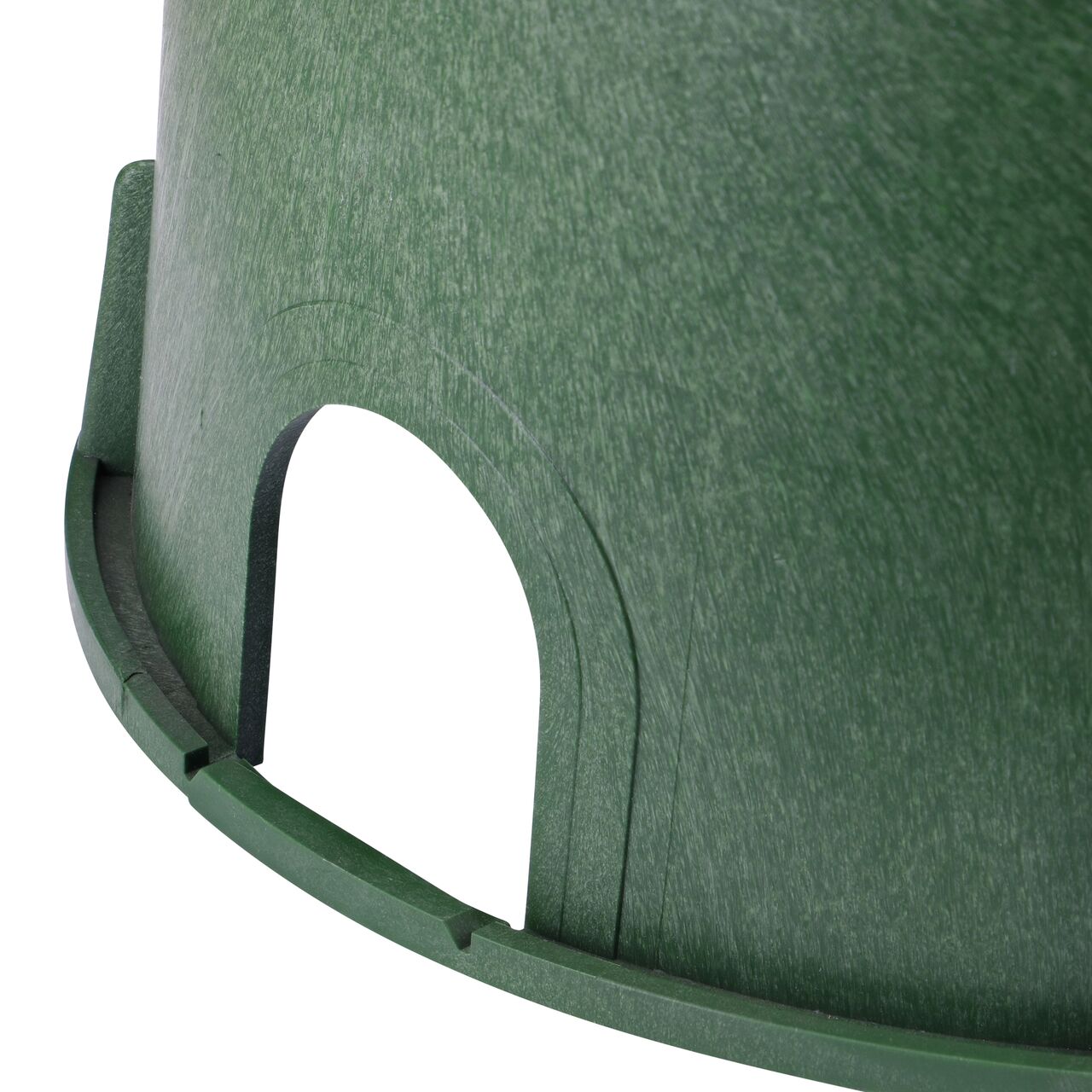

Closeup view of the pipe hole on the NDS Green plastic 10 in. Round Standard Series Valve Box (NDS 112B)
Closeup view on the bolt hole on the NDS green plastic 10 in. Round Standard Series Valve Box (NDS 112B)
Side view of the non-pipe hole side on the NDS Green plastic 10 in. Round Standard Series Valve Box (NDS 112B) showing durability through the reinforced ribs and edging
Top down view of the inside of the durable Green plastic 10 in. Round Standard Series Valve Box (NDS 112B) showing bolt hole, and twist and lock feature to secure the valve cover to the valve box
Side view of the pipe hole side on the NDS Green plastic 10 in. Round Standard Series Valve Box (NDS 112B) showing both pipe holes available to connect valves to your irrigation system
Closeup view of the outside reinforced edges on the NDS 10 in. Round Standard Series Valve Box (NDS 112B)
The NDS 10 in. Round Standard Series Valve Box is an 10 in. high Green Box that protects and conceals components (NDS 112B)
Closeup view of the pipe hole on the NDS Green plastic 10 in. Round Standard Series Valve Box (NDS 112B)

Shield underground irrigation and sprinkler system parts from damage with the 10 in. Round Standard Series Valve Box. The green access box stands 10 in. high with structural support ribs for durability. This valve box features the patented Universal Locking Mechanism (ULM) that enables the valve box cover to be secured without the use of a nut and works with a variety of bolts and screws (5/16 to 3/8 in. diameter, minimum 1-1/2 in. length); cover can also be bolted down using the built-in speed nut shelf with nut and bolt if desired (cover, nut and bolt not included). The rugged enclosure features a pipe hole to enable water and irrigation pipe connections. Designed to work with the overlapping 10 in. Round Standard Series Valve Box Cover. The irrigation valve box is made of polypropylene (PP) treated with UV inhibitors.

Where to Buy Find a Pro

Applications:

  • Use with cover (sold separately) to protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
  • Fits on top of the 10 in. Round Standard Series Valve Box
  • Use to protect irrigation system components

Features:

  • Conceal and protect irrigation components without cluttering the landscape
  • Built to last with structural reinforcing ribs for durability; made of polypropylene (PP) treated with UV inhibitors to stand up to the elements
  • Load rated to withstand pedestrian traffic and the rigors of lawn care equipment
  • Easy installation with built-in pipe hole to accommodate irrigation pipe connections
