10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Green Box, Green Sewer Cover

SKU: 112BCS

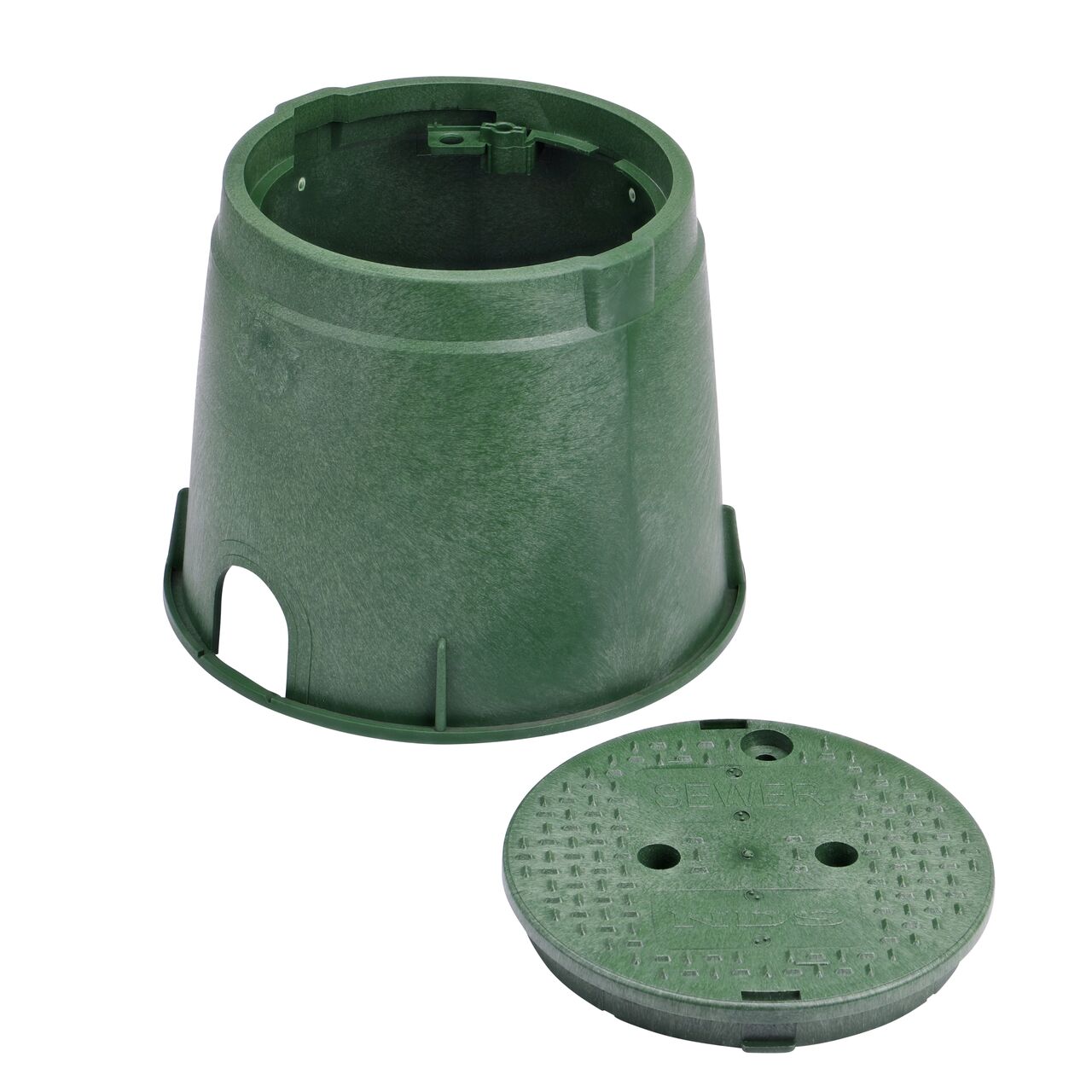

Unassembled View of the NDS 10 in. Round Standard Series Green Box and Green Sewer Cover (NDS 112BCS) showing the overlapping cover with a bayonet twist-lock lid featuring two finger slots, making it easy to remove or secure onto the box

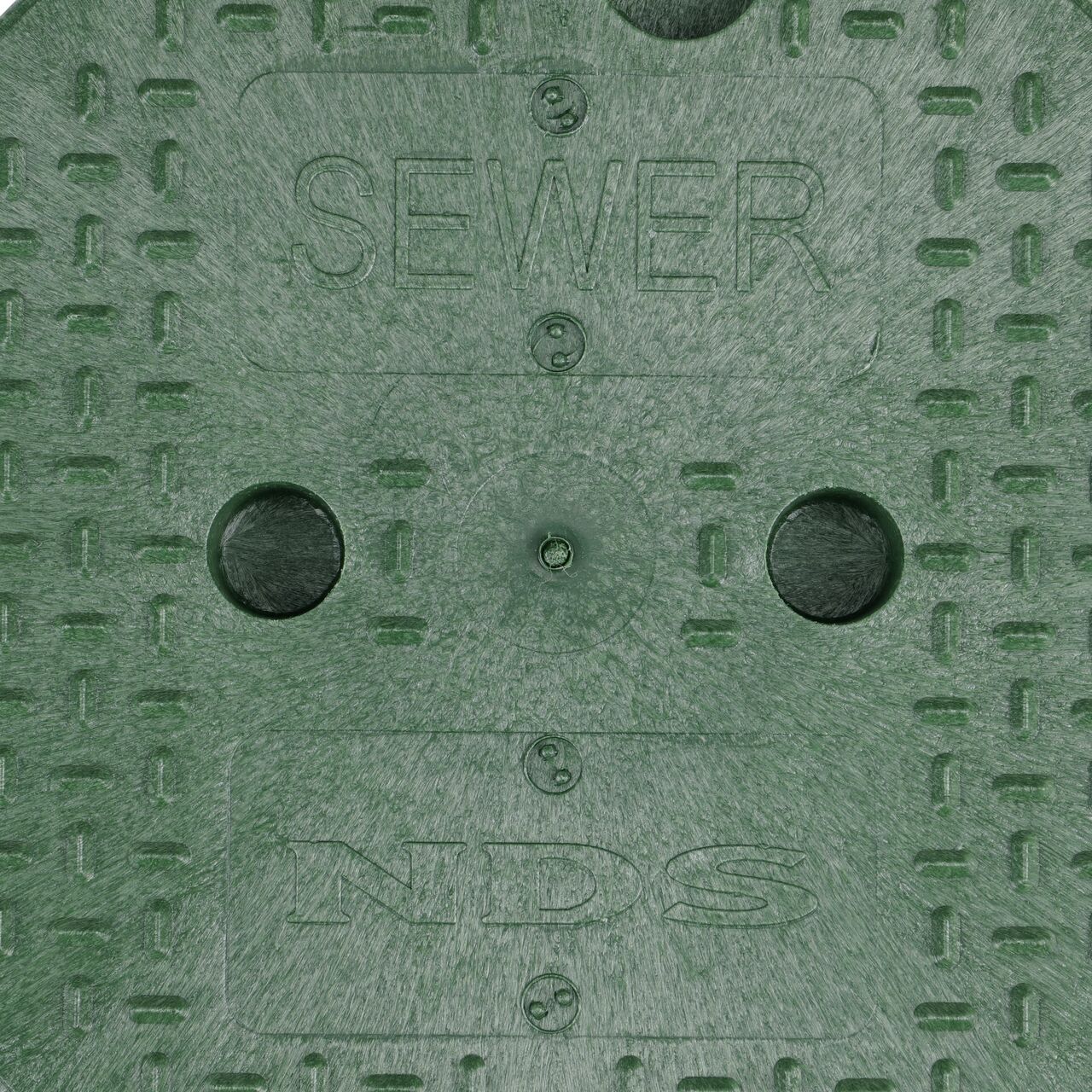

Closeup view of the Sewer Markings on the Green Sewer cover for the NDS 10 in. Round Standard Series Valve Box (NDS 112BCS)

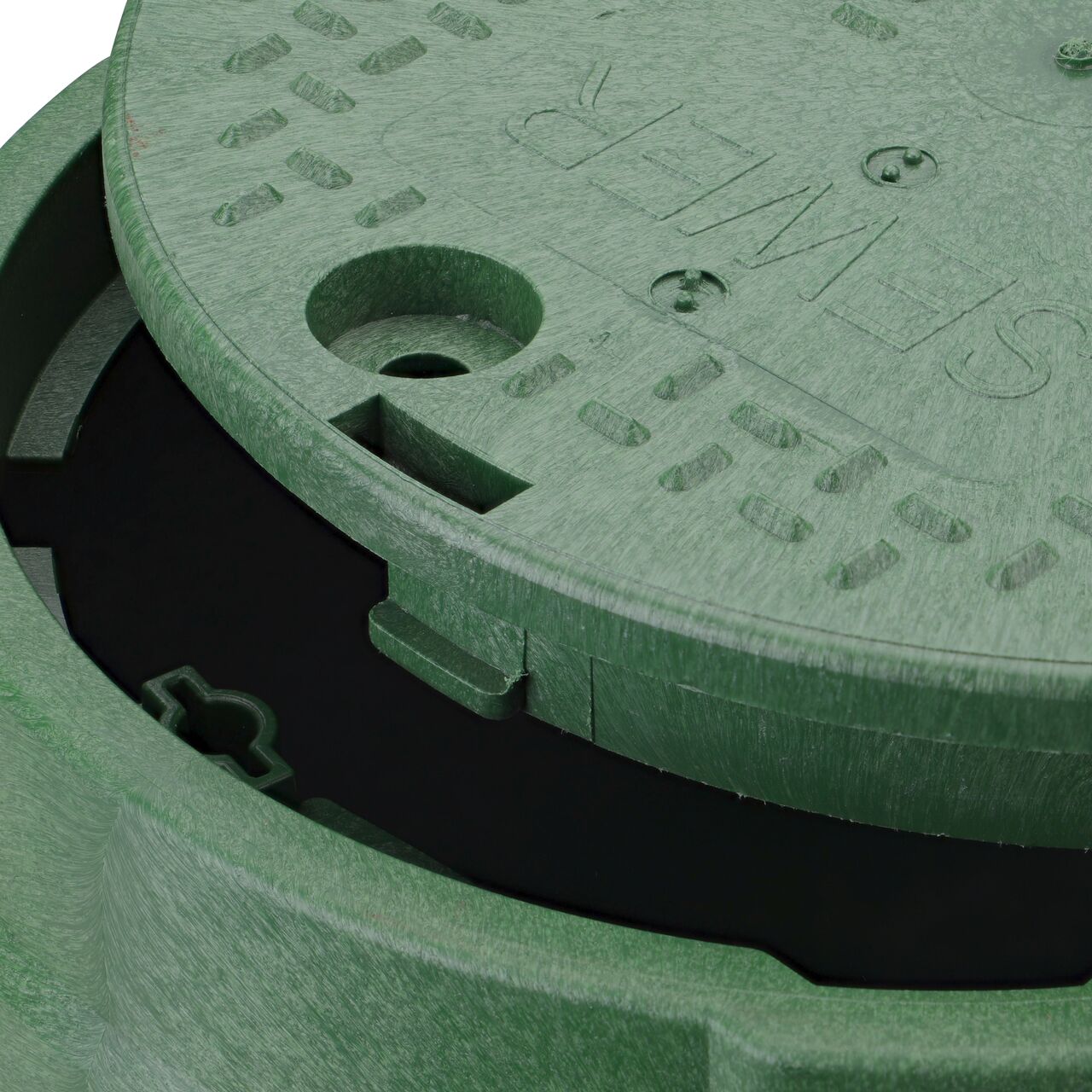

Align the bolt hole on the lid with the bolt hole from the NDS 10 in. Round Standard Series Green Box and Green Sewer Cover (NDS 112BCS) for a secure fit

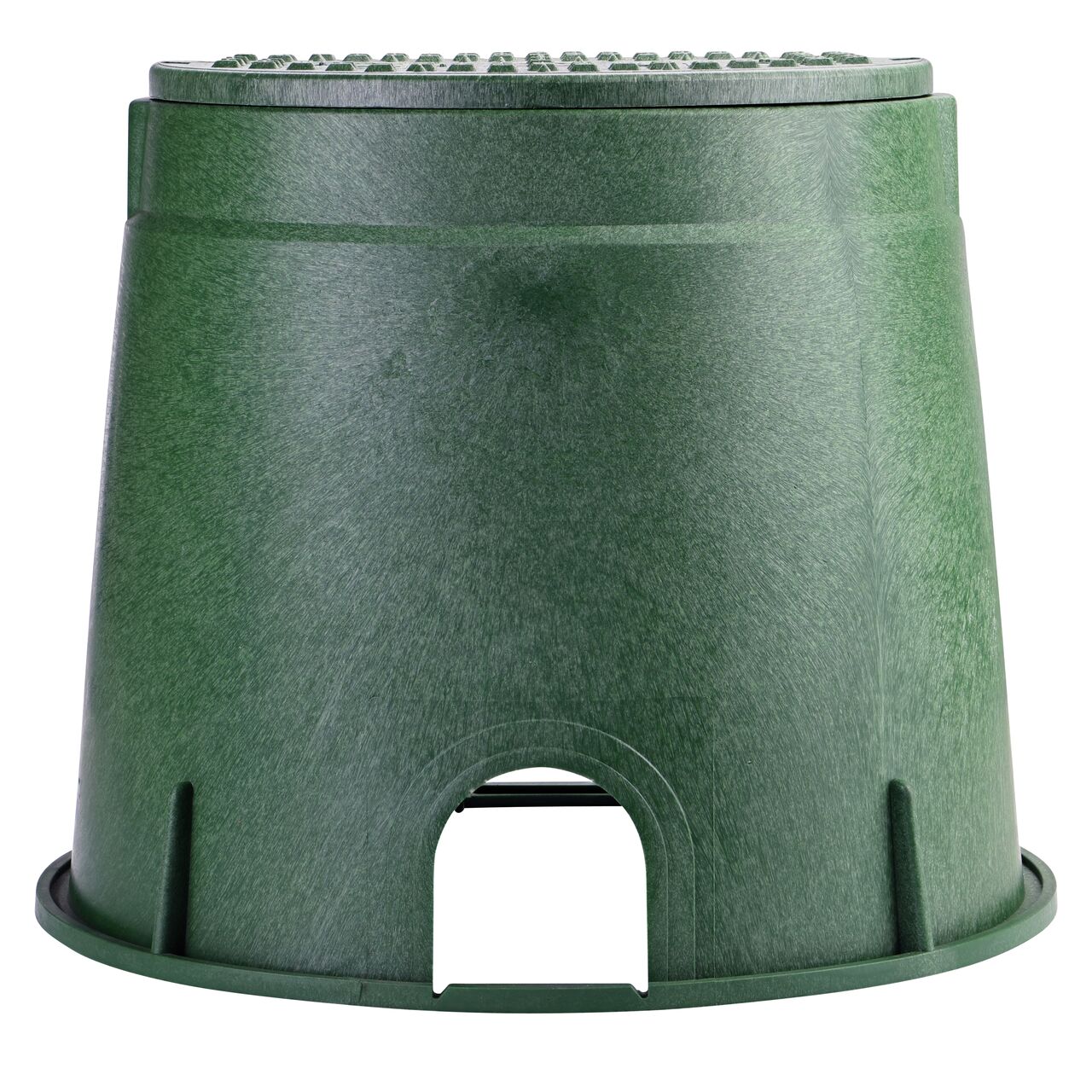

Side view of the shorter width side of the NDS 10 in. Round Standard Series Valve Box & Sewer Cover (NDS 112BCS) rugged enclosure that features a pipe hole for water and irrigation pipe connections

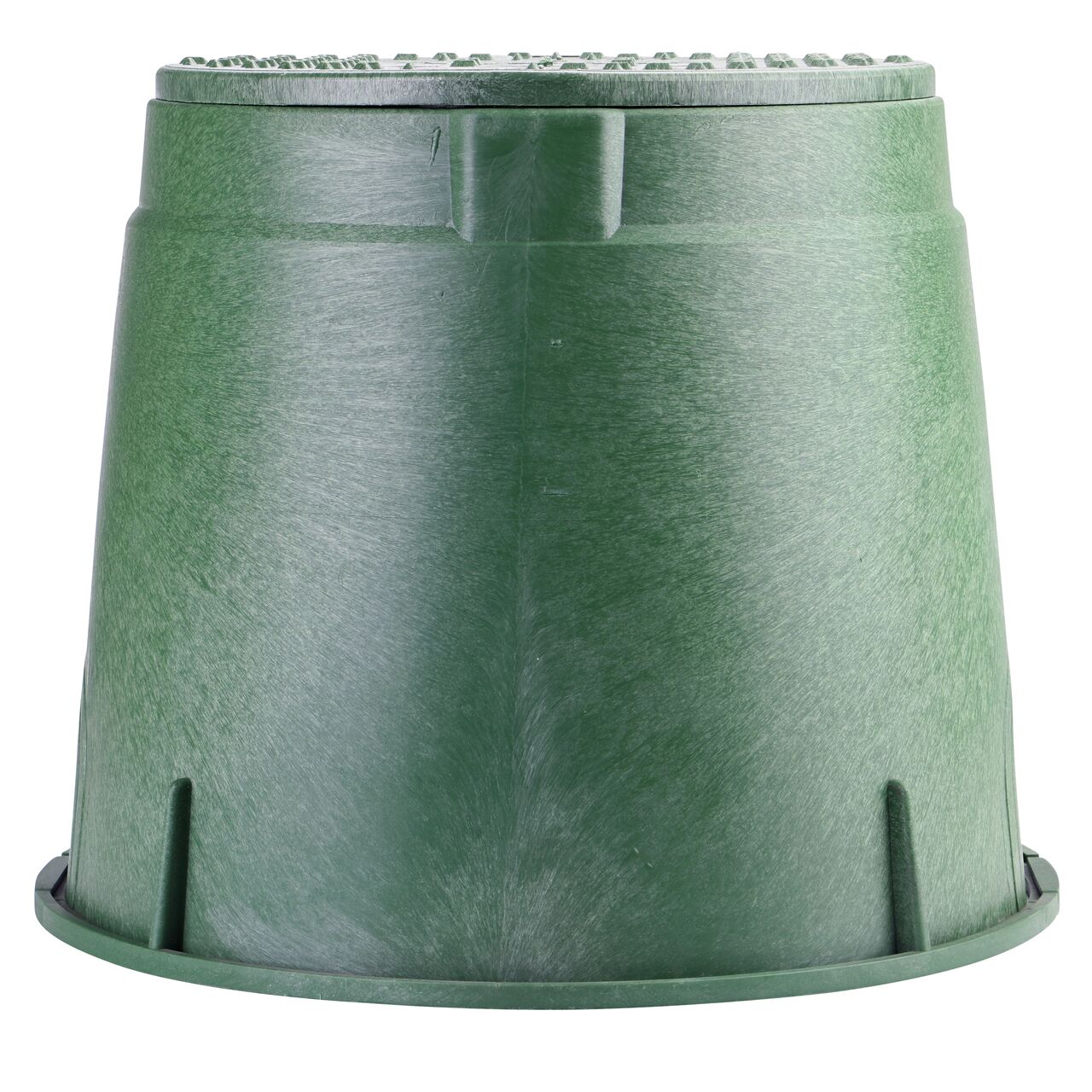

Side view of the longer length side of the NDS 10 in. Round Standard Series Valve Box & Sewer Cover (NDS 112BCS) which is engineered for superior strength with structural reinforcing ribs

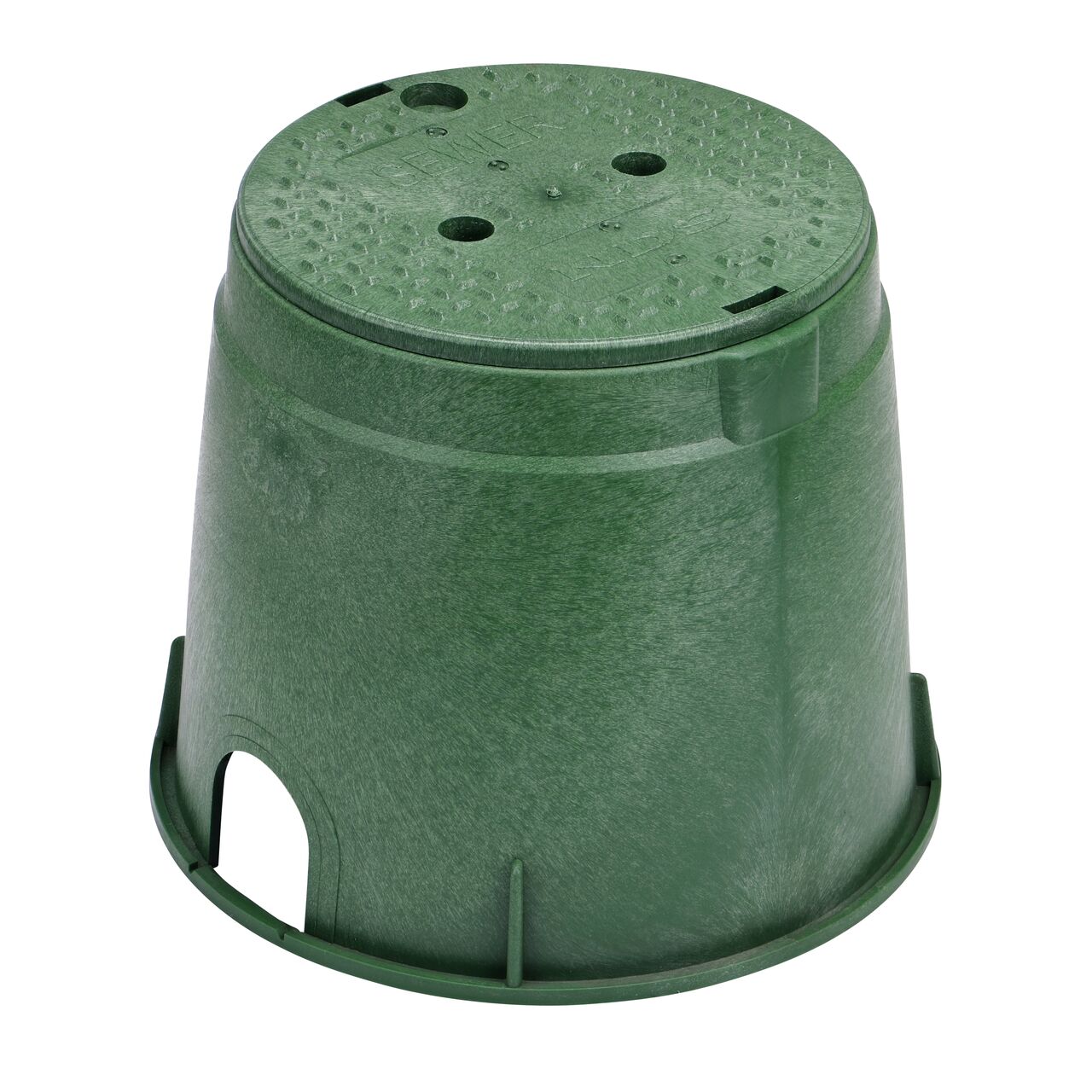

The NDS 10 in. Round Standard Series Valve Box and Cover is an 10 in. Green Black Box and Green Cover with Sewer markings on the lid (NDS 112BCS) protect underground irrigation and sprinkler system components and keep them out of sight
Unassembled View of the NDS 10 in. Round Standard Series Green Box and Green Sewer Cover (NDS 112BCS) showing the overlapping cover with a bayonet twist-lock lid featuring two finger slots, making it easy to remove or secure onto the box
Closeup view of the Sewer Markings on the Green Sewer cover for the NDS 10 in. Round Standard Series Valve Box (NDS 112BCS)
Align the bolt hole on the lid with the bolt hole from the NDS 10 in. Round Standard Series Green Box and Green Sewer Cover (NDS 112BCS) for a secure fit
Side view of the shorter width side of the NDS 10 in. Round Standard Series Valve Box & Sewer Cover (NDS 112BCS) rugged enclosure that features a pipe hole for water and irrigation pipe connections
Side view of the longer length side of the NDS 10 in. Round Standard Series Valve Box & Sewer Cover (NDS 112BCS) which is engineered for superior strength with structural reinforcing ribs
The NDS 10 in. Round Standard Series Valve Box and Cover is an 10 in. Green Black Box and Green Cover with Sewer markings on the lid (NDS 112BCS) protect underground irrigation and sprinkler system components and keep them out of sight

Shield underground irrigation and sprinkler system parts from damage with the 10 in. Round Standard Series Valve Box and Cover. The green access box stands 10 in. high with structural support ribs for durability. This valve box features the patented Universal Locking Mechanism (ULM) that enables the valve box cover to be secured without the use of a nut and works with a variety of bolts and screws (5/16 to 3/8 in. diameter, minimum 1-1/2 in. length); cover can also be bolted down using the built-in speed nut shelf with nut and bolt if desired (nut and bolt not included). The rugged enclosure has a pipe hole to enable water and irrigation pipe connections. The overlapping cover prevents dirt and debris from entering the valve box. The bayonet twist-lock lid features two finger indentations to allow the lid to be easily removed or attached onto the box. The green valve box lid is marked "SEWER" for component identification. The irrigation valve box is made of polypropylene (PP) and the cover is made of high-density polyethylene (HDPE), both treated with UV inhibitors.

Applications:

  • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
  • Fits over underground irrigation components
  • Use to protect irrigation system components

Features:

  • Patented Universal Locking Mechanism (ULM) enables the valve box lid to be secured without requiring a traditional nut; works with a variety of bolts and screws from 5/16 in. to 3/8 in. in diameter and at least 1-1/2 in. long
  • Built to last with structural reinforcing ribs for durability; box made of polyethylene (PP) and lid made with high-density polyethylene (HDPE), both treated with UV inhibitors to stand up to the elements
  • Prevent debris from entering; overlapping twist-lock cover with two fingerholes is easy to remove
  • Load rated to withstand pedestrian traffic and the rigors of lawn care equipment
  • Easy installation with built-in pipe hole to accommodate irrigation pipe connections
