14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Black ICV Cover

SKU: 113BCBLK

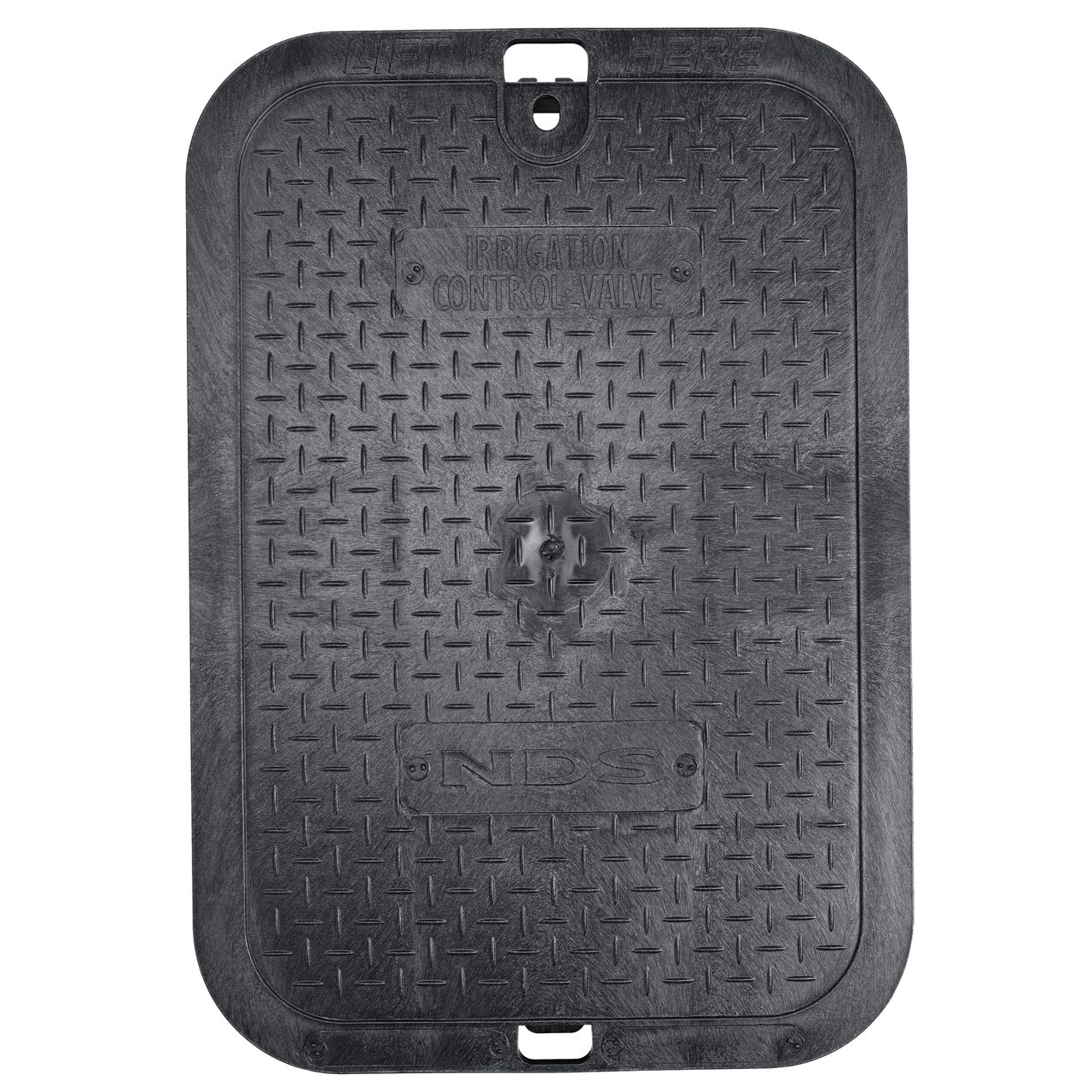

Top down view of the top side of the Black Irrigation Control Valve cover for the NDS 14 X 19 in. Rectangular Standard Series (NDS 113BCBLK) shows markings for easy identification

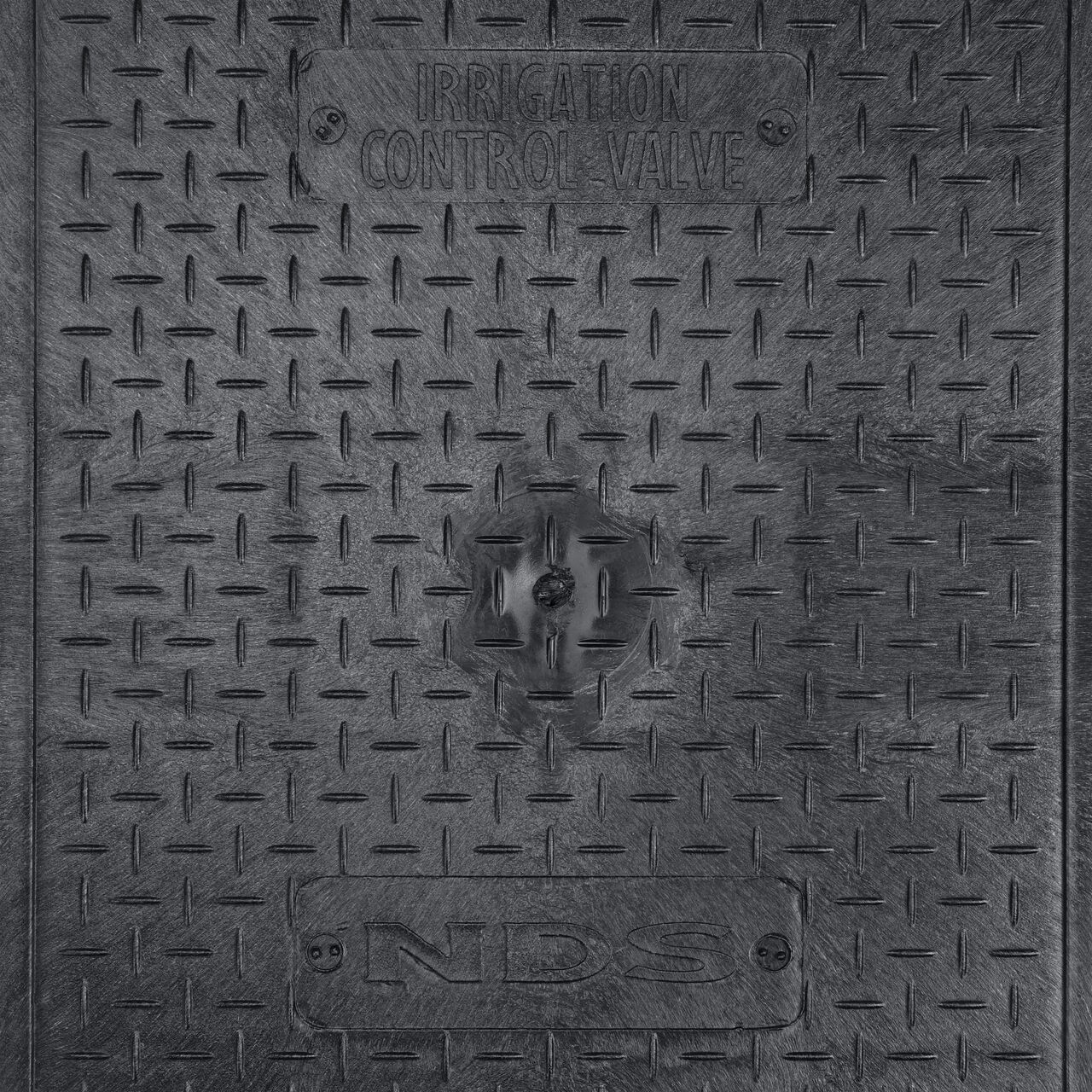

Closeup view of the NDS logo and Irrigation Control Valve markings on the Black Irrigation Control Valve cover for the NDS 14 in. X 19 in. Rectangular Standard Series Valve Box (NDS 113BCBLK)

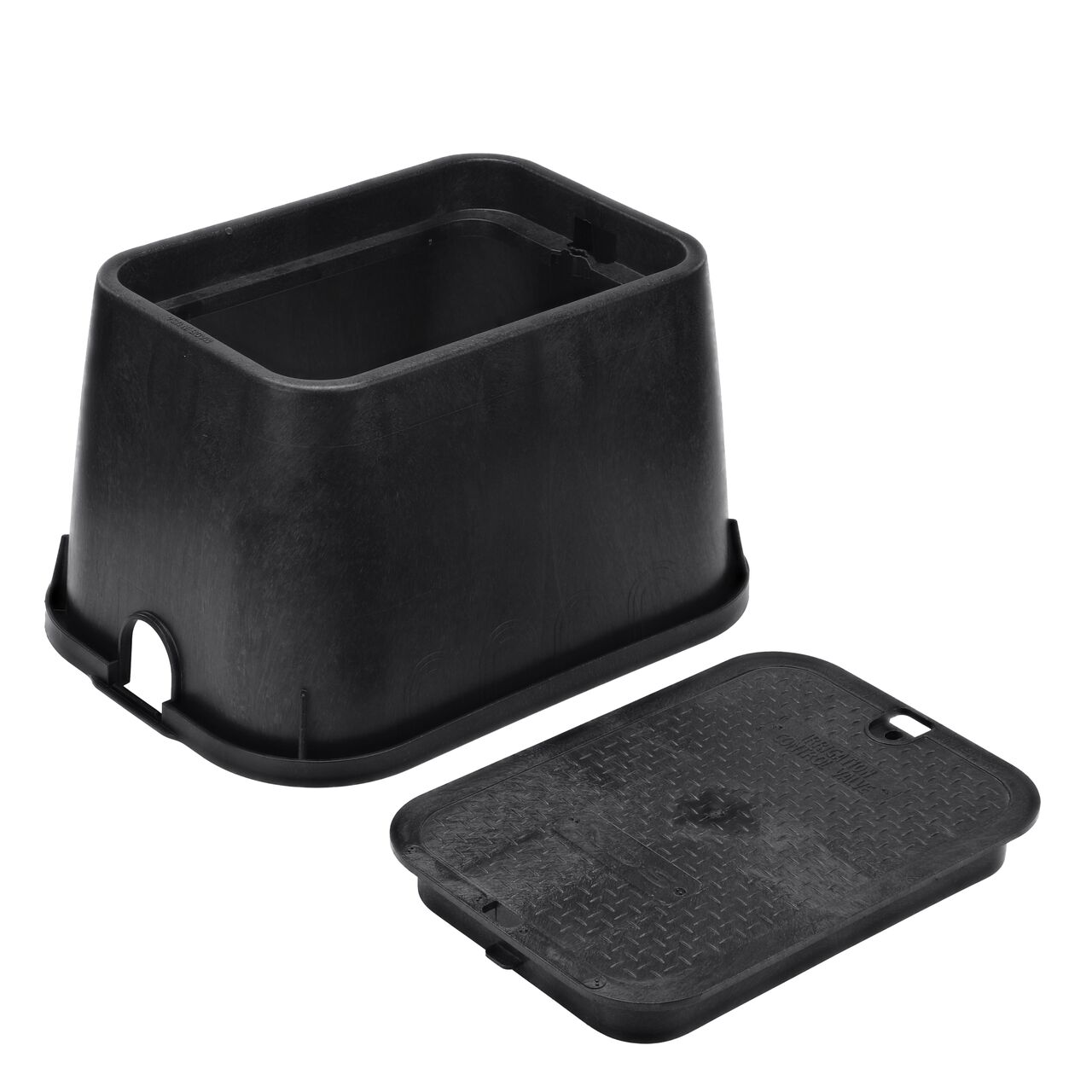

Unassembled View of the NDS 14 X 19 in. Rectangular Standard Series Black Box and Black Irrigation Control Valve cover with bolt (NDS 113BCBLK), that secures the overlapping lid onto the box

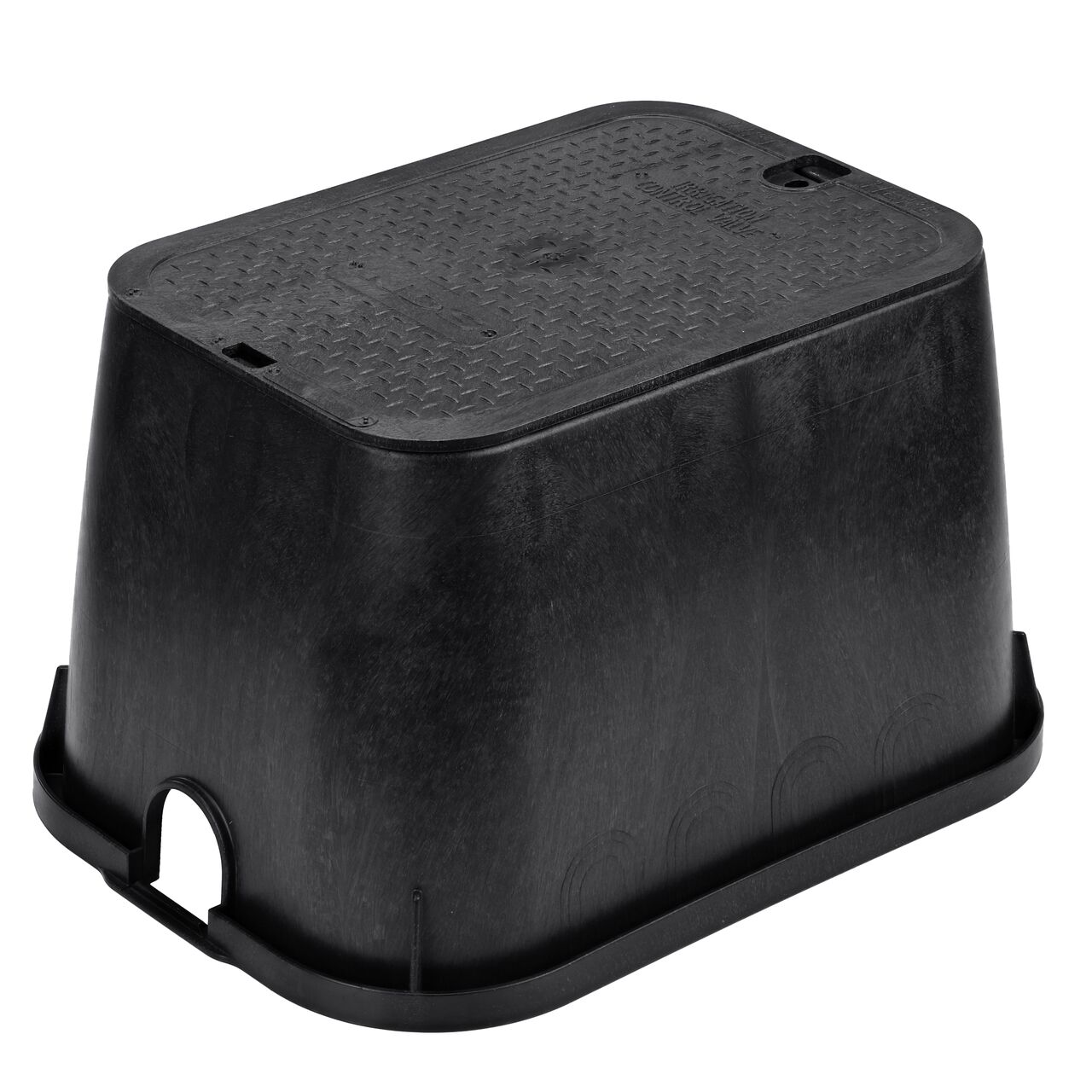

The NDS 14 X 19 in. Rectangular Standard Series Valve Box and Cover with Bolt is a 12 in. high Black Box and Black Cover with Irrigation Control Valve markings on the overlapping lid (NDS 113BCBLK) and protects underground irrigation and sprinkler system components and keeps them out of sight

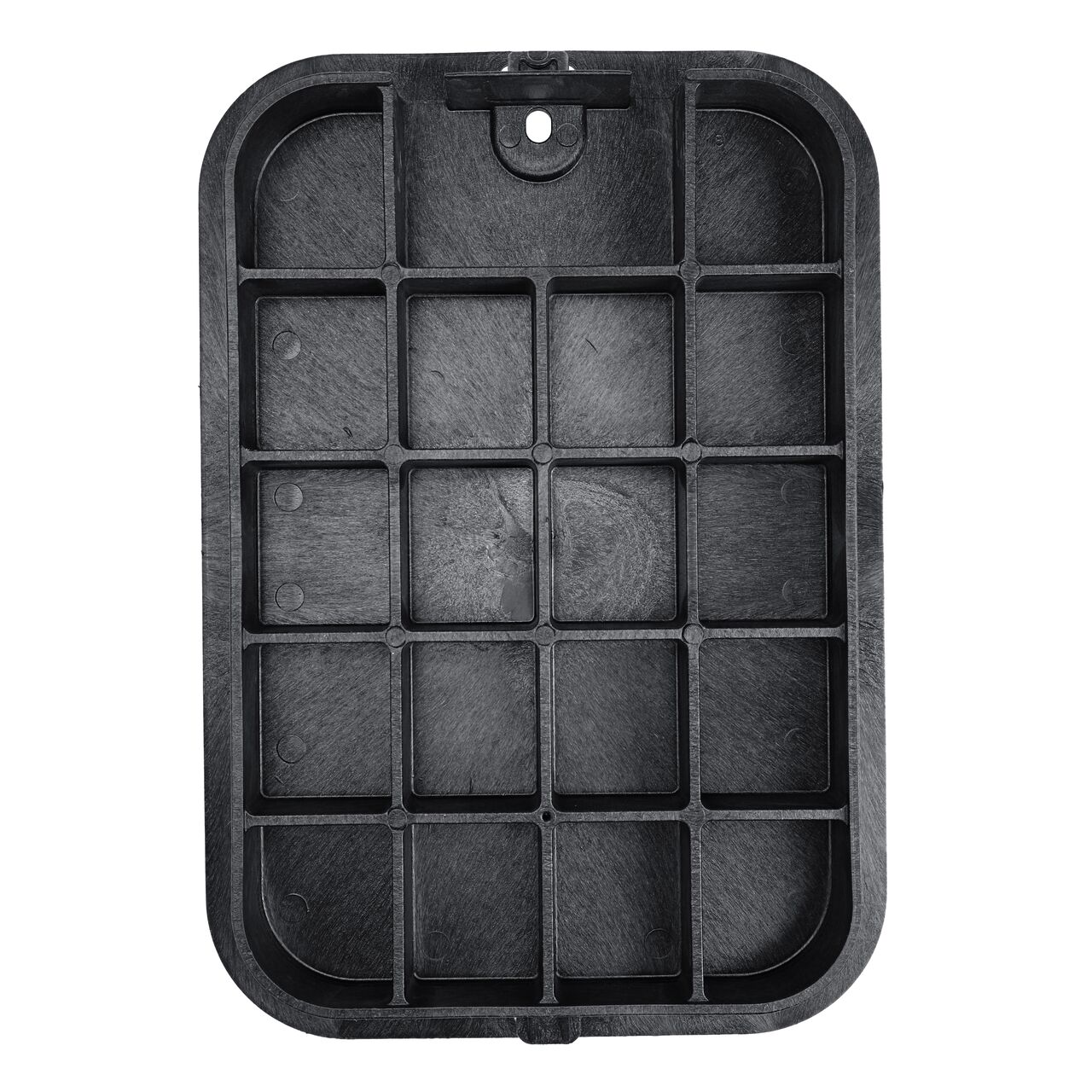

Top down view of the underside side of the Black Irrigation Control Valve cover (NDS 113BCBLK) for the NDS 14 X 19 Rectangular Standard Series valve box, showing reinforcing ribs that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment

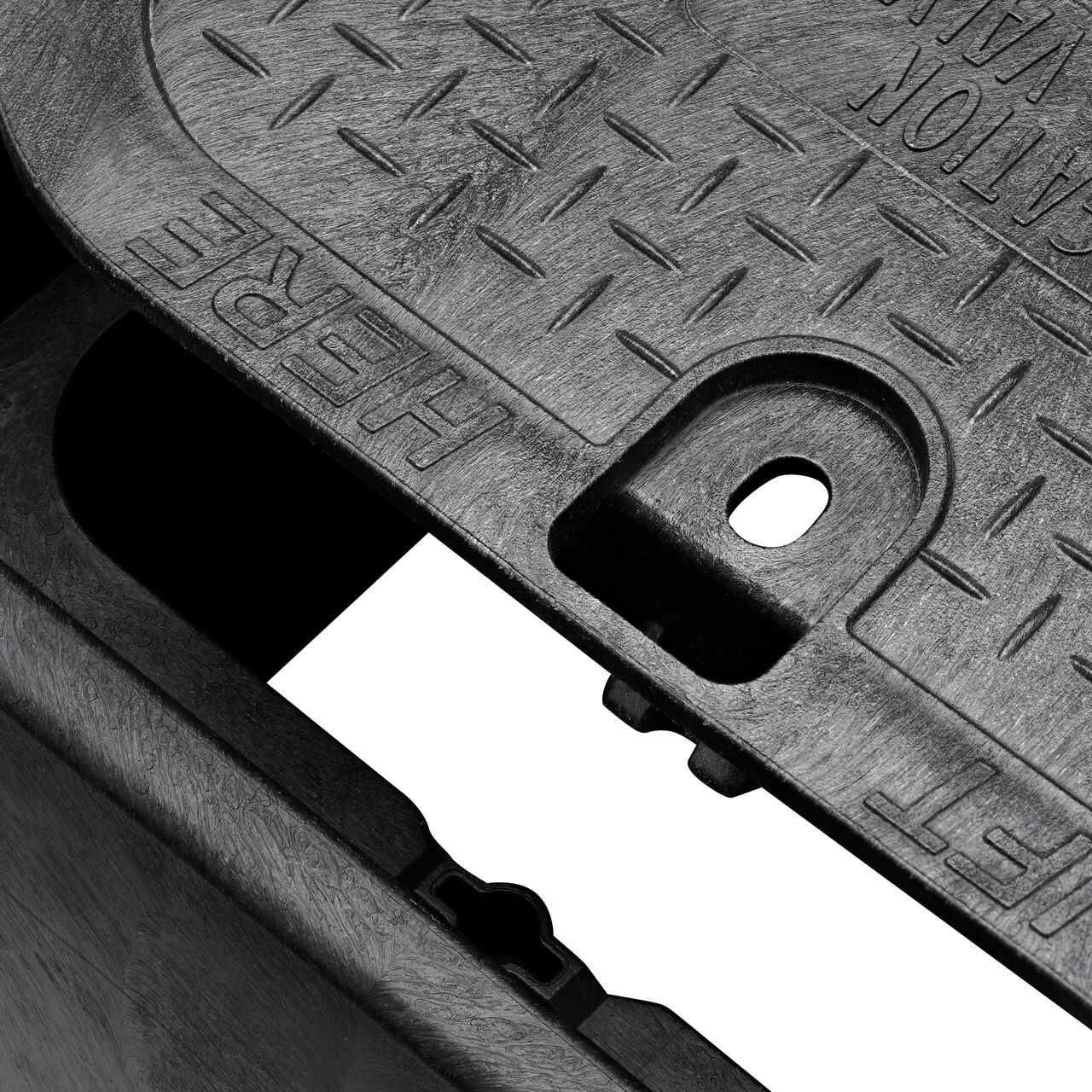

Align the bolt hole on the lid with the bolt hole from the NDS 14 X 19 in. Rectangular Standard Series Black Box and Black Irrigation Control Valve Cover (NDS 113BCBLK) for a secure fit

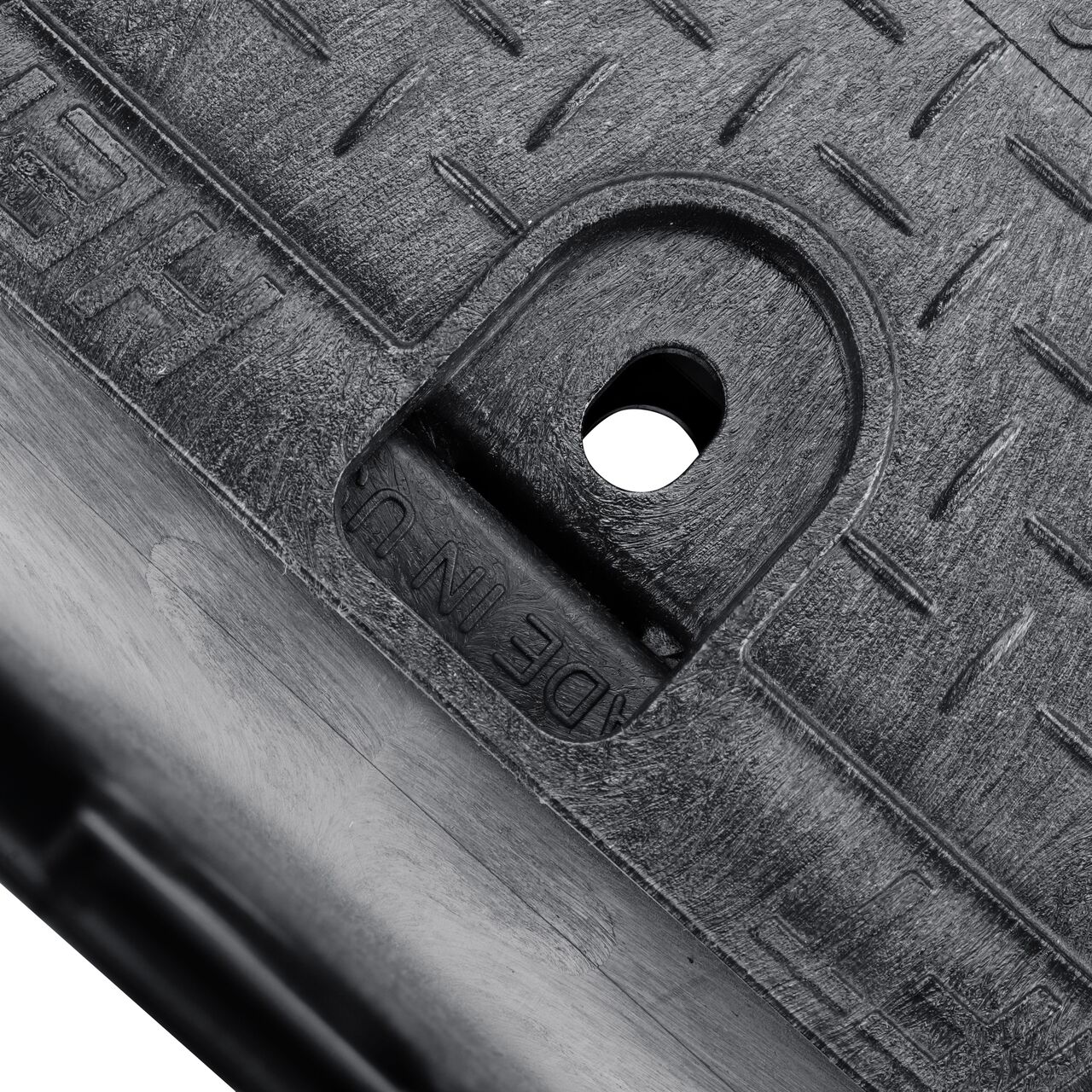

The valve box lid and bolt securely in place on the NDS 14 X 19 in. Rectangular Standard Series Black Box and Black Irrigation Control Valve Cover (NDS 113BCBLK) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight

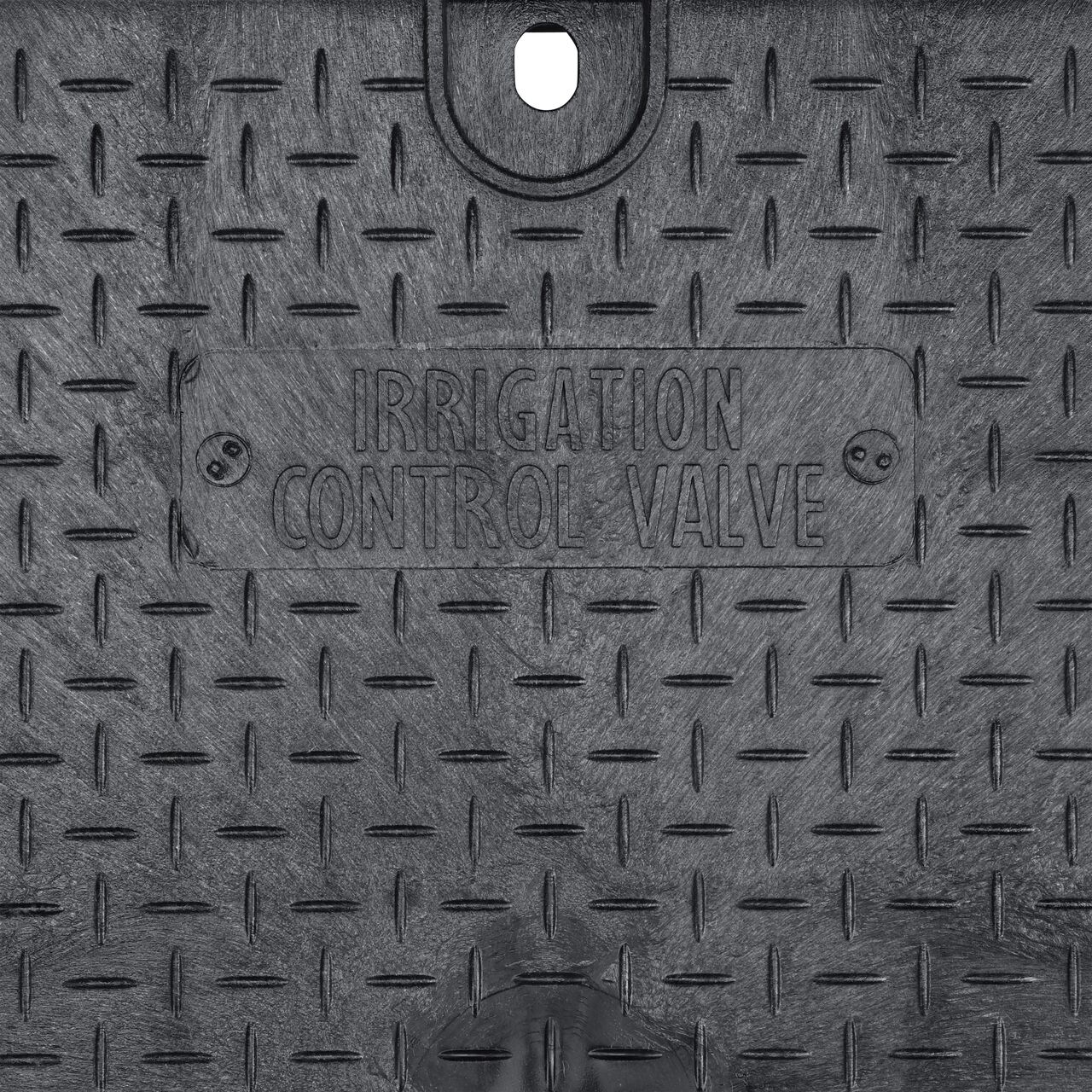

Closeup view of the Irrigation Control Valve markings on the Black Irrigation Control Valve cover for the NDS 14 X 19 in. Rectangular Standard Series Valve Box (NDS 113BCBLK)

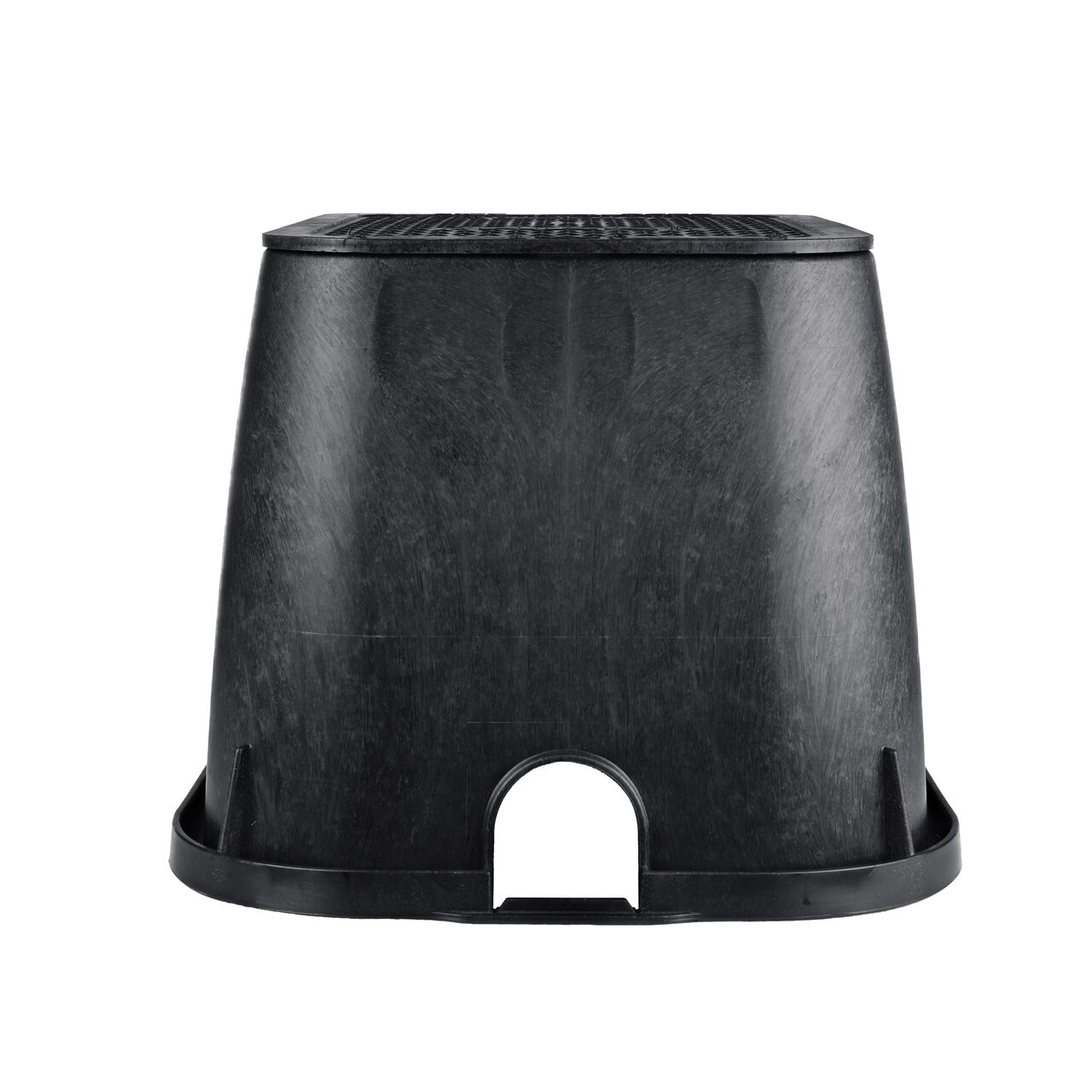

Side view of the shorter width side of the NDS 14 X 19 in. Rectangular Standard Series Valve Box & Irrigation Control Valve Cover (NDS 113BCBLK) rugged enclosure that features a pipe hole for water and irrigation pipe connections

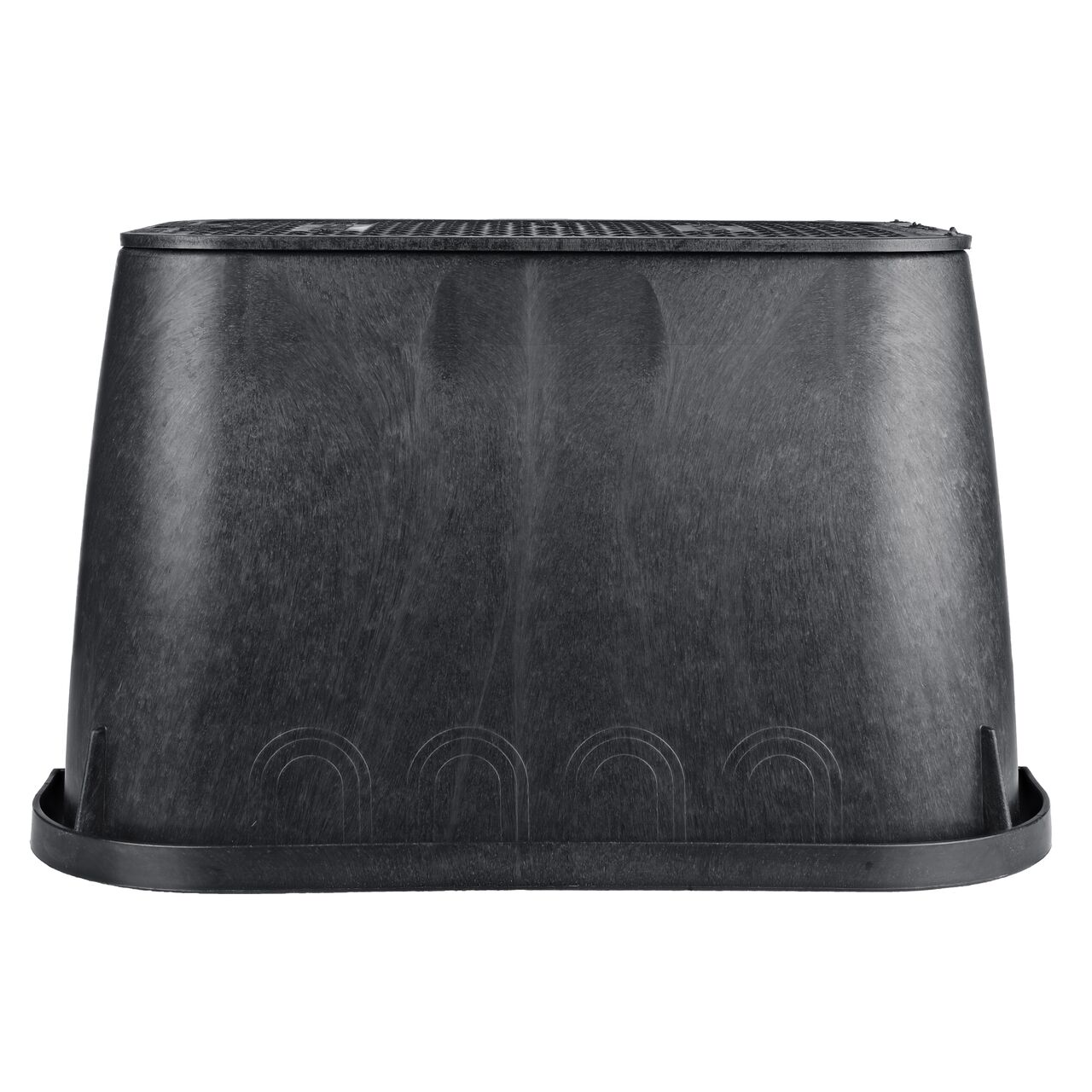

Side view of the longer length side of the NDS 14 X 19 in. Rectangular Standard Series Valve Box & Irrigation Control Valve Cover (NDS 113BCBLK) which is engineered for superior strength with structural reinforcing ribs
Top down view of the top side of the Black Irrigation Control Valve cover for the NDS 14 X 19 in. Rectangular Standard Series (NDS 113BCBLK) shows markings for easy identification
Closeup view of the NDS logo and Irrigation Control Valve markings on the Black Irrigation Control Valve cover for the NDS 14 in. X 19 in. Rectangular Standard Series Valve Box (NDS 113BCBLK)
Unassembled View of the NDS 14 X 19 in. Rectangular Standard Series Black Box and Black Irrigation Control Valve cover with bolt (NDS 113BCBLK), that secures the overlapping lid onto the box
The NDS 14 X 19 in. Rectangular Standard Series Valve Box and Cover with Bolt is a 12 in. high Black Box and Black Cover with Irrigation Control Valve markings on the overlapping lid (NDS 113BCBLK) and protects underground irrigation and sprinkler system components and keeps them out of sight
Top down view of the underside side of the Black Irrigation Control Valve cover (NDS 113BCBLK) for the NDS 14 X 19 Rectangular Standard Series valve box, showing reinforcing ribs that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment
Align the bolt hole on the lid with the bolt hole from the NDS 14 X 19 in. Rectangular Standard Series Black Box and Black Irrigation Control Valve Cover (NDS 113BCBLK) for a secure fit
The valve box lid and bolt securely in place on the NDS 14 X 19 in. Rectangular Standard Series Black Box and Black Irrigation Control Valve Cover (NDS 113BCBLK) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight
Closeup view of the Irrigation Control Valve markings on the Black Irrigation Control Valve cover for the NDS 14 X 19 in. Rectangular Standard Series Valve Box (NDS 113BCBLK)
Side view of the shorter width side of the NDS 14 X 19 in. Rectangular Standard Series Valve Box & Irrigation Control Valve Cover (NDS 113BCBLK) rugged enclosure that features a pipe hole for water and irrigation pipe connections
Side view of the longer length side of the NDS 14 X 19 in. Rectangular Standard Series Valve Box & Irrigation Control Valve Cover (NDS 113BCBLK) which is engineered for superior strength with structural reinforcing ribs

Protect underground irrigation and sprinkler system components with the 14 X 19 in. Rectangular Standard Series Valve Box and Cover. The black access box is 12 in. high and engineered with 16 structural support ribs for durability. The durable enclosure features the patented Universal Locking Mechanism (ULM) that enables the valve box cover to be secured with a variety of bolts and screws (3/8 to 1/2 in. diameter, minimum 2-1/2 in. length) without the need for a nut. A speed nut shelf is also built into the box as an alternative way to fasten the cover using the traditional bolt/screw and nut (bolt and nut not included). Built-in pipe holes allow irrigation piping to pass through the wall of the box so that the box does not rest on the pipe. The black overlapping cover prevents dirt and debris from entering the valve box and is marked "IRRIGATION CONTROL VALVE" for content identification. The edge of the cover also indicates where to lift. The irrigation valve box is made of polypropylene (PP) and the lid is made of high-density polyethylene (HDPE), both treated with UV inhibitors.

Applications:

  • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
  • Fits over underground irrigation components
  • Use to protect irrigation system components

Features:

  • Patented Universal Locking Mechanism (ULM) enables the valve box lid to be secured without requiring a traditional nut; works with a variety of bolts and screws from 3/8 in. to 1/2 in. in diameter and at least 2-1/2 in. long
  • Conceal and protect irrigation components without cluttering the landscape
  • Built to last with structural reinforcing ribs for durability; box made of polyethylene (PP) and lid made with high-density polyethylene (HDPE), both treated with UV inhibitors to stand up to the elements
  • Prevents debris from entering; overlapping cover can be levered open with a flathead screwdriver; easy installation with built-in pipe holes to accommodate irrigation pipe connections
  • Load rated to withstand pedestrian traffic and the rigors of lawn care equipment
